Thrie Beam 3-Wave Highway Guardrail
The Madoors USA Thrie Beam (3-Wave) Highway Guardrail System is a high-strength hot-dip galvanized steel roadside safety barrier providing maximum protection against heavy vehicle impacts — the triple-wave profile distributes impact energy over a broader surface area than standard W-beam systems, reducing collision force and guiding the vehicle back onto the road in a controlled manner. Manufactured to EN 1461 galvanization standard, certified to EN 1317, MASH, and NCHRP 350 crash safety standards, available in 4-meter standard lengths with up to 3mm thickness and sigma, C-post, or custom post design, the Madoors USA Thrie Beam Guardrail is the preferred specification for national highways, dual carriageways, bridges, viaducts, dangerous bends, entry and exit ramps, airport and port internal roads, and median dividers where heavy vehicle traffic demands the highest available beam guardrail impact performance — with modular replaceable components for fast installation, easy maintenance, and cost-effective long-term lifecycle management.
TECHNICAL SPECIFICATIONS
The Madoors USA Thrie Beam Guardrail uses a triple-wave (3-wave) corrugated steel profile — the three-wave cross-section provides significantly greater section modulus and moment of inertia than the standard two-wave W-beam profile, directly increasing the bending resistance of the rail against the concentrated load of a heavy vehicle impact. The greater section modulus of the thrie beam profile allows the guardrail to resist the higher impact forces generated by heavy goods vehicles, buses, and trucks without the rail deforming to the extent that allows vehicle under-ride or over-ride — the two primary failure modes that result in the most severe injury outcomes at guardrail impact events involving heavy vehicles.
Profile type — Thrie Beam 3-wave corrugated steel. Material — hot-dip galvanized steel to EN 1461. Thickness — up to 3mm. Standard length — 4 meters per section. Post types — sigma post, C-post, and custom design options. Galvanization standard — EN 1461 confirming minimum zinc coating thickness for the long-term corrosion protection of outdoor highway infrastructure.
The 4-meter standard section length provides the modular installation unit that allows the complete guardrail run to be assembled from standard sections using standard installation equipment and standard post spacing without the custom cutting and fitting required for non-standard section lengths. The modular 4-meter length is also the standard replacement unit for post-accident maintenance — damaged sections are individually replaced with new 4-meter sections without requiring the replacement of adjacent undamaged sections.
Post type options — sigma post and C-post — provide the selection flexibility for different soil conditions, foundation requirements, and structural performance specifications. Sigma posts provide high bending resistance for the vehicle impact lateral load. C-posts provide an alternative structural section for specific design requirements. Custom post design is available for non-standard installation conditions including rock anchoring, bridge deck fixing, and reinforced concrete foundation mounting.
EN 1317, MASH, and NCHRP 350 certification provides the complete international regulatory framework coverage — EN 1317 for European and internationally aligned highway authority specification, MASH for current US federal highway safety evaluation, and NCHRP 350 for legacy US specification references. The triple standard certification directly enables the Madoors USA Thrie Beam to be specified for any international highway project without regulatory standard limitation.
KEY FEATURES
Triple-Wave Profile — Maximum Energy Distribution
The triple-wave cross-section profile is the fundamental structural advantage of the Thrie Beam over W-beam — the three waves provide a greater cross-sectional area and higher section modulus than the two-wave W-beam, distributing the impact force over a broader profile face and providing greater resistance to the bending moment that a vehicle impact applies to the rail section. This greater energy distribution directly reduces the probability of rail failure under heavy vehicle impact, maintaining vehicle redirection guidance even under the highest loading scenarios encountered at national highway heavy vehicle corridors.
Heavy Vehicle Traffic Specification — Trucks, Buses & HGVs
The Thrie Beam system is specifically designed for areas with intense heavy vehicle traffic — national highways, dual carriageways, bridges, and ramps where the proportion of trucks, buses, and heavy goods vehicles in the traffic stream creates the highest-energy impact scenarios. The standard W-beam is designed for mixed traffic including light vehicles, but the Thrie Beam profile provides the additional structural performance required to redirect heavy vehicles without the rail deformation and under-ride failure that W-beam can experience under heavy vehicle impact loading at highway speeds.
Hot-Dip Galvanized to EN 1461 — Long-Term Outdoor Durability
The hot-dip galvanization to EN 1461 standard provides the minimum zinc coating thickness specification required for the 25 to 30-year design service life of highway infrastructure — the EN 1461 standard is the recognized European standard for hot-dip galvanized coatings on fabricated steel, confirming that the coating thickness and adhesion provide the corrosion protection required for continuous outdoor exposure to weather, road de-icing salt, and the chemically aggressive environment of highway infrastructure throughout the design service life.
EN 1317, MASH & NCHRP 350 — International Multi-Standard
The triple crash standard certification provides the international regulatory acceptance required for national government, highway authority, and private sector infrastructure project procurement across the complete range of regulatory frameworks used by international clients. Madoors USA's engineering support, site inspection, and customized solutions capability alongside the multi-standard certification provides the end-to-end project solution that highway authorities and private developers require — certified product performance plus project delivery support from a single source.
Modular 4-Meter Sections — Fast Installation & Easy Maintenance
The 4-meter standard section modularity provides the installation efficiency of standard equipment and standard crew capability — no cutting, no custom fitting, and no specialist installation equipment is required for standard installations. Post-accident maintenance uses the same standard 4-meter replacement sections with standard installation equipment, directly minimizing the traffic management duration and repair cost of post-accident barrier restoration. This modular replaceability is the maintenance cost advantage that makes the Thrie Beam system cost-effective over the full infrastructure lifecycle.
Bridge, Viaduct & Ramp Applications — Elevated Structure Compatibility
The Thrie Beam's confirmed suitability for bridge and viaduct sides and entry and exit ramps confirms that the system is engineered for the structural mounting requirements of elevated highway structures — post fixing to bridge deck concrete and steel structures, the increased barrier performance requirements at elevated drop-off edges, and the higher wind loading and vehicle speed conditions of elevated highway structures. This elevated structure compatibility makes the Thrie Beam the complete highway barrier solution covering both at-grade and elevated applications from the same product system.
PRODUCT RANGE
Standard Thrie Beam Rail — 3mm thickness, 4-meter sections, hot-dip galvanized to EN 1461, sigma post mounting. National highway and dual carriageway median and roadside specification.
Heavy-Duty Thrie Beam Rail — Maximum thickness specification for the highest-energy impact locations — bridge sides, ramp terminals, and high-speed heavy vehicle corridors.
Thrie Beam to W-Beam Transition — Transition sections connecting Thrie Beam runs to adjacent standard W-beam guardrail — managing the stiffness change between the two profile types at the junction positions.
Bridge and Viaduct Mounted System — Post fixing systems for concrete deck and steel beam bridge structures. Custom post design for the specific bridge structure connection requirement.
Median Barrier System — Back-to-back Thrie Beam configuration for central reservation median barrier at dual carriageways. Provides containment from both traffic directions.
ASSEMBLY & INSTALLATION SEQUENCE
Site Survey & Design
Road geometry, vehicle traffic composition and speed, required EN 1317 or MASH performance class, post type — sigma, C-post, or custom — post spacing, terminal and transition positions, and median or roadside configuration are confirmed.
Terminal Anchor & End Treatment Installation
Terminal anchor sections and crash-tested end treatments are installed at both ends of each guardrail run before the main rail installation — the terminals are the first and last sections installed and must be correctly positioned before the intermediate sections.
Post Installation
Sigma or C-posts are driven to the confirmed embedment depth at the specified post spacing along the guardrail run. Post level and alignment are confirmed for consistent rail height throughout the installation.
Rail Section Installation & Bolting
4-meter Thrie Beam rail sections are installed on the posts in the confirmed overlap sequence — each section overlaps the adjacent section in the direction of traffic flow. Section-to-section and section-to-post connection bolts are installed to the specified torque.
Transition Section Installation
Thrie Beam to W-beam transition sections are installed at the confirmed junction positions between the Thrie Beam run and adjacent standard W-beam guardrail.
EN 1317/MASH/NCHRP 350 Certification & Handover
Crash test certification at the specified performance class, EN 1461 galvanization certification, installation records, and maintenance guide are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Thrie Beam (3-Wave) Highway Guardrail Systems are specified for any roadside safety barrier application with heavy vehicle traffic and high-energy impact requirements.
- National highway median Thrie Beam barrier installation
- Dual carriageway central reservation median barriers
- Highway bridge and viaduct side guardrail systems
- Motorway entry and exit ramp guardrail installation

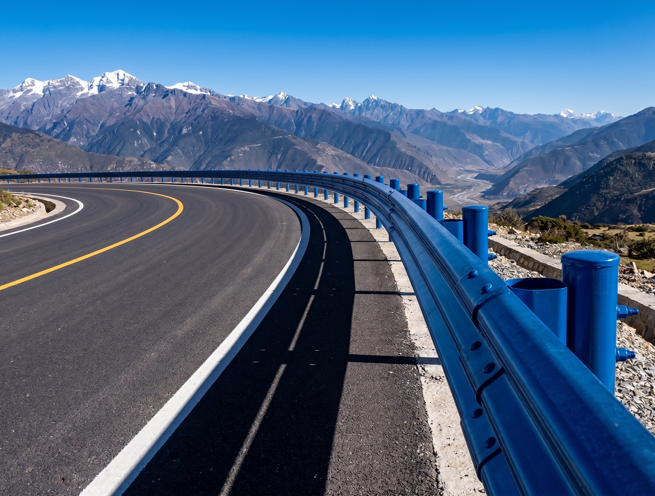

- Dangerous bend and horizontal curve guardrail
- Roadside drop-off and embankment edge protection
- Airport internal road heavy vehicle guardrail
- Port and maritime terminal internal road barriers
- Industrial and logistics facility access road guardrail
- Highway work zone heavy vehicle barrier systems
- Mountain road switchback and steep gradient guardrail
- Tunnel portal approach guardrail installation
- Heavy goods vehicle route roadside protection
- Any road safety barrier application requiring EN 1317, MASH, or NCHRP 350 certified Thrie Beam heavy vehicle impact performance with hot-dip galvanized long-term durability
