X-Ray Body/Person/Human Scanner

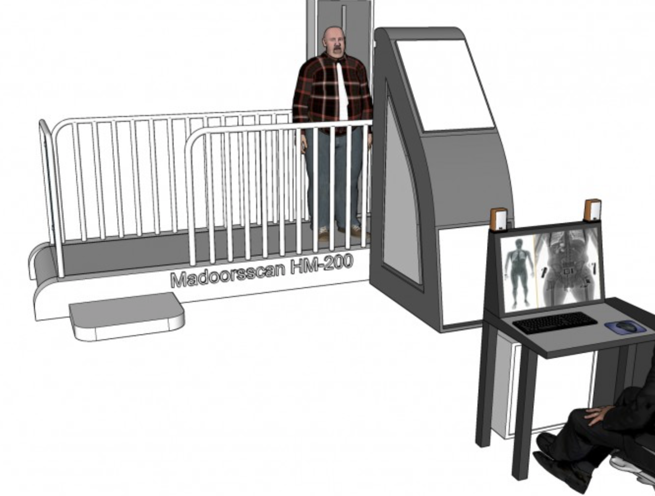

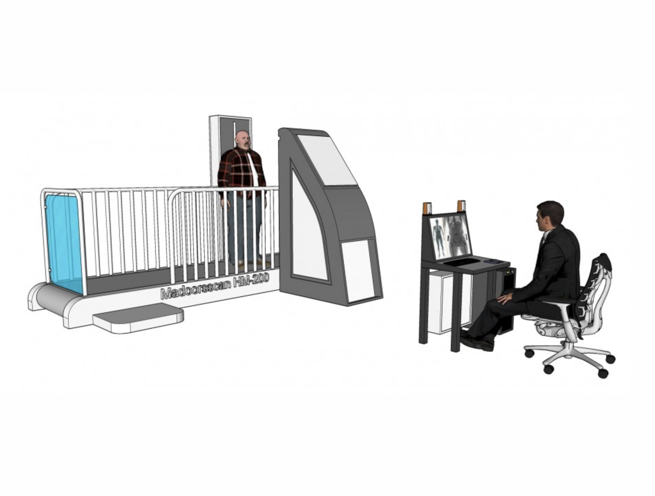

Madoorscan-HM2000 is an advanced micro dose X-ray inspection equipment for checking contrabands and/or thread objects hidden in or attached to human body. With the latest computer technology and digital image processing algorithm, and adopting X-ray line scanning mode, it provides for contraband and/or thread objects identification. The equipment conforms to the relative standards of micro dose X-ray security inspection system, and the regulations regarding to the protection against damages caused by X-ray. The safety measures and devices have been used in the system which can provide full protection for both operator and inspected personnel during inspection. With a compact design, it is ideal for security inspection for human body at ports, airports, customs, railway stations, government buildings and other public gathering situations. It also can be installed on the vehicle for mobile operation.

Features / Performance Parameters
Weight: approx.1000kg
Dimension: 2500(L)× 1852(W)× 2450(H)mm
Tunnel Size: 700(W)× 2000(H)mm
Scanning efficiency: less than 12 seconds / time
Resolution: φ0.16mm wire
Dose per inspection: Less than 5μSv, less than 1% single chest X-ray measurement, complying with health and safety regulations of radiation equipment and all published international standards
Conveyor Speed: approx. 0.20m/s
Max. Load: 120 kg
Power Consumption: Approx. 0.9kV

X-Ray Full Body Inspection
Madoorsscan uses backscatter technology as well as madoorsscan x-ray body scanner proprietary image processing software and an operator-friendly interface to rapidly and comprehensively screen passengers for a wide range of potential threats including liquids, contraband, ceramics, explosives, narcotics, concealed currency and weapons. Advanced Imaging Detects Range of Threats: The madoorsscan can detect small objects and threats concealed on a passenger. It can detect organic and inorganic threats, metals and non-metallic objects. With one system, customers can detect concealed liquids, ceramics, weapons, plastic explosives, narcotics, metals, contraband, currency etc.

X-ray person human scanning system Technology Overview
How Does a madoorsscan Work?

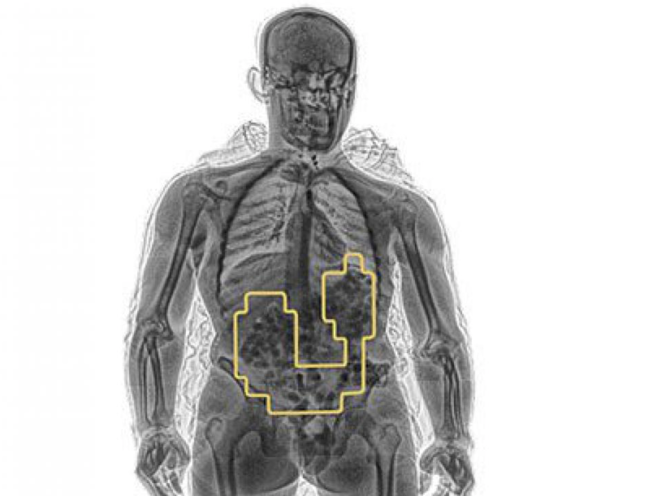

The Madoorsscan bounces very low dose of X-rays off of a person to generate an image. This image is then analyzed by an operator to identify concealed potential threats.

SCANNING TECHNOLOGY IS SAFE
Independent research studies confirm the results of safety testing performed by government agencies. These results show that MAdoorsscan's body scanning technology is safe.
A person would have to receive more than 1,000 screenings to begin to approach the annual exposure limits.
The American College of Radiology reports a traveler would have to get more than 1,000 scans in a year to reach the effective dose of radiation equal to one chest x-ray.
Based on these testing and study results, pregnant women, children and the elderly, or people with special medical needs can safely undergo a scanner screening.
The latest report published by the European Union's Scientific Committee on Emerging and Newly Identified Health Risks (SCENIHR), confirms that the use of backscatter X-ray technology in body scanners is safe to use at security checkpoints.

BENEFITS OF MADOORSSCAN HM-200 WHOLE BODY IMAGER
Best X-ray image quality
Easiest to use and operate
Fast throughput
Most flexible

MADOORSSCAN HM-200 FULL BODY SCANNER OPTIONS
Software for automatic narcotics detection
Fingerprint scanner
CCTV, Barcode reader
Passport reader
Face camera
Intercom system
Bulletproof cabin
Multi-operator function
Laser printer
