Wooden Automatic Swing Gate
The Madoors USA Wooden Automatic Swing Gate range covers the complete spectrum of timber gate construction and automation — from solid wooden frames with wooden inserts through to metal-framed gates with wooden infills, wooden clad gates, and premium solid oak gates — all tailored to individual requirements in single-leaf and twin-leaf configurations, inward and outward opening, with underground hidden motor, surface gate arm, or universal articulated arm drive systems. With all timber constructions specifically engineered from the outset to address the natural movement, weathering, and automation stress that wood experiences — preventing the twisting and joint failure that affect poorly designed wooden automatic gates — Madoors USA provides automatic wooden swing gate systems that combine the natural warmth and traditional character of timber construction with reliable, long-service automated operation.
TECHNICAL SPECIFICATIONS
Automatic wooden swing gate systems are available in the following configurations. Single-leaf for narrower openings where one gate leaf provides the required vehicle and pedestrian access. Twin-leaf — two gate leaves opening simultaneously — for wider openings, providing the most common automatic wooden gate configuration where each leaf opens to one side and the combined clear opening width accommodates vehicle access while the halved individual leaf swing arc reduces the driveway intrusion of each leaf.
Inward-opening is the standard configuration for most residential driveway applications — the leaves swing back into the property, away from the road or approach. Outward-opening is specified where the driveway inclines toward the property — the downhill gate leaf needs to travel uphill to open inward, which either requires significant gate mass rearrangement or special hinge engineering. Outward opening eliminates this challenge by swinging the gate away from the hill. Where outward opening is not practical or desirable, inward opening on an inclined driveway can be achieved using kicking hinges or rising hinges — special hinge arrangements that lift the gate leaf as it swings, navigating the gate over the inclined ground surface without contact.
Three drive system categories cover different installation preferences, budget levels, and aesthetic requirements. Underground motors — hidden systems with no visible mechanism above ground — are the most popular type in Madoors USA experience, providing the most aesthetically integrated result where the gate appearance is completely unaffected by visible motor hardware. Surface gate arms — above-ground linear or articulated arm drives mounted on the gate post and gate leaf — provide a more economical installation with simpler civil works. Universal articulated arms — jointed arm systems — provide installation flexibility for post and gate leaf configurations that standard linear arms cannot serve.
Drive unit technologies across underground and surface arm types include hydraulic drive for heavy gates and highest-cycle applications, and electro-mechanical drive in 240V AC mains voltage for standard residential applications and 24V DC low-voltage for high-efficiency and battery-backup-compatible installations.
KEY FEATURES
Natural Timber — Weather Movement Engineering
All Madoors USA wooden automatic swing gate designs specifically address the natural movement of timber caused by weather changes and temperature variation — wood is a natural breathing material that expands and contracts with moisture absorption and temperature cycling throughout the year. This movement, combined with the additional loads and stresses of automation, can considerably reduce gate life through joint opening, panel cracking, and frame twisting if not addressed in the design from the outset. Madoors USA prevents these failures through correct structural design — with metal bracing across major timber joints, additional strengthening rails along wider panels, and hinge and hardware specification that accommodates timber movement without creating stress concentrations at the connections.
Metal Bracing — Wide Span & High-Stress Applications
Additional metal bracing across major timber joints is incorporated wherever the gate dimensions and automation loading create stress concentrations that the timber construction alone cannot reliably withstand over the service life. Wide 5-bar gates — the traditional rural and agricultural timber gate design with five horizontal rails — require an additional timber rail and metal bracing bar along their length to maintain panel flatness and joint integrity under automation cycling and weather movement. This bracing specification is applied as a design requirement rather than a retrofit repair — ensuring that the installed gate performs correctly from day one throughout its full service life.

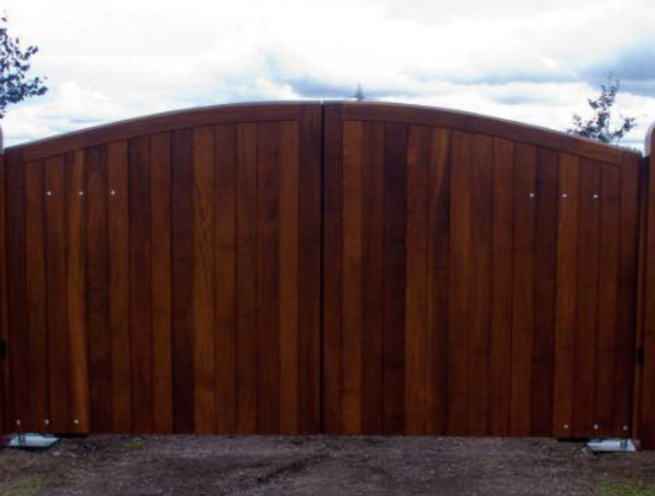

Twin-Leaf Inward Opening — Standard Residential Configuration
The majority of automatic wooden swing gate systems are twin-leaf inward-opening — the standard configuration that provides the optimal balance of clear opening width, individual leaf swing arc, driveway intrusion, and operation speed for the majority of residential driveway applications. Twin-leaf halves the swing arc of each individual leaf compared to a single-leaf gate of the same total opening width — reducing the driveway intrusion depth of each leaf and allowing the gate to reach the fully open position more quickly for the same motor speed.
Underground Hidden Motors — Most Popular & Most Aesthetic
Underground motors are consistently the most popular drive system choice in Madoors USA experience — despite the higher installation cost — because the completely hidden installation preserves the gate appearance without any visible mechanical hardware detracting from the timber craftsmanship. For premium timber gates where the gate design is a significant aesthetic feature of the property entrance, any visible motor hardware would compromise the visual quality of the installation. Underground systems additionally allow opening up to 180 degrees — particularly useful for driveways that fan out behind the gate opening, and for outward-opening configurations where the full 180-degree arc clears the gate away from the roadway completely.
Surface Gate Arms — Economic Above-Ground Option
Surface-mounted gate arm systems — linear hydraulic or electro-mechanical arms mounted visibly on the gate post and gate leaf — provide a more economical installation where the additional civil works and equipment cost of underground systems are not justified by the installation budget or aesthetic requirement. Surface arms are straightforward to install, easy to access for maintenance, and available in hydraulic and electro-mechanical versions matching the full range of gate weights and cycle rates.
Universal Articulated Arms — Installation Flexibility
Universal articulated arm systems provide the installation flexibility for gate post and leaf configurations where the geometry prevents standard linear arm installation — with the jointed arm accommodating the specific post setback, gate leaf width, and opening angle combinations that linear arms cannot serve. Universal arms are always electro-mechanical in design, providing a reliable and maintenance-accessible drive for non-standard gate configurations.
Hydraulic & Electro-Mechanical Drive — Both Underground & Surface
Both underground and surface arm systems are available in hydraulic and electro-mechanical drive variants. Hydraulic drive provides the highest force output for the heaviest timber gate leaf weights and the most demanding continuous-duty cycle rates — maintaining consistent performance in extreme temperature conditions encountered at outdoor residential and commercial gate installations. Electro-mechanical drive provides energy-efficient, electronically managed operation for standard residential gate weights at 240V AC mains voltage or 24V DC low-voltage for high-efficiency and battery-backup-compatible installations.
Kicking Hinges & Rising Hinges — Inward Opening on Inclined Driveways
For inclined driveways where outward opening is neither practical nor desirable, kicking hinges or rising hinges allow inward-opening gates to navigate over the rising ground by lifting the gate leaf as it swings — the special hinge geometry converts the horizontal swing arc into a combined horizontal and vertical movement that clears the rising driveway surface without gate-to-ground contact. This specialized hinge engineering extends the application range of inward-opening wooden swing gates to sites that would otherwise require outward opening or significant earthworks.
Solid Oak & Premium Timber Options

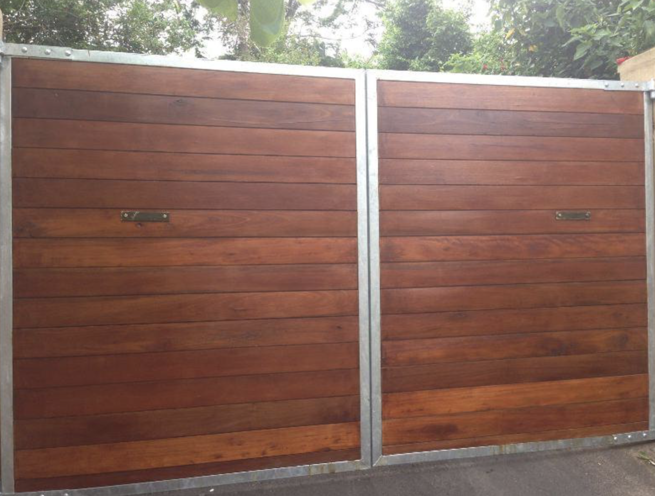

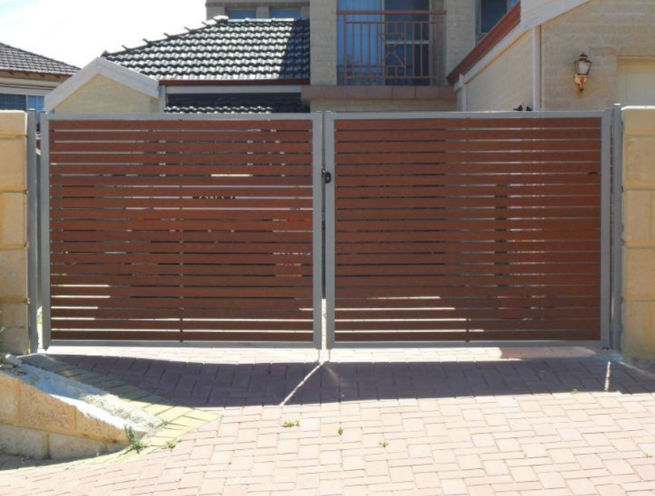

The full range of timber species and construction types — solid wooden frames with wooden inserts, metal-framed with wooden infills, wooden-clad gates, and premium solid oak construction — provides timber gate options across the full quality and price spectrum from cost-effective standard residential gates through to premium solid oak entrance gates for the most prestigious residential and commercial applications. Solid oak construction provides the maximum timber density, weathering resistance, and longevity available in timber gate construction — justifying the premium over softwood and engineered timber alternatives at properties where long service life and premium appearance are the overriding selection criteria.
DRIVE SYSTEM COMPARISON
Underground Hidden Systems — Most popular. No visible hardware. Highest aesthetic quality. Opens up to 180 degrees. More expensive installation. Hydraulic or electro-mechanical. 240V AC or 24V DC.
Surface Linear Arms — Visible above ground. More economical. Simpler installation. Easy maintenance access. Hydraulic or electro-mechanical. 240V AC or 24V DC.
Universal Articulated Arms — Visible above ground. Installation flexibility for non-standard geometries. Always electro-mechanical. 240V AC or 24V DC.
ASSEMBLY & INSTALLATION SEQUENCE
Gate Design & Drive System Selection
Gate construction type — solid wood, metal frame with infill, or oak — single or twin leaf, opening direction — inward or outward — drive system type — underground, surface arm, or universal arm — hydraulic or electro-mechanical, voltage — 240V AC or 24V DC — hinge type — standard or kicking/rising for inclined driveways — and access control requirements are confirmed.
Structural Design & Bracing Specification
Gate frame dimensions, panel configuration, metal bracing positions at major timber joints, and additional rail requirements for wide 5-bar or large panel gates are confirmed in the structural design. Hinge and hardware specification for the gate leaf weight and automation loading is finalized.
Foundation & Post Works
Gate post and pillar foundations are constructed. For underground motor systems, motor chamber excavations and concrete housing are constructed at each gate post position. For surface arm systems, motor bracket mounting positions on posts are prepared.
Gate Manufacturing
Timber gate leaves are manufactured to the confirmed structural design — with metal bracing, additional rails, and hardware reinforcement incorporated during manufacture. Premium finishing of visible timber surfaces and ironmongery is completed.
Gate Hanging & Hinge Installation
Gate leaves are hung on the confirmed hinge type at the gate posts or pillars. For kicking or rising hinges, the hinge geometry is set and verified for correct gate clearance over the inclined driveway surface through the full swing arc.
Motor Installation & Connection
Underground motors are installed in the motor chambers and connected to the gate leaves. Surface arms or universal arms are mounted on the post brackets and connected to the gate leaves. Hydraulic or electro-mechanical drive connections and electrical supply are completed.
Access Control Installation & Programming
Specified access control devices are installed and connected to the motor control system. Travel limits, opening speed, closing speed, and safety sensor settings are programmed. Manual operation during power failure is tested.
Final Inspection & Handover
Complete operational testing across all automated and manual functions is conducted. Timber construction quality, bracing integrity, and hardware installation are inspected. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Wooden Automatic Swing Gates are specified for any residential or commercial entrance requiring the natural warmth and traditional character of automated timber swing gate construction.
- Residential driveway premium timber automatic swing gates
- Country house and estate entrance solid oak swing gates
- Rural property and agricultural entrance 5-bar timber gates
- Heritage and period property automatic wooden entrance gates
- Hotel and hospitality property carriage entrance wooden gates
- Golf club and leisure property entrance wooden swing gates
- Educational institution and school entrance timber gates
- Religious institution and church entrance wooden gates
- Commercial property and business entrance wooden gates
- Agricultural estate and farmhouse entrance automatic gates
- Eco-property and sustainable building entrance timber gates
- Vineyard and rural tourism property entrance wooden gates
- Equestrian property and stables entrance swing gates
- Luxury residential development entrance timber gates
- Any property requiring custom premium wooden automatic swing gate
