Please provide your technical specifications and project requirements for the Wet Signed Document Paper Burning Shredder. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.

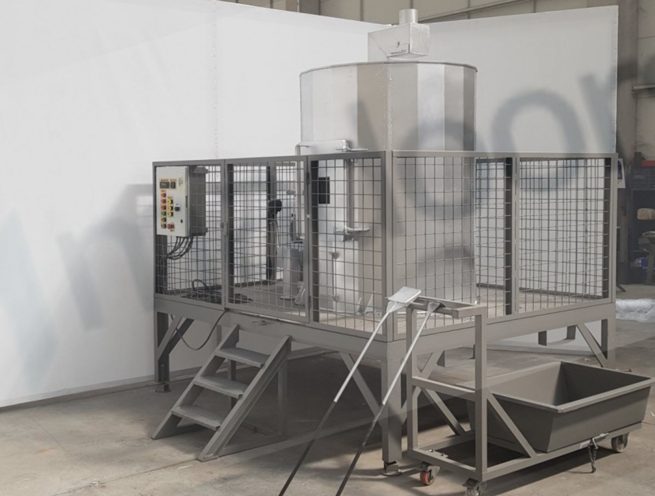

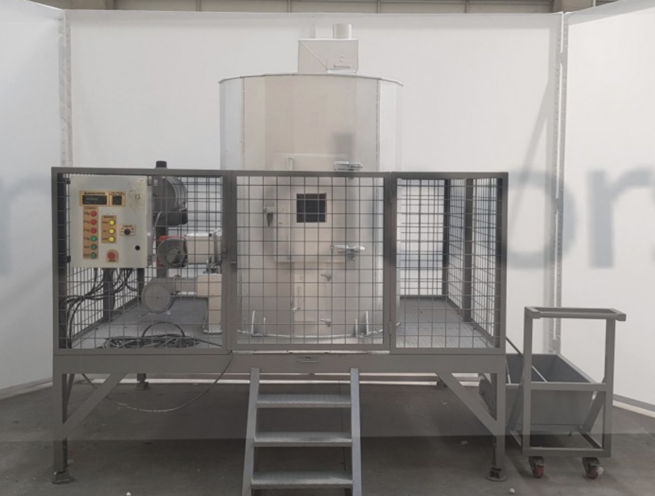

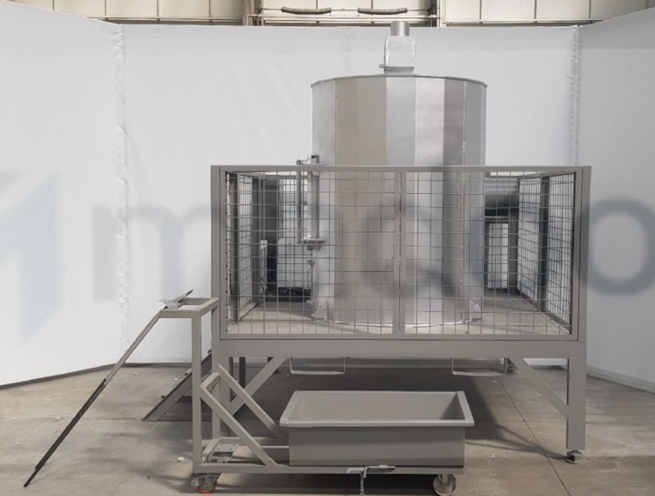

The Madoors USA Wet Signed Document Paper Burning Shredder is a 100% company-developed PLC-automated document incineration system for the complete and irreversible destruction of wet-signed documents, archived paper documents, and confidential files at state public institutions, government agencies, and corporate companies — eliminating the security risk of delivering sensitive documents to third-party destruction services. Up to 4 sacks of documents are loaded into the burning boiler in a single cycle, the operator closes the lid and presses one button, and the PLC automation system manages the complete combustion cycle — burner ignition, rotating drum document mixing for complete combustion, air-injection snail fans for oxygen-supported full burn, and watery chimney system retaining all combustion deposits — releasing only clean, environmentally harmless gas to the external environment. Ministry of Environment certified chimney health report confirms environmental compliance for urban installation at government and corporate facilities.
TECHNICAL SPECIFICATIONS
The Madoors USA Document Burning Shredder operates through a single-button fully automated combustion cycle managed by the PLC automation system and software. The operator loads documents — up to 4 sacks per cycle — into the burning boiler chamber, closes the lid, and presses the single activation button. The PLC fires the burner system, which initiates combustion within the boiler.
The moving drum on the lower floor of the boiler rotates the document load continuously during the combustion cycle — the rotation turns and separates the document pages to allow air penetration into the document mass and complete combustion of all paper surfaces. Without rotation, tightly packed document sacks would burn only on the outer surface while inner pages survive intact — the drum rotation directly ensures that every page of every document is exposed to the combustion temperature for complete destruction.
The air-injecting snail fans push controlled air volumes into the combustion chamber at programmed intervals — the oxygen supply from the snail fans maintains the combustion temperature and completeness required for full paper incineration. The PLC controls the fan timing and duration to provide the correct oxygen-to-fuel ratio for complete combustion at each stage of the burn cycle — if oxygen is present in the combustion, complete combustion occurs and no intact document residue remains.
The gas accumulation from the combustion process is directed into the watery chimney system — the water in the chimney system captures the combustion particulates, soot, and chemical combustion products, retaining all deposits within the chimney water rather than releasing them to the external environment. Only the clean gas waste that is harmless to the environment is transmitted outside through the chimney — the watery chimney acts as the wet scrubber that removes all harmful combustion products from the exhaust stream.
The Ministry of Environment certified chimney health report confirms that the watery chimney scrubbing system reduces the chimney emissions to within the allowable limits for urban installation at government buildings and corporate facilities — the certification directly enables installation and operation in urban areas without violation of air quality regulations.
KEY FEATURES
100% Company-Developed PLC Automation — Single-Button Operation
The single-button operation that initiates the complete automated combustion sequence — burner ignition, drum rotation, fan air injection, and watery chimney scrubbing — directly eliminates the complexity and operator error risk of manually managed incineration. The PLC automation ensures that every combustion cycle follows the optimized sequence for complete document destruction regardless of operator experience, document volume, or document type. This automation is the essential operational simplicity that allows any authorized personnel to operate the system without specialist training.
Up to 4-Sack Capacity — High-Volume Single-Cycle Destruction
The up to 4-sack single-cycle capacity provides the high-volume destruction capability required for government and corporate institutions with large accumulations of signed documents requiring periodic destruction — the equivalent of thousands of individual document pages can be destroyed in a single automated cycle without the multiple loading, monitoring, and management steps that lower-capacity systems require. This high capacity directly reduces the time and staff effort required for institutional document destruction programs.
Rotating Drum — Complete Combustion of All Document Pages
The moving drum that rotates the document mass throughout the combustion cycle is the critical engineering feature that guarantees complete combustion of every page — without rotation, a 4-sack document load would have a combustion-resistant interior that survives the outer burn. The drum rotation continuously exposes new document surfaces to the combustion zone, directly ensuring that no intact page remains after the cycle. This complete page destruction is the fundamental security requirement — any surviving page represents a security breach of the entire destruction operation.
Snail Fan Air Injection — Oxygen-Supported Full Combustion
The snail fan air injection at programmed intervals provides the oxygen supply required for complete combustion at all stages of the burn cycle — the PLC-controlled timing ensures that the correct air volume is delivered precisely when the combustion chemistry requires it, maintaining the combustion temperature and fuel-air ratio for complete rather than partial burn. Complete combustion directly reduces the ash residue volume and ensures no recoverable document fragments remain.
Watery Chimney System — Complete Emission Capture
The watery chimney system that retains all combustion deposits — particulates, soot, and chemical combustion products — within the chimney water before releasing only clean gas externally is the environmental protection system that enables the Madoors USA document shredder to operate within urban environments at government buildings and corporate offices without violating air quality regulations. This watery scrubber is the technology that distinguishes the Madoors USA system from simple incinerators that release uncontrolled combustion emissions.
Ministry of Environment Certification — Urban Installation Compliance
The Ministry of Environment certified chimney health report directly confirms that the Madoors USA document incinerator meets the applicable environmental emission standards for urban installation — the certification is the regulatory compliance documentation required for installation and operation at government institutions in urban areas. Without this certification, document incinerators cannot legally operate at government and corporate facilities subject to urban air quality regulations.
Secure Single-Operator Confidential Document Destruction
The system design specifically for documents that are inconvenient to deliver to third parties — wet-signed originals, classified documents, and confidential records — provides the secure in-house destruction capability that eliminates the chain-of-custody risk of third-party destruction services. The single-operator, single-button operation allows authorized personnel to destroy their own documents independently without the document leaving their custody at any stage of the destruction process.
OPERATIONAL CYCLE SEQUENCE
Document Loading
The operator opens the boiler cover and loads the documents — up to 4 sacks — into the burning boiler chamber. Documents can be loaded in sacks without pre-sorting or page separation.
Cover Closure & Single-Button Activation
The operator closes the boiler lid and presses the single activation button. The PLC system takes complete control of all subsequent cycle operations.
Burner Ignition
The PLC fires the burner system — igniting combustion within the boiler chamber.
Drum Rotation & Document Mixing
The moving drum on the lower floor begins rotating — continuously turning and separating the document pages for complete air penetration and combustion exposure throughout the document mass.
Snail Fan Air Injection
Air-injecting snail fans push controlled air volumes into the combustion chamber at PLC-programmed intervals — maintaining the oxygen-supported combustion required for complete paper incineration throughout the cycle.
Watery Chimney Scrubbing
All combustion gases pass through the watery chimney system — all particulates, soot, and combustion chemical products are captured in the chimney water. Only clean, environmentally harmless gas exits to the external environment.
Cycle Completion
The PLC confirms complete combustion cycle completion. The system cools to safe temperature. The operator removes the ash residue — the complete document destruction is confirmed.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Installation Position
Indoor installation space, chimney routing from the boiler to the external chimney exit, power supply for PLC and burner, fuel supply connection, and access for document sack loading are confirmed.
Boiler & Mechanism Installation
The document burning boiler with drum rotation mechanism and snail fans is installed at the confirmed position. Structural support for the boiler weight and thermal clearances from surrounding structures are verified.
Watery Chimney System Installation
The watery chimney scrubber is installed and connected to the boiler exhaust outlet. Water supply and drain connections are completed. Chimney routing to the external exit is completed.

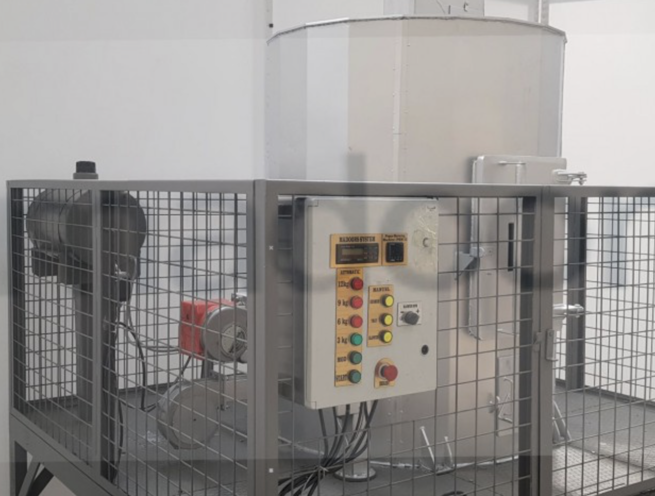

PLC Panel & Burner System Connection
The PLC electrical panel is installed and connected to the burner, drum motor, snail fans, and chimney system. Single-button activation and complete automated cycle programming are loaded and tested.
Operational Testing & Handover
Complete single-button automated cycle testing with test document load — burner ignition, drum rotation, fan injection, complete combustion, watery chimney scrubbing, and clean exhaust — is conducted. Ministry of Environment certification and operational instructions are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Wet Signed Document Paper Burning Shredders are specified for any government or corporate institution requiring in-house certified secure document destruction.
