Vertical Loading Dock Leveler
The Madoors USA VLDL-7000 Vertical Dock Leveler is a hydraulic vertical storing dock leveler engineered to provide security, efficiency, and cleanliness at loading dock positions — directly contributing to environmental efficiency, cold chain integrity, loss prevention, and productivity for climate-controlled warehouses storing food, beverages, pharmaceuticals, and other temperature-sensitive products. Used by some of the world's largest companies, the VLDL-7000 can be configured with the optional Thermal Guard Package allowing trailer doors to swing open into the building after docking — eliminating exposure to outside atmosphere, maintaining internal climate control, eliminating temperature fluctuations, and reducing energy costs while increasing productivity. Available in shelf and pit installation configurations with equal energy efficiency and maintenance convenience in both options.
TECHNICAL SPECIFICATIONS

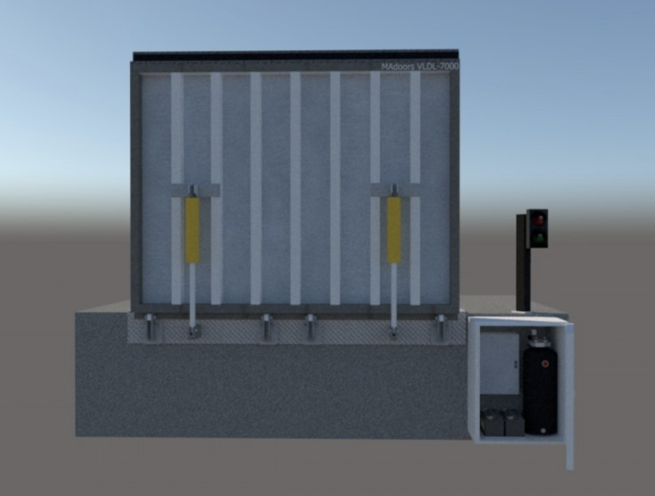

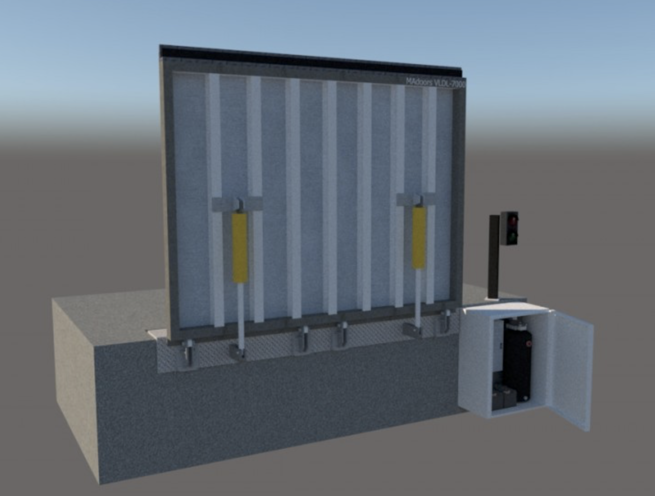

The Madoors USA VLDL-7000 Vertical Dock Leveler operates on the vertical storing principle — the leveler platform stores in a vertical position against the dock face when not in use rather than in the conventional horizontal pit position. This vertical storage position is the enabling design feature for climate-controlled facility applications — the vertical platform seals the dock opening completely when in the stored position, preventing outside atmosphere infiltration, wind, pests, and dust from entering the climate-controlled facility through the dock opening during non-loading periods.

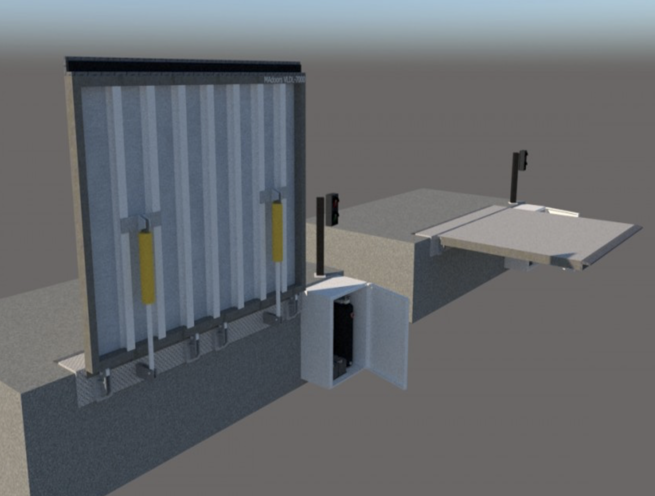

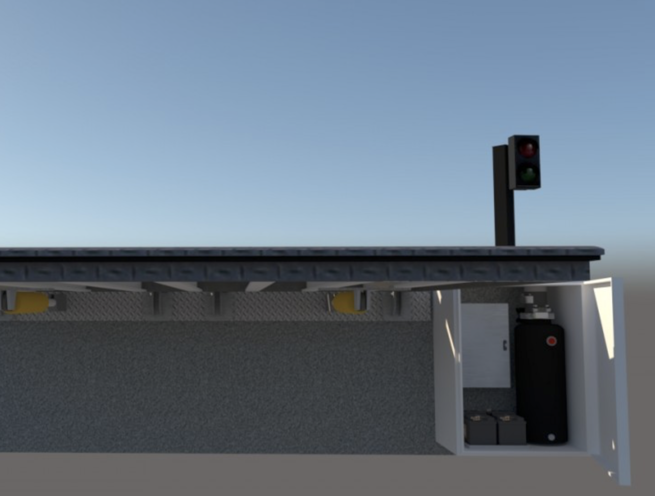

The hydraulic rail leveler system provides powered, controlled platform movement from the vertical stored position to the working inclined position bridging the dock face and the trailer bed — and return to vertical at the end of each loading or unloading cycle. Hydraulic actuation provides consistent, reliable platform positioning regardless of the platform weight and load conditions encountered during the transition between stored and working positions.
Two installation configurations are available — shelf-mounted above the dock floor surface for new construction and retrofit applications where pit excavation is not practical, and pit-mounted in a floor recess for the lowest-profile dock face installation. Both configurations provide equal energy efficiency performance and equal maintenance convenience — the installation choice is governed by the specific dock construction requirements and facility layout of each application.
The optional Thermal Guard Package enables a specific dock configuration where the trailer doors swing open into the building interior after the trailer is docked — rather than opening outward into the dock yard. This inward door opening configuration allows the trailer to be connected and opened while maintaining the full weather and thermal seal at the dock interface, providing the maximum available cold chain integrity during the transition from trailer to facility.
KEY FEATURES
Vertical Storage — Complete Dock Seal in Stored Position

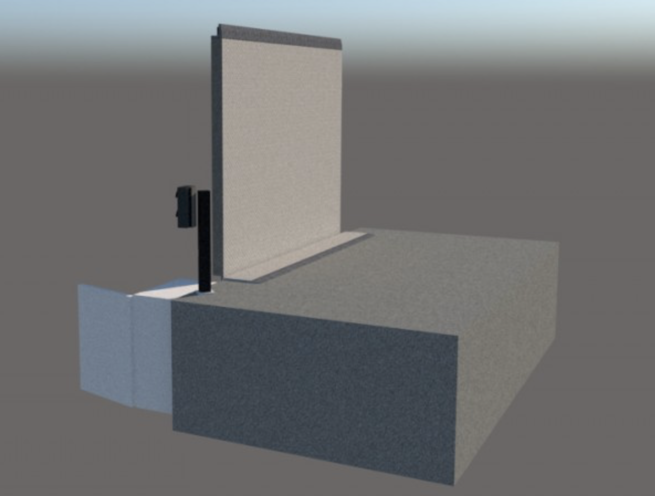

The vertical storage position of the VLDL-7000 platform provides a complete seal of the dock opening when the leveler is not in active use — preventing the continuous infiltration of outside air, heat, humidity, insects, and contaminants that conventional horizontal pit levelers allow through the dock gaps in the stored position. This complete seal in storage is the primary operational advantage of vertical dock levelers over all horizontal pit alternatives for climate-controlled facility applications — the dock opening is sealed rather than merely covered, maintaining the facility's climate control investment throughout the non-loading periods that represent the majority of each dock position's daily operating time.
Cold Chain Integrity — Loading & Unloading Process
The VLDL-7000 maintains cold chain integrity throughout the complete loading and unloading process — the vertical storage seal prevents pre-conditioning of the dock area by outside air before loading commences, the hydraulic transition to working position maintains the dock face seal during the leveler deployment, and the optional Thermal Guard inward door swing configuration eliminates the direct outside atmosphere exposure that occurs when trailer doors open outward into the dock yard. This complete process cold chain integrity directly prevents the product quality degradation that temperature excursions during loading and unloading cause for food, pharmaceutical, and other temperature-sensitive products.
Optional Thermal Guard Package — Trailer Doors Swing Inside
The Thermal Guard Package configuration allows the trailer to dock, and the trailer doors to swing open into the building interior — completely enclosing the trailer-to-facility interface within the controlled environment of the building. This configuration eliminates the outside atmosphere exposure that occurs in all conventional outward-opening trailer door systems — the product transition from trailer to facility never encounters uncontrolled atmospheric conditions, maintaining the full cold chain specification from raw material arrival to finished goods shipment.
Eliminates Internal Temperature Fluctuations
By sealing the dock opening in storage and maintaining the thermal envelope during active loading and unloading through the Thermal Guard configuration, the VLDL-7000 eliminates the internal temperature fluctuations that conventional dock levelers allow — each dock cycle at a conventional horizontal pit leveler creates a temperature excursion as outside air enters the facility. At a busy facility with multiple dock positions cycling throughout the working day, these repeated temperature excursions create a cumulative thermal load on the refrigeration system that the VLDL-7000 vertical sealing directly eliminates.
Lower Energy Bills — Measurable Operating Cost Reduction
The elimination of outside atmosphere infiltration and internal temperature fluctuations directly reduces the operating cost of the facility refrigeration system — the refrigeration energy required to maintain the target temperature is reduced by the amount previously consumed in compensating for the thermal load of dock air infiltration. For large cold storage facilities with multiple dock positions, the cumulative energy saving across all positions over the full operating year represents a substantial reduction in energy operating cost that amortizes the VLDL-7000 investment.
Loss Prevention — Security & Access Control
The vertical sealing position and controlled hydraulic operation of the VLDL-7000 contribute directly to loss prevention — the sealed dock opening reduces the unauthorized access opportunity that open or poorly sealed dock positions create, and the controlled operation provides a clear visual and physical indication of dock position status. For high-value product facilities including pharmaceutical, food, and beverage operations, dock security is a significant component of the total product security plan.
Increased Productivity — Efficient Loading & Unloading
The reliable, hydraulic-powered positioning of the VLDL-7000 and the Thermal Guard configuration that eliminates the need to manage door opening procedures and outdoor exposure time directly increase the productivity of each loading and unloading cycle — trucks can be docked, connected, and loaded or unloaded in the minimum time without the delays created by managing climate control during conventional dock operations.
Shelf & Pit Installation — Equal Performance
The equal energy efficiency and maintenance convenience of both shelf and pit installation configurations allow the VLDL-7000 to be specified for any dock construction — new construction projects with designed pit recesses, retrofit installations at existing docks where pit excavation would be disruptive, and any other facility condition where one installation configuration is preferred over the other. Equal performance across both configurations eliminates the installation-type compromise that affects competing products where one configuration provides superior performance.
Ideal for Food, Beverage & Pharmaceutical Industries
The food, beverage, and pharmaceutical industries share the common requirements of strict cold chain integrity, regulatory compliance for temperature-controlled storage and transport, and the highest available product quality assurance — all of which are directly supported by the VLDL-7000's vertical sealing, Thermal Guard configuration, and temperature fluctuation elimination. These industries represent the primary application market for the VLDL-7000 and the industries where the energy saving, quality assurance, and productivity benefits provide the highest return on the dock leveler investment.
ASSEMBLY & INSTALLATION SEQUENCE
Dock Assessment & Configuration Selection
Dock opening dimensions, trailer type and height range, installation configuration — shelf or pit — Thermal Guard Package requirement, hydraulic power supply position, and operational cycle rate are confirmed.
Pit Excavation or Shelf Mounting Preparation (Configuration Specific)
For pit installation — dock floor excavation to the confirmed pit dimensions is completed. Hydraulic supply conduit and electrical conduit are installed. For shelf installation — mounting surface preparation and anchor positions are confirmed.
VLDL-7000 Unit Installation & Anchoring
The VLDL-7000 unit is installed in the pit or on the shelf position and anchored to the dock structure. Unit alignment with the dock face and trailer approach centerline is verified.
Hydraulic System Connection & Commissioning
Hydraulic power unit is connected. System is filled, bled, and pressure-tested. Platform deployment from vertical stored to working position and return is tested through multiple cycles.
Thermal Guard Package Installation (Where Specified)
The Thermal Guard configuration dock sealing components are installed. Trailer door inward swing clearance and seal contact with the dock face are verified.
Operational Testing & Handover
Complete operational testing across full vertical storage, deployment, working, and return cycle is conducted. Energy efficiency performance, seal quality in stored position, and Thermal Guard configuration function are verified. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA VLDL-7000 Vertical Dock Levelers are specified for any climate-controlled facility requiring dock leveler performance with complete dock sealing and cold chain integrity.
- Cold storage and refrigerated warehouse dock levelers
- Food processing and distribution facility dock systems
- Beverage production and distribution dock levelers
- Pharmaceutical manufacturing and storage dock systems
- Frozen food storage facility dock leveler installation
- Fresh produce distribution center dock systems
- Dairy and temperature-sensitive product facility docks
- Medical device and healthcare product storage docks
- Chemical storage facility climate-controlled dock systems
- Cosmetics and personal care product storage docks
- Retail cold chain distribution center dock levelers
- Food service and catering supply facility dock systems
- Import and export cold chain terminal dock levelers
- Any climate-controlled facility requiring vertical sealing dock performance
