Under Vehicle Inspection Mirror
The Madoors USA Under Vehicle Inspection Mirror is a professional security inspection tool providing enhanced visibility for under-vehicle searches — allowing security officers to inspect the complete underside of cars, trucks, heavy equipment, school buses, and industrial machinery while maintaining a fully upright position, with no bending required and complete focus maintained on the inspection task. With an acrylic convex mirror providing wide-angle distortion-free visibility, swivel and lockable angle adjustment, heavy-duty swiveling wheel carriage for smooth rolling under the vehicle, adjustable galvanized steel or lightweight aluminum handle with ergonomic plastic hand grip, and LED light with removable flashlight for low-light inspection capability, the Madoors USA inspection mirror is the most practical, cost-effective, and immediately deployable under-vehicle inspection tool for airport security, military checkpoints, border crossings, traffic inspections, emissions inspections, and any security or maintenance inspection requiring visibility beneath vehicles and equipment.
TECHNICAL SPECIFICATIONS

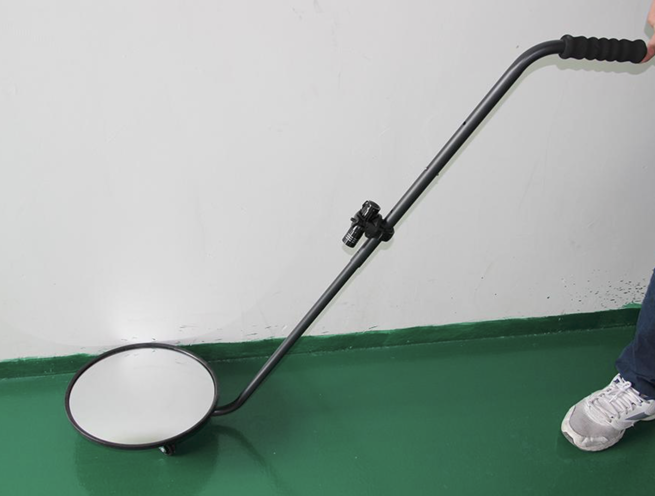

The Madoors USA Under Vehicle Inspection Mirror uses an acrylic convex mirror — the convex curvature provides a wider field of view than a flat mirror of equal diameter, allowing more of the undercarriage to be visible in a single mirror position without repositioning. The acrylic construction is shatterproof — providing the durability required for heavy-duty security checkpoint use where the mirror may be subject to contact with vehicle undercarriage components, ground surface obstacles, and the general physical handling of active security operations.
The mirror is mounted on a swivel mechanism with a secure locking position — the officer adjusts the mirror angle to the required inspection position and locks it securely in place for a stable, consistent viewing angle throughout the inspection. The swivel adjustment allows the mirror to be angled for different vehicle ground clearance heights, different inspection approaches, and different areas of the undercarriage requiring specific angular coverage.
The handle is available in galvanized steel for heavy-duty construction with maximum durability and in lightweight aluminum for maximum portability and extended-use comfort. Both handle types are adjustable in length — the officer sets the handle length for their height and the specific vehicle's ground clearance, maintaining the comfortable upright operating position without bending. The plastic hand grip provides ergonomic comfort and non-slip security in wet and cold conditions.

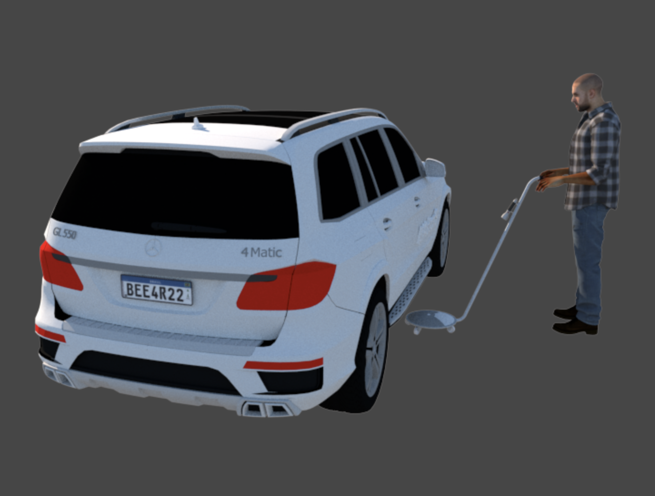

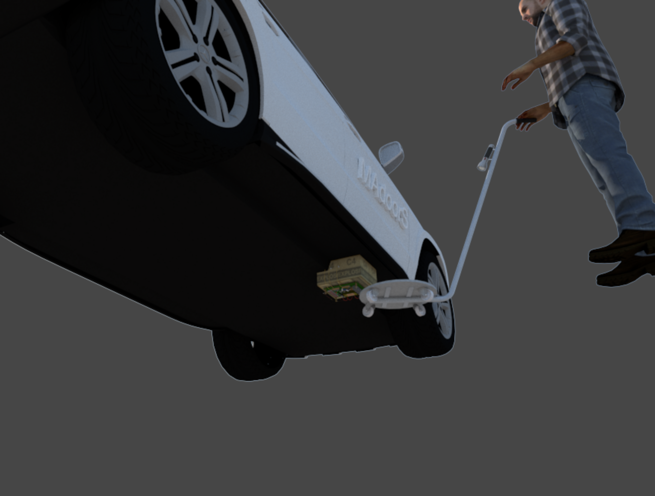

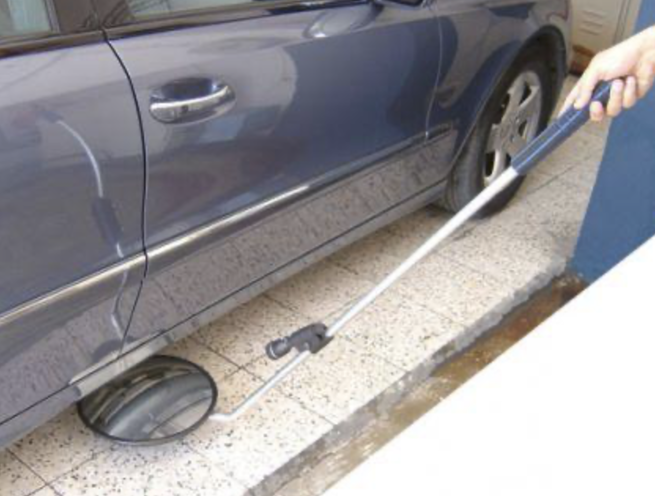

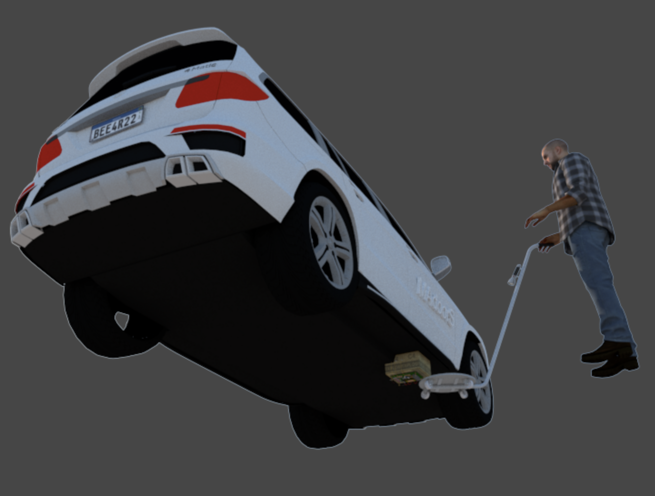

The heavy-duty swiveling wheel carriage supports the mirror assembly on the ground surface — the wheels allow the complete mirror unit to be rolled smoothly under the vehicle from the side, progressing from front to rear of the undercarriage while the officer walks alongside maintaining the upright position. The swiveling wheels allow directional changes under the vehicle without the mirror unit jamming against obstacles.
The LED light provides illumination of the undercarriage inspection area — eliminating shadows and dark zones that would obscure suspicious objects in the mirror image. The removable flashlight provides an independent, adjustable light source that can be positioned independently of the mirror for the most effective illumination angle in difficult viewing conditions.
KEY FEATURES
Upright Inspection Position — No Bending Required

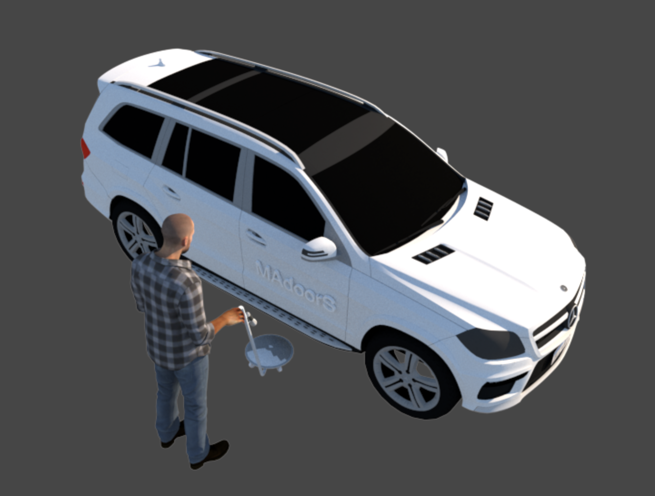

The adjustable handle length and wheel carriage design maintain the security officer in a fully upright, comfortable standing position throughout the complete under-vehicle inspection — eliminating the back strain, restricted sightlines, and reduced concentration that result from bending down to look under vehicles during manual inspections. The upright position also maintains the officer's situational awareness of the surrounding checkpoint environment — the officer can observe the vehicle, the driver, and the surrounding area while conducting the undercarriage inspection.
Acrylic Convex Mirror — Wide-Angle Coverage
The convex mirror provides a wider field of view than flat mirrors of equal size — the curved surface reflects a larger angular range of the undercarriage into the officer's line of sight from the inspection position. This wider coverage reduces the number of mirror repositioning movements required for a complete inspection of the full undercarriage — directly reducing inspection time per vehicle and increasing checkpoint throughput.
Swivel & Lock Angle Adjustment
The swivel mechanism with locking position allows the mirror angle to be set precisely for the vehicle height and undercarriage geometry — and locked securely to maintain that angle throughout the inspection without constant manual correction. This locked-angle stability allows the officer to focus attention on the mirror image rather than on maintaining the mirror position.
Heavy-Duty Swiveling Wheels — Smooth Rolling Under Vehicle
The heavy-duty swiveling wheel carriage provides the most important practical usability feature of the inspection mirror — the ability to roll the mirror progressively under the vehicle from front to rear without lifting, dragging, or repositioning by hand. The swiveling wheels navigate around undercarriage obstacles — exhaust systems, suspension components, and fuel tanks — without jamming, maintaining continuous mirror progress through the full undercarriage inspection.
LED Light & Removable Flashlight — Low-Light Capability
The LED light provides consistent illumination of the inspection area visible in the mirror — eliminating the dark areas around suspension components, fuel tanks, and structural members where objects can be concealed in shadow. The removable flashlight provides an independent portable light source for specific areas requiring directional illumination — shadow areas that the fixed LED cannot illuminate from the mirror position can be lit by the repositionable flashlight without interrupting the mirror inspection.
Galvanized Steel & Aluminum Construction — Corrosion Resistance
Galvanized steel handle construction provides the corrosion resistance required for permanent outdoor security checkpoint use — the galvanized coating prevents the rust and structural degradation that would affect uncoated steel handles in the rain, humidity, and salt exposure of outdoor vehicle inspection positions. Lightweight aluminum handle construction provides the portability required for officers who carry the mirror as personal equipment during patrol and mobile checkpoint operations.
Wide Application Range — Vehicles to Industrial Machinery
The inspection mirror is effective for all vehicle and equipment types — from passenger cars at the smallest ground clearance through to trucks, buses, heavy equipment, and industrial machinery with greater under-clearance. The adjustable handle length accommodates the different inspection heights required by different vehicle undercarriage clearances — a single adjustable mirror covers the complete range without the need for different mirror models for different vehicle types.
No Training Required — Immediate Operational Use
The simple, intuitive operation of the inspection mirror requires no specialized training — any security officer can use it immediately without instruction. This zero-training-requirement directly supports the deployment of the inspection mirror as standard security officer equipment across all skill levels and experience levels in the security force.
MODEL RANGE
Standard Model — Acrylic convex mirror, swivel and lock, adjustable aluminum handle, plastic hand grip, rolling wheel carriage. No lighting. Standard checkpoint and inspection applications.
Lighted Model — All standard model features plus integrated LED light and removable flashlight. Low-light, nighttime, and shadow-area inspection capability.
Heavy-Duty Model — Galvanized steel handle, heavy-duty swiveling wheel carriage, acrylic convex mirror, swivel and lock, LED light and removable flashlight. Maximum durability for continuous high-cycle security checkpoint use.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Under Vehicle Inspection Mirrors are specified as standard equipment for any security officer position requiring under-vehicle inspection capability.
- Military checkpoint standard officer equipment
- Border crossing vehicle undercarriage inspection tool
- Airport security vehicle screening inspection mirror
- Police checkpoint and traffic inspection mirror
- Embassy and diplomatic compound vehicle inspection
- Prison and correctional facility vehicle entry inspection
- Government building vehicle access inspection mirror
- Port and maritime terminal security inspection tool
- Event security vehicle inspection mirror deployment
- VIP protection route vehicle inspection tool
- Industrial facility vehicle and equipment inspection
- Construction site vehicle and machinery inspection
- School bus fleet safety inspection mirror
- Auto emissions and vehicle safety inspection tool
- Any security or safety inspection requiring portable under-vehicle visibility without bending
