Texas Concrete Barrier
The Madoors USA Texas Concrete Barrier is a project-based, C45 concrete perimeter wall and barrier system manufactured up to 3 meters high with bulletproof, blast-resistant, and radiation-proof capability — certified to UL 752 Level IV ballistic standards by an independent third-party testing institution and holding ATEX certification confirming explosion pressure resistance. Manufactured with hyperfluid chemical additives enhancing hardness and durability beyond standard C45 concrete performance, available in ASTM American standard dimensions from catalog or in project-specific dimensions, and produced in interlocking skid-type panel configuration for rapid military base perimeter establishment, the Madoors USA Texas Concrete Barrier provides one of the most comprehensively certified protective barrier systems available — including a unique radiation-proof certificate with independent survey meter measurement reports documenting radiation absorption performance from behind the wall.
TECHNICAL SPECIFICATIONS
Concrete specification is C45 grade — high-performance structural concrete with characteristic compressive strength of 45 MPa — enhanced through the addition of hyperfluid chemical additives and special hardening compounds that increase density, hardness, and resistance to both explosion pressure and ballistic impact beyond standard C45 mix design performance. The chemical additive enhancement directly contributes to the certified UL 752 Level IV ballistic performance and ATEX explosion pressure resistance by increasing the concrete's energy absorption and projectile arrest capability per unit of wall thickness.

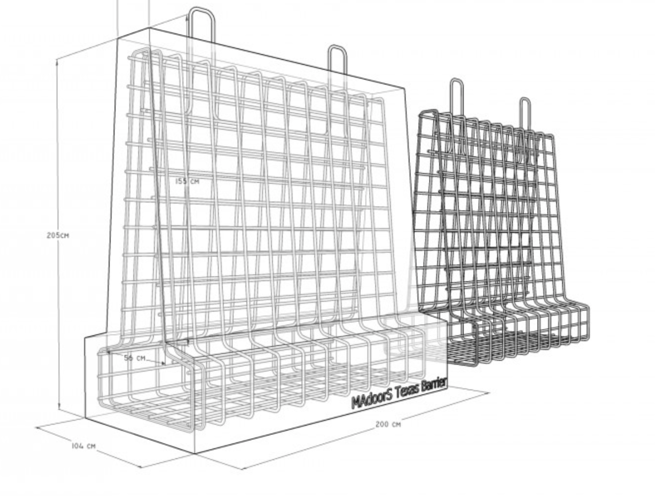

Barrier height is up to 3 meters — covering the full range of military perimeter wall, vehicle exclusion barrier, and blast wall height requirements from standard vehicle-height blocking at 1 to 1.2 meters through to maximum anti-climb and blast containment heights at 3 meters. Project-based dimensional design allows any height within the 3-meter maximum and any section length and profile to be manufactured to client-specific requirements.
Ballistic certification: UL 752 Level IV — independently tested by a third-party accredited institution. UL 752 Level IV provides certified protection against .30 caliber rifle rounds — the standard military infantry rifle caliber — confirming that the concrete wall construction defeats direct rifle fire at the certified protection level.
Explosion resistance: ATEX certified — confirming resistance to explosion pressure in classified explosive atmosphere environments. ATEX certification satisfies the procurement requirements of petrochemical, chemical processing, and military explosive hazard zone installations where the barrier must maintain structural integrity in the explosive atmosphere conditions defined by the ATEX classification.
Radiation-proof construction: lead plates are embedded in the concrete mix during casting — with both concrete thickness and lead plate thickness determined by the specific radiation energy level of the application, covering energy ranges from 1 mV to 12 mV and beyond as determined by the project radiation safety expert. The lead plates provide gamma radiation attenuation in addition to the neutron moderation inherent in the concrete hydrogen content. A unique radiation-proof certificate is provided — with survey meter measurement levels documented from the protected side of the wall facing radioactive energy, and full laboratory reports shared with the customer during the purchasing process.
The barrier is also manufactured as impermeable — with sealing provisions preventing liquid and moisture penetration through the concrete section.
KEY FEATURES
C45 Concrete with Hyperfluid Chemical Additives — Enhanced Performance
C45 high-performance concrete with hyperfluid chemical additives and hardening compounds provides the structural strength, density, and ballistic energy absorption required for UL 752 Level IV certification and ATEX explosion resistance within the barrier wall thickness — exceeding the protection performance achievable with standard C45 concrete of equivalent thickness. The chemical additive enhancement is the technical foundation for the Madoors USA Texas barrier's multi-certification performance in a single concrete wall section.
UL 752 Level IV Ballistic Certificate — Third-Party Independent Testing
The UL 752 Level IV certificate from an independent third-party accredited testing institution provides independently verified ballistic protection documentation — confirming that the Texas concrete barrier wall construction stops .30 caliber rifle rounds at the Level IV performance specification. Third-party independent testing eliminates the reliance on manufacturer self-certification and provides the procurement documentation required for government, military, and institutional barrier procurement specifications.
ATEX Certified — Explosion Pressure Resistance
ATEX certification confirming explosion pressure resistance satisfies the procurement requirements of petrochemical, chemical processing, mining, and military explosive atmosphere installations — where the barrier must maintain structural integrity in classified explosive atmosphere zone conditions and withstand the overpressure generated by explosive atmosphere ignition events within the classified zone.
Unique Radiation-Proof Certificate — Survey Meter Documented
The radiation-proof certificate — described by Madoors USA as unique globally — is supported by survey meter measurement documentation recording radiation levels measured from the protected side of the wall when facing radioactive energy sources, with full laboratory reports shared with customers. This measurement-documented radiation certificate provides the independent verification of radiation shielding performance that standard structural engineering calculations alone cannot provide — giving nuclear facility, medical radiation, and military NBC protection procurement authorities specific, measured radiation attenuation data for the specific concrete and lead plate construction.
Lead Plate Integration — 1 mV to 12 mV Radiation Range
Lead plates embedded in the concrete during casting provide gamma radiation attenuation across the radiation energy range from 1 mV to 12 mV — with both concrete thickness and lead plate thickness determined by a Madoors USA project-based radiation safety expert for the specific radiation energy level and required shielding factor of each installation. This expert-designed, project-specific radiation shielding specification ensures that the barrier provides exactly the required attenuation for each application's specific radiation environment.
Bulletproof & Blast Resistant — Combined Multi-Threat Protection
The combination of UL 752 Level IV ballistic certification and ATEX explosion resistance in a single concrete barrier section provides comprehensive multi-threat protection — addressing simultaneous ballistic and blast threats at military perimeters, counter-terrorism installations, and petrochemical facility boundaries without requiring separate specialized barrier systems for each threat type.
Up to 3-Meter Height — Project-Based Dimensions
The up to 3-meter manufacturing height covers the full range of military perimeter wall, vehicle exclusion barrier, and blast wall height requirements. Project-based dimensional design flexibility allows any specific height, section length, and wall profile to be manufactured to client requirements — without constraining the protective barrier design to standard catalog dimensions where site-specific requirements demand non-standard configurations.

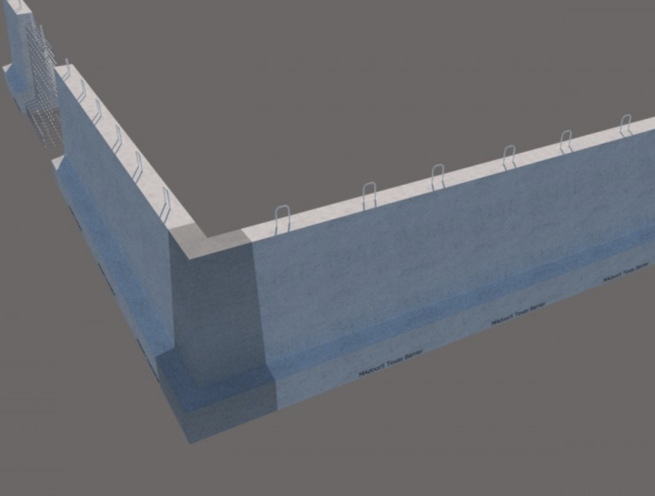

Interlocking Skid-Type Panels — Rapid Military Base Perimeter Establishment
The interlocking skid-type panel design allows Texas concrete barriers to be combined rapidly into extended perimeter walls — with adjacent sections interlocking for structural continuity and skid base configuration enabling placement directly on the ground surface without excavation or anchor installation. This rapid deployment assembly allows very safe military base perimeters to be established quickly from pre-manufactured certified concrete panel sections, providing the certified protection level from the first day of deployment without the construction timeline of cast-in-place concrete perimeter walls.
ASTM American Standard Dimensions — Catalog Availability
Standard ASTM American standard dimensions are available from the Madoors USA catalog — providing immediate procurement reference dimensions that satisfy US government and military procurement specifications for standard Texas barrier configurations. Catalog dimensions eliminate the design lead time required for project-specific dimensions at standard applications, enabling faster procurement and delivery timelines for standard military and security perimeter barrier requirements.
Impermeable Construction — Moisture & Liquid Sealing
The impermeable concrete construction prevents liquid and moisture penetration through the wall section — protecting the lead plate radiation shielding layer from moisture-induced degradation and maintaining the structural integrity of the concrete section in wet ground and flooding conditions encountered at military forward positions and industrial facility perimeter installations.
CONSTRUCTION COMPARISON: TEXAS BARRIER FEATURES
The Madoors USA Texas Concrete Barrier shares the rapid deployment, modular connection, and precast concrete construction methodology of the Alaska and Colorado barrier families in the Madoors USA range — while providing significantly enhanced protection performance through the C45 chemical additive concrete mix, UL 752 Level IV ballistic certification, ATEX explosion resistance, and radiation-proof lead plate integration that are not available in standard traffic management concrete barrier designs.
Standard traffic barriers — standard concrete mix, no ballistic certification, no explosion resistance certification, no radiation shielding. Madoors USA Texas barrier — C45 with chemical additives, UL 752 Level IV ballistic, ATEX explosion resistance, radiation-proof with lead plates and independent certificate, up to 3-meter height.
ASSEMBLY & DEPLOYMENT SEQUENCE
Project Assessment & Protection Level Specification
Site perimeter dimensions, required barrier height, radiation energy level — where applicable — ballistic protection level requirement, explosion pressure resistance requirement, and interlocking skid panel configuration are confirmed. Concrete thickness and lead plate thickness are determined by the Madoors USA project-based radiation safety expert for radiation-proof applications.
Factory Manufacture & Certificate Documentation
Texas concrete barrier sections are manufactured to the confirmed project dimensions with C45 hyperfluid chemical additive concrete mix, lead plate embedding at the specified thicknesses, and interlocking connection geometry. UL 752 Level IV independent testing certification, ATEX certification, radiation-proof certificate with survey meter measurement documentation, and laboratory reports are compiled.
Transport to Site

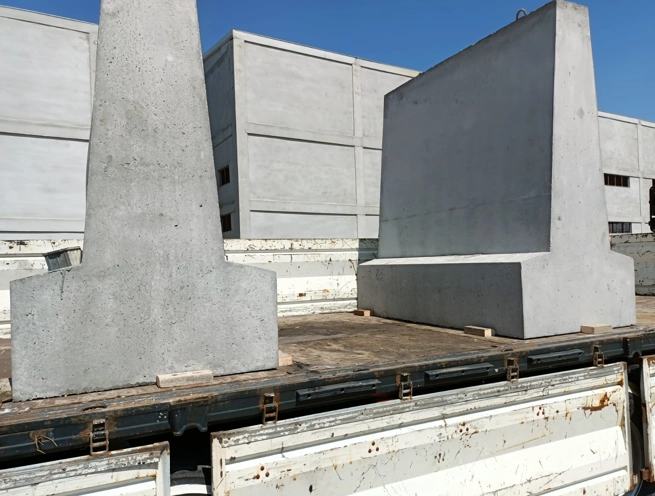

Pre-manufactured barrier sections are transported to the deployment site on flatbed transport vehicles. Interlocking skid base configuration allows standard forklift or crane off-loading and placement without specialist lifting equipment.
Ground Surface Preparation
The ground surface along the barrier line is leveled and cleared of obstructions. No excavation, foundation construction, or anchor installation is required for the skid base configuration — the barrier sections sit directly on the prepared ground surface.
Section Placement & Interlocking Connection
Barrier sections are placed in sequence along the perimeter line using crane or forklift equipment. Adjacent sections are interlocked using the skid-type interlocking connection system — providing structural continuity between sections for perimeter wall integrity. Section alignment and interlocking connection engagement are verified at each joint position.
Perimeter Completion & Inspection
The complete perimeter barrier line is inspected for section alignment, interlocking connection integrity, and ground contact stability across all sections. Radiation-proof certificate, UL 752 certificate, and ATEX certification documentation are confirmed as covering all sections in the installed perimeter.
Certification Documentation Handover
UL 752 Level IV ballistic certificate, ATEX explosion resistance certificate, radiation-proof certificate with survey meter measurements and laboratory reports, and installation records are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Texas Concrete Barriers are specified for any military, security, or industrial facility perimeter requiring bulletproof, blast-resistant, and optionally radiation-proof certified concrete barrier protection.
- Military base perimeter rapid deployment barrier walls
- Forward operating base certified concrete perimeter barriers
- Nuclear facility radiation-proof perimeter barrier walls
- Medical radiation facility shielding perimeter barriers
- Petrochemical plant ATEX certified explosion-resistant barriers
- Chemical processing facility blast-resistant perimeter walls
- Military checkpoint and access control point barriers
- Government and embassy perimeter concrete barrier walls
- Counter-terrorism facility ballistic perimeter barriers
- Industrial explosive hazard zone perimeter protection
- Airport security perimeter blast-resistant barrier walls
- Prison and correctional facility perimeter concrete barriers
- Military ammunition depot perimeter barrier walls
- Radiation therapy and cyclotron facility shielding barriers
- Border security rapid deployment concrete barrier perimeters
