Telescopic Aircraft Hangar Door
The Madoors USA Telescopic Aircraft Hangar Door is a large-scale, modular, factory-manufactured movable structure engineered to safely shelter and allow the passage of extremely valuable aircraft and helicopters through very wide openings — with zero-error performance standards, full dust and weather insulation, reliable operation in extreme conditions including snow, ice, storm, and power outages, and 2-year warranty on all motorized products. Available in telescopic, folding, and motorized side-sliding configurations, the Madoors USA hangar door system addresses every critical engineering challenge inherent to aviation-sector door systems — where minor negligence in design, manufacture, or maintenance can result in significant loss of life and property damage to aircraft worth many millions of dollars.
All hangar door components are manufactured modularly at the factory to project specifications and shipped to the site — with no cutting, drilling, or welding performed on-site. Steel components are galvanized sheet metal or hot-dip galvanized. All visible surfaces are chemically treated, primed, and painted with UV-resistant enamel exterior paint. Wing panels are secured into the steel frame structure using special clip profiles. On-site assembly consists only of connecting prefabricated parts and placing them on the rail — a process significantly faster than conventional site-fabricated hangar door installation.
TECHNICAL SPECIFICATIONS
Madoors USA Telescopic Aircraft Hangar Doors are engineered for very large openings — up to full building facade width — providing the clear opening required for the passage of wide-body commercial aircraft, military aircraft, and helicopters without restriction. The telescopic configuration allows multiple door leaf sections to slide and stack within a compact retraction space alongside the opening — providing maximum clear opening width from a minimum run-back space, which is the defining operational advantage of the telescopic configuration over folding and single-panel sliding alternatives for very wide hangar facades.
The steel structure forming each wing body is produced modularly in frame form from bent sheet profiles — providing the structural rigidity required for large-span door sections while maintaining dimensional accuracy across the full panel width. Wing panels are secured into this structural frame using special clip profiles that provide reliable mechanical connection without requiring field welding or drilling — maintaining the factory-quality standard of all assembly connections through the full installation process.
Steel component surface treatment follows a specified sequence — galvanizing or hot-dip galvanizing for corrosion protection, chemical treatment for surface preparation, primer application for adhesion, and UV-resistant enamel exterior paint for long-term color stability and weather resistance. This multi-stage treatment sequence provides the corrosion protection and appearance durability required for large outdoor hangar door structures exposed to aviation fuel vapors, de-icing chemicals, jet blast, and atmospheric weathering over the full service life.
The motorized drive system provides reliable automated opening and closing in all weather conditions — engineered specifically to maintain operational capability during the power outages, snowstorms, and icy conditions that cause failures in inadequately engineered hangar door systems. Emergency operation provisions are included to ensure door functionality when primary power is unavailable.
KEY FEATURES

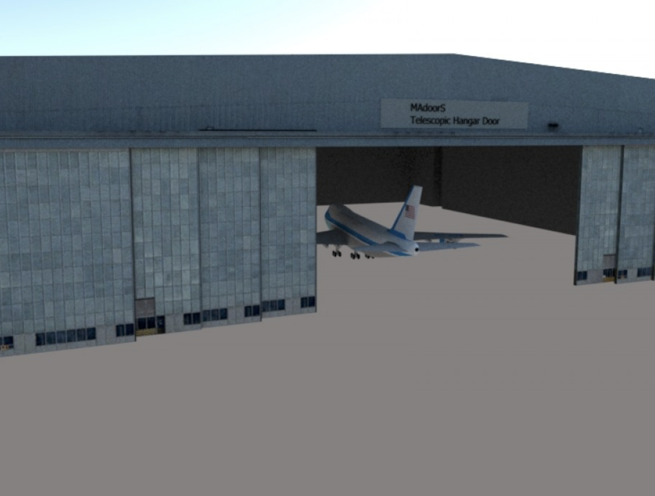

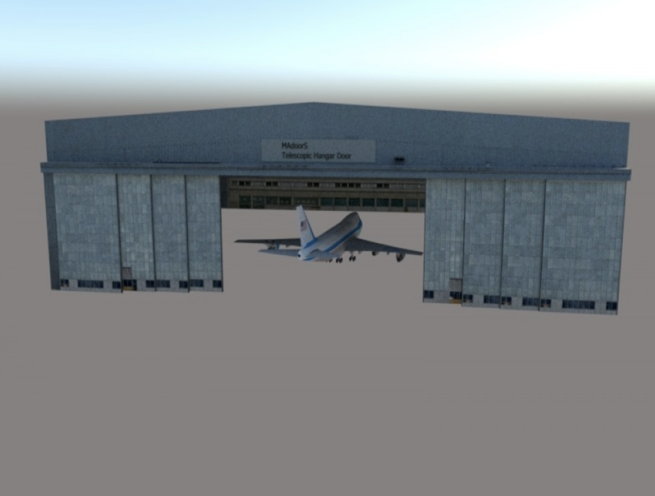

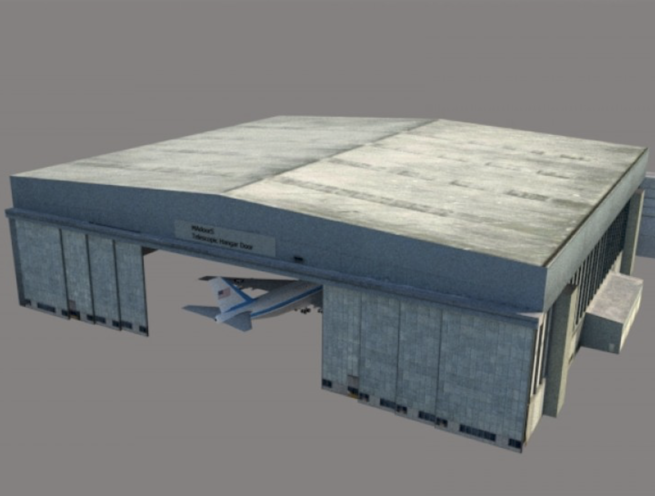

Telescopic Configuration — Maximum Clear Width, Minimum Run-Back
The telescopic sliding mechanism allows multiple overlapping door sections to retract into a compact stack alongside the opening — providing the maximum possible clear opening width for aircraft passage while requiring significantly less run-back space than equivalent-width single-panel or folding door systems. This space efficiency makes the telescopic configuration the preferred specification for wide-span hangar facades where available run-back space alongside the opening limits the use of folding or standard sliding configurations.
Zero-Error Performance Standard — Aviation Sector Requirement
The aviation sector demands zero-error performance from all equipment in contact with or in the path of aircraft — with no tolerance for door failures that could result in aircraft damage. The Madoors USA hangar door system is engineered to this zero-error standard through rigorous structural calculations, factory-quality modular manufacturing, on-site assembly without field cutting or welding, and comprehensive testing before handover. Every engineering challenge that could lead to operational failure — from power outage door lock to storm load structural failure to rail bounce during aircraft passage — is specifically addressed in the design.
No On-Site Cutting, Drilling, or Welding
All components are manufactured to project dimensions at the factory — arriving on site as complete, finished, ready-to-assemble prefabricated parts requiring only connection and placement on the rail. This factory-complete approach eliminates the quality variability of field fabrication, eliminates field welding heat that could distort galvanized surface treatment, eliminates the dimensional inaccuracies of field cutting, and significantly reduces on-site installation time compared to conventional hangar door fabrication methods.
Galvanized & Hot-Dip Galvanized Steel — Full Corrosion Protection
All steel structural components are manufactured from galvanized sheet metal or hot-dip galvanized material — providing comprehensive corrosion protection for the full service life of the door in the chemically aggressive environment of aviation hangars, where jet fuel vapors, de-icing fluid, hydraulic fluid, and atmospheric moisture combine to create accelerated corrosion conditions for unprotected steel.
UV-Resistant Enamel Exterior Paint — Long-Term Appearance
Visible surfaces are chemically treated, primed, and finished with UV-resistant enamel exterior paint — providing long-term color stability and surface durability against solar radiation, temperature cycling, and the chemical exposure conditions of aviation hangar environments. UV-resistant paint prevents the premature fading, chalking, and delamination that affect standard exterior paint finishes on large-format outdoor structures.
Special Clip Profile Wing Panel Mounting — Reliable Secure Connection
Wing panels are secured into the steel frame structure using special clip profiles — providing a mechanically reliable, vibration-resistant connection between the cladding panel and the structural frame without requiring field drilling or welding. Clip profile mounting maintains the factory quality of the panel connection throughout the service life of the door, preventing panel loosening or loss under the wind loading and vibration conditions of operational hangar door use.

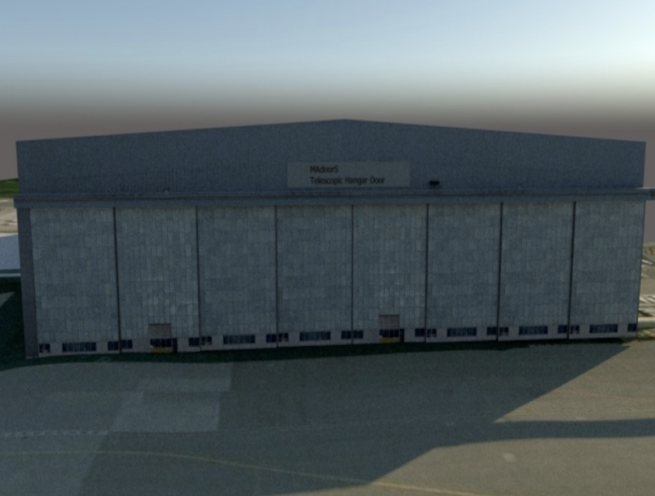

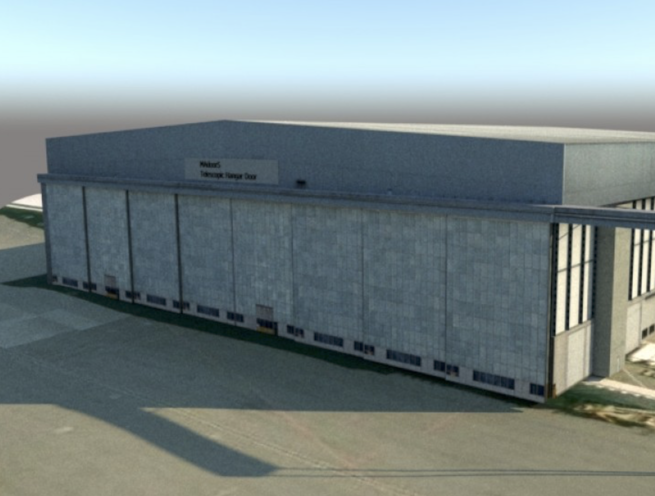

Full Building Facade Coverage — Any Opening Width
The modular telescopic door system is engineered to cover very large openings — up to the full building facade — providing complete weather and dust sealing across the widest aircraft hangar openings. The modular manufacturing approach allows any opening width to be accommodated through the combination of the appropriate number and size of door sections without constraint from standard product dimensions.
Dust & Weather Insulation — Aircraft Protection
The door provides full dust and weather insulation when closed — protecting aircraft sheltered within the hangar from wind-driven dust, rain, snow, and temperature extremes that would damage sensitive avionics, control surfaces, and finish during storage. Effective weather sealing is achieved through the sealing profiles between door sections, at the floor threshold, and at the side jambs — providing complete perimeter sealing across the full facade opening.
Facade-Compatible Cladding Material Selection
Cladding materials for the door wing panels are selectable for compatibility with the surrounding building facade — allowing the door to match the material, color, and visual character of the adjacent hangar building facade, maintaining architectural consistency across the full facade when the door is closed. This facade-matching capability is important for commercial aviation facilities and corporate aviation hangars where visual identity and architectural quality are design priorities.
Reliable Extreme Condition Operation — Snow, Ice, Storm & Power Outage
The Madoors USA hangar door system is specifically engineered for reliable operation in the extreme conditions that cause failures in inadequately designed hangar door systems — snow and ice loading on door sections and tracks, storm wind loading on large-span door panels, power outage operation through emergency drive or manual override, and temperature extremes affecting lubrication, seal performance, and drive system behavior. Addressing these extreme conditions is not optional in aviation-sector door engineering — it is a fundamental design requirement that directly affects aircraft safety.
2-Year Warranty — All Motorized Products
All motorized Madoors USA hangar door products carry a 2-year warranty — providing clients with assurance of product quality and operational reliability from the date of installation handover.
HANGAR DOOR CONFIGURATION OPTIONS
Telescopic Sliding Configuration
Multiple door sections slide along the opening and retract in a compact overlapping stack alongside the opening — providing maximum clear opening width with minimum run-back space. Suited to wide-span hangar facades where run-back space alongside the opening is limited.
Folding Configuration
Door sections fold at hinged joints during opening, with the folded sections stacking in the side corners of the hangar. Suited to hangar openings where the folded section depth can be accommodated in the available side space.
Motorized Side-Sliding Configuration
Each door wing is independently motor-driven along the sliding track — providing full independent control of each wing for asymmetric opening configurations, partial opening for personnel access, and high-cycle motorized operation at commercial aviation maintenance hangars.
ASSEMBLY & INSTALLATION SEQUENCE
Project Engineering & Factory Manufacturing
Hangar opening dimensions, door configuration, cladding material specification, drive system, and track specification are confirmed from the project engineering design. All door components — structural frames, cladding panels, clip profiles, track sections, drive units, and sealing profiles — are manufactured to project dimensions at the factory. Surface treatment — galvanizing, chemical treatment, primer, and UV-resistant enamel paint — is applied to all components before dispatch.
Site Preparation — Rail & Foundation
The door rail and foundation are prepared at the hangar opening position. Rail alignment, level, and structural connection to the hangar floor and overhead beam are verified to the tolerances required for smooth telescopic door travel. Track sections are installed along the full door travel path.
Door Section Assembly — Prefabricated Parts Connection
Prefabricated door section frames are assembled by connecting the factory-manufactured parts without any cutting, drilling, or welding. Wing panels are secured into the assembled frames using the special clip profiles. Assembled door sections are placed on the rail in the specified sequence.
Drive System Installation & Connection
The motorized drive system is installed at the specified drive positions on the door sections or track. Drive connections between independently driven sections are made. Electrical power supply and control system wiring are connected to the drive units.
Sealing Profile Installation
Floor threshold seals, side jamb seals, and inter-section seals are installed at all perimeter and junction positions to complete the full weather and dust insulation envelope of the closed door.
Emergency Operation & Power Failure Testing
Emergency drive or manual override operation is tested under simulated power failure conditions — confirming that the door can be opened and closed without primary electrical supply during power outage scenarios.
Full System Testing — Extreme Condition Verification
The complete door system is tested through multiple full open and close cycles at operating speed. Track travel smoothness — eliminating aircraft bounce during taxi-through — is verified. Seal integrity in the closed position is confirmed. Drive system performance under load is measured against the engineering specification.
2-Year Warranty Documentation & Handover
All installation records, engineering calculations, component certifications, drive system documentation, and 2-year warranty documentation are compiled into the project handover package. Maintenance schedule and emergency operation procedure documentation are provided to the facility operations team.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Telescopic Aircraft Hangar Doors are specified for any aviation hangar or large industrial facility requiring wide-span, reliable, all-weather automated door systems.
- Commercial airline maintenance hangar doors
- Military aircraft maintenance and storage hangar doors
- Corporate aviation and VIP aircraft hangar doors
- Fixed base operator hangar door systems
- Helicopter hangar and helipad facility doors
- Aircraft manufacturing and assembly facility hangar doors
- Military air force base aircraft shelter hangar doors
- Cargo aircraft maintenance and handling hangar doors
- Emergency services and air ambulance hangar doors
- Naval aviation facility hangar door systems
- UAV and drone operations large hangar doors
- Aircraft painting and finishing facility hangar doors
- Airport authority general aviation hangar developments
- Training academy and flight school hangar doors
- Aircraft storage and preservation facility hangar doors
