T-Wall Ballistic Explosion Proof Mobile Concrete Wall

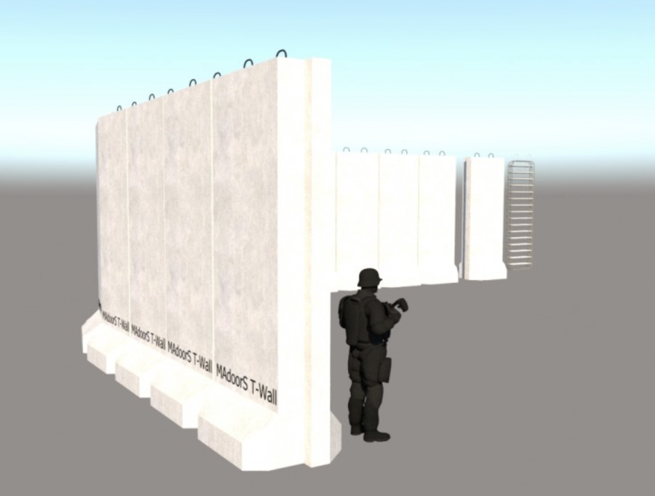

The Madoors USA T-Wall Ballistic Explosion Proof Mobile Concrete Wall is a portable, rapidly deployable, blast-resistant and ballistic-resistant precast concrete perimeter wall system manufactured up to 4 meters high — providing certified bulletproof, rocket-resistant, and explosion-proof perimeter security for newly established military and security force campuses, existing facility security upgrades, and any location requiring high-security perimeter protection to be established quickly. Manufactured in compliance with international standards and ASTM American standards with third-party authorized laboratory test documentation, the Madoors USA T-Wall system allows large-scale secure perimeter walls to be installed rapidly without construction works — creating high-security campuses around existing facilities or establishing new military perimeter security from a standing start.
TECHNICAL SPECIFICATIONS

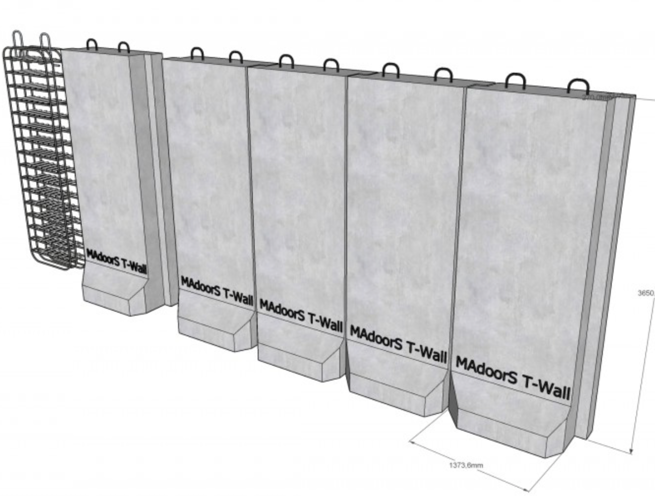

The Madoors USA T-Wall is manufactured from reinforced concrete in a T-shaped cross-section profile — the T-base providing a wide, stable footing that prevents the wall from tipping under blast overpressure, ballistic impact, and wind loading without requiring ground anchoring or foundation works. The T-profile is the international standard military perimeter wall geometry specifically developed for rapid deployment portable concrete wall systems, providing the optimal combination of structural stability, protective mass, and transport efficiency.
Manufacturing height is up to 4 meters — covering the full range of military perimeter wall height requirements from standard vehicle exclusion and ballistic protection at lower heights through to maximum blast protection and anti-climb performance at the 4-meter maximum. Standard mold dimensions are available for immediate procurement, with project-specific custom mold fabrication available for non-standard dimensions required by specific project geometries.
All T-Wall units are manufactured in compliance with international standards and ASTM American standards — with test documentation from third-party authorized laboratories confirming blast resistance, ballistic protection, and structural performance. Laboratory test reports are provided to customers following the sales agreement — accompanying each delivery with independently verified performance documentation.
The wall provides resistance to explosion pressure — absorbing and attenuating blast overpressure from explosions in the vicinity of the wall without structural collapse, and containing the shrapnel fragments generated by nearby detonations within the wall's concrete mass. Bulletproof and rocket-resistant performance is certified against the ballistic and direct fire threats relevant to military and security force installations.
KEY FEATURES
Up to 4-Meter Height — Maximum Perimeter Protection
The 4-meter manufacturing height provides the maximum available protection level across the full range of military and security perimeter wall applications — exceeding the height of standard vehicles, providing anti-climb deterrence against personnel attempting to scale the perimeter, and maximizing the blast protection and ballistic protection depth available from the concrete wall mass. Custom heights below 4 meters are available for applications where full height is not required or where transport weight constraints limit the individual unit dimensions.
Explosion Pressure Resistant — Shrapnel Fragment Containment
The T-Wall structure is designed to withstand explosion pressure and to hold the shrapnel fragments generated by explosions in the vicinity of the wall — preventing fragment penetration through the wall to the protected side. These two simultaneous protection functions — blast overpressure resistance and shrapnel containment — address the primary threats generated by vehicle-borne IEDs, mortar rounds, artillery, and improvised explosive devices at military perimeter positions.
Bulletproof — Certified Direct Fire Protection
The wall provides certified bulletproof protection against direct small arms and light weapons fire — protecting personnel in the camp interior from the full range of small arms threats encountered at active military positions. Bulletproof certification at the wall mass provided by the standard T-Wall dimensions covers the calibers relevant to military and terrorist threat scenarios at the perimeters of military and security force installations.
Rocket Resistant — Anti-Tank & RPG Protection
The T-Wall provides rocket-resistant protection — addressing the direct-fire anti-tank guided weapon and rocket-propelled grenade threats that are standard threat elements at military perimeters in active conflict zones. Rocket resistance at the concrete mass of the T-Wall provides meaningful protection against RPG and anti-tank weapon threats that would penetrate lighter perimeter wall materials.
Rapid Deployment — Portable Mobile Installation
The T-Wall portable system is specifically designed and described as an indispensable product for quickly taking and setting up perimeter security measures at newly established military and security forces campuses. Rapid deployment from precast, pre-certified units — requiring only crane or forklift placement on a level ground surface without excavation or anchoring — allows a complete certified perimeter wall to be established around a new military position within hours of the decision to establish the position.
T-Base Stability — No Foundation Works Required
The T-shaped cross-section provides a wide, stable footing that prevents the wall from tipping under lateral loads — blast overpressure, ballistic impact, and wind — without requiring ground anchoring, foundation excavation, or any civil works. T-base stability eliminates the foundation work requirement that makes permanent concrete wall construction impractical for rapid military perimeter establishment, providing self-standing certified performance immediately upon placement.
Existing Campus Security Upgrade
The T-Wall system allows high-security perimeter measures to be installed quickly around existing facilities and campuses — providing certified blast, ballistic, and fragment protection as a rapid upgrade to existing perimeter security without requiring demolition of existing walls, foundation works adjacent to existing structures, or extended construction timelines. This existing campus upgrade capability makes the T-Wall system equally valuable for rapid security enhancement of established military bases, government facilities, and critical infrastructure sites as it is for new position establishment.
ASTM & International Standard Compliance — Third-Party Laboratory Testing
ASTM American standard and international standard compliance with third-party authorized laboratory test documentation provides independently verified performance certification for military and government procurement — confirming that the blast resistance, ballistic protection, and structural performance claims are substantiated by physical testing at an accredited laboratory rather than manufacturer assertion alone. Laboratory test reports delivered with each product provide the procurement documentation required for defense acquisition compliance.
Custom Mold Fabrication — Project-Specific Dimensions
Custom mold fabrication allows T-Wall units to be manufactured in project-specific dimensions for installations where the standard mold dimensions do not match the specific height, length, or profile requirements of the project geometry. Custom dimension capability ensures that the certified T-Wall protection performance is available across any project-specific wall configuration without constraining the installation design to standard unit dimensions.
DEPLOYMENT CONFIGURATIONS
Standard Straight Perimeter Line

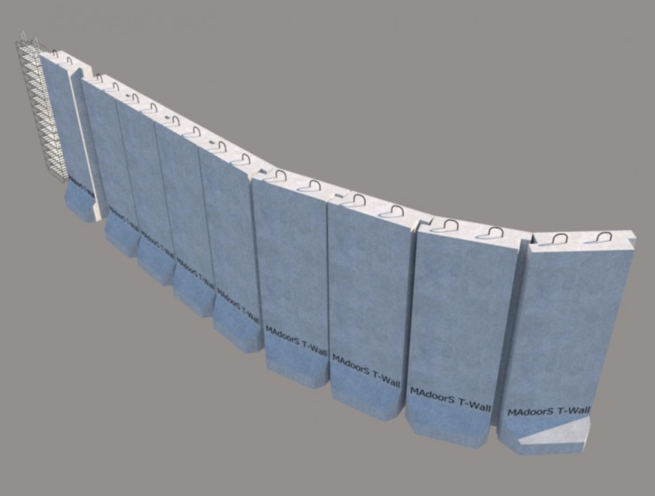

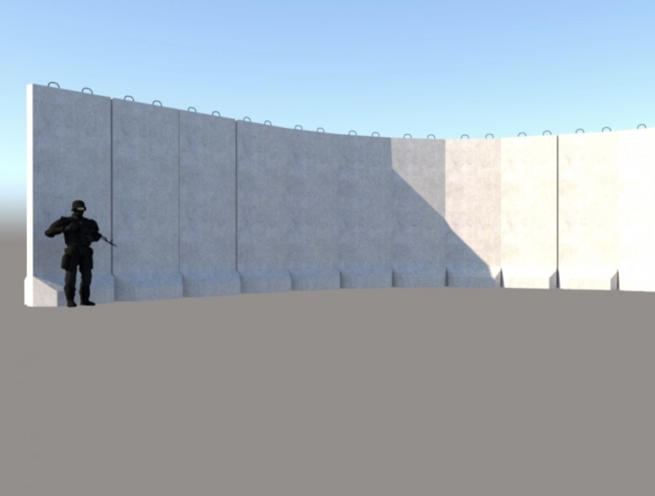

T-Wall units placed end-to-end in a continuous straight line — the standard configuration for military base perimeter walls, forward operating base perimeter establishment, and security force campus perimeter protection. End-to-end placement creates a continuous certified wall without gaps between units.
Corner Configuration
T-Wall units arranged at 90-degree corners using standard or custom corner units — providing complete perimeter enclosure at rectangular and irregular-plan site geometries. Corner units maintain the full wall height and protection specification around the full perimeter including all corner positions.
Entry Control Point Integration
T-Wall sections arranged to create a vehicle entry control channel — with wall units on both sides directing vehicles through the checkpoint and preventing vehicle bypass around the checkpoint position. The channeled approach forces vehicles to slow for the access control point and eliminates the possibility of high-speed vehicle approaches to the checkpoint.
Blast Stand-Off Barrier
T-Wall sections placed at the required stand-off distance from the protected facility — creating a blast attenuation barrier that reduces the explosion pressure from a vehicle-borne IED at the stand-off distance to acceptable levels at the facility interior. Multiple T-Wall rows in depth provide progressive blast attenuation for the highest-threat scenarios.
ASSEMBLY & DEPLOYMENT SEQUENCE
Site Layout & Unit Quantity Planning
The perimeter line geometry, total length, corner positions, entry control point positions, and required wall height are determined. T-Wall unit quantity for the specified perimeter is calculated from standard unit dimensions. Custom unit requirements for non-standard dimensions are confirmed with Madoors USA engineering.
Transport to Deployment Site
T-Wall units are transported to the deployment site on flatbed transport vehicles. Unit quantity per transport load is determined by unit dimensions and vehicle payload capacity.
Ground Surface Preparation
The perimeter line ground surface is leveled and cleared of major obstructions. No excavation, foundation construction, or surface preparation beyond basic leveling is required — the T-base provides self-standing stability on any reasonably level ground surface.
Crane or Forklift Placement
T-Wall units are crane-lifted or forklift-handled using the lifting points cast into each unit and placed sequentially along the perimeter line. Unit alignment, T-base contact with the ground surface, and end-to-end joint continuity between adjacent units are verified at each placement position.
Corner & Entry Point Configuration
Corner units and entry control point configurations are placed as the perimeter line progresses. Angled unit placement at corners and entry control channel geometry are verified for continuous perimeter coverage without gap exploitation at corner and entry positions.
Perimeter Inspection & Documentation Handover
The complete perimeter wall is inspected for T-base stability, unit alignment, end-to-end joint continuity, and absence of exploitable gaps across the full perimeter length. ASTM and international standard compliance documentation, third-party laboratory test reports, and installation records are provided to the customer.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA T-Wall Ballistic Explosion Proof Mobile Concrete Walls are deployed across the full range of military, security force, and critical infrastructure perimeter protection applications requiring rapid deployment certified blast and ballistic protection.
- Military forward operating base perimeter rapid establishment
- Combat outpost and patrol base perimeter T-Wall systems
- Military checkpoint blast and ballistic perimeter walls
- Border security perimeter certified T-Wall installation
- Military base camp rapid perimeter establishment
- Security force campus perimeter protection T-Walls
- Critical infrastructure blast stand-off perimeter barriers
- Government and embassy compound rapid perimeter upgrade
- Counter-terrorism facility perimeter blast protection
- Military ammunition depot perimeter T-Wall systems
- Peacekeeping mission perimeter rapid establishment
- Disaster relief and humanitarian mission security perimeters
- Airport and transport hub security perimeter upgrade
- Industrial explosion hazard zone blast protection barriers
- Emergency perimeter security rapid deployment operations
