Please provide your technical specifications and project requirements for the Surface Mounted Vehicle Spike Barrier. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
The Madoors USA Surface Mounted Vehicle Spike Barrier is a mechanical hardened steel surface-mount tyre killer providing one of the highest available security vehicle access control solutions — installed directly on the road surface without any excavation, with each hardened steel tooth working individually to lower under authorized vehicle weight and automatically return to the raised position after passage, immediately destroying the tyres of any unauthorized vehicle attempting passage in the opposite direction. With teeth standing 8 to 12cm above ground level on a 16mm diameter hardened steel rod, all components CNC and laser cut from hardened steel, optional Latch Down Mechanism for simultaneous all-teeth locking in the lowered position, and manufacturing available in different designs to client specification, the Madoors USA Surface Mounted Vehicle Spike Barrier provides immediate, reliable one-directional access control for banks, military bases, airports, embassies, and all sensitive security areas.
TECHNICAL SPECIFICATIONS
The Madoors USA Surface Mounted Vehicle Spike Barrier is installed directly on the road surface — no excavation, no foundation works, and no road cutting are required. The surface mounting allows rapid deployment, straightforward relocation, and installation at any road surface position without underground service conflict or civil works coordination.
Each tooth is manufactured from hardened steel and attached to the same 16mm diameter hardened steel rod that runs the full length of the barrier — the individual tooth mounting on the shared rod allows each tooth to move independently, while the rod provides the structural continuity that connects all teeth to the latch mechanism at one end. Teeth stand 8 to 12cm above ground level in the raised position — providing the penetration depth required for immediate, complete tyre destruction on unauthorized reverse-direction vehicle passage.
The individual tooth operation is the core mechanical principle of the directional tyre killer — as an authorized vehicle passes over the barrier in the permitted direction, the weight of each tyre depresses only the teeth directly under it, while the remaining teeth stay raised. After each tyre passes, the spring-return mechanism raises the tooth automatically to the default raised position. This individual tooth action allows smooth passage of authorized vehicles without any tooth engagement impact damage to the vehicle tyres in the authorized direction.
The Latch Down Mechanism is an optional add-on that locks all teeth simultaneously in the lowered position when required — the mechanism is placed at one end of the barrier, below ground level, and is a complete assembly with the body. This positioning below ground level protects the mechanism from external factors including vehicle impact, weather, and deliberate interference while maintaining the drive connection to all teeth through the shared 16mm hardened rod.
All mechanical elements — body, teeth, rod, and housing — are manufactured entirely from hardened steel. All steel plate components are cut using CNC and laser cutting machines — providing the dimensional precision required for consistent individual tooth operation, precise rod alignment, and the tight tolerances of the latch mechanism assembly.
KEY FEATURES
No Excavation Surface Mount — Immediate Deployment
The surface-mounted installation without any excavation is the fundamental deployment advantage of the Madoors USA surface mount spike barrier — the barrier is placed on the road surface, anchored with surface bolts, and operational immediately without the civil works, traffic management, and underground service coordination that excavated systems require. This no-excavation deployment directly enables installation at locations where road cutting is impractical — temporary security checkpoints, historic paving surfaces, reinforced concrete aprons, and any location where excavation is prohibited or impractical.
Individual Tooth Operation — Passive One-Way Directional Control
The individual tooth operation that passively lowers under authorized vehicle tyre weight and automatically returns to the raised position after passage provides the most reliable one-way directional access control mechanism — no power supply, no control system, and no operator action are required for the basic directional access control function. The mechanism operates purely on vehicle weight mechanics, providing continuous directional enforcement regardless of power availability, control system status, or operator presence.
8 to 12cm Tooth Height — Immediate Tyre Destruction
The 8 to 12cm tooth height above the road surface provides the penetration depth required for immediate, complete tyre destruction on unauthorized reverse-direction passage — the hardened steel teeth penetrate the full tyre wall thickness of passenger cars, light commercial vehicles, and heavy goods vehicles at this height, causing immediate, severe tyre damage that immobilizes the vehicle within a few meters of the barrier position.
Hardened Steel CNC & Laser Cut — Precision & Durability
The hardened steel construction with CNC and laser cutting precision provides the material hardness required for sustained tooth penetration performance and the dimensional accuracy required for consistent individual tooth operation. Hardened steel teeth maintain their cutting geometry through repeated vehicle pass-overs in the authorized direction and multiple unauthorized vehicle tyre destruction events without tooth deformation or dulling that would reduce penetration effectiveness.
16mm Hardened Steel Rod — Structural Tooth Connectivity
The 16mm diameter hardened steel rod connecting all teeth provides the structural backbone of the barrier — connecting individual tooth movement to the optional Latch Down Mechanism while maintaining the tooth independence required for individual weight-responsive operation. The 16mm hardened specification provides the bending stiffness and tensile strength required to transmit the latch mechanism force to all teeth simultaneously when the latch is engaged.
Optional Latch Down Mechanism — All Teeth Simultaneous Lowering
The optional Latch Down Mechanism provides controlled access periods where all teeth are locked in the lowered position simultaneously — allowing controlled two-way vehicle traffic during authorized periods without the directional restriction of the raised tooth configuration. The below-ground-level mechanism position protects it from external damage and weather exposure while maintaining full drive connectivity to all teeth through the shared rod.
Multiple Design Configurations — Client-Specific Manufacturing
The manufacturing capability for different designs to client specification allows the surface mount spike barrier to be configured for the specific lane width, vehicle type profile, installation space, and aesthetic requirements of each security application — road width from single lane to multi-lane, tooth density and spacing, housing profile, and surface finish are all adjustable to client requirements.
PRODUCT RANGE
Standard Mechanical Surface Mount
Individual tooth operation, spring return, 8 to 12cm tooth height, 16mm hardened rod, CNC and laser cut hardened steel, surface mount anchoring. No power required.
With Optional Latch Down Mechanism
All standard features plus simultaneous all-teeth locking in the lowered position for controlled bidirectional access periods.
Motorized Surface Mount
Electric motor drive for remote-controlled tooth deployment and retraction. Card reader, loop detector, and access control integration. Full access control system capability.
Hydraulic Surface Mount
Hydraulic drive for the highest-force tooth deployment at the most demanding security positions. Fast raise/lower times. PLC control integration.
ASSEMBLY & INSTALLATION SEQUENCE
Installation Position & Directional Orientation
The barrier installation position, authorized passage direction, unauthorized direction threat profile, lane width requirement, and optional Latch Down Mechanism requirement are confirmed.
Surface Preparation & Anchor Marking
The road surface at the installation position is cleaned. Anchor bolt positions are marked through the barrier base plate holes.
Anchor Bolt Installation
Steel anchor bolts are drilled and installed at all marked positions to the confirmed embedment depth and torque for the barrier weight and surface loading.
Barrier Positioning & Anchoring
The surface mounted barrier is positioned over the installed anchor bolts and secured. Tooth alignment perpendicular to the vehicle approach direction and flush base plate contact with the road surface are verified.
Latch Down Mechanism Installation (Where Specified)
The optional Latch Down Mechanism is installed at the confirmed end position of the barrier. All-teeth simultaneous lowering and return function are tested.
Tooth Operation Testing
Individual tooth lowering under simulated vehicle weight and automatic spring return after load removal are tested for all teeth. Authorized direction smooth passage and unauthorized direction tooth resistance are confirmed.

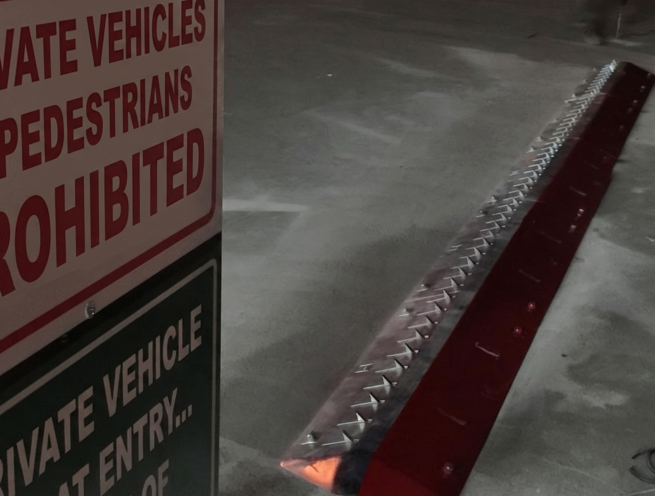

Mandatory Signage Installation
Warning signage notifying drivers of spike barrier presence and potential tyre damage is installed at all vehicle approach positions — confirmed visible at sufficient distance for safe stopping before the spike position.
Operational Handover
Complete directional operation testing and installation handover documentation are completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Surface Mounted Vehicle Spike Barriers are specified for any sensitive security location requiring surface-mounted directional vehicle access control.
