Surface Mounted Impact Test Anti-ram Wedge Barrier Road Blocker

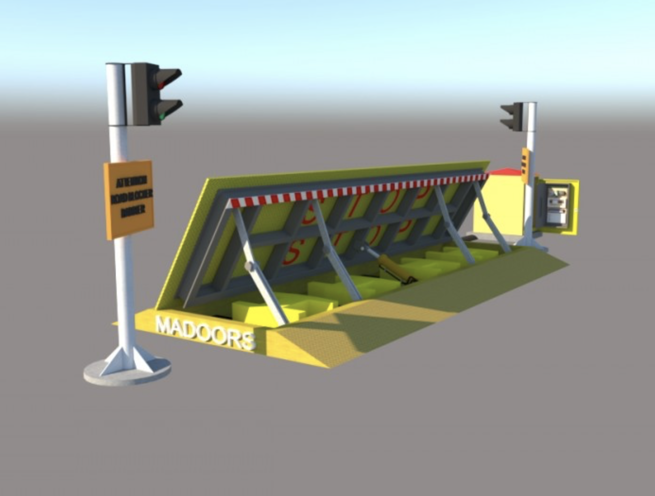

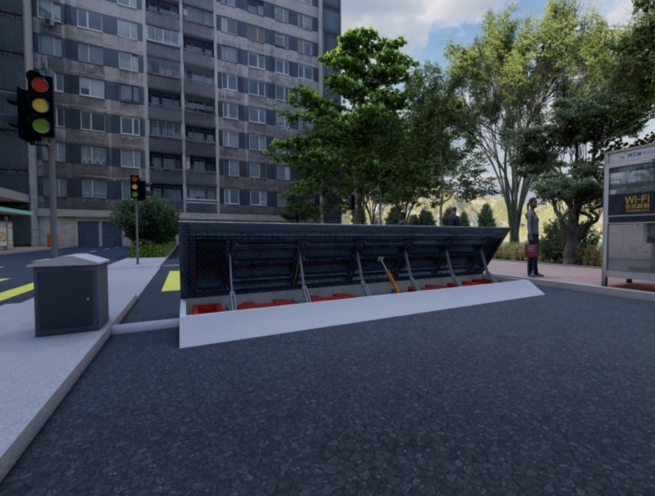

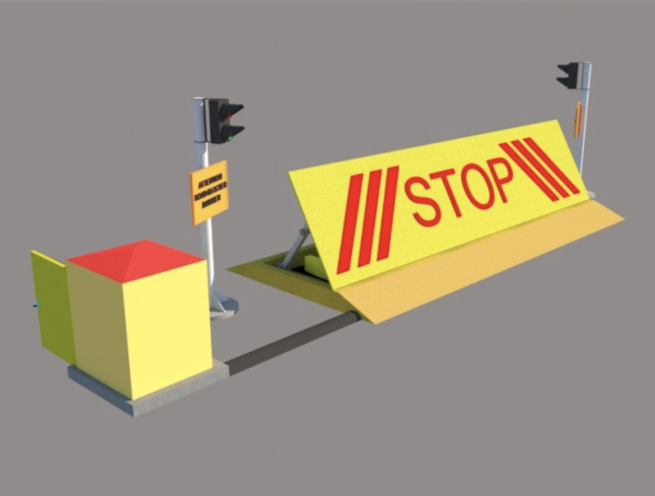

The Madoors USA Surface Mounted Impact Test Anti-Ram Wedge Barrier Road Blocker is an above-ground, no-excavation M50 crash-tested road blocker system rated to stop a 7,500 kg vehicle at 80 km/h — rapidly deployable at any entrance by mounting directly on the ground surface without digging, in hydraulic, pneumatic, and motorized configurations, manufactured in one piece with double pistons up to 6 meters in length, with a 12mm upper plate thickness providing 17.5-ton axle load resistance for heavy vehicle transitions without barrier damage. IP67 Siemens automation, CE certification, ASTM manufacturing facility compliance, product-specific approved crash test certificate, 2-year product guarantee, and 10-year spare parts guarantee make this the most comprehensively certified surface-mounted anti-ram barrier in the Madoors USA range.
TECHNICAL SPECIFICATIONS
The Madoors USA Surface Mounted Anti-Ram Wedge Barrier is M50 crash-test certified — stopping a 7,500 kg vehicle at 80 km/h, the M50 American standard impact rating for vehicle security barriers at the highest available protection level. A product-specific approved crash test certificate is provided for each barrier system, confirming that the independent crash test performance applies to the specific product and configuration being supplied rather than a generic barrier type.
Three operating configurations cover different site infrastructure and performance requirements. Hydraulic type — electro-hydraulic drive providing high-force, consistent-temperature actuation. Pneumatic type — compressed air actuation providing the fastest cycle time for rapid deployment applications. Motorized type — electromechanical drive for standard duty cycle commercial and institutional access control applications.
The barrier is manufactured in one piece up to 6 meters long with a double-piston configuration — providing continuous, gap-free entry closure across the full 6-meter width with no intermediate columns or side supports. The absence of side support columns eliminates the space-between-columns gap that vehicles could exploit to bypass the barrier at the post positions. Upper plate thickness is 12mm — providing the structural surface rigidity required to withstand 17.5-ton axle loads from heavy commercial and industrial vehicles passing over the barrier in the lowered position without plate deformation or structural damage.
The IP67 electrical panel provides complete dust and water resistance for all electrical control components in outdoor installation environments. Complete Siemens automation systems manage all barrier operation, sensor integration, traffic light control, and access control interfaces. Two remote control buttons and one hard-wired on/off emergency stop button are provided as standard controls with every system.
Photocell sensors are standard, with optional loop metal mass detectors providing an alternative or supplementary vehicle detection method. Both sensor types prevent the barrier from rising while a vehicle is detected on or over the barrier — eliminating vehicle damage from unintended barrier activation under a stationary or slow-moving vehicle. Traffic light integration provides green light indication when the barrier is fully lowered and the road is open, and red light indication when the barrier begins to rise.
KEY FEATURES
M50 Crash Certified — 7,500 kg at 80 km/h — Product-Specific Certificate
M50 certification with a product-specific approved crash test certificate confirms that the specific Madoors USA surface-mounted wedge barrier stops a 7,500 kg vehicle at 80 km/h — the highest available American vehicle security barrier impact classification. Product-specific certification eliminates the ambiguity of generic barrier type certifications — the certificate applies directly to the specific product being supplied and installed.
No Excavation — Surface Mount, No Digging
The barrier mounts directly on the ground surface without any excavation, foundation works, or road surface cutting — enabling rapid deployment at any entrance with a suitable load-bearing surface. No-excavation installation eliminates underground service conflicts, road reconstruction requirements, and the construction management overhead of excavation projects — reducing total installation time and cost to the minimum achievable for a certified anti-ram barrier system.
Quick Entrance Deployment & Easy Relocation
The surface-mounted configuration enables rapid deployment at new entrances and straightforward relocation when access control requirements change — the barrier is unbolted from the current position and reinstalled at the new position without any groundworks at either location. This relocation capability provides certified M50 anti-ram protection as a relocatable asset rather than a permanent fixed installation — generating long-term cost efficiency across multiple deployment cycles.
Three Operating Types — Hydraulic, Pneumatic & Motorized
Three drive system options cover the complete range of site infrastructure, operational speed, and cycle rate requirements. Hydraulic provides consistent high-force actuation across temperature extremes for the most demanding continuous-duty applications. Pneumatic provides the fastest cycle time for rapid-response security and high-throughput applications. Motorized provides energy-efficient operation for standard commercial and institutional access control duty cycles.
Single Piece Up to 6 Meters — Double Piston — No Side Columns
One-piece construction up to 6 meters with double-piston drive and no side support columns provides complete, gap-free entry closure across the full barrier width — with no post gap at the sides that a vehicle could exploit to bypass the raised barrier at the column positions. The double-piston drive ensures balanced, synchronized lifting of the full barrier width without differential plate movement that would create mechanical stress at the piston connection points.
12mm Upper Plate — 17.5-Ton Axle Load Resistance

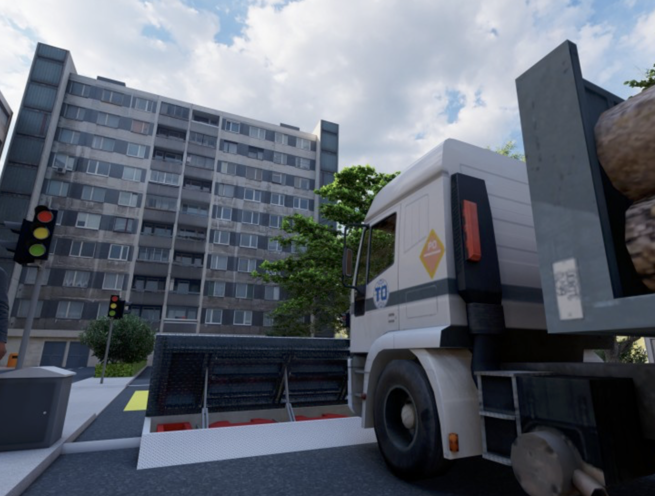

The 12mm upper plate provides the surface structural rigidity required for 17.5-ton per axle load resistance — accommodating the heaviest commercial and industrial vehicles including fully loaded articulated lorries, construction plant, and military vehicles passing over the barrier in the lowered position during normal authorized access without plate deflection, surface damage, or mechanism stress from the vehicle weight.

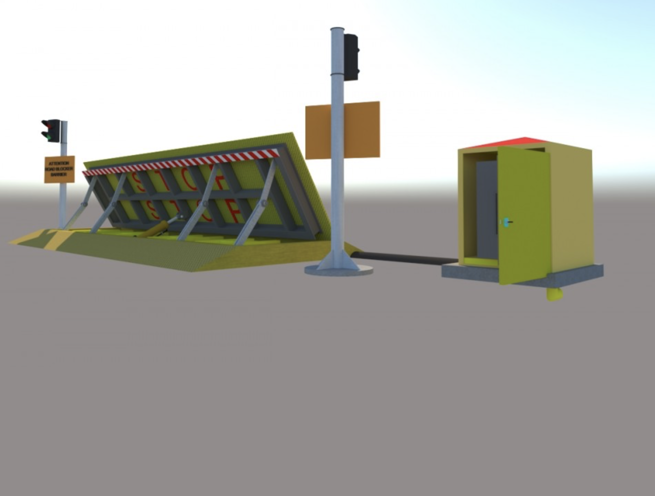

IP67 Electrical Panel — Siemens Automation
IP67-rated panel housing provides complete ingress protection against dust and water for all electrical control components in outdoor installation environments — including rain, pressure washing, and standing water conditions encountered at operational access control points. Complete Siemens automation systems provide industrial-grade reliability, consistent performance, and straightforward integration with access control infrastructure.
CE Certified — ASTM Manufacturing — Multiple International Standards
CE certification, ASTM manufacturing facility compliance, and product-specific crash test certification cover the primary international regulatory and procurement standard frameworks — European CE for EU market compliance, American ASTM for US and international standard recognition, and the independent crash test certificate for hostile vehicle mitigation procurement specification compliance. Multi-standard coverage satisfies the procurement requirements of international government, military, and commercial clients without requiring project-specific certification for different national frameworks.
2-Year Guarantee — 10-Year Spare Parts
The 2-year product guarantee and 10-year spare parts guarantee provide the most comprehensive long-term support commitment in the Madoors USA surface-mounted road blocker range — confirming product quality and guaranteeing parts availability for the full 10-year period following installation. Combined with the IP67 Siemens automation reliability and the 12mm heavy-duty plate construction, this support commitment provides operators with confidence in sustained operational availability throughout the full service life.
Photocell Sensors & Optional Loop Detectors — Vehicle Protection
Standard photocell sensors with optional loop metal mass detectors prevent barrier rise during vehicle presence — protecting vehicles from contact with the rising barrier plate and eliminating the vehicle damage risk from unintended barrier activation during authorized vehicle passage. Dual-sensor options allow the detection system to be matched to the specific vehicle type profile and detection reliability requirements of each installation.

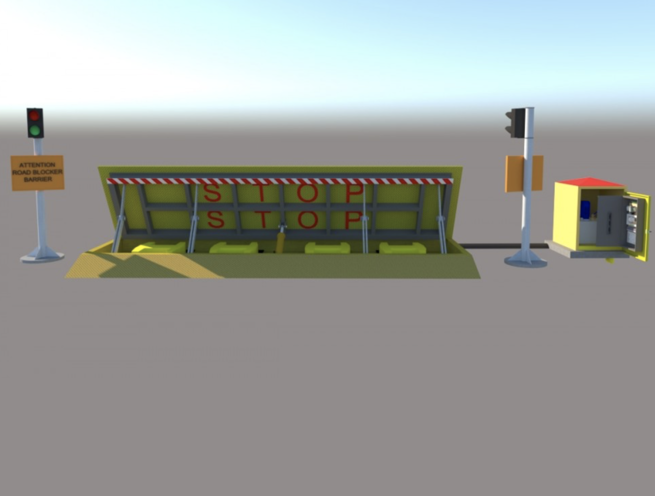

Traffic Light & Remote Control — Complete Operator Interface
Traffic light green/red sequencing provides clear visual authorization signals to approaching vehicles. Two remote control buttons provide wireless operation from a guard position. One hard-wired on/off emergency stop button provides immediate halt capability at the barrier position. This three-element control interface covers normal authorized access, visual traffic management, and emergency stop capability from a single standard equipment package.
ASSEMBLY & INSTALLATION SEQUENCE
Surface Assessment & Configuration Selection
Road surface load-bearing capacity, required barrier length — up to 6 meters — operating type — hydraulic, pneumatic, or motorized — power supply availability, and access control interface requirements are confirmed. ASTM and CE certification requirements for the procurement specification are confirmed.
Surface Anchor Bolt Installation
Anchor bolt positions are marked and drilled on the road surface. Anchor bolts are installed to the specified embedment depth and torque for the barrier weight and M50 impact loading requirements. No excavation beyond anchor bolt drill depth is required.
Barrier Unit Placement & Bolting
The surface-mounted anti-ram wedge barrier unit is positioned on the road surface over the installed anchors and bolted down. Barrier alignment perpendicular to the vehicle approach direction and level seating are verified across the full 6-meter width.
Drive System Connection
Hydraulic, pneumatic, or motorized drive systems are connected to the barrier mechanism and power supply. For hydraulic and pneumatic types, supply lines are routed and pressure-tested. For motorized type, electrical drive connections are made and verified.
IP67 Panel, Siemens Automation & Control Installation
The IP67 electrical panel and Siemens automation system are installed and connected. Remote control receivers, hard-wired on/off emergency stop button, photocell sensors, optional loop detectors, and traffic lights are connected and programmed.
Sensor Calibration & Traffic Light Programming
Photocell and loop detector vehicle presence detection is calibrated. Traffic light green/red sequencing relative to barrier lowered and rising positions is programmed and verified. Barrier rise prevention logic during vehicle presence is tested.
Emergency Stop & Drive System Testing
Emergency stop button immediate halt function is tested at all points in the barrier travel cycle. Drive system cycle times are verified for the specified operating type — hydraulic, pneumatic, or motorized.
Certification Documentation & Warranty Handover
Product-specific M50 crash test certificate, CE certification, ASTM manufacturing compliance records, 2-year product guarantee, and 10-year spare parts guarantee documentation are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Surface Mounted Anti-Ram Wedge Barrier Road Blockers are specified for any entrance requiring M50 certified anti-ram protection with surface-mounted no-excavation installation.
- Military installation rapid deployment anti-ram barriers
- Government building and ministry surface-mounted vehicle barriers
- Embassy and diplomatic compound rapid deployment blockers
- Airport perimeter surface-mounted anti-ram vehicle barriers
- Critical infrastructure facility rapid deployment barriers
- Hotel and hospitality facility surface-mounted vehicle control
- Shopping center and retail venue anti-ram vehicle barriers
- Event security temporary certified anti-ram deployment
- Industrial facility entrance surface-mounted security barriers
- School and educational campus vehicle protection barriers
- Hospital and healthcare facility surface-mounted barriers
- Corporate campus and business park anti-ram deployment
- Port and maritime terminal rapid deployment barriers
- Urban streetscape underground utility-constrained barriers
- Any anti-ram protection requirement without excavation capability
