Please provide your technical specifications and project requirements for the Spike Road Blocker Barrier. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
Spike Road Blocker Barrier
The Madoors USA Spike Road Blocker Barrier is a heavy-duty anti-terrorism automatic hydraulic spike barrier installed at high-sensitivity locations to block roadways against vehicle passage and obstruct vehicle-based attacks — with manual and automatic hydraulic raising and lowering operation, crash-rated and certified impact test performance for stopping and destroying attacking vehicles, shallow foundation installation, PLC programmable logic controller, standalone heavy-duty hydraulic station in roadside steel safe cabinet, sub-1-second raise speed with hydraulic cylinder damper for fast speed and low noise, proprietary LED strip design, and full integration with RFID card systems, parking barriers, ETC systems, bollards, turnstiles, and computer management systems. Deployed at military areas, embassies, government offices, airports, border checkpoints, prisons, and toll gates — the Madoors USA Spike Road Blocker guarantees maximum safety against unauthorized vehicles of all sizes and weights at the highest-security locations.
TECHNICAL SPECIFICATIONS

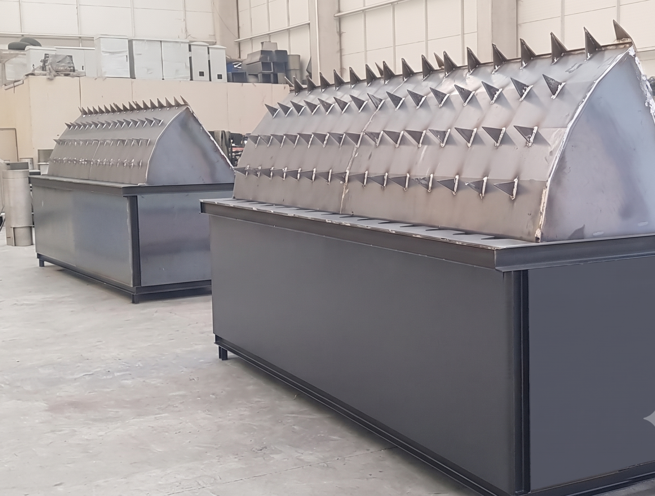

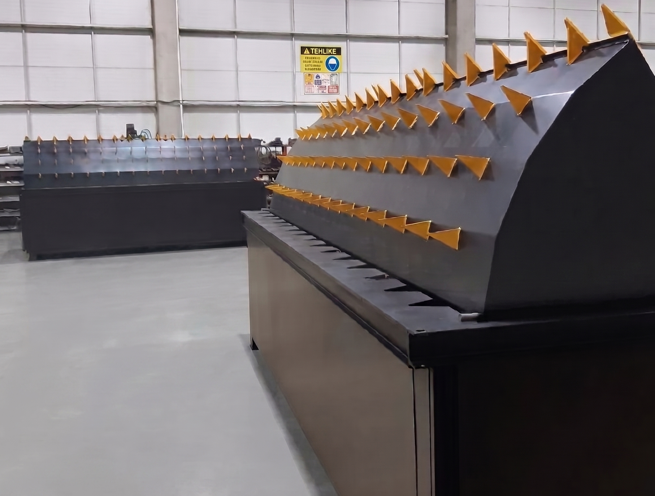

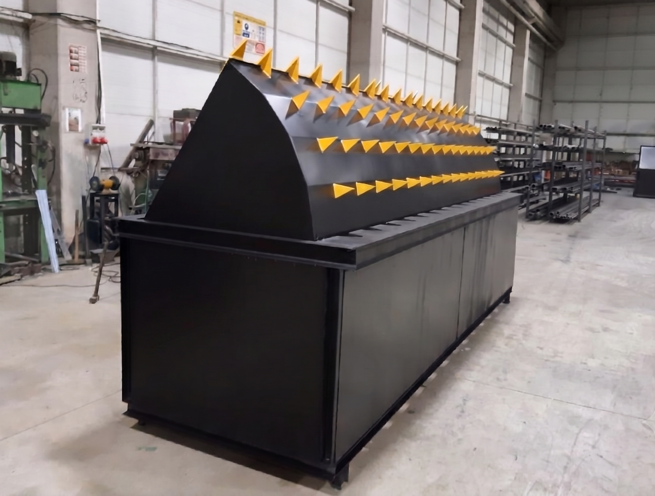

The Madoors USA Spike Road Blocker Barrier is installed by excavating the ground surface and installing a shallow foundation — the blocker housing is embedded flush with the ground surface in the lowered position, allowing completely clear vehicle passage over the blocker when authorized vehicles are permitted to proceed. In the raised position, the spike panel rises at an inclination from the road surface to create the physical vehicle barrier — the inclination angle presents the spike faces toward the approaching unauthorized vehicle for maximum tyre and undercarriage engagement on impact.

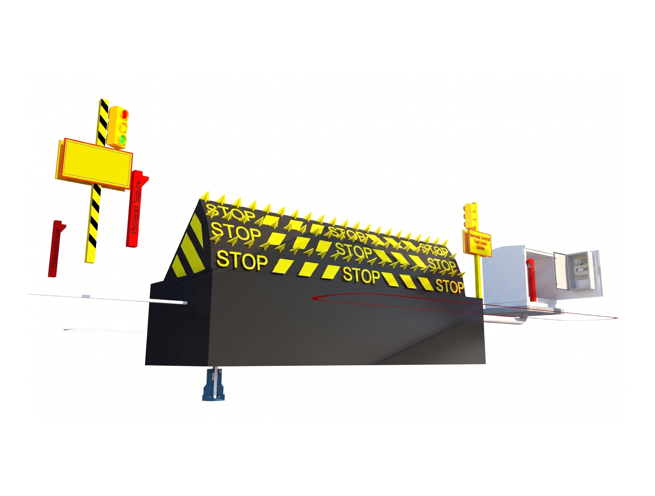

The hydraulic system uses a standalone heavy-duty hydraulic station mounted in a roadside steel cabinet — engineered as a safe box to protect the hydraulic power pack from vandalism, weather, and unauthorized access. Hydraulic oil is transferred through half-inch high-pressure steel braided hydraulic hoses professionally made to site-specific routing requirements. The hydraulic power pack uses either single-phase or three-phase drive motor — at 3.75 kW or 5.5 kW power — providing the high force output and operational capacity required for large car parks, busy airport vehicle lanes, and high-traffic border checkpoints.
The hydraulic cylinders are built underground within the main road blocker structure — all mechanical components are protected within the underground housing, exposed only to road surface loading and the hydraulic system forces. The hydraulic cylinder incorporates a damper — providing the fast raise/lower speed for access control efficiency while the damper absorbs the end-of-travel shock for low-noise operation. Sub-1-second raise speed provides the fastest available barrier deployment for vehicle attack response.
The PLC control system provides the complete access control logic — raising and lowering the blocker in response to authorized access signals from RFID card readers, ground loop vehicle detection, remote controls within 30-meter wireless range, and the switch button standard configuration. The LCD and LED controller display provides clear system status information. The LED strip design integrated into the road blocker body is a Madoors USA proprietary design — the company name or facility identification can be incorporated into the LED strip for branded installation.
The road blocker integrates with barriers, bollards, turnstiles, and parking systems through the built-in one-card access control — a single card swipe controls road blocker, barrier, and bollards simultaneously from one credential. Computer management system connection provides centralized monitoring, logging, and management of all road blocker access events.
KEY FEATURES
Sub-1-Second Raise Speed — Fastest Anti-Terrorism Response
The sub-1-second raise speed from ground-flush to fully raised barrier position is the fastest available hydraulic road blocker deployment speed — providing the minimum possible response time from threat vehicle identification to active barrier deployment. At typical checkpoint approach distances, sub-1-second barrier deployment provides effective vehicle stopping even for high-speed approach scenarios where the available response window is extremely short.
Crash-Rated Impact Test Certified — Vehicle Stopping & Destruction
The crash-rated and impact test certified performance confirms that the Madoors USA Spike Road Blocker arrests and destroys attacking vehicles at the specified vehicle weight and speed — the spike panel physically engages the vehicle undercarriage, tyres, and structural members, destroying the vehicle's mobility immediately on impact. The certification provides the independent test documentation required for military, government, and diplomatic facility anti-terrorism barrier procurement.
Standalone Hydraulic Safe Cabinet — Secure Power Pack
The hydraulic power station in a roadside steel safe cabinet directly protects the most vulnerable component of the hydraulic road blocker system — the hydraulic power pack — from the vandalism, tampering, and unauthorized access that would disable the barrier. The safe cabinet construction maintains the hydraulic system availability throughout continuous outdoor service without requiring a separate equipment room or underground housing for the power pack.
Flush Ground Level Installation — Unobstructed Authorized Passage
The flush ground level installation in the lowered position provides completely unobstructed vehicle passage for authorized vehicles — no above-ground obstacle, speed bump, or visual intrusion is present when the blocker is in the authorized pass position. This flush installation directly maintains the smooth traffic flow of authorized vehicles at high-throughput access points.
PLC Control — RFID, Ground Loop & Remote Integration
The PLC control system integration with RFID card readers, ground loop vehicle detectors, 30-meter wireless remote controls, and the standard 2-remote-controller 1-switch-button configuration provides the complete access control interface compatibility required for integration into any existing facility security infrastructure. The built-in card reader for blocker up/down control and the one-card integration with barriers and bollards eliminates the need for multiple credentials at multi-device access control points.
Proprietary LED Strip Design — Brand Identity Integration

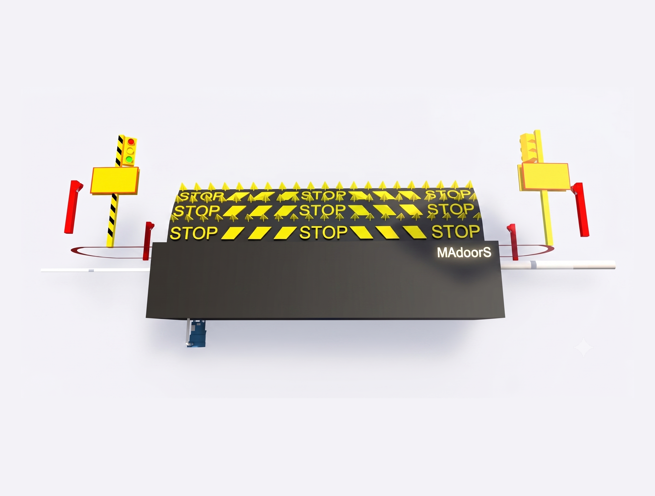

The Madoors USA proprietary LED strip design that allows company name or facility identification to be incorporated into the blocker body provides the branded installation option for corporate, government, and commercial facilities where the access control barrier contributes to the site's visual identity. The LED strip also provides clear visual indication of blocker status — raised or lowered — to approaching drivers.
Hydraulic Cylinder Damper — Fast & Low Noise Operation
The hydraulic cylinder damper that provides fast speed with low noise operation directly addresses the two competing requirements of high-security access control road blockers — the sub-1-second speed required for anti-terrorism response and the low-noise operation required for facilities where mechanical impact noise from blocker cycling would be disruptive. The damper absorbs the end-of-travel shock that causes the high-impact noise of undamped fast-cycling road blockers, maintaining the fast response speed while achieving low operational noise.
One-Card Multi-Device Integration — Unified Access Control
The built-in one-card access control that simultaneously manages the road blocker, road barrier, and bollards from a single credential presentation eliminates the multiple credential and device management complexity of separately controlled multi-device access points — the authorized vehicle presents a single card and all access control devices at the entry point respond simultaneously with coordinated raise/lower sequences.
TECHNICAL SPECIFICATIONS SUMMARY
Installation — Excavated shallow foundation, flush ground level in lowered position. Hydraulic system — Standalone heavy-duty station in roadside steel safe cabinet. Hydraulic hoses — Half-inch high-pressure steel braided. Motor — 3.75 kW single phase or 5.5 kW three phase. Raise/lower speed — Less than 1 second. Damper — Hydraulic cylinder end-of-travel noise reduction. Control — PLC with LCD and LED display. Remote control — Wireless 30-meter range, 2 controllers standard. Standard configuration — 2 remote controllers and 1 switch button. Integration — RFID card reader, ground loops, barrier, bollards, turnstiles, ETC, computer management.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Configuration

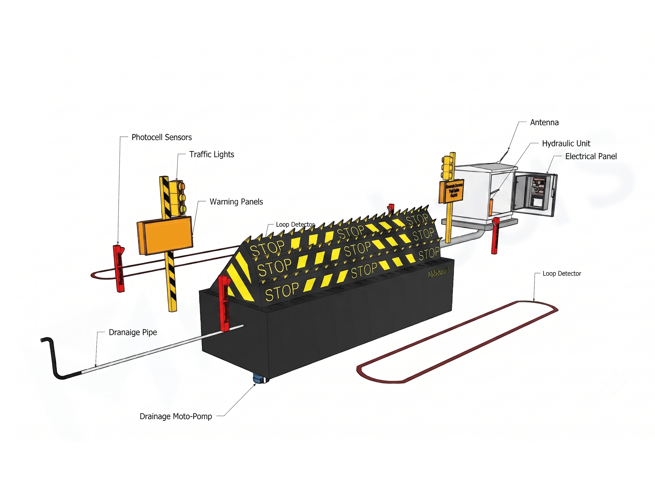

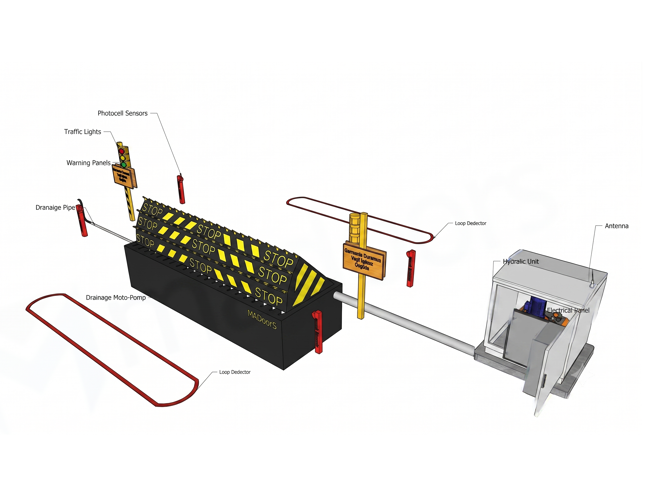

Lane width, vehicle threat profile, crash rating requirement, hydraulic power pack position for safe cabinet mounting, access control integration requirements, RFID system interface, ground loop positions, traffic light positions, and LED strip specification are confirmed.
Foundation Excavation & Drainage
The road surface excavation to the shallow foundation depth is completed at the road blocker position. Underground hydraulic cylinder housing excavation is completed. Drainage provision within the housing is installed.
Road Blocker Housing & Hydraulic Cylinder Installation
The road blocker housing with integrated hydraulic cylinders is installed flush with the road surface level. Spike panel alignment and raise angle in the fully raised position are verified.
Hydraulic Power Pack Cabinet Installation
The standalone hydraulic station safe cabinet is installed at the roadside position. High-pressure steel braided hose routing from the cabinet to the underground blocker housing is completed and pressure-tested. Motor electrical supply is connected.
PLC & Access Control System Installation
PLC control system, LCD/LED display, RFID card reader, ground loop detectors, traffic lights, wireless remote control receivers, and computer management connection are installed and programmed. One-card multi-device integration with barriers and bollards is configured.
LED Strip Installation & Customization
Proprietary LED strip is installed in the road blocker body. Company name or facility identification lettering is configured in the LED display.
Sub-1-Second Speed & Damper Testing

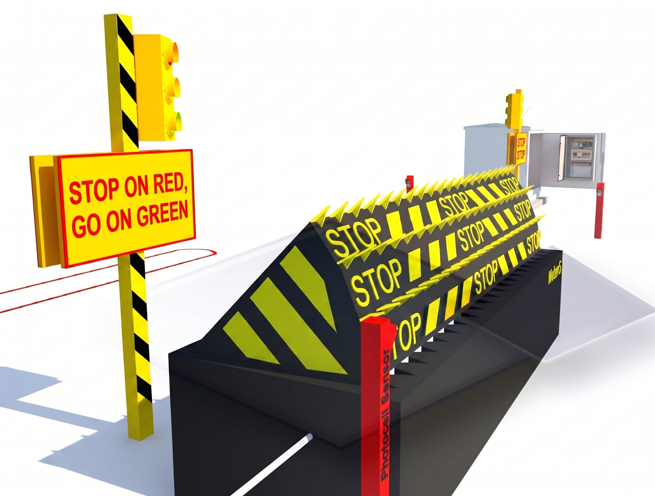

Complete raise/lower cycle at sub-1-second speed is tested. Hydraulic cylinder damper low-noise end-of-travel performance is confirmed. Ground loop vehicle detection, traffic light sequencing, and 30-meter remote control operation are verified.
Crash Test Certification & Handover
Crash test certification documentation, PLC programming records, hydraulic system commissioning documentation, and installation warranty are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Spike Road Blocker Barriers are deployed across the full range of anti-terrorism and high-security vehicle access control positions.
- Military base and defense installation entry road blockers
- Embassy and diplomatic mission anti-terrorism blockers
- Government building and ministry entry road blockers
- Presidential and VIP protection facility road blockers
- Airport terminal and perimeter vehicle access blockers
- Border crossing and checkpoint anti-terrorism barriers
- Prison and correctional facility vehicle entry blockers
- Nuclear and critical infrastructure vehicle access control
- Corporate headquarters anti-terrorism road blockers
- Port and maritime terminal vehicle entry control
- Toll gate and parking facility vehicle access management
- Police station and courthouse anti-terrorism barriers
- Shopping center and public space vehicle blockers
- Hotel and hospitality property anti-terrorism road blockers
- Any high-security vehicle access point requiring sub-1-second crash-rated hydraulic spike road blocker with PLC and multi-device access control integration
- Category: Road Blocker
