Speed Bump Under Vehicle Surveillance System
The Madoors USA Speed Bump Under Vehicle Surveillance System is an integrated speed bump and under vehicle surveillance system combining the natural vehicle-slowing function of a road speed bump with a built-in undercarriage scanning camera — automatically capturing complete undercarriage images of every vehicle that passes over the bump at high-traffic public locations including airports, malls, hotels, public parking areas, and hospitals. As vehicles naturally slow for the speed bump, the optimal inspection speed and undercarriage clearance geometry are achieved without requiring any driver action, security instruction, or vehicle stopping — providing continuous, high-volume undercarriage inspection with minimal operational overhead and maximum driver compliance.
Designed by Madoors USA with over 10 years of security engineering experience, the Speed Bump UVSS installs on both existing and new properties with minimal infrastructure modification, integrates with RFID and ANPR access control technologies for vehicle tagging and chassis verification, and is available with optional Automatic Foreign Object Detection for automated identification of suspicious undercarriage attachments and chassis modifications.
TECHNICAL SPECIFICATIONS

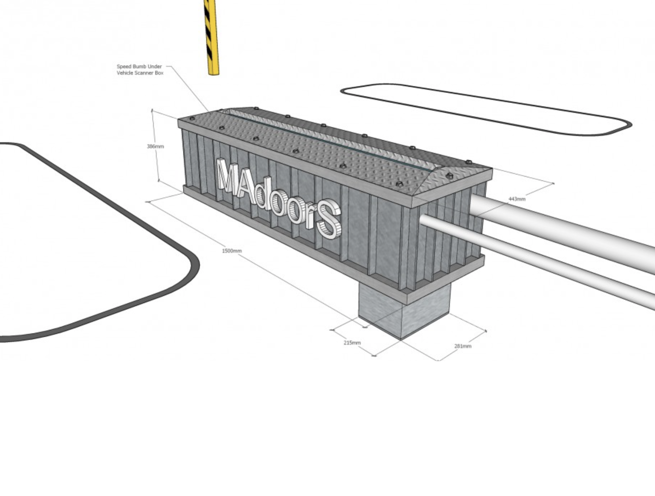

The Madoors USA Speed Bump UVSS integrates the undercarriage camera imaging system within a speed bump housing — the camera captures the vehicle undercarriage image as the vehicle passes over at the reduced speed naturally induced by the bump geometry. This natural speed reduction at the bump provides the optimal scanning conditions — the vehicle moves at the correct speed for complete undercarriage image capture without requiring speed enforcement or operator instruction, and the bump geometry lifts the vehicle's ground clearance profile to the optimum height for camera coverage of the full undercarriage width.

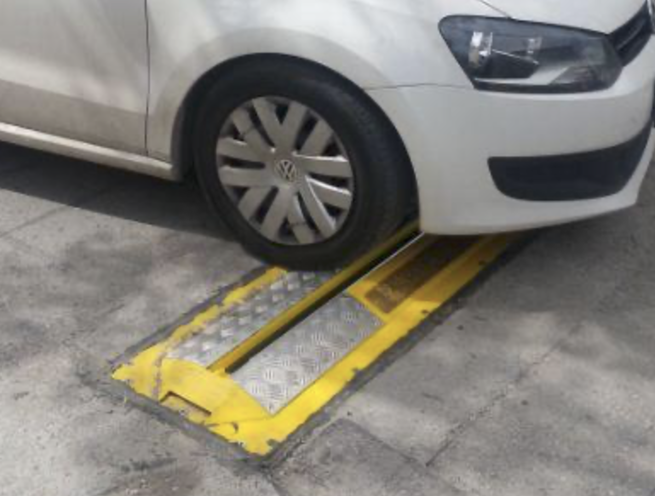

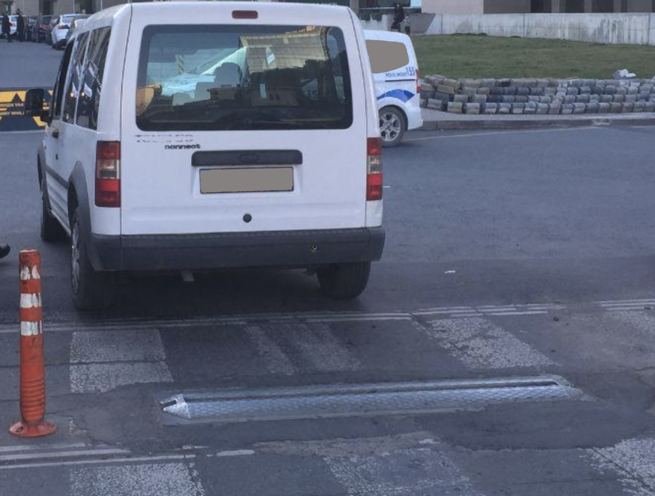

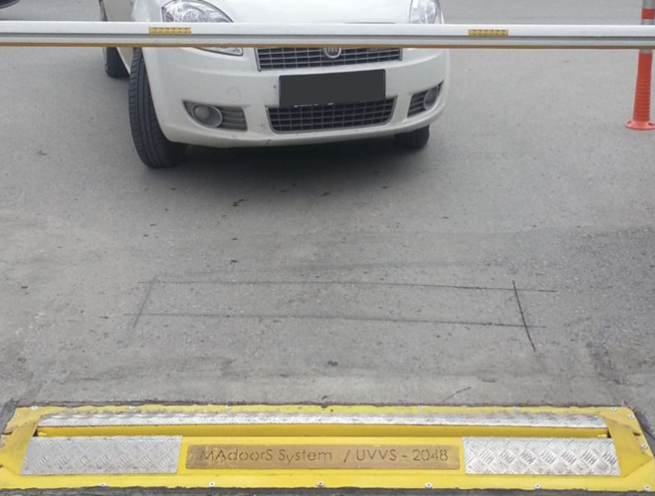

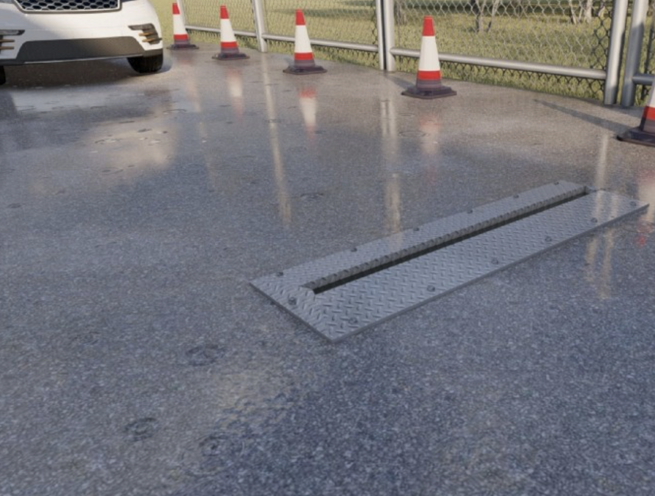

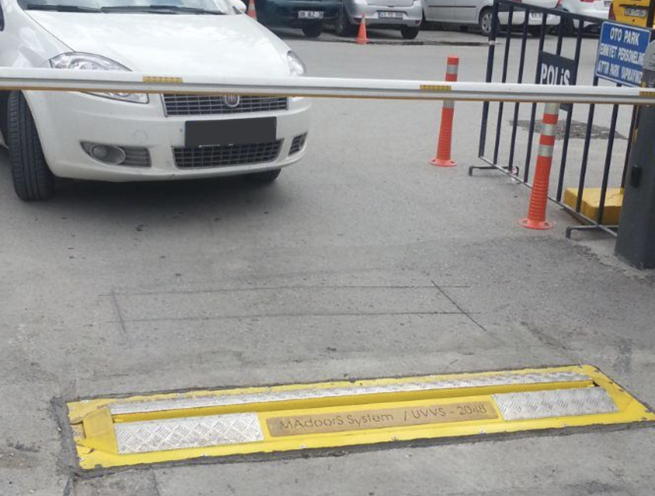

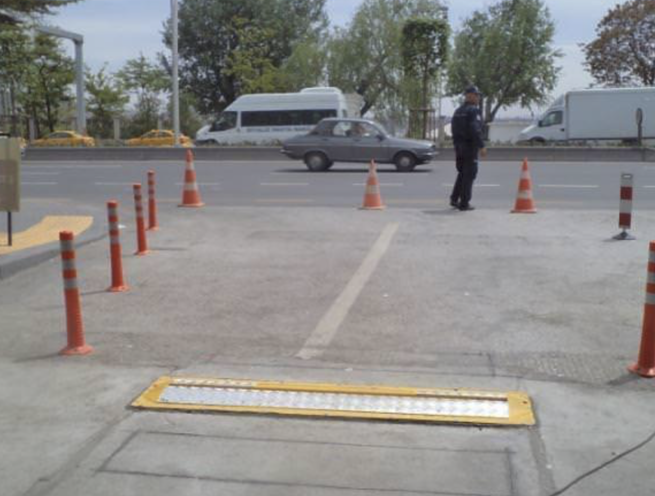

The system is available in surface road installation and recess-mount configurations — both providing complete undercarriage imaging capability with installation matched to the specific road surface, traffic volume, and vehicle type profile of each application. Surface installation provides rapid retrofit deployment at existing facilities without road excavation. Recess mounting provides a flush, low-profile installation for new construction and major renovation applications where a permanent, aesthetically integrated installation is preferred.
RFID integration allows vehicles to be tagged with their number plate and correlated with the respective vehicle chassis profile — providing a combined above-vehicle number plate identification and below-vehicle undercarriage verification that confirms both the vehicle identity and the undercarriage integrity in a single pass. ANPR — Automatic Number Plate Recognition — provides automated number plate reading for database verification, access history recording, and access control authorization without manual operator input.
The optional Automatic Foreign Object Detection — FOD — feature automatically analyzes the undercarriage image against a stored baseline chassis profile for the identified vehicle — detecting foreign objects attached to the undercarriage and unauthorized modifications made to the chassis structure since the baseline image was recorded. Automatic FOD analysis maintains consistent detection performance across all traffic volumes and operator fatigue levels, providing reliable undercarriage security screening at the highest daily vehicle volumes without the detection rate degradation that manual-only inspection experiences during peak periods.
KEY FEATURES
Speed Bump Integration — Natural Vehicle Slowing & Optimal Inspection
The speed bump integration eliminates the primary operational challenge of under vehicle inspection at high-traffic locations — achieving consistent vehicle approach speed for quality image capture without requiring vehicles to stop, drivers to be instructed, or security personnel to manage vehicle positioning. Every vehicle that passes over the speed bump automatically provides the correct inspection geometry and speed — driver compliance is inherent in the bump design rather than dependent on security instruction.
Automatic Foreign Object Detection — FOD
The optional Automatic Foreign Object Detection feature analyzes each undercarriage scan against a stored baseline — automatically flagging any attachment, modification, or structural change detected since the baseline was recorded. This automated detection eliminates dependence on operator visual inspection accuracy for every vehicle — the system maintains consistent detection sensitivity across all traffic volumes, all times of day, and all operator experience levels. FOD availability on high-end models provides the most advanced undercarriage security screening capability for the highest-security applications at airports, government facilities, and critical infrastructure.
RFID & ANPR Integration — Vehicle Identity & Chassis Correlation
The integration of RFID vehicle tagging and ANPR number plate recognition with the undercarriage scan provides a complete vehicle identity and integrity verification — the number plate confirms which vehicle is being inspected, the RFID tag confirms the vehicle's access authorization, and the undercarriage scan confirms the chassis integrity. This three-factor verification — identity, authorization, and undercarriage integrity — provides a higher security assurance than any single verification method alone.
Existing & New Property Installation — Minimal Modification
The installation flexibility for both existing and new properties with minimal infrastructure modification directly reduces the deployment cost and timeline for the largest application opportunity — retrofit installation at existing high-traffic facilities where the security gap identified by growing threat awareness must be closed without major construction works. Surface mount installation at existing road surfaces requires only the camera housing and cable connection — achieving the same scanning performance as pit-mounted alternatives without excavation.
Critical High-Traffic Locations — Airports, Malls & Hospitals
The speed bump UVSS addresses the specific security challenge of the highest-volume public access locations — airports, shopping malls, hotels, public parking areas, and hospitals — where the daily vehicle volume creates the greatest potential for undetected undercarriage threat introduction and where the conventional manual inspection method is most clearly insufficient for the inspection requirement. The automated, continuous, high-throughput inspection of the speed bump UVSS directly closes the security gap at these critical locations.
Hidden Threat Detection — Dangerous Objects Under Vehicles
The potentially dangerous objects most commonly concealed under vehicles — explosive devices, weapons, and contraband — are placed by individuals other than the vehicle's driver and occupants, who may be completely unaware of the attachment. This unaware-occupant concealment profile means that conventional security measures — driver questioning, occupant screening, and vehicle exterior inspection — cannot reliably detect undercarriage threats. The undercarriage scan is the only reliable detection method for this threat category.
Complete Undercarriage Coverage — Conventional System Improvement
The Madoors USA Speed Bump UVSS provides complete undercarriage coverage — the conventional alternatives of handheld mirror inspection and manual camera inspection are both limited by the security officer's physical access to the undercarriage area, the officer's attention and fatigue level, and the time available per vehicle at busy entry points. The automated speed bump system scans the complete undercarriage of every vehicle without the limitations of manual inspection — providing consistent, comprehensive coverage regardless of traffic volume or operator condition.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Configuration Selection
Entry lane width, daily vehicle volume and types, surface or recess mount preference, RFID and ANPR integration requirements, FOD option specification, and access control system integration are confirmed.
Road Surface Preparation
For surface mount — road surface anchor positions are confirmed and prepared. For recess mount — road excavation to the camera housing dimensions is completed. Cable conduit routing from the camera position to the operator workstation is installed.
Speed Bump UVSS Unit Installation
The speed bump camera housing is installed at the confirmed road position — surface-anchored or recess-mounted. Camera coverage of the full undercarriage width is verified with a test vehicle pass.

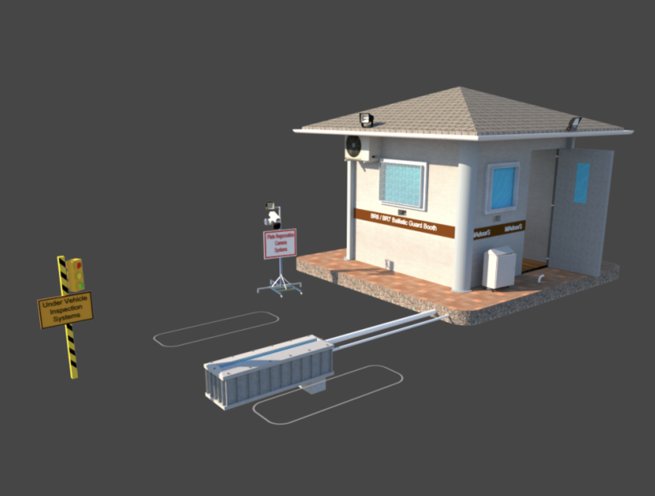

RFID, ANPR & Access Control Integration
RFID reader and ANPR camera are installed at the vehicle approach position. Vehicle database, chassis profile records, and access authorization records are loaded into the system. Integration with connected access control devices — barriers, bollards — is completed.
FOD Baseline Image Database Initialization (Where Specified)
Clean baseline undercarriage images are recorded for all regular vehicles — establishing the FOD comparison database for automatic foreign object detection.

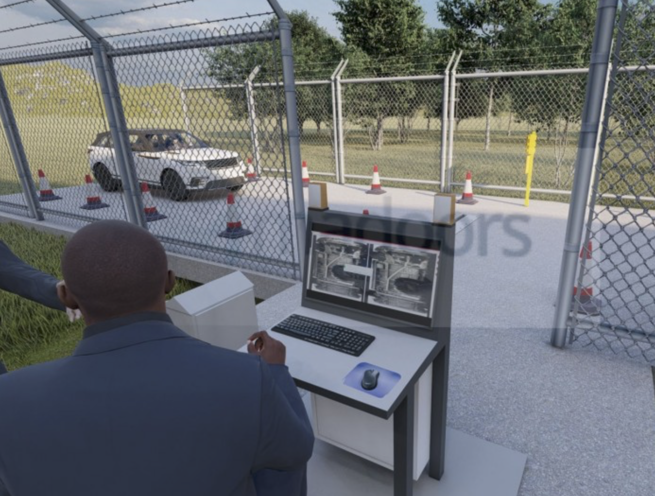

Operator Workstation & System Testing
Operator display, image analysis software, FOD alert system, and access control response logic are verified. Complete operational testing at normal vehicle approach speed is conducted across all vehicle types expected at the installation.
Operator Training & Handover
Operator training on image review, FOD alert response, RFID and ANPR verification, and suspicious vehicle response procedures is completed. System certification and 2-year guarantee documentation are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Speed Bump Under Vehicle Surveillance Systems are specified for any high-traffic vehicle access point requiring automated undercarriage inspection integrated with natural vehicle speed management.
- Airport terminal and car park entrance speed bump UVSS
- Shopping mall and retail center parking entrance systems
- Hotel and resort vehicle entrance speed bump inspection
- Hospital and healthcare facility parking entry UVSS
- Public parking area automated undercarriage inspection
- Government building vehicle entrance speed bump UVSS
- Corporate headquarters parking entry inspection systems
- Sports stadium and event venue vehicle entrance UVSS
- Embassy and diplomatic compound entry inspection
- Military installation entry road speed bump UVSS
- Educational campus vehicle entrance undercarriage scanning
- Court complex and justice facility vehicle entry UVSS
- Data center and critical facility vehicle access inspection
- Convention center and exhibition hall vehicle entry UVSS
- Any high-traffic vehicle access point requiring integrated speed control and undercarriage inspection
- Category: Under Vehicle Surveillance Systems
