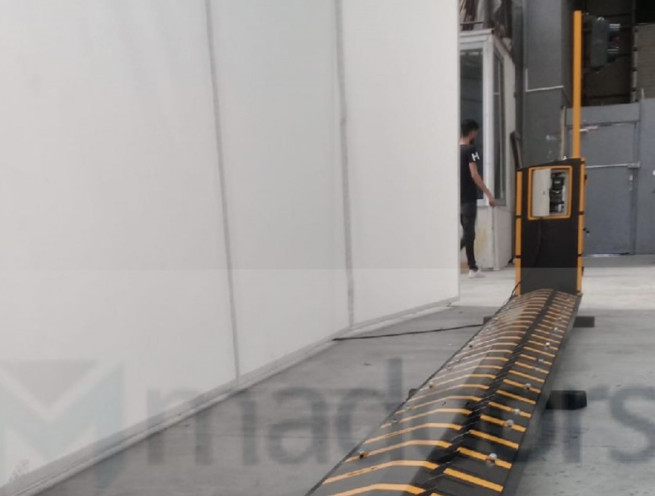

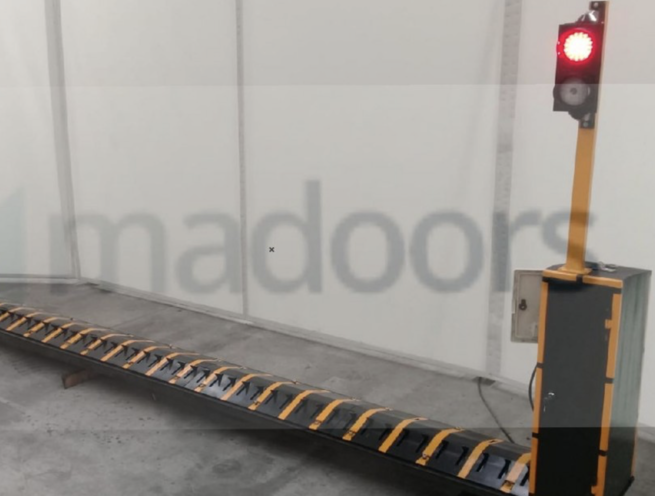

Speed Bump Motorized Tyre Killer
The Madoors USA Speed Bump Motorized Tyre Killer is a surface-mounted electric motorized automatic traffic spike barrier system — quick to deploy, easily installed, and relocatable — providing one-directional vehicle access control that allows authorized vehicles to pass in one direction while preventing unauthorized vehicle entry in the opposite direction. Used worldwide as a temporary road block by police and special forces units and as a permanent fixture at civil organizations from oil fields and embassies to palaces, the Madoors USA motorized tyre killer integrates with all access control devices and can be synchronized with a barrier gate arm operator for fully automated two-way traffic management at secured sites.
With adjustable blade height and angle, proprietary lockdown mechanism with blades locked down in less than one minute, adjustable internal rubber bumpers for installation phase-in, standalone and integrated operation capability, and compatibility with surface-mount temporary and permanent deployments, the Madoors USA Speed Bump Motorized Tyre Killer is the most versatile automatic spike barrier available for vehicle access control at any premises requiring a surface-mounted, relocatable spike system.
TECHNICAL SPECIFICATIONS
The Madoors USA Speed Bump Motorized Tyre Killer is surface-mounted — installed directly on the road surface without excavation or significant civil works, making it rapidly deployable and relocatable when the access control requirement changes or the installation moves to a new position. The electric motorized controller provides automatic spike deployment and retraction — the spikes rise to block unauthorized direction vehicle passage and retract to allow authorized direction vehicle entry, with all operations managed by the motorized controller in coordination with connected access control devices.
Blade height and angle are user-adjustable — customers can set the blades to be less aggressive for the phase-in period at new installations where approaching motorists are unfamiliar with the spike barrier, and adjust to full height and angle for normal operation after the installation is established. Internal rubber bumper thickness is also adjustable — providing an additional parameter for fine-tuning the spike aggressiveness to the specific traffic profile and approach speed characteristics of each installation.
The proprietary lockdown mechanism allows the blades to be locked in the down position in less than one minute — providing rapid manual override capability for emergency egress, maintenance access, and any scenario where the spike system must be quickly neutralized without power or controller access.
The system operates as either a standalone spike barrier or integrated with a barrier gate arm operator — the synchronized operation with the gate arm provides fully automated entry and exit control where the gate arm manages visual and physical vehicle flow authorization and the spike barrier provides the physical tire-destruction sanction for any vehicle that attempts to bypass the gate arm in the unauthorized direction.
Signage is mandatory at all installations — approaching vehicles must be warned of the presence of spikes and the potential damage that will occur if the spikes are engaged by a vehicle traveling in the unauthorized direction.
KEY FEATURES
One-Directional Vehicle Access Control — Dual Direction Management
The fundamental access control principle of the Madoors USA Speed Bump Motorized Tyre Killer is directional — the spike orientation allows vehicles to pass over in one direction without tire damage, while vehicles approaching from the opposite direction encounter the spike faces and suffer immediate tire destruction if they proceed. This one-way physical enforcement provides effective and low-cost vehicle access control for the most common security requirement — allowing authorized vehicles to enter while physically preventing unauthorized vehicle entry, without requiring personnel to intervene at every vehicle.
Adjustable Blade Height & Angle — Phase-In Capability
The user-adjustable blade height and angle allow the system operator to reduce the spike aggressiveness during the initial installation period — setting a lower, less aggressive blade configuration while approaching motorists learn the installation layout and the directional convention of the access control point. After the phase-in period, the blades are adjusted to full operational height and angle for normal access management. This phase-in capability reduces the incidental damage to authorized vehicle tires from approach errors during the unfamiliar early period of a new installation.
Proprietary Lockdown — Blades Down in Under One Minute
The proprietary lockdown mechanism allows the spikes to be manually locked in the down position in less than one minute — providing rapid emergency override capability without requiring power, controller access, or specialist tools. Sub-minute lockdown speed ensures that emergency vehicles, evacuation traffic, and maintenance access can be accommodated immediately without operational delay.
Surface Mount — No Excavation, Relocatable
The surface-mounted installation without excavation allows rapid deployment at new positions and straightforward relocation when the access control requirement changes. This relocatability directly extends the operational value of the installation — the same spike barrier system serves temporary police checkpoint deployments, semi-permanent construction site access control, and permanent facility protection across multiple deployment cycles without the site-specific limitation of excavated in-ground systems.
Police, Special Forces & Civil Organization Applications
The worldwide use by police and special forces units as a temporary road block and by civil organizations as a permanent fixture confirms the operational versatility and proven reliability of the surface-mounted motorized tyre killer across the full range of security applications — from the highest-urgency tactical police checkpoint deployment through to the continuous permanent access management of embassies, palaces, oil fields, and public facilities.
Integration with Barrier Gate Arm — Automated Two-Way Traffic Management
Synchronization with a barrier gate arm operator provides fully automated two-way traffic management — the gate arm provides the visual and physical access authorization signal for authorized vehicles, and the spike barrier provides the physical tire-destruction enforcement for unauthorized vehicles bypassing the gate arm in the wrong direction. This combined system allows two-way vehicle access at secured sites such as residential associations and public facilities without security personnel managing every vehicle movement.
Universal Access Control Integration
The system integrates with all access control devices — card readers, RFID systems, remote controls, intercoms, loop detectors, and building management systems — allowing the motorized tyre killer to be incorporated into any existing or new facility security management infrastructure. This universal integration eliminates compatibility constraints and allows the spike barrier to respond to the same access authorization signals that govern all other access control devices at the checkpoint.
Multiple Names — Universal Product Recognition
The product is known globally by a wide range of names — directional control devices, tiger teeth, sabre teeth, road blockers, road sharks, tire rippers, alligator teeth, tire cutters, and tire disabler — reflecting its universal deployment across law enforcement, military, and civil security applications worldwide. This widespread name recognition reflects the established global market acceptance of the surface-mounted directional spike barrier as a standard vehicle access control tool.
ASSEMBLY & INSTALLATION SEQUENCE
Installation Position & Directional Orientation
The installation position, authorized passage direction, unauthorized direction threat profile, and signage positions are confirmed. Integration requirements with existing barrier gate arm and access control devices are confirmed.
Road Surface Preparation & Anchoring
The road surface at the installation position is cleaned and anchor bolt positions are marked. Anchor bolts are installed to the confirmed embedment depth and torque for the barrier weight and surface loading.
Spike Barrier Unit Installation & Anchoring
The surface-mounted spike barrier unit is positioned over the anchor bolts and secured to the road surface. Blade alignment perpendicular to the vehicle approach direction and flush surface-contact seating are verified.
Electric Motorized Controller Connection
The electric motorized controller is connected to the spike mechanism and power supply. Motor raise and lower functions are tested through multiple complete cycles. Blade height and angle are adjusted to the specified phase-in settings.
Access Control Device Integration
All specified access control devices — barrier gate arm, card readers, loop detectors, remote controls — are connected to the motorized controller. Synchronized operation between the spike barrier and gate arm is programmed and tested.
Lockdown Mechanism Testing
The proprietary lockdown mechanism is tested for confirmed blades-down in under one minute. Lockdown and normal operation release are verified by the facility operator.
Mandatory Signage Installation
Warning signage notifying vehicles of spikes in place and potential tire damage is installed at all approach positions — confirmed visible to approaching vehicles at a distance sufficient for safe stopping before the spike position.
Operational Testing & Handover
Complete directional operational testing — authorized direction pass, unauthorized direction spike engagement — and access control integration testing are conducted. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Speed Bump Motorized Tyre Killers are specified for any directional vehicle access control application requiring surface-mounted, relocatable, motorized spike barrier capability.
- Police temporary road block and checkpoint deployment
- Special forces tactical vehicle access control operations
- Embassy and diplomatic facility permanent access control
- Oil field and energy facility vehicle access management
- Palace and royal estate vehicle access control
- Residential association and gated community entry control
- Public facility and civic building vehicle access management
- Military base temporary and permanent access control
- Airport and transport hub directional vehicle control
- Corporate headquarters and campus vehicle access
- Hospital and healthcare facility parking access control
- Hotel and hospitality property vehicle access management
- Shopping center and retail park vehicle directional control
- Event security temporary directional vehicle management
- Any premises requiring one-directional surface-mounted motorized spike access control
