Sectional Panel Garage Door
The Madoors USA Sectional Panel Automatic Remote Control Garage Door is a spring-balanced, polyurethane-insulated sectional door system that slides toward the ceiling on side-mounted rails — engineered for residential detached house garage entrances, apartment parking garage entrances, and commercial facility vehicle access points where thermal insulation, sound insulation, dust exclusion, aesthetic flexibility, and automated remote control convenience are simultaneously required. Manufactured in accordance with architectural designs, available in all RAL catalog colors, with plain or wood-like PVC-coated or painted panel faces, optional windows with decorative patterns, and door-in-door personnel access capability, the Madoors USA sectional garage door combines safety, aesthetics, and practical comfort for vehicle owners who can enter their garage by remote control without exposure to rain, mud, cold, or heat. All automatic motorized sectional garage door systems carry a 2-year guarantee.
TECHNICAL SPECIFICATIONS
The Madoors USA Sectional Panel Garage Door is constructed from special support sheet panels consisting of 0.5mm galvanized steel on both outer faces enclosing 40mm polyurethane foam fill — providing the thermal insulation, sound attenuation, and structural rigidity required for all-season residential and commercial garage door operation. The galvanized steel faces provide corrosion resistance in outdoor exposure and a uniform painting surface for the specified RAL color or PVC coating finish. The 40mm polyurethane fill provides the thermal break required to prevent heat conduction through the door panel — maintaining the garage interior temperature and reducing the heating and cooling energy required for climate-controlled garage environments.
The spring-balance system counteracts the panel weight throughout the full vertical lift travel — minimizing the motor force required for automated lifting and allowing easy manual operation when motorized drive is unavailable. Side-mounted rails on both sides of the opening guide the panel sections from the vertical closed position through the curved transition to the horizontal ceiling-stored open position — requiring no floor space for the open door and maintaining the full vertical clear height of the opening for vehicle passage.
Panel sections incorporate finger pinch safety design — preventing finger entrapment at the panel-to-panel joints during the folding motion of the sections through the curved rail transition. This safety feature satisfies the European EN 13241 safety standard for power-operated garage door systems.
Motor automation provides remote control, key control, password control, and button control operation options — with photocell safety sensors, flasher warning lights, and pneumatic safety systems available for comprehensive safety coverage. A release accessory enables manual operation during power failure. The 2-year guarantee covers all automatic motorized system components.
KEY FEATURES
40mm Polyurethane Fill — Thermal, Sound & Dust Insulation
The 40mm polyurethane fill between 0.5mm galvanized steel faces provides the three primary environmental separation functions of the sectional panel door — thermal insulation reducing heat transfer between the garage interior and exterior, sound attenuation reducing noise transmission from the road and exterior environment into the garage interior, and dust exclusion maintaining the garage interior air quality. This triple insulation function makes the sectional panel door significantly superior to single-skin steel or aluminum shutter alternatives for all applications where garage interior conditions matter.

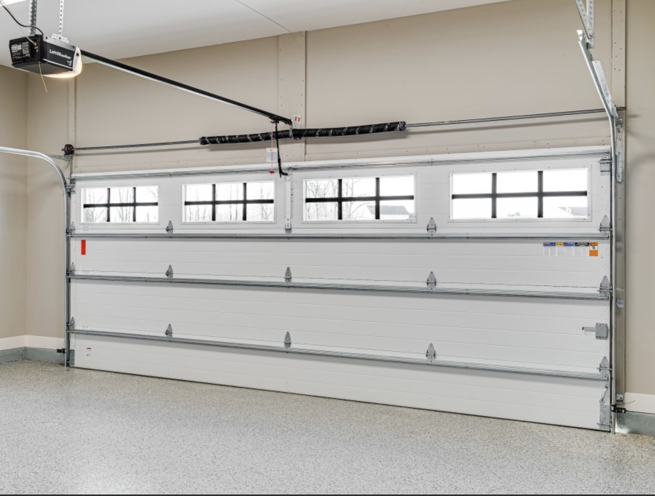

Spring Balanced — Ceiling Storage — Full Clear Opening
The spring balance system and ceiling-mounted open position combine to provide two critical operational advantages — the spring balance minimizes motor and manual effort for door operation throughout the service life, and the ceiling storage position maintains the full vertical clear height of the opening for the tallest vehicle types without any horizontal beam or door hardware obstructing the passage height when the door is open.
Remote Control, Key, Password & Button Control
The comprehensive access control compatibility covers all standard garage access management methods — wireless remote control for driver convenience without leaving the vehicle, key switch for mechanical backup, password keypad for multi-user access management without physical keys, and wall-mounted button for internal operation from within the garage. This multi-method compatibility allows the access control system to be configured for the specific operational requirements of each residential, commercial, or institutional garage application.
Plain & Wood-Like Panel Options — All RAL Colors
Panel face options — plain galvanized steel finish, wood-like PVC coating, and painted in any RAL catalog color — provide the aesthetic range required for residential architectural harmony and commercial brand identity. Wood-like PVC coating provides the visual warmth of a timber garage door in a maintenance-free, weather-resistant material that does not require the periodic painting, staining, and sealing of genuine timber. All RAL colors are available for painted finishes — providing any specified color for architectural coordination.

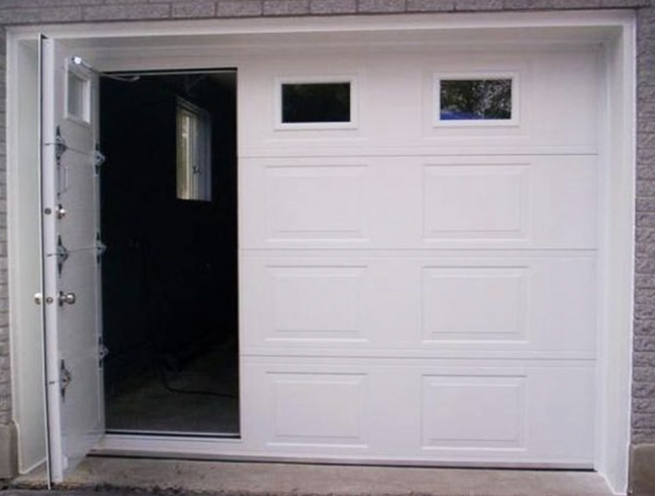

Door-in-Door Personnel Access — Service Door Application
The door-in-door configuration integrates a personnel access door within one of the sectional panel sections — allowing pedestrian access through the garage door without operating the full sectional panel system. This door-in-door capability eliminates the need for a separate personnel door adjacent to the main garage door, reducing the total opening count in the garage wall and the associated weathering and security implications of multiple door positions.

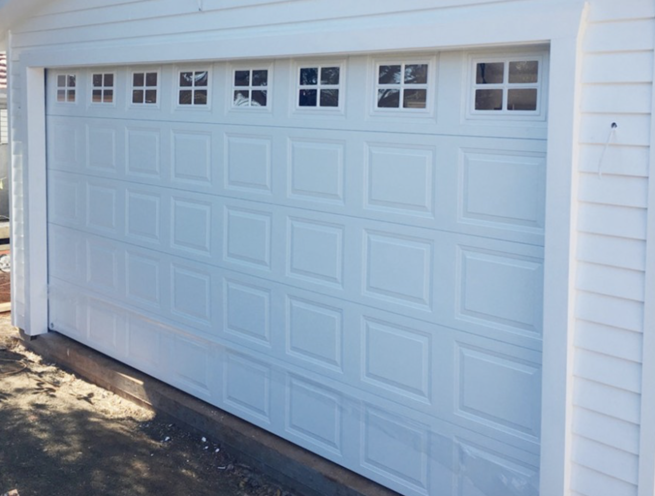

Optional Windows — Decorative Pattern Options
Windows can be applied to one or more panel sections — providing natural light to the garage interior in the closed position and a design element that breaks the visual mass of the full-height panel face. Decorative patterns on the window glazing provide privacy while maintaining light transmission, and contribute to the architectural character of the door face design.
Finger Pinch Safety Panels — Personnel Safety
The finger pinch safety panel construction at all panel-to-panel joints prevents finger entrapment at the folding joint positions during automated door operation — specifically protecting children and adults who may place fingers at the panel edges when the door is in motion. This safety feature is a mandatory requirement of European safety standards for residential and commercial sectional garage doors.
Photocell, Flasher & Pneumatic Safety Systems
Optional photocell safety sensors detect obstacle presence in the door travel path and halt door motion on detection. Flasher warning lights provide visual indication of door movement to persons in the garage or approaching the door from outside. Pneumatic safety systems provide contact detection at the door bottom edge — reversing door direction on contact with any obstacle. The combination of these safety systems provides comprehensive protection against door contact with vehicles, personnel, and objects in the door travel zone.
Manual Release — Power Failure Operation
The release accessory on motor-driven systems allows manual disconnection of the motor drive from the door mechanism — enabling the spring-balanced door to be manually lifted and lowered by hand during power failure and motor malfunction. This power failure manual operation ensures that the garage remains accessible during power outages without requiring battery backup systems or bypass circuits.
Variable Beam Height Applications — Architectural Flexibility
The sectional door bedding system accommodates various architectural designs and structural beam heights — providing installation solutions for both standard and non-standard header heights above the door opening. This architectural flexibility allows the sectional panel door to be specified for new construction and retrofit applications where the available headroom above the opening varies from building to building.
2-Year Guarantee — All Motorized Systems
The 2-year guarantee on all automatic motorized sectional garage door systems provides assurance of product quality and operational reliability from the installation date — covering all motorized components, spring balance hardware, rail and track system, and panel construction for the initial 2-year service period.
ASSEMBLY & INSTALLATION SEQUENCE
Opening Assessment & Panel Configuration
Opening width and height, available headroom above the opening, motor specification, access control requirements, panel face finish — plain, wood-like, or painted RAL color — window option, door-in-door requirement, and safety system specification are confirmed.
Track & Hardware Installation

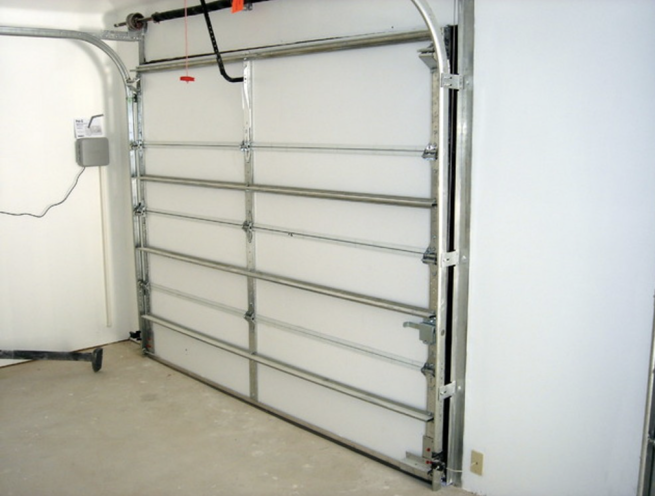

Side rails are installed on both sides of the opening — vertical section at the opening face, curved transition section at the ceiling break, and horizontal ceiling section extending into the garage. Track alignment, level, and structural fixing are verified. Torsion spring and counterbalance hardware are installed at the header position.
Panel Section Assembly & Installation
Sectional panels are assembled in sequence from the bottom section upward. Finger pinch safety joints between adjacent panels are verified. Each section is connected to the side rail rollers. Panel section connections are verified for correct folding geometry through the curved rail transition.
Motor Drive Installation & Spring Adjustment

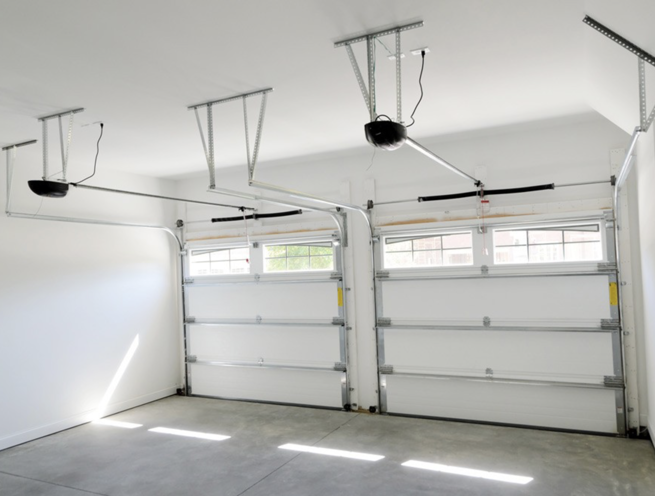

The motorized drive unit is installed at the ceiling position on the horizontal rail. Drive connection to the top panel section is made. Spring tension is adjusted for balanced door weight throughout the full travel range — minimizing motor force at all positions.
Door-in-Door & Window Installation (Where Specified)
Door-in-door personnel door is installed in the specified panel section. Window panels are installed in the specified positions with decorative pattern glazing as specified.
Safety System Installation & Calibration
Photocell sensors, flasher warning lights, and pneumatic safety edge are installed and connected to the motor control system. All safety system responses — halt and reverse on obstruction detection — are tested and calibrated.
Access Control Programming & Testing
Remote control receivers are programmed and tested. Key switch, password keypad, and wall button are installed and tested for correct motor activation. Manual release accessory function is tested under simulated power failure.
2-Year Guarantee Documentation & Handover
Complete operational testing — automated open and close, all access control methods, safety systems, manual release, and door-in-door operation — is conducted. 2-year guarantee documentation and installation records are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Sectional Panel Garage Doors are specified for any residential, commercial, or institutional garage opening requiring automated, insulated, remote-controlled sectional door performance.
- Detached house and private residential garage doors
- Apartment complex and residential estate parking garage doors
- Commercial building and office complex parking garage entrances
- Hotel and hospitality property vehicle storage garage doors
- Industrial facility and warehouse vehicle access sectional doors
- Automotive dealership and service workshop garage doors
- Fire station apparatus bay sectional panel doors
- Hospital and healthcare facility vehicle access garage doors
- Airport ground support equipment garage doors
- Corporate headquarters vehicle storage facility doors
- Shopping center and retail park service area garage doors
- Cold storage and food distribution facility insulated garage doors
- Educational institution vehicle access and storage garage doors
- Government and municipal fleet garage doors
- Any commercial or residential garage requiring insulated automated access
