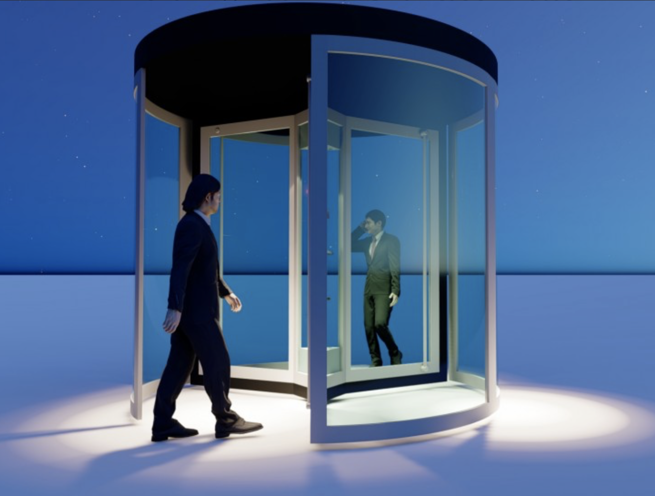

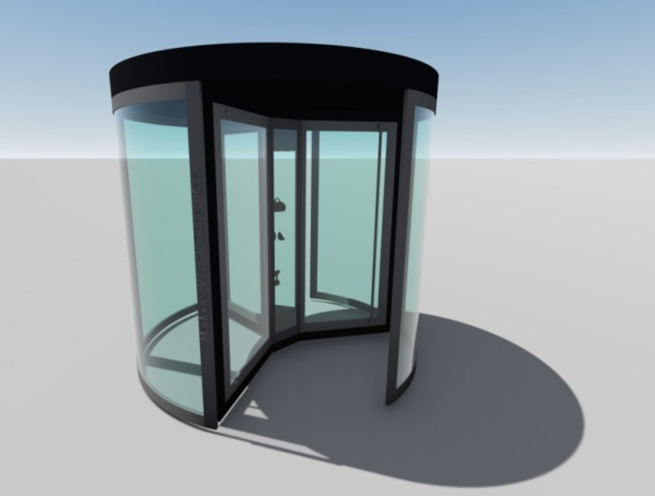

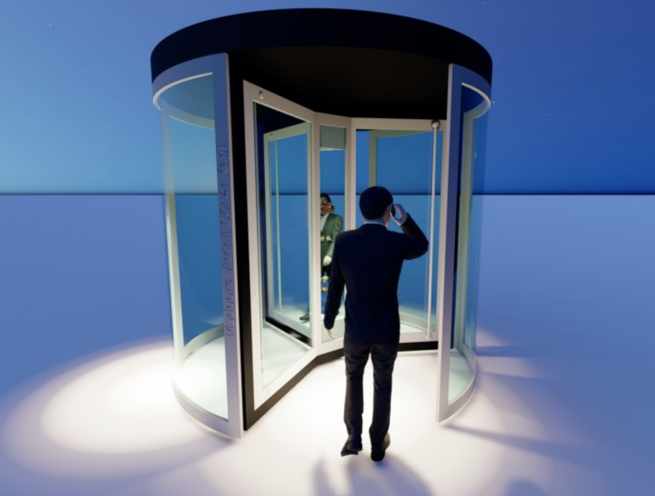

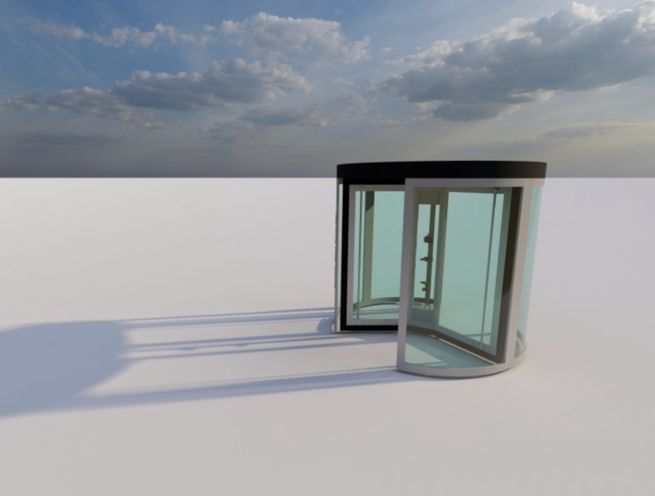

Revolving Door With Showcase
The Madoors USA RV-5000 Automatic Revolving Door with Showcase is a 100% thermally insulating, motorized revolving door system available in diameters from 3,600mm to 7,400mm — specifically engineered for high-circulation buildings where large-diameter revolving doors are required for easy passage with shopping carts, luggage trolleys, and high pedestrian throughput at hypermarkets, shopping centers, airports, hotels, and business centers. The defining architectural feature of the RV-5000 is the integrated central showcase in the middle section where the revolving door wings meet — providing a premium display area for products, brand identity elements, or decorative accessories that transforms the building entrance into a prestigious architectural feature and merchandising opportunity simultaneously.
Equipped with folding wing panic exit capability, the highest safety devices meeting universal safety standards, and available in electrostatic powder coating in any RAL color, anodized colors, stainless steel, brass, and other premium surface finishes, the Madoors USA RV-5000 is a classic in the high-capacity showcase revolving door segment — combining magnificent visual presence with practical high-capacity access management for the most demanding commercial and public building entrance applications.
TECHNICAL SPECIFICATIONS
The Madoors USA RV-5000 Revolving Door with Showcase is available in the following standard diameters — 3,600mm, 4,200mm, 4,800mm, 5,400mm, 6,000mm, and 7,400mm in 3-wing aluminum configuration only. The diameter range from 3,600mm through to 7,400mm is the widest available for a motorized revolving door with showcase system — the larger diameters specifically addressing the operational requirement of hypermarkets, airport terminals, and large shopping centers where shopping carts, luggage trolleys, prams, and wheelchair users must pass through the revolving door without clearance constraints from a smaller drum diameter.
The 7,400mm maximum diameter — available in 3-wing aluminum configuration — is among the largest revolving door diameters available globally, providing the unobstructed drum interior diameter required for simultaneous passage of a fully loaded shopping cart and a pedestrian user without physical contact between the cart and the drum walls.
100% thermal insulation is provided by the complete drum wall and door wing construction — maintaining complete separation of the building interior climate from the exterior environment throughout the full rotation cycle. This thermal performance directly reduces the heating and cooling energy costs of high-circulation building entrances where revolving doors are replacing swing or sliding door systems.

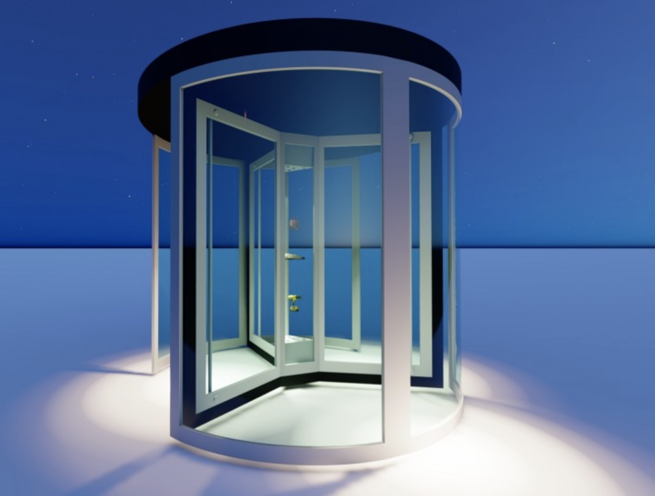

The showcase section in the center of the door — where the door wings converge at the center column — provides a display volume usable for product merchandising, brand identity signage, seasonal decorative installations, and architectural feature elements. The showcase is enclosed within the revolving door drum structure, providing a protected, fully enclosed display environment visible from both the interior and exterior of the building.
The RV-5000 is equipped with folding wing panic exit — the door wings fold open in the emergency egress direction under the pressure of an evacuating person, providing the required clear escape width for all occupancy levels without the door needing to be stopped or the motor disabled during emergency evacuation.
KEY FEATURES
3,600mm to 7,400mm Diameter — High-Capacity Throughput
The gigantic diameter range from 3,600mm through to 7,400mm provides the drum interior passage width required for the highest-volume, highest-load pedestrian traffic scenarios — shopping carts at hypermarkets, luggage trolleys at airports, prams and mobility aids at shopping centers, and groups of pedestrians passing simultaneously at any high-traffic building entrance. The larger diameters directly increase the throughput capacity per revolution — a single revolution of a 7,400mm door admits significantly more pedestrian traffic than a single revolution of a smaller standard revolving door.
Integrated Central Showcase — Merchandising & Aesthetic Opportunity
The central showcase section provides a unique building entrance feature — a fully enclosed, protected display volume at the visual center of the revolving door that is visible to all approaching visitors from outside the building and to all exiting visitors from inside. This location — at the focal center of the building entrance — provides the highest possible visibility for the showcase content, making the RV-5000 showcase section one of the most impactful retail and brand display positions available in commercial building design. The showcase can be changed seasonally or for promotional campaigns without modifying the door structure.
100% Thermal Insulation — Energy Efficiency
Complete thermal insulation of the revolving door system provides full separation of the building interior climate from the exterior — eliminating the continuous heat or cooling loss that occurs at swing door and sliding door entrances during each opening cycle. At high-circulation building entrances where the door cycles hundreds or thousands of times per day, the cumulative energy saving of 100% thermal insulation compared to non-insulating swing or sliding doors is substantial across the annual heating and cooling cycle — directly reducing the facility's energy operating cost.
Folding Wing Panic Exit — Universal Safety Standards
The folding wing panic exit capability allows the door wings to fold open in the emergency egress direction under occupant body pressure — providing the mandatory clear escape width for emergency evacuation without requiring the revolving door to be stopped, manually operated, or overridden by building management. Folding wing panic capability satisfies the escape route provisions required by universal safety standards for revolving doors installed on designated emergency egress routes in high-occupancy commercial buildings.
Highest Safety Devices — No Size or Feature Discrimination
The RV-5000 is equipped with the highest available safety devices meeting universal safety standards across all sizes and configurations — without any discrimination between standard and large diameter models. Safety device coverage — including presence detection, anti-trapping, rotation speed control, and emergency stop — is applied consistently across the full diameter range from 3,600mm to 7,400mm, ensuring that the largest high-capacity models provide the same safety standard as smaller standard models.
Shopping Cart & Luggage Trolley Passage
The large diameter configurations — specifically the 4,800mm, 5,400mm, 6,000mm, and 7,400mm options — are dimensioned to allow shopping carts, luggage trolleys, and baggage handling equipment to pass through the revolving door without requiring the user to retract the cart, angle it awkwardly, or request alternative access through a separate swing bypass door. This full trolley passage capability directly improves the customer experience at hypermarket and airport entrances — eliminating the inconvenience of forced bypass door use for cart-carrying customers.
Premium Surface Finishes — Architectural Adaptation
Electrostatic powder coating in any RAL color, anodized color finishes — including champagne, bronze, silver, and custom colors — stainless steel, brass, and other premium surface finishes allow the RV-5000 to adapt to the general architectural concept of any building. This finish range covers contemporary glass and steel commercial architecture, luxury hotel and hospitality design, airport terminal and civic building specification, and heritage and traditional building contexts — making the RV-5000 architecturally adaptable to the widest possible range of building design languages.
Classic High-Capacity Showcase Revolving Door — Established Product
The RV-5000 has established itself as a classic in the high-capacity showcase revolving door segment — with proven performance at hypermarket, airport, shopping center, and hotel installations demonstrating the reliability, throughput capacity, and architectural quality that have made it the preferred specification for the most demanding high-circulation building entrance applications in the Madoors USA revolving door range.
CONFIGURATION OPTIONS
3-Wing Configuration
Three wing leaves — the standard RV-5000 configuration available across the full diameter range including the 7,400mm maximum. Three-wing revolving doors provide the optimal balance between per-revolution throughput capacity — larger wing passage width — and rotation control — reduced risk of multiple users entering the same wing section simultaneously.
4-Wing Configuration
Four wing leaves — available in the standard diameter range up to 6,000mm. Four-wing revolving doors provide higher throughput capacity through more frequent wing presentations per revolution at the cost of a narrower individual wing passage width per revolution.
With Showcase — Central Column Display
The defining RV-5000 configuration — with the integrated display showcase in the central column section where the wing leaves converge. Available across all diameters and wing configurations.
Without Showcase — Standard Center Column
The standard central column configuration for applications where the central showcase feature is not required — maintaining all other RV-5000 performance, safety, and finish features without the display element.
ASSEMBLY & INSTALLATION SEQUENCE
Opening Assessment & Diameter Selection
Building entrance opening dimensions, required drum diameter, wing count — 3 or 4 wing — showcase or standard center column, trolley passage requirement, panic exit specification, surface finish, and thermal insulation requirement are confirmed. Structural floor and header load capacity for the selected diameter and door weight are verified.
Floor Preparation & Bottom Ring Installation
The floor opening for the revolving door bottom ring is prepared to the confirmed drum diameter. Bottom ring is installed and leveled. Floor mat and threshold finish are prepared within the drum footprint.
Center Column & Drive System Installation
The center column — with or without showcase enclosure — is installed at the confirmed center position. The motorized rotation drive system is installed on the center column. Column level, vertical alignment, and rotation bearing engagement are verified.
Drum Wall & Wing Leaf Installation
Curved drum wall panels are installed in the drum wall positions. Thermally insulating glazed or panel drum wall sections are verified for continuous thermal seal. Wing leaf panels are installed on the rotation mechanism. Thermal seals at wing-to-drum-wall contacts are verified for continuous insulation performance throughout the full rotation cycle.
Showcase Installation (Where Specified)
The central showcase enclosure is installed within the center column structure. Display lighting, access panel, and showcase glazing are installed and verified.
Safety Device Installation & Calibration
All safety devices — presence detection, anti-trapping sensors, rotation speed control, emergency stop, and folding wing panic mechanism — are installed and calibrated. Folding wing panic release under emergency pressure is tested and verified across all wing panels.
Surface Finish Inspection & Operational Testing
All surface finish — powder coating, anodizing, stainless steel, or brass — is inspected for quality and consistency. Complete operational testing — motorized rotation, safety device responses, folding wing panic, and emergency stop — is conducted across multiple full rotation cycles at operating throughput speeds.
Thermal Performance Verification & Handover
Thermal seal continuity at drum wall, wing, floor, and header interfaces is verified. Complete installation documentation and operational handover are completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA RV-5000 Revolving Doors with Showcase are specified for any high-circulation building entrance requiring large-diameter motorized revolving door capability with central showcase and premium architectural finish.
- Hypermarket and superstore main entrance revolving doors
- Airport terminal passenger entrance high-capacity doors
- Shopping center and retail mall main entrance showcase doors
- Hotel and luxury hospitality property lobby entrance doors
- Business center and corporate headquarters entrance doors
- Convention center and exhibition hall entrance revolving doors
- University and educational campus landmark entrance doors
- Hospital and healthcare facility main entrance revolving doors
- Government and civic building public entrance revolving doors
- Stadium and arena main entrance revolving door systems
- Casino and entertainment complex entrance revolving doors
- Museum and cultural institution entrance showcase doors
- Transport hub and railway station entrance revolving doors
- Flagship retail store showcase entrance revolving doors
- Any high-circulation building requiring large-diameter revolving entrance
