Please provide your technical specifications and project requirements for the Retractable Dock Shelter. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
Retractable Dock Shelter

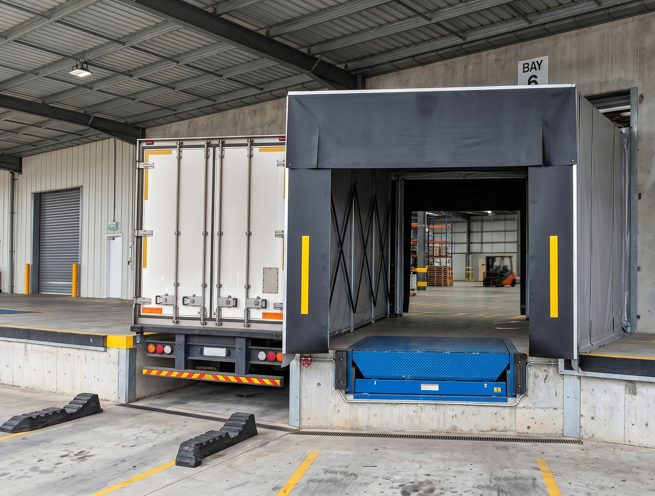

The Madoors USA RLDS-1000 Retractable Dock Shelter is a premium-grade loading dock shelter manufactured with the best available materials and technical engineering to withstand the heavy work conditions of continuous commercial and industrial loading dock operation — available in fixed and retractable folding designs, with semi-rigid high-tenacity lateral and top flaps resistant to humidity, abrasion, and UV aging, complete galvanized steel and anodized aluminum profile structure for maximum mechanical tolerance and oxidation resistance, forward-inclined roof with aluminum drainage piping, rubber rear profiles for facade sealing and water infiltration prevention, and optional Signal Shelter LED intelligent positioning system for driver vehicle maneuver guidance. Very easy assembly in existing premises, simple maintenance, and multiple finish options make the RLDS-1000 the most complete retractable dock shelter solution for any commercial and industrial loading dock.
TECHNICAL SPECIFICATIONS
The Madoors USA RLDS-1000 is manufactured with a complete structure in anodized aluminum profiles — the anodized finish provides an additional oxidation resistance layer over the inherent corrosion resistance of aluminum, directly extending the service life of the shelter structure in the outdoor dock environment without surface treatment maintenance. The galvanized steel components within the structure provide the structural rigidity and mechanical load capacity required for the heavy truck impact and compression loading of active dock shelter service.
The folding retractable design absorbs potential shocks caused by truck approach — the folding mechanism has vertical shift capability that accommodates the impact loading of truck contact without transmitting the full shock force to the mounting structure. This shock absorption directly protects both the shelter structure and the dock wall mounting from the progressive damage accumulation that rigid dock shelter designs experience from repeated truck contact impacts over the service life.
The lateral flaps and top flap are manufactured from semi-rigid high-tenacity material — the semi-rigid specification provides the structural form maintenance required for consistent truck body contact sealing while the high-tenacity material resists the tearing, abrasion, and deformation from truck contact loading that softer materials cannot withstand at the cycle rates of active dock service. The material is specifically resistant to humidity, abrasion, and UV aging from solar radiation — addressing the three primary degradation mechanisms for dock shelter fabric in outdoor installation.
The roof design includes forward inclination to prevent water accumulation — flat or rearward-sloping roof surfaces accumulate rainwater that adds structural load, promotes algae growth, and creates drainage onto the dock approach surface. The forward inclination directs rainwater to the aluminum piping profiles on the roof sides for controlled drainage away from the dock approach. Rubber profiles on the rear of the shelter improve the seal with the building facade and prevent water infiltration through the shelter-to-wall interface.
The optional Signal Shelter LED intelligent positioning system provides light guidance for truck drivers during approach maneuvers — LED indicators show the driver the correct approach line and stopping position within the dock shelter opening, enabling accurate positioning without ground staff guidance. This LED positioning system is particularly valuable at high-traffic logistics centers where rapid, accurate truck positioning is required without dedicated dock approach personnel.
KEY FEATURES
Retractable Folding Design — Shock Absorption & Vertical Shift
The retractable folding design with vertical shift capability is the engineering feature that distinguishes the RLDS-1000 from fixed dock shelters — the folding mechanism allows the shelter flaps to yield under truck contact loading and retract to the stored position when not in active sealing use. The vertical shift in the folding mechanism specifically accommodates the variable approach angle and height difference between different trucks, absorbing the contact shock without the structural stress that rigid fixed shelters accumulate from every truck approach. This shock absorption directly extends the operational service life of the shelter structure.
Semi-Rigid High-Tenacity Flaps — Humidity, Abrasion & UV Resistance
The semi-rigid high-tenacity flap material resists the three primary outdoor dock shelter degradation mechanisms — humidity from rain and dock wash-down, abrasion from repeated truck body contact during loading operations, and UV aging from continuous solar radiation exposure. This combined material resistance directly provides the long service life without flap replacement that the RLDS-1000 is engineered to deliver — the flap material maintains its structural integrity, sealing performance, and appearance throughout the full intended service life.
Anodized Aluminum & Galvanized Steel — Maximum Corrosion & Mechanical Resistance
The combination of anodized aluminum profiles for the outer structure and galvanized steel for the load-bearing elements provides the most corrosion-resistant structural combination available for outdoor dock shelter installation — anodized aluminum resists the weather and chemical exposure of the dock environment without any maintenance, and galvanized steel provides the structural rigidity and mechanical strength that aluminum alone cannot achieve at the structural load positions. The high mechanical tolerance of this material combination directly ensures dimensional stability and consistent shelter function throughout the service life.
Forward-Inclined Roof & Aluminum Drainage Piping
The forward-inclined roof with aluminum drainage piping channels all rainwater away from the dock approach surface — preventing the roof water accumulation that adds structural load, promotes surface contamination, and creates dock approach slip hazards. The aluminum drainage piping provides the same corrosion resistance and durability as the main structure, ensuring the drainage function is maintained without corrosion blockage throughout the full outdoor service life.
Rubber Rear Profiles — Facade Seal & Water Infiltration Prevention
The rubber profiles inserted at the rear of the shelter where it contacts the building facade provide the final sealing layer between the shelter structure and the wall surface — preventing water infiltration through the shelter-to-wall interface that would wet the dock wall surface, promote facade deterioration, and allow rain infiltration into the warehouse interior at the dock opening perimeter. This rear facade seal is the completion of the comprehensive weather protection function of the RLDS-1000.
Very Easy Assembly — Existing Premises Installation
The very easy assembly in existing premises allows the RLDS-1000 to be installed at any existing loading dock without major structural modification — the suspended mounting system attaches to the existing dock wall face, and the complete shelter assembly mounts on the suspension structure without requiring dock reconstruction or wall opening modification. This easy retrofit installation directly enables the RLDS-1000 to upgrade the weather protection of any existing dock position quickly and economically.
Simple Maintenance — Long-Term Low-Cost Operation
The simple maintenance requirement of the RLDS-1000 reduces the ongoing operational cost of dock shelter maintenance — the anodized aluminum and galvanized steel structure requires no surface treatment maintenance, the semi-rigid high-tenacity flaps resist the degradation that requires frequent replacement in lower-quality dock shelter materials, and the folding mechanism design is accessible and straightforward for routine inspection and adjustment. Simple maintenance directly reduces the total ownership cost throughout the operational service life.
Optional Signal Shelter LED Positioning — Driver Guidance
The optional Signal Shelter intelligent LED positioning system provides the driver with visual guidance during approach maneuvers — reducing the approach time required for accurate truck positioning within the shelter opening and eliminating the dependency on ground staff for approach guidance at high-traffic dock positions. LED positioning guidance directly improves dock throughput efficiency and reduces the risk of shelter damage from inaccurate truck approach angles.
Multiple Finish Options — Architectural Integration
The multiple finish options for the RLDS-1000 allow the dock shelter to complement the architectural character of the building facade — the anodized aluminum profiles are available in different anodized color finishes, and the flap material color can be coordinated with the building color scheme. This finish flexibility is particularly valuable for commercial and corporate facilities where the loading dock facade is visible from public areas and the dock shelter appearance contributes to the overall building presentation.
ASSEMBLY & INSTALLATION SEQUENCE
Dock Opening Assessment & Shelter Specification
Dock opening width and height, truck fleet height and width range, fixed or retractable configuration, optional Signal Shelter LED requirement, finish specification, and mounting wall construction are confirmed.
Suspension Mounting Hardware Installation
The shelter suspension mounting hardware is installed on the dock wall face at the confirmed positions. Structural connection for the combined shelter weight and truck contact loading is verified.
Aluminum Structure Assembly
The complete anodized aluminum profile structure is assembled on the suspension mounting. Forward roof inclination and aluminum drainage piping alignment for side drainage are confirmed.
Flap Installation & Rubber Rear Profile Fitting
Semi-rigid high-tenacity lateral and top flaps are installed on the aluminum structure. Rubber rear profiles are fitted at the shelter-to-facade contact positions — facade seal continuity and water infiltration prevention are verified.
Folding Retractable Mechanism Testing
The folding retractable mechanism is tested through the retract and deploy cycle — vertical shift shock absorption function and positive deploy and retract position are confirmed.
Signal Shelter LED Installation (Where Specified)
LED positioning indicator system is installed and programmed for the dock approach geometry. Approach guidance function and stopping position indication are verified from the truck driver position.
Drainage Testing
Water drainage from the forward-inclined roof through the aluminum piping profiles to the side drainage positions is tested and confirmed without pooling on the roof surface.
Operational Testing & Handover
Complete retract, deploy, truck approach shock absorption, facade seal, and LED guidance functions are tested. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA RLDS-1000 Retractable Dock Shelters are specified for any loading dock requiring high-quality weather protection with retractable shock-absorbing design.
- General logistics and distribution center dock shelters
- Food and beverage manufacturing facility dock shelters
- Retail distribution center loading dock weather protection
- Pharmaceutical and healthcare supply dock shelters
- Industrial manufacturing facility loading dock protection
- E-commerce fulfillment center dock shelter systems
- Cold storage facility ambient-temperature dock positions
- Automotive manufacturing plant component delivery docks
- Chemical and industrial product facility dock shelters
- Airport cargo terminal loading dock weather protection
- Port and maritime terminal warehouse dock shelters
- Supermarket and grocery chain distribution dock shelters
- Corporate and commercial facility loading dock shelters
- Government and military supply depot dock shelters
- Any loading dock requiring durable retractable shock-absorbing dock shelter with long service life and easy installation
- Category: Vehicle Restraint & Dock Equipment
