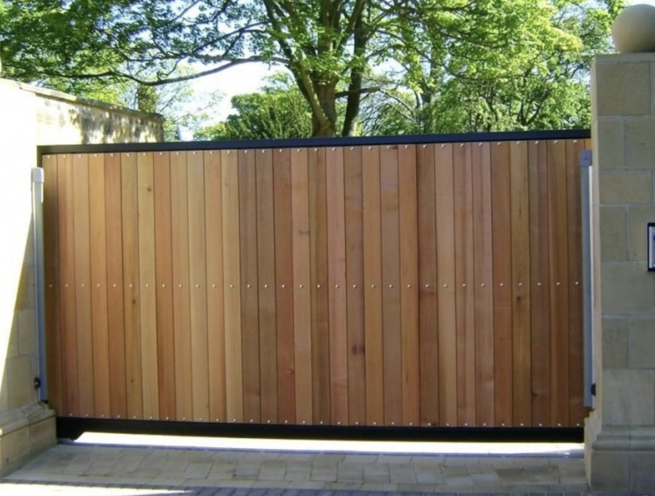

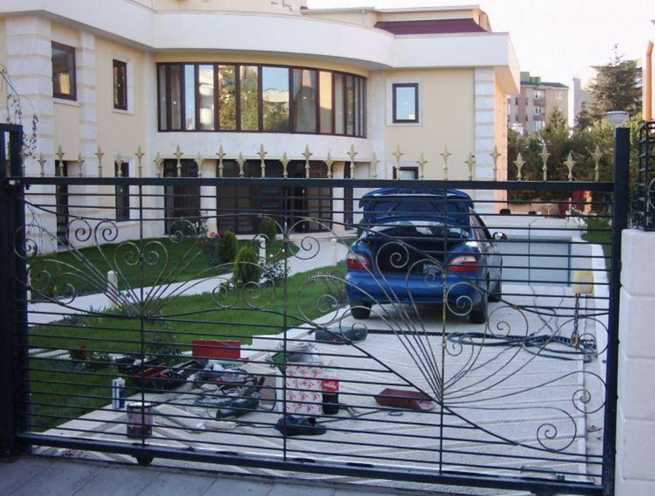

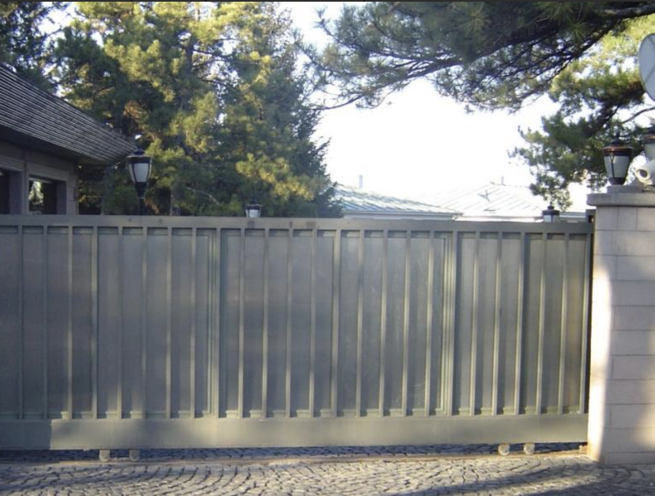

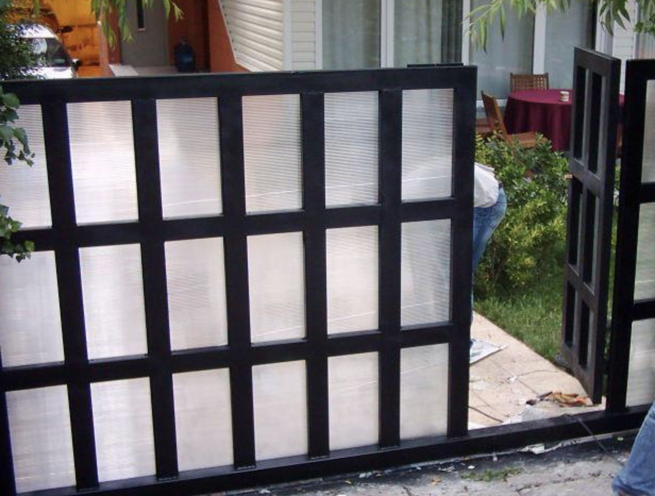

Rail Iron Sliding Door
The Madoors USA Rail Iron Sliding Door — tracked sliding gate — is a track-guided sliding gate system engineered for applications where insufficient room prevents swing gates from opening and where higher security and larger opening widths are required. The gate runs along a ground-level track on base wheels, providing a lower profile from the ground than cantilever alternatives and the ability to span larger opening widths — making tracked sliding gates the standard specification for wide industrial, commercial, and residential security entrances where cantilever run-back space is not available and maximum opening width must be achieved at minimum above-ground gate profile.
All Madoors USA automated gates and barriers meet the essential health and safety requirements and are CE marked as required by law. Outdoor gate and motor opener systems are designed to withstand rain, wind, cold, and heat — using high-quality, maintenance-free materials to guarantee longevity and trouble-free operation across the full range of residential and commercial duty cycle requirements.
TECHNICAL SPECIFICATIONS
The Madoors USA Rail Iron Sliding Gate operates on a ground-level track installed along the opening — the gate leaf is guided along the track by wheels at the base of the gate, with the track providing both the travel path guidance and the structural support for the gate leaf weight. The track must remain clear from debris for efficient operation — debris accumulation in the track channel is the primary maintenance requirement of the tracked sliding gate system, distinguishing it from the maintenance-free ground contact of the cantilever system.
The gate leaf is constructed from iron or steel in a rail or bar profile configuration — providing the structural rigidity required for the gate span and the security performance required for the application. Iron and steel rail construction delivers the visual character of a traditional sliding gate alongside the security performance of a heavy-duty vehicle exclusion barrier.
The tracked design allows larger opening widths to be spanned than cantilever systems — the ground track provides continuous support along the full travel length, allowing the gate leaf to span openings that would require a prohibitively long and heavy cantilevered counterweight in a trackless design. This larger span capability makes the tracked sliding gate the preferred specification for wide industrial yard entrances, commercial facility vehicle access points, and large residential estate entrances.
Motor opener options cover both residential and commercial duty cycle requirements — with opener selection based on gate leaf weight, required opening speed, daily cycle rate, and available electrical supply. CE marked motor openers meet the essential health and safety machinery directive requirements for automated gate systems in European and international markets.
KEY FEATURES
Larger Opening Width Capability
The tracked design spans larger opening widths than cantilever alternatives — with the continuous ground track supporting the gate leaf weight along the full travel length rather than concentrating the support at the rear cantilever post. This span advantage makes the tracked sliding gate the specification for the widest industrial and commercial vehicle access entrances where the opening width exceeds the practical cantilever span capability.
Lower Ground Profile — Reduced Visual Impact
The tracked sliding gate runs along a low-profile ground track — presenting a lower above-ground profile than cantilever gates where the rear support structure rises above the gate leaf to carry the counterweight. This lower ground profile reduces the visual mass of the gate installation at residential and commercial entrances where minimal visual obstruction alongside the opening is an architectural or aesthetic preference.
Ideal for Swing Gate Replacement — Space-Constrained Applications
Tracked sliding gates are specified as the primary alternative to swing gates at entrances where insufficient space — on either side of the opening — prevents the swing arc of a hinged gate from clearing vehicles, walls, buildings, or other obstructions. The sliding action requires no swing clearance space beyond the gate run-back alongside the opening — making tracked gates practical at constrained sites where no swing gate of any configuration would be operable.
Higher Security Than Swing Gates
The sliding gate configuration provides higher security than equivalent swing gates — the heavier iron and steel rail construction, the absence of the hinge point structural vulnerability of swing gates, and the more positive closing and latching mechanism of sliding gates on a fixed track provide superior forced entry resistance for commercial and industrial security applications.
CE Marked — Health & Safety Compliance
CE marking confirms compliance with the essential health and safety requirements applicable to automated gate and barrier systems — including machinery safety, electromagnetic compatibility, and electrical safety directives. CE marking satisfies the regulatory documentation requirements for automated gate installation in European and international markets where CE compliance is a legal requirement.
Nylon Wheels — Quiet Operation on Uneven Ground
Nylon wheels at the base of the gate leaf provide quiet, smooth operation even where the ground is not perfectly level — the nylon material provides a degree of compliance under the wheel that accommodates minor track irregularities without the metal-on-metal contact noise of steel wheel systems. Quiet operation is the primary consideration for residential and light commercial applications where gate noise would be disruptive to occupants and neighbors.
High-Quality Maintenance-Free Materials
Outdoor gate and motor opener components are manufactured from high-quality materials specified for maintenance-free performance across the full range of outdoor environmental conditions — rain, wind, temperature extremes from cold to heat, and UV exposure. Maintenance-free material selection directly reduces the total operating cost of the gate system across its service life by eliminating surface treatment maintenance, lubrication schedules, and component replacement from corrosion.
Residential & Commercial Opener Concepts
Different motor opener concepts are available to meet the specific needs of residential and commercial users — with residential openers sized for the lighter gate weights, lower daily cycle rates, and 230V single-phase supply of domestic applications, and commercial openers sized for the heavier gate weights, higher cycle rates, and three-phase or heavy-duty single-phase supply of active commercial and industrial vehicle access management. Opener selection ensures reliable, long-service operation matched to the specific duty profile of each installation.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Gate Configuration
Opening width, available run-back space for the gate in the open position, ground level conditions along the track line, gate leaf weight estimate, required opening speed, daily cycle rate, and motor opener power supply are confirmed.
Track Excavation & Installation
The ground track channel is cut or formed along the opening and gate run-back line. The iron or steel track is installed in the channel and set to the correct level — with the track top surface flush with or minimally above the surrounding ground surface to minimize vehicle pass-over bump at the track position. Track alignment, level, and structural fixing are verified.
Gate Post & Support Installation
End posts and intermediate supports are installed and anchored at the specified positions alongside the opening. Post alignment, plumb, and structural connection to the foundation are verified.
Gate Leaf Fabrication
The rail iron gate leaf is fabricated to the confirmed opening width and height. Surface treatment — galvanizing, priming, and painting — is applied to the gate leaf and all hardware before installation.
Base Wheel & Carriage Installation
Nylon base wheels and carriage assemblies are fitted to the gate leaf at the specified positions. Wheel diameter, spacing, and load rating are confirmed for the specific gate leaf weight.
Gate Leaf Installation on Track
The gate leaf is installed on the ground track — base wheels engaged with the track profile. Gate travel from the fully closed to fully open position is tested for smooth, quiet operation. Gate leaf level and alignment in the closed position are verified.
Motor Opener Installation & Commissioning
The selected motor opener — residential or commercial specification — is installed at the specified drive position. Motor connection to the gate leaf drive mechanism is made. Travel limits, opening speed, and closing speed are set. Safety edge and obstruction detection systems are installed and calibrated.
Access Control & CE Compliance Documentation
Access control interfaces — remote controls, keypads, card readers, intercom — are installed and connected. CE marking compliance documentation is confirmed. Complete operational testing and installation handover are completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Rail Iron Sliding Doors are specified for any entrance requiring a track-guided sliding gate across residential, commercial, and industrial applications.
- Residential driveway and property entrance tracked gates
- Commercial premises and business property entrance gates
- Industrial facility and factory yard entrance gates
- Warehouse and logistics facility vehicle access gates
- Agricultural and rural property wide entrance gates
- School and educational campus vehicle entrance gates
- Hospital and healthcare facility vehicle access gates
- Gated community and residential compound entrance gates
- Corporate campus and business park vehicle access gates
- Sports facility and recreation ground vehicle access gates
- Storage facility and depot vehicle entrance gates
- Government and institutional facility vehicle access gates
- Commercial parking facility entrance tracked gates
- Construction site vehicle access temporary tracked gates
- Any entrance where swing gate space is unavailable
