Portal Gantry X-Ray Truck Cargo Trailer Container Scanning
The Madoors USA Madoorsscan-5500 Gantry X-Ray Portal is a highly efficient pass-through inspection system for large trucks, buses, and cargo containers — providing the highest available throughput in the Madoors USA vehicle scanning range at up to 250 trucks per hour, making it the definitive specification for the highest-volume high-traffic inspection locations where conventional stop-and-scan methods cannot match the required vehicle flow rate. Using multiple X-ray technologies to provide up to six simultaneous images of the truck or cargo — with simultaneous three-sided backscatter imaging and optional dual-energy transmission technology — the Madoorsscan-5500 highlights organic and metallic threats including explosives, weapons, currency, and drugs, in a compact design suitable for space-constrained port, border crossing, and facility checkpoint installations.
TECHNICAL SPECIFICATIONS

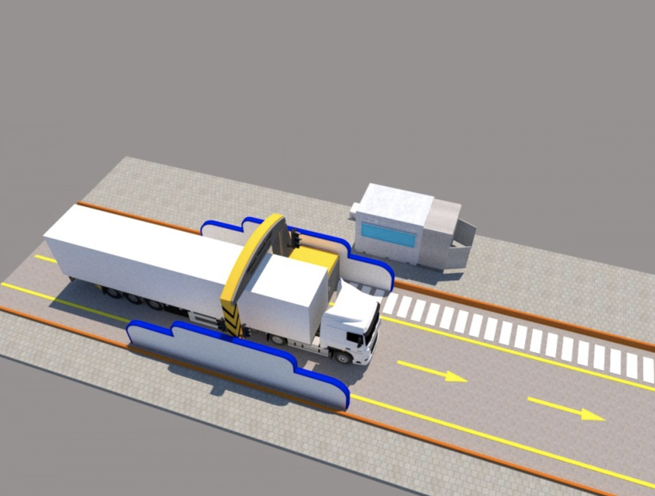

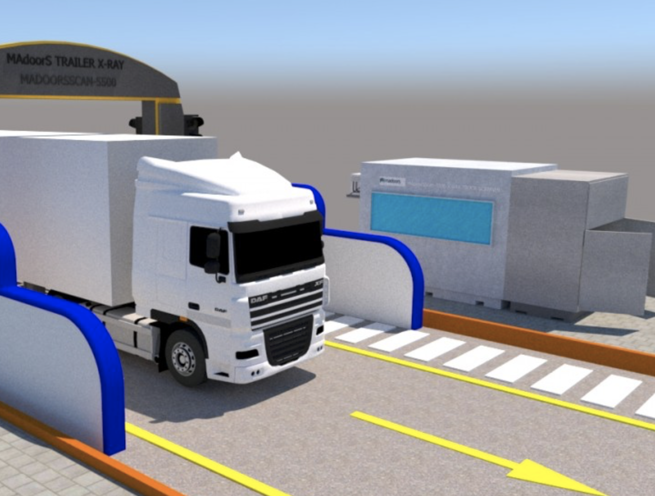

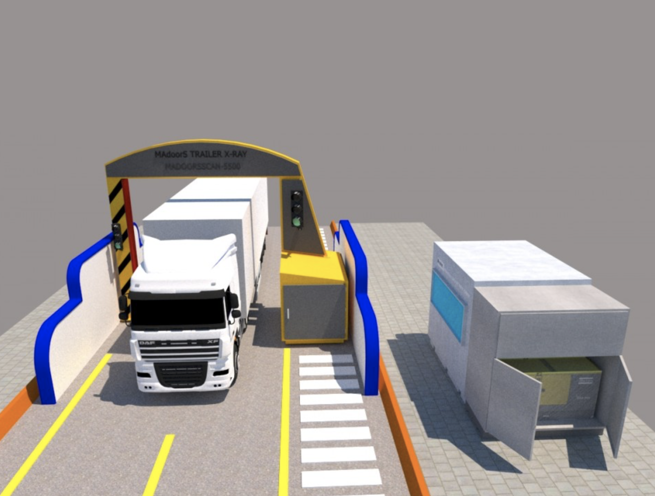

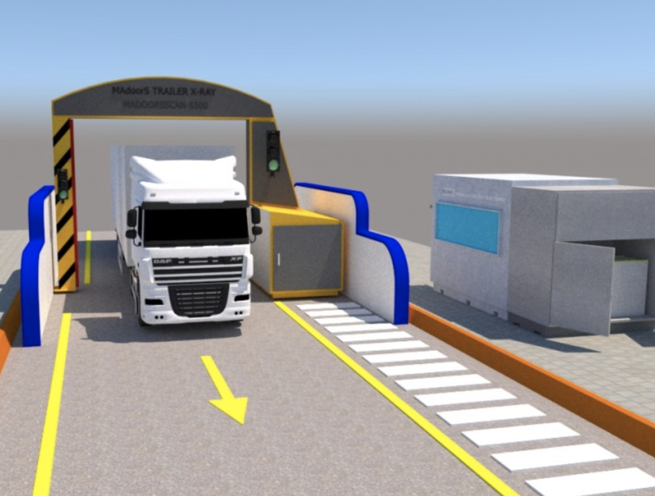

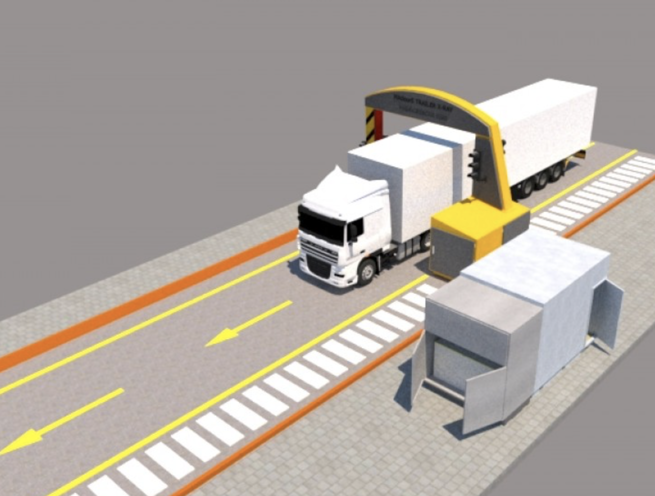

The Madoorsscan-5500 pass-through portal design allows trucks, buses, and cargo containers to drive through the scanning gate while the X-ray system scans from multiple angles simultaneously — providing up to six images per vehicle from a single drive-through pass. This multi-image simultaneous capture is the defining technical advantage of the Madoorsscan-5500 over single-image portal systems — the operator receives a comprehensive multi-angle view of the entire vehicle and cargo in a single scan without repositioning, multiple passes, or increased inspection time per vehicle.
The system uses multiple X-ray technologies simultaneously — Madoors USA backscatter X-ray technology for organic material detection on all three accessible vehicle sides, and optional dual-energy transmission technology for material discrimination and metallic detection. The combination of backscatter and dual-energy transmission provides complementary detection modalities — backscatter is optimized for organic material detection including concealed persons, drugs, and explosives, while dual-energy transmission is optimized for material discrimination between organic and metallic objects and for penetration of dense cargo loads.
Throughput of up to 250 trucks per hour is the maximum available in the Madoors USA scanning range — approximately one vehicle every 14 seconds at peak throughput. This throughput rate is specifically suited to the highest-traffic border crossings, port terminals, and commercial logistics hubs where vehicle inspection must be completed at the same rate as the normal vehicle flow to avoid creating inspection-induced queuing and commercial delay.
The compact design and profile specifically addresses space-constrained installation environments where the larger footprint of conventional full-scale gantry systems cannot be accommodated — providing 250-truck-per-hour throughput capability in a reduced footprint that fits within the existing lane infrastructure of constrained checkpoint sites.
KEY FEATURES
250 Trucks Per Hour — Highest Throughput in Range
The 250 trucks per hour throughput rate is the highest available in the Madoors USA vehicle scanning range — more than 8 times the 28 trucks per hour of the M-5800 Gantry system and significantly exceeding all other scanning configurations. This extreme throughput capability is the primary specification advantage of the Madoorsscan-5500 for the busiest international border crossings, major seaport terminals, and high-volume commercial logistics checkpoints where the inspection system must match the natural vehicle flow rate of the facility without becoming the throughput bottleneck.
Up to Six Simultaneous Images — Multi-Technology Multi-Angle
The provision of up to six simultaneous images from a single pass — through the combination of backscatter and optional dual-energy transmission from multiple angles — gives the operator the most comprehensive view of the vehicle and cargo available from any single-pass portal inspection system. Multiple simultaneous images from different angles reveal concealed compartments, cargo anomalies, and threat objects that a single-angle image would leave ambiguous or invisible, directly increasing detection probability without increasing inspection time per vehicle.
Simultaneous Three-Sided Backscatter Imaging
The simultaneous three-sided backscatter imaging covers the maximum available surface area of the truck or cargo container in a single pass — providing complete coverage of the vehicle sides and overhead in real time without sequential repositioning between sides. Three-sided simultaneous coverage directly eliminates the inspection gaps that sequential single-sided systems leave during the time between individual side scans — ensuring that no surface area of the vehicle is uninspected during the drive-through.
Optional Dual-Energy Transmission — Material Discrimination
The optional dual-energy transmission technology adds atomic number-based material discrimination to the backscatter imaging — providing the operator with material composition information about cargo contents that supplements the backscatter density imaging. Dual-energy transmission is particularly effective for penetrating dense cargo where backscatter imaging alone may not provide sufficient depth penetration — the transmission images reveal the full cargo interior including deep concealment positions within dense packing.
Organic & Metallic Threat Highlighting — Currency, Drugs & Explosives
The system highlights organic threats — explosives, drugs, tobacco, and concealed persons — and metallic threats — weapons, currency, and metal contraband — in the displayed images, drawing the operator's attention to areas of the cargo that require more detailed examination. This automated highlighting directly reduces the cognitive load on the operator and maintains detection performance across the high volume and sustained duration of a 250-truck-per-hour inspection operation where operator fatigue would otherwise progressively reduce detection accuracy.
Compact Design — Space-Constrained Checkpoint Installation
The compact design and profile allow the Madoorsscan-5500 to be installed in space-constrained areas where the larger footprint of conventional gantry systems would require significant site modification or could not be accommodated within the existing checkpoint lane infrastructure. This space efficiency allows high-throughput multi-technology scanning to be deployed at inspection locations that have previously been limited to lower-capability solutions due to physical space constraints.
Ideal for High-Traffic Border Crossings & Port Terminals
The combination of 250-truck-per-hour throughput, pass-through drive operation without driver exit, multiple simultaneous imaging technologies, and compact footprint makes the Madoorsscan-5500 the ideal specification for the highest-volume inspection locations — major international border crossings where hundreds of trucks cross hourly, busy seaport container terminal truck gates, and commercial logistics checkpoints where vehicle flow volume and inspection effectiveness must be simultaneously maximized.
Enhanced Metallic Detection — Image Processing
Enhanced metallic detection through dedicated image processing identifies metallic objects within the cargo and vehicle structure with greater sensitivity than standard image display — supporting the detection of weapons, metallic contraband, and metallic concealment structures that would be obscured by surrounding cargo without the enhancement processing. This processing capability is deployed at the operator workstation and can be applied to any area of the vehicle image for detailed examination without slowing the inspection throughput rate.
MADOORSSCAN VEHICLE SCANNING RANGE — COMPLETE COMPARISON
The Madoors USA vehicle scanning range covers the complete spectrum from compact portable deployment through to maximum-throughput fixed portal inspection.
PVS-350 Portable — Up to small van size. 15-minute single-operator deployment. Ultra-low dose — occupants remain inside. Sub-millimetre resolution. Military, border, and event applications.
X 200 VHS Drive-Through — Up to small van. 120 vehicles per hour. 40 km/h drive-through. 3D imaging with L-shape dual sensor. License plate recognition. Border crossing and military gate.
M-5800 Gantry Portal — Whole trucks including cabin. 28 trucks per hour — two trucks per bi-directional scan. 6 MeV. Four-color material discrimination. 5-meter tunnel height. Port and border crossing.
M-5800 Rail Type — Rail cargo trains. 300 containers per 10 minutes. 6 MeV — 300mm steel penetration. Customs EDI integration. Separate wagon images.
Madoorsscan-5500 Gantry Portal — Large trucks, buses, and cargo containers. 250 trucks per hour. Up to six simultaneous images. Three-sided backscatter plus optional dual-energy transmission. Compact footprint. Highest-volume border and port applications.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Lane Configuration
Inspection lane width, truck approach and exit clearance, available portal installation footprint, power supply infrastructure, and operator workstation position are confirmed. Compact footprint requirements for space-constrained sites are verified.
Portal Structure Installation
The compact Madoorsscan-5500 portal structure is installed at the confirmed lane position. Drive-through lane clearance for large trucks and buses is verified.
Multiple X-Ray Technology Installation & Calibration
Backscatter X-ray sources and detector arrays for three-sided simultaneous imaging are installed and calibrated. Optional dual-energy transmission system is installed where specified. All six imaging channels are calibrated and verified for simultaneous operation.
Enhanced Detection Processing & Operator Interface
Image processing for enhanced metallic detection is configured at the operator workstation. Six-image simultaneous display layout and analysis tools are installed and verified.
Throughput Testing at 250 Trucks Per Hour
System throughput performance at up to 250 trucks per hour is verified with test vehicle runs. Drive-through operation without driver exit is confirmed.
Operator Training & Handover
Operator training on six-image simultaneous interpretation, backscatter organic detection, dual-energy material discrimination, enhanced metallic detection, and threat identification is completed. Installation documentation is compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Madoorsscan-5500 Gantry Portal X-Ray Systems are specified for any high-volume vehicle and cargo inspection checkpoint requiring maximum throughput with multi-technology imaging.
- Highest-volume international land border truck inspection portals
- Major seaport container terminal truck gate inspection
- Airport cargo terminal high-throughput freight scanning
- Customs and border protection high-traffic checkpoint portals
- Drug interdiction high-volume border inspection systems
- Counter-terrorism high-throughput cargo vehicle screening
- Free trade zone customs compliance high-volume scanning
- Military logistics base supply chain security screening
- Government and customs facility high-throughput scanning
- Commercial logistics hub supply chain security inspection
- Petrochemical and critical infrastructure supply scanning
- Port of entry highest-throughput vehicle inspection systems
- National border security high-volume pass-through portals
- Intermodal freight terminal truck and container scanning
- Any high-security checkpoint requiring 250-truck-per-hour pass-through inspection
