Portable Mobile Ballistic Guard Security Cabin, Bullet Proof Guard Booth
The Madoors USA Portable Mobile Ballistic Guard Security Cabin and Bulletproof Guard Booth is a multi-layer modular ballistic protection system that protects troops, vehicles, equipment, and vulnerable infrastructure from the widest available range of threats — light weapons up to and including 0.5-inch armor-piercing rounds, hand grenades and petrol bombs, mortars up to 120mm direct hit and near miss, medium and heavy rockets up to 122mm direct hit and 302mm near miss, RPG shrapnel deflection and stopping, and mortar shrapnel up to 120mm. Assembled by troops in the field using only four main installation elements — beams and protective panels — without specialized equipment, tools, or special skills, in a range of sizes and configurations with or without sand or dirt fill, and transportable by truck, trailer, aircraft, or parachute airdrop, the Madoors USA modular ballistic protection system is the definitive rapid-deployment guard post and protected space solution for front-line military and critical infrastructure protection.
TECHNICAL SPECIFICATIONS
The multi-layer protection principle is the core engineering of the Madoors USA Portable Ballistic Guard Cabin — shrapnel and projectiles that penetrate the first protective layer are stopped by the second, third, or fourth layer depending on the strength of the hit. This layered energy attenuation principle allows the total protection level to be scaled by adding more protective panel layers — the standard configuration provides proven protection, and additional layers can be installed as needed when the threat assessment indicates higher threat levels. A successful experiment has been conducted using 6 layers of protection — confirming the scalability of the layered panel system to the highest available protection levels.
The installation system uses only four main installation elements — structural beams and protective panels — that assemble without tools, without specialized equipment, and without special skills. Any available military personnel can assemble the system in the field without engineering unit support. The protected space can be assembled in different sizes and configurations to suit different tactical situations — from individual guard posts to multi-person protected spaces for command, medical, or sensitive material storage functions.
The system is designed for use with or without sand or dirt fill — protective panels provide ballistic protection as delivered, with the option to supplement with sand fill for enhanced protection at higher threat levels. This fill-optional design allows the booth to be deployed and operational immediately without waiting for fill material to be available, with fill added subsequently when the tactical situation permits.
Transport options cover truck and trailer ground movement, air transport, sea transport, and parachute airdrop — making the system the only portable ballistic protection solution with verified parachute delivery capability for forward position establishment where no ground access exists.
KEY FEATURES
Multi-Layer Progressive Protection — Scalable to Threat Level
The multi-layer protection design provides progressive threat attenuation — each panel layer contributes to the total energy absorption, and the threat is stopped at the layer where the remaining energy falls below the panel penetration threshold. This progressive attenuation allows the operator to scale the protection level by adding layers in response to the confirmed threat — standard layers for standard threat environments, additional layers for elevated threat environments, up to six confirmed layers for the most extreme threat scenarios. This scalability eliminates the over-specification cost of specifying maximum protection for all installations and allows minimum-weight deployment when the threat level does not require maximum protection.
Protection Against the Widest Threat Range Available
The confirmed protection range of the Madoors USA Portable Ballistic Cabin covers more threat categories than any comparable modular portable system — light weapons to 0.5-inch armor-piercing, hand grenades, petrol bombs, 120mm mortars on direct hit and near miss, 122mm rockets on direct hit, 302mm rockets on near miss, RPG shrapnel, and mortar shrapnel to 120mm. This comprehensive threat coverage addresses the full spectrum of weapons encountered in modern conflict environments — from small arms and direct fire through to indirect fire and rocket attack — without requiring application-specific product selection for different threat environments.
Four-Element No-Tool Assembly — Troops in the Field
The assembly system of four main elements — beams and protective panels — assembled without tools, specialized equipment, or special skills by available troops directly addresses the primary operational constraint of forward position fortification — the unavailability of engineering units, construction equipment, and specialist skills at the front line when time is critical. Any available military personnel can establish a fully protected space in the minimum time using standard military manpower without any support beyond the system components.
Adaptable Panels — Threat-Level Responsive
The protective panels adapt to the confirmed threat level — standard configuration panels for standard threats, additional panels added as needed for elevated threats. This adaptability allows the same system components to serve a wide range of threat environments by varying the panel configuration rather than requiring different products for different threat classifications. The field commander can increase protection without waiting for replacement equipment — additional panels are added to the existing installation.
Parachute Airdrop & Air Transport Capability
The capability to be transported by air and parachuted to the deployment location extends the Madoors USA Portable Ballistic Cabin to forward positions that are accessible only by air delivery — remote mountain positions, surrounded positions, and any location where ground vehicle access is interdicted or impossible. Parachute airdrop capability is a unique operational advantage that transforms the guard cabin from a ground-logistics asset to a strategic rapid-response capability that can be delivered to any position accessible from the air.
Sand or Dirt Optional — Immediate Deployment Without Fill
The with-or-without fill design allows immediate deployment of the ballistic protection as soon as assembly is complete — without waiting for fill material to be transported or excavated. This immediate operational capability is critical in fast-moving tactical situations where waiting for fill material would leave troops unprotected during the most dangerous period immediately after establishing a new position. Fill can be added subsequently as the tactical situation stabilizes and fill material becomes available.
Fast Assembly of Soft Areas & Sensitive Material Protection
The rapid assembly capability specifically supports two critical operational requirements — the fast fortification of soft areas that have been identified as vulnerable to attack, and the quick establishment of protected storage for sensitive and explosive materials that require immediate ballistic protection upon arrival at a forward position. Both requirements share the characteristic of urgency — the protection is needed immediately, not after an extended construction period.

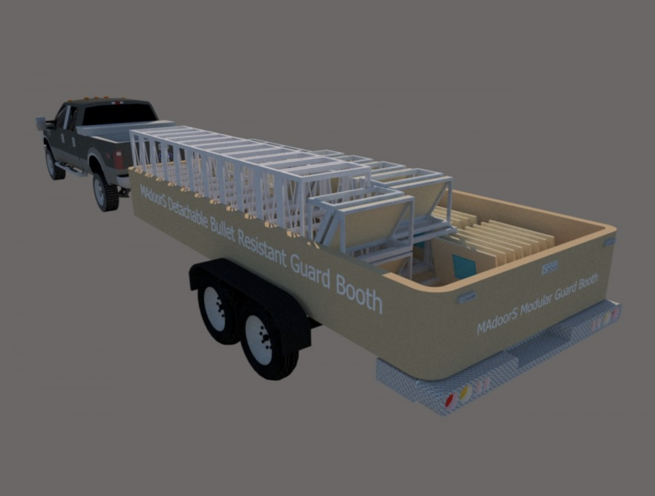

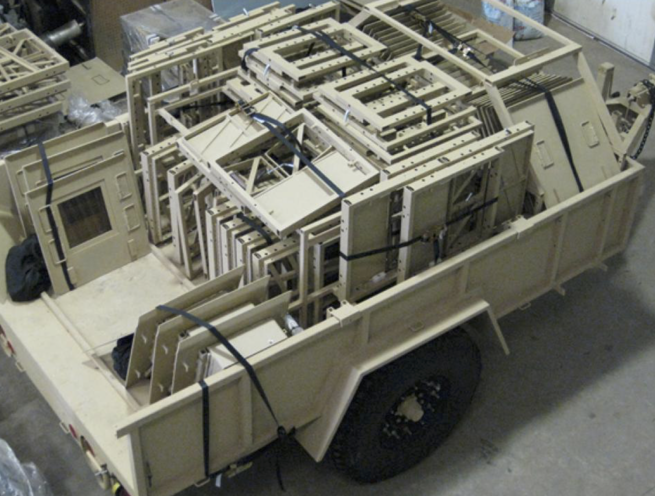

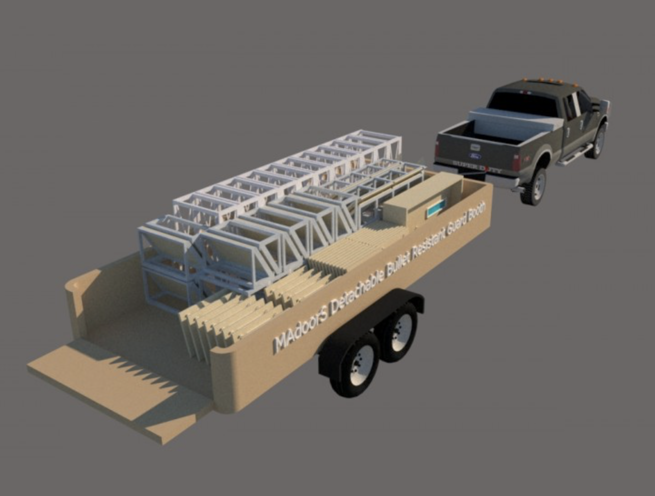

Towed Trailer Mobility — Ground Repositioning
Ground repositioning using a towed trailer allows the complete assembled or disassembled guard cabin to be moved between positions without aerial transport — repositioning the protection to follow the tactical situation as it develops, relocating from a position that is no longer tactically relevant to one that requires immediate protection, and withdrawing the system from a position being abandoned without leaving the protection asset behind.
PROTECTION LEVEL SUMMARY
Light weapons — up to and including 0.5-inch armor-piercing rounds, hand grenades, and petrol bombs.
Mortars — up to and including 120mm direct hits and near misses.
Medium rockets — up to and including 122mm direct hit.
Heavy rockets — up to and including 302mm near miss.
RPG — shrapnel deflection and stopping.
Mortar shrapnel — up to 120mm.
Maximum tested — 6 layers of protection in successful experiment.
ASSEMBLY & DEPLOYMENT SEQUENCE

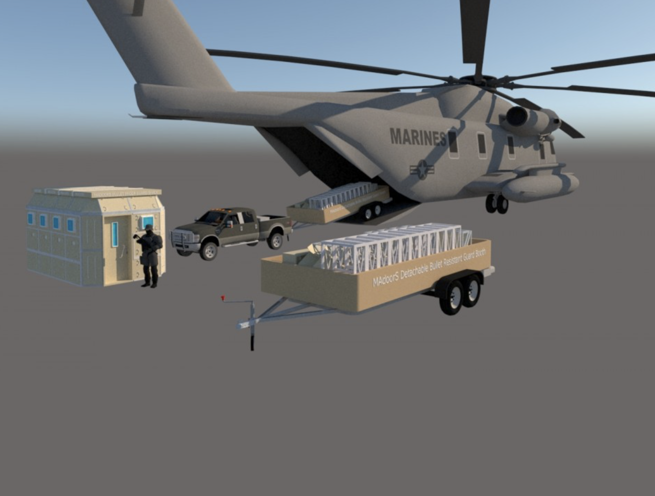

Transport to Position
System components are transported to the deployment position by truck and trailer, aircraft, or parachute airdrop. No specialist handling equipment is required for unloading.
Position Selection & Layout
Protected space position and orientation are selected for tactical advantage — observation coverage, field of fire, access to the protected function, and terrain protection. Space size and configuration are confirmed.

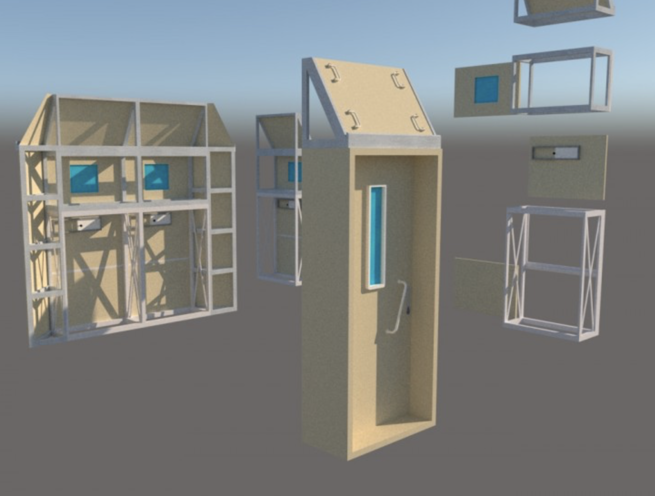

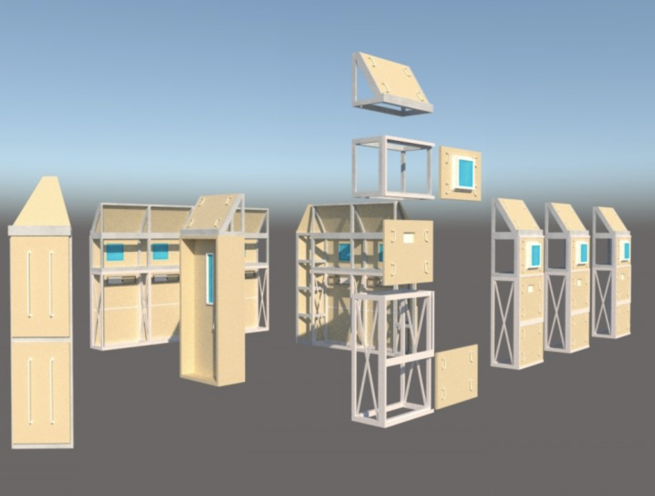

Beam Assembly
The four main structural beam elements are assembled into the frame configuration for the confirmed protected space size. No tools are required — beam connections use the designed tool-free assembly interfaces.
Protective Panel Installation
Protective panels are installed on the beam frame — wall panels on all sides, roof panels overhead. Panel layer count is set to the confirmed threat level — standard layers for standard threat, additional layers added for elevated threat.
Optional Sand or Dirt Fill Addition
Where fill material is available and additional protection is required, sand or dirt is added to the fill capability of the panel system. Fill addition does not require system disassembly — fill is added to the panels in position.
Protected Space Operational
The completed multi-layer portable ballistic guard cabin is immediately operational for the confirmed guard post, protected space, or sensitive material storage function. Additional panels can be added at any time in response to changing threat levels.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Portable Mobile Ballistic Guard Security Cabins are deployed across the full range of military and critical infrastructure protection applications requiring rapid-deployment modular ballistic protection.
- Military forward position guard post rapid deployment
- Combat outpost entry control point protection
- Military checkpoint ballistic protection cabins
- Soft area fortification rapid deployment
- Sensitive and explosive material protected storage
- Front-line troop protection without engineering support
- Parachute-airdropped forward position protection
- Military vehicle and equipment protection enclosures
- Critical infrastructure protection rapid deployment
- Military convoy staging area guard post protection
- Peacekeeping mission rapid guard post deployment
- Counter-terrorism forward position protection
- Military exercise forward position protection training
- Emergency military base rapid protection establishment
- Any front-line position requiring immediate multi-layer ballistic protection
