The Madoors USA Motorized Automatic Flag Mechanism System is a fully automatic remote-controlled flag deployment and collection system — storing the flag securely in a protective box when not in use and automatically opening the box cover, deploying the flag to the fully extended upright position, and collecting it back into the closed box on command, all by remote control without any manual handling, folding, or physical flag contact. Eliminating the fold marks, wearing, tearing, and fabric deterioration caused by repeated manual folding and storage, providing occupational safety compliance by removing the need for personnel to work at height during flag hanging operations, and available in box-below and box-above roof/terrace installation options, full-automatic and semi-automatic configurations, the Madoors USA Motorized Automatic Flag Mechanism System is guaranteed for 2 years and is manufactured in accordance with Flag Law and regulations for official institutions and organizations.
TECHNICAL SPECIFICATIONS
The Madoors USA Motorized Flag Mechanism System operates through a fully automated deployment and collection sequence. When the deployment command is received from the remote control, the protective storage box cover opens automatically. After the cover reaches the fully open position, the flag is automatically drawn upward to the full displayed position. When the collection command is received, the flag system retracts downward and collects into the box, and the box cover closes automatically when the complete collection is confirmed — the flag is secured in the closed box without any manual intervention at any stage of the deployment or collection cycle.
The flag is stored in the box in the collected position without folding — the mechanism stores the flag in a manner that prevents the fold marks, crease lines, and fabric stress that manual folding causes at the repeatedly folded positions. Fold marks are the primary cause of early fabric failure in manually handled flags — the repeated folding along the same lines creates permanent fabric stress that eventually leads to tearing. The Madoors USA storage mechanism eliminates this fold-line fabric stress entirely, directly extending the operational service life of the flag.
The flag fabric is produced from high-quality outdoor-grade material using lonjoon and disperse printing systems — the printing method and fabric composition resist sun bleaching, rain saturation, and wind stress for long-term outdoor service. Unlike pressure-type printing alternatives that are affected by UV, moisture, and mechanical flex, the disperse printing penetrates the fabric fiber structure rather than sitting on the surface, directly providing superior UV, rain, and wind resistance for the full service life of the flag.

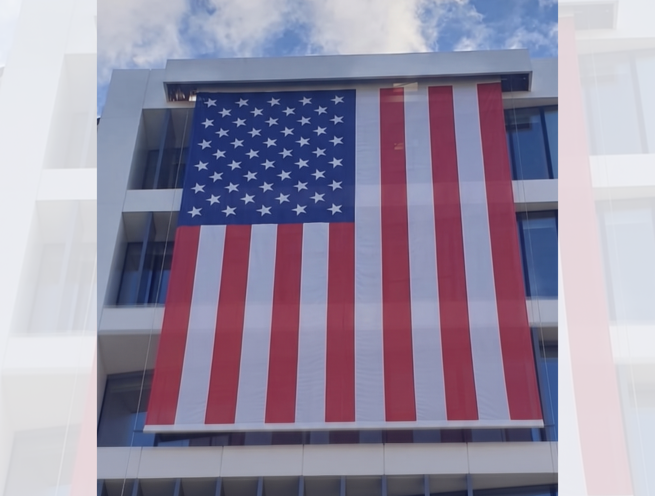

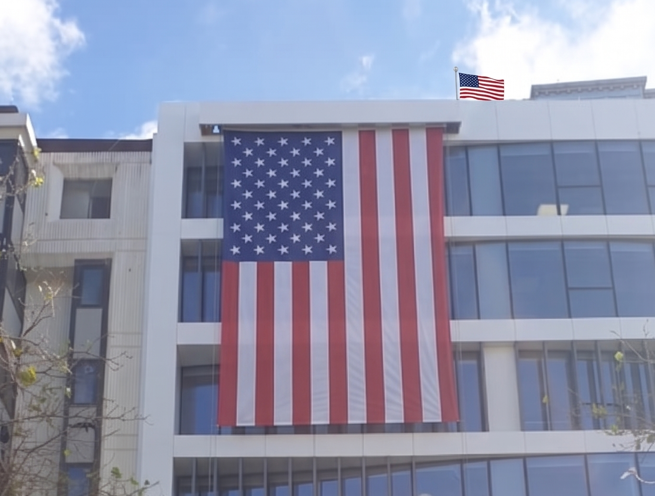

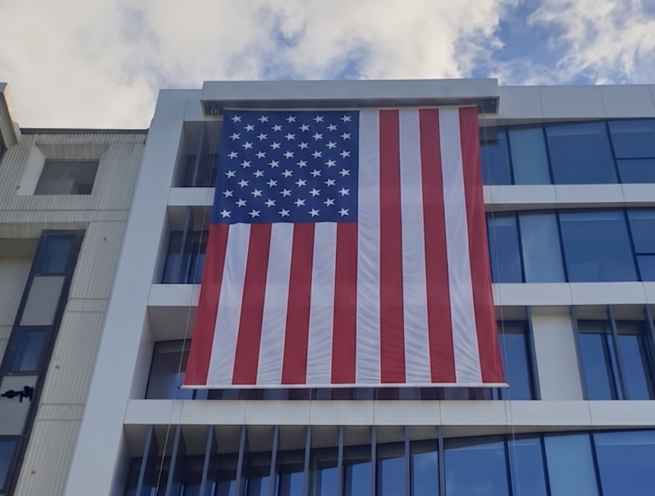

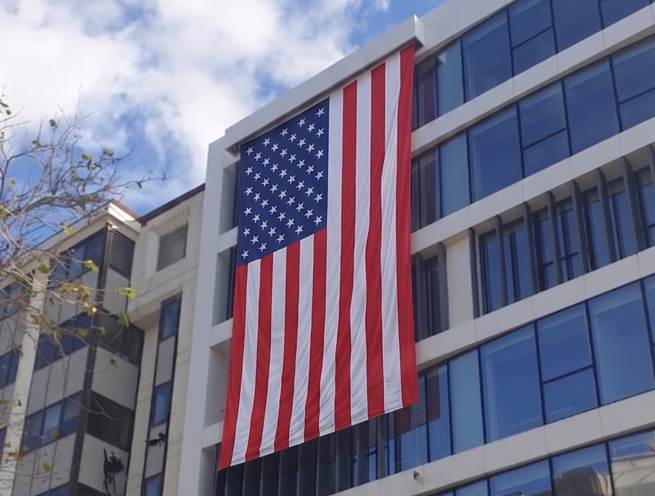

Two installation configurations accommodate different building types and installation positions. The box-below configuration is installed in the appropriate area at or below the intended display height. The box-above configuration is installed on the roof or terrace, with the flag deploying downward from the roof position. Both configurations are available in full-automatic — complete automatic deployment and collection by remote control — and semi-automatic — automated mechanism with manual initiation confirmation for specific operational preferences.
The remote control system allows flag deployment and collection from any convenient position without approaching the installation — eliminating the need for personnel to work at height during flag operations at elevated building positions. This remote operation provides both operational convenience and occupational safety compliance by removing the fall-from-height risk that manual flag hanging creates at elevated building positions.
KEY FEATURES
Fold-Free Storage — Flag Life Extension
The fold-free storage of the flag in the collection box — without stacking, without folding, and without fold-line fabric stress — is the primary flag life extension feature of the Madoors USA Motorized Flag System. Manually handled flags develop permanent fold marks, fabric stress concentrations at fold lines, and progressive tearing that typically requires flag replacement after a limited number of national holiday deployment cycles. The fold-free mechanism storage directly eliminates this failure mode, extending the operational service life of the flag through many more deployment cycles than manually handled alternatives.
Fully Automatic Open-Deploy-Collect-Close Sequence
The fully automatic four-stage sequence — box cover opens, flag deploys to full display position, flag collects to box on command, box cover closes — provides complete flag management without any manual intervention at any stage. This complete automation directly eliminates the manual flag handling requirement at every deployment and collection event, providing consistent, dignified flag display for every national holiday and official ceremony without the staffing coordination and physical effort of manual flag operations.
Remote Control Operation — Occupational Safety Compliance
The remote control operation that eliminates personnel working at height during flag deployment and collection directly addresses the primary occupational safety risk of manual flag operations at elevated building positions — fall-from-height is one of the most serious workplace injury categories, and any elimination of the need to work at height is a direct occupational safety improvement. The remote operation from ground level or an interior position provides complete flag management without any height exposure.
Box Protection — All-Weather Flag Preservation
The protective box storage of the flag when not displayed provides complete weather protection — the flag is not exposed to UV, rain, wind, or temperature cycling when stored in the closed box between deployment events. This protected storage directly extends the flag's service life by limiting UV exposure, moisture absorption, and mechanical stress to the deployment periods only, rather than the continuous outdoor exposure of permanently displayed flags.
National Holiday Automation — Staffing Elimination
The full automation of flag deployment and collection for national holidays, official celebrations, and programs eliminates the staffing requirement for flag management — the flag is deployed and collected by remote control at the scheduled times without requiring dedicated flag management staff, ladder access equipment, or the coordination of personnel at height. This staffing elimination is particularly significant for the multiple-flag-position buildings — government ministries, military installations, and municipal buildings — where manual flag hanging requires multiple personnel at multiple positions simultaneously.
Flag Law & Regulation Compliance — Official Institution Standard
The production of flag systems and flag fabrics in accordance with Flag Law and regulations for the specified dimensions and standards provides the legal compliance documentation required for official institution procurement. The legal requirement for Flag Law-compliant products at government institutions, military facilities, and official organizations makes regulatory compliance the fundamental procurement requirement — non-compliant products expose the institution to legal liability regardless of their functional quality.
High-Quality Outdoor Fabric — Lonjoon & Disperse Printing
The high-quality outdoor-grade flag fabric produced with lonjoon and disperse printing provides the color durability and fabric integrity required for the ceremonial flag display standard of official institutions — the disperse printing penetrates the fabric fiber rather than coating the surface, maintaining color vibrancy and print sharpness through UV, rain, and wind exposure for the full service life. This print quality directly maintains the dignified visual standard of official flag display throughout the flag's service life.
2-Year Guarantee — Quality Assurance
The 2-year guarantee on all Madoors USA Motorized Flag Mechanism Systems provides the installation confidence and procurement assurance required for official institution procurement — confirming the quality and reliability of the complete system including mechanism, motor, box, and control system throughout the full post-installation warranty period.
PRODUCT CONFIGURATIONS
Box-Below Full Automatic
Box installed at or below the display position. Full remote control deployment and collection. Flag deploys upward from box. Suitable for building facade and entrance positions.

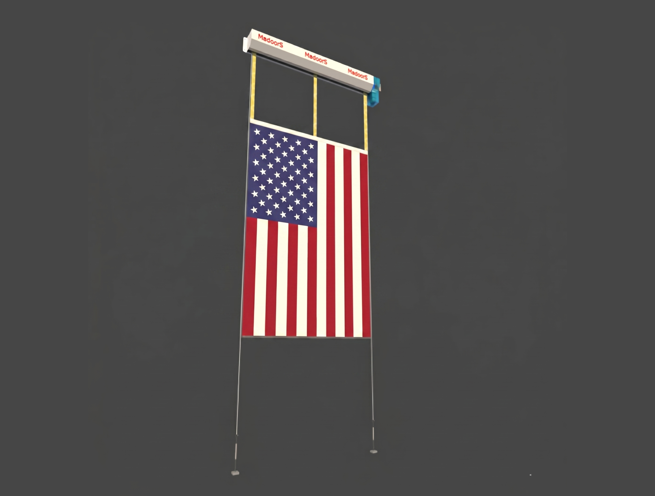

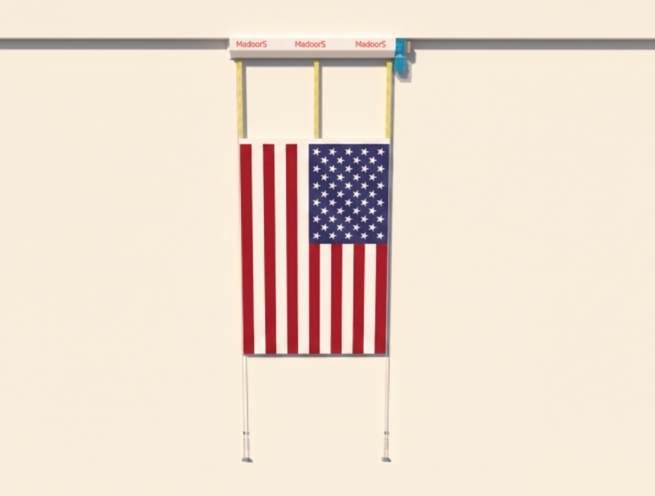

Box-Above Full Automatic

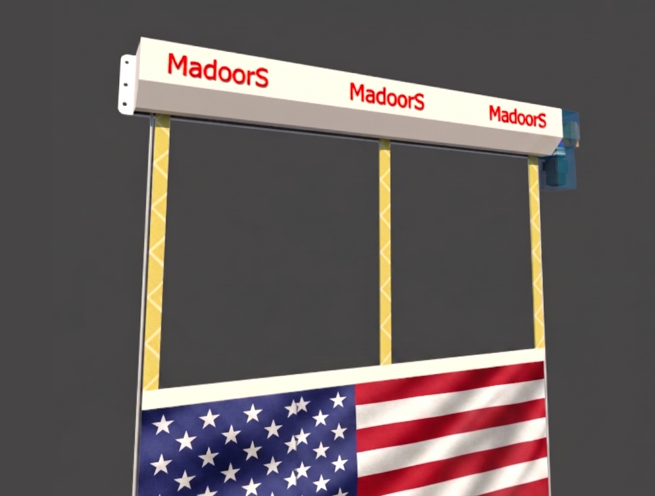

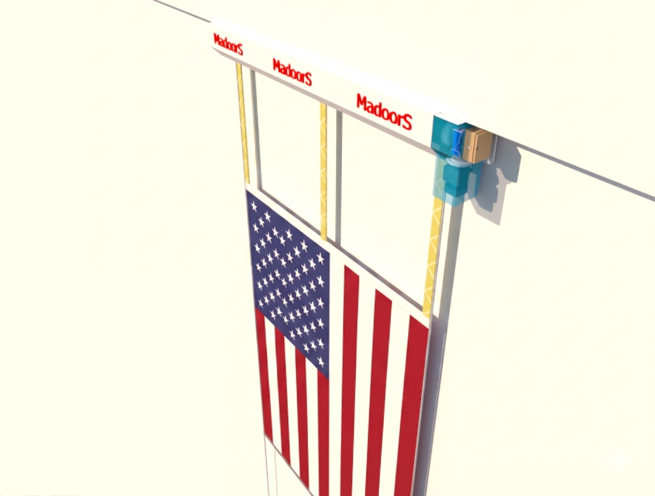

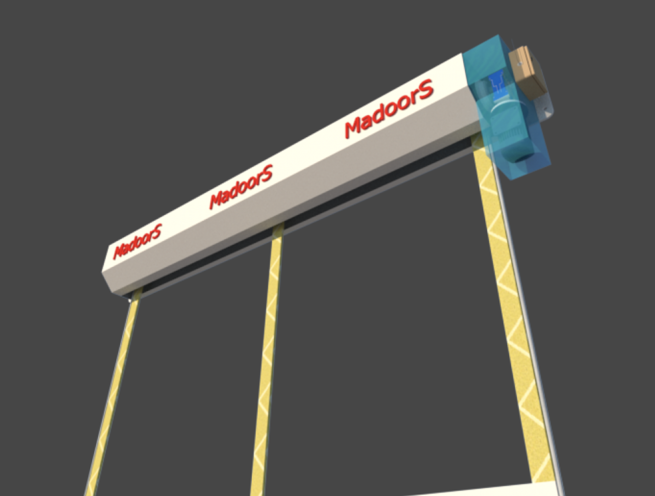

Box installed on roof or terrace. Flag deploys downward from the roof position. Suitable for buildings where roof installation provides the most prominent display position.
Semi-Automatic
Motorized mechanism with manual initiation confirmation. Suitable for applications where the operator prefers manual confirmation of each deployment and collection event.
DEPLOYMENT SEQUENCE
Remote Control Deployment Command
The operator presses the deployment button on the remote control from any position within operating range.
Box Cover Opening
The protective storage box cover opens automatically — confirming the clear opening for flag deployment.
Flag Deployment to Full Display Position

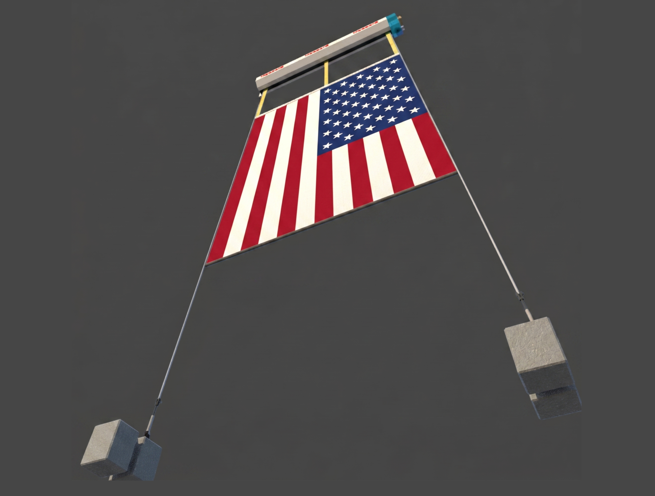

The flag is automatically drawn upward (box-below) or downward (box-above) to the full displayed position. The flag is taut and correctly oriented at the full display height.
Flag Display Period
The flag remains at the full display position throughout the national holiday or ceremony period.
Remote Control Collection Command
The operator presses the collection button. The flag system retracts toward the box.
Box Cover Closing & Flag Secured
The flag is fully collected into the box without folding. The box cover closes automatically. The flag is secured in the weatherproof box.
ASSEMBLY & INSTALLATION SEQUENCE
Building Assessment & Configuration Selection
Installation position — facade, entrance, roof, or terrace — box-below or box-above configuration, full-automatic or semi-automatic, flag dimensions to Flag Law specification, remote control range requirement, and power supply routing are confirmed.
Box & Mechanism Installation
The flag mechanism box is installed at the confirmed building position — structurally fixed to the building facade or roof structure for the combined box, mechanism, and flag load with wind loading. Level and alignment for correct flag deployment direction are confirmed.

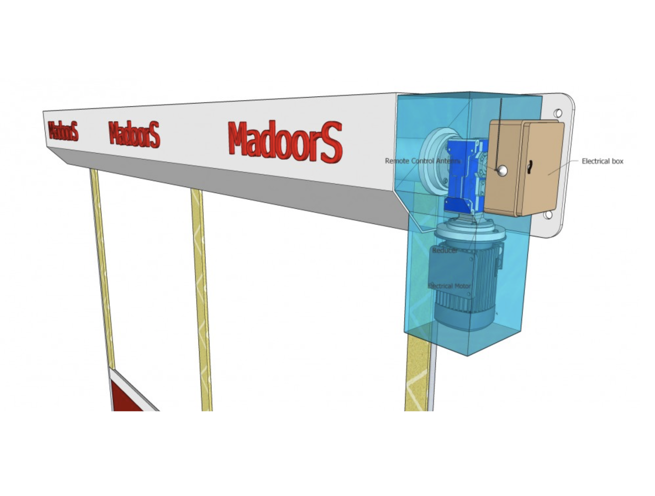

Motor & Control System Connection
The motor and automatic control system are connected to the building electrical supply. Remote control pairing to the motor control system is completed.
Flag Fabric Installation
The Flag Law-compliant flag fabric produced with lonjoon and disperse printing is installed in the mechanism. Fold-free storage configuration in the box is confirmed.
Automatic Sequence Testing
Complete automatic sequence — cover open, flag deploy to full display, flag collect, cover close — is tested from remote control. Fold-free collection and weatherproof box closure are confirmed.
2-Year Guarantee Documentation & Handover
Operational testing certification, Flag Law compliance documentation, 2-year guarantee records, and remote control operating guide are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Motorized Automatic Flag Mechanism Systems are specified for any official or commercial building requiring automated remote-controlled flag deployment.
