Mobile Pulled Type Trailer X-ray Handbag Baggage Scanner
The Madoors USA Mobile Pulled Type Trailer X-Ray Baggage Scanner is a self-contained, rapidly deployable mobile X-ray screening system providing on-the-spot security screening wherever temporary or additional security measures are needed — ports and borders, airports, concerts, sports arenas, conference centers, campuses, and theme parks. With a 101.6 × 101.6cm tunnel, 180 kV generator, air conditioning, exterior lighting, UPS, motorized conveyor, automatic image archiving, real-time diagnostics, and the exclusive 6 Color Imaging system providing material identification through atomic Z-number color coding, the Madoors USA Mobile Trailer X-Ray Scanner is the ideal mobile solution to security gaps requiring immediate, flexible baggage and cargo screening across the widest range of objects — cargo, electronics, boxes, backpacks, luggage, and baby buggies.
Available in two models — the MAdoorsScan-Van100 on Mercedes Benz Sprinter 315 CDI or Iveco Daily 40C15 with 853 × 856mm tunnel and 31mm steel penetration, and the MAdoorsScan-VanSS200 on IVECO cargo van with 1,010 × 1,010mm tunnel and 35mm steel penetration for larger objects — both drivable without a commercial license.
TECHNICAL SPECIFICATIONS
The Madoors USA Mobile Trailer X-Ray Baggage Scanner is constructed from durable aluminum walls and roofing on a custom steel frame — providing weather-resistant, long-service construction for both indoor and outdoor deployment in all climate conditions. The aluminum-and-steel construction combines lightweight mobility with the structural rigidity required for a permanent-quality X-ray screening installation in a mobile trailer format.
The 180 kV high-powered generator provides the X-ray energy required for penetration of the dense and mixed-material objects encountered in baggage and cargo screening — including electronics-filled luggage, metal-framed items, and dense cargo packs that lower-energy systems cannot adequately penetrate for clear imaging. Steel penetration reaches 31mm on the Van100 and 35mm on the VanSS200 — confirming imaging capability through metallic containers, shielded packages, and dense cargo configurations.
The 6 Color Imaging system assigns a specific color to each range of atomic Z-numbers — providing six distinct color categories for material identification rather than the two-category organic/inorganic discrimination of standard dual-energy systems. Each color corresponds to a specific material density and atomic number range, allowing the operator to identify the material composition of scanned objects with significantly greater precision than binary color-coded alternatives. This 6-color material identification directly improves threat detection accuracy and reduces false alarm rates by enabling more precise discrimination between similar-density threat and non-threat materials.
Real-Time Diagnostics monitors the machine health status continuously — providing the operator and Madoors USA technical support with live performance data that identifies developing faults before they cause system downtime. Remote connection capability allows Madoors USA to connect to the system and troubleshoot issues remotely without an on-site engineer visit — directly reducing downtime and service cost at remote deployment locations.
The UPS provides continuous operation during external power interruptions — the Van100 and VanSS200 both offer the option of external power supply or on-board generator operation, providing complete power independence for deployment at locations without established power infrastructure.
The air-conditioned control room within the vehicle provides operator comfort in all climate conditions — maintaining the operator concentration and decision-making quality required for effective threat identification across extended screening operations in hot and cold deployment environments.
KEY FEATURES
6 Color Imaging — Optimal Material Identification
The exclusive standard 6 Color Imaging system is the primary imaging technology advantage of the Madoors USA mobile scanner over standard dual-energy systems — six color categories corresponding to specific atomic Z-number ranges provide material identification precision that binary organic/inorganic systems cannot match. The six-color display allows the operator to distinguish between materials of similar density but different atomic composition — directly improving detection of novel threat materials, mixed-composition IED components, and contraband packaged within dense legitimate cargo.
Rapid Deployment — Immediate Mobile Security Response
The mobile trailer configuration provides immediate security screening capability at any location accessible by road — the complete self-contained system arrives at the deployment location, connects to external power or activates the on-board generator, and is operational for screening within the setup time of the specific model. This rapid deployment directly fills the security gaps that occur at temporary events, emergency checkpoint activation, and locations where permanent screening infrastructure has not been established.

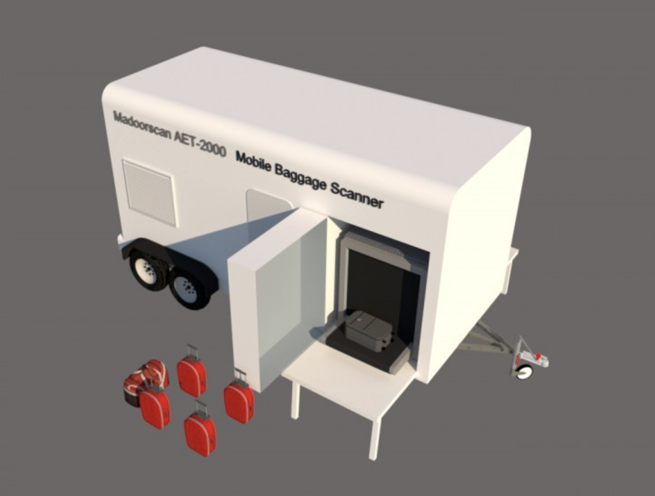

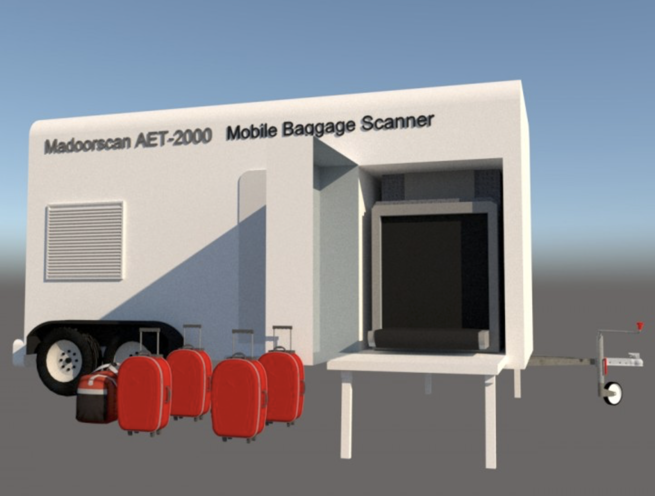

101.6 × 101.6cm Tunnel — Wide Object Coverage
The 101.6 × 101.6cm trailer tunnel accommodates the complete range of standard baggage, cargo, and objects encountered at event and checkpoint screening — carry-on bags, checked baggage, large backpacks, boxes, baby buggies, and small cargo items all pass through the tunnel without the size-based exclusions that smaller-tunnel mobile systems create. The VanSS200's 1,010 × 1,010mm tunnel specifically accommodates the larger objects that the Van100 tunnel cannot accept.
No Commercial License Required — Standard Driver Operation
Both Van100 and VanSS200 models can be driven without a commercial driver's license — a standard car license is sufficient for the operator to drive the screening vehicle to any deployment location. This standard-license drivability directly eliminates the specialist driver requirement that restricts the operational flexibility of heavy commercial vehicle-mounted screening systems.
Real-Time Diagnostics & Remote Troubleshooting
The real-time machine health diagnostics and Madoors USA remote connection capability provide the most proactive maintenance and service response available for a mobile screening system — potential faults are identified before they cause downtime, and remote troubleshooting resolves issues without waiting for an engineer to travel to the deployment location. This proactive maintenance capability directly maximizes the operational availability of the mobile scanner at every deployment location.
Automatic Image Archiving
Automatic image archiving records every screened object image with associated metadata — providing the evidence documentation required for customs enforcement, security incident investigation, and operational audit. Automatic archiving eliminates the manual recording step from the screening workflow, maintaining continuous screening throughput without operator interruption for documentation tasks.
UPS & Generator — Power-Independent Operation
The combination of UPS backup and optional on-board generator provides complete power independence for deployment at locations without established power infrastructure — the scanner operates continuously at outdoor events, remote border locations, and any site where mains power is unavailable or unreliable. Power independence directly enables the widest possible deployment flexibility — the screening system is not constrained to locations with confirmed power supply.
Two Models — World Market Coverage
The Van100 and VanSS200 model variants provide coverage of different market requirements — Van100 for Europe and worldwide deployment on established vehicle platforms, VanSS200 for the global market with the larger tunnel accommodating the wider range of cargo and object sizes encountered in international freight and event security applications. The two-model range allows procurement of the appropriate capability for each specific application without paying for tunnel capacity beyond the actual screening requirement.
MODEL COMPARISON
MAdoorsScan-Van100 — Mercedes Benz Sprinter 315 CDI or Iveco Daily 40C15. Tunnel 853 × 856mm. Steel penetration 31mm. Air-conditioned control room. External or on-board generator. Europe and worldwide market.
MAdoorsScan-VanSS200 — IVECO cargo van. Tunnel 1,010 × 1,010mm. Steel penetration 35mm. Larger object accommodation. External or on-board generator. Global market.

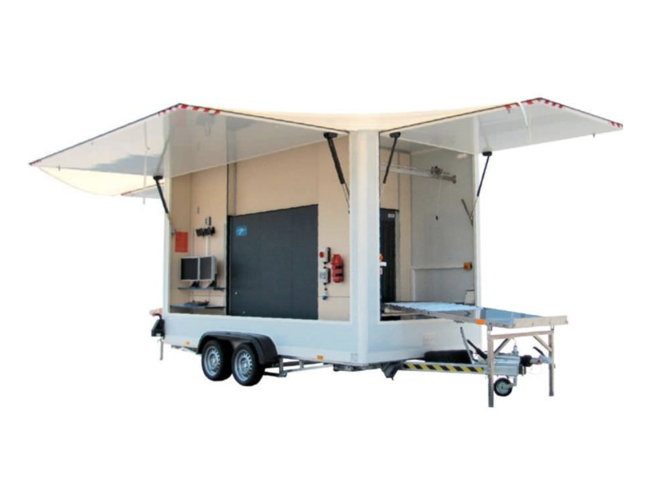

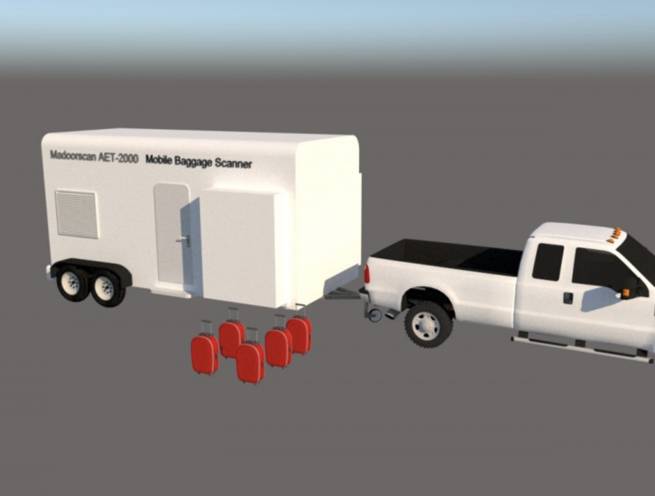

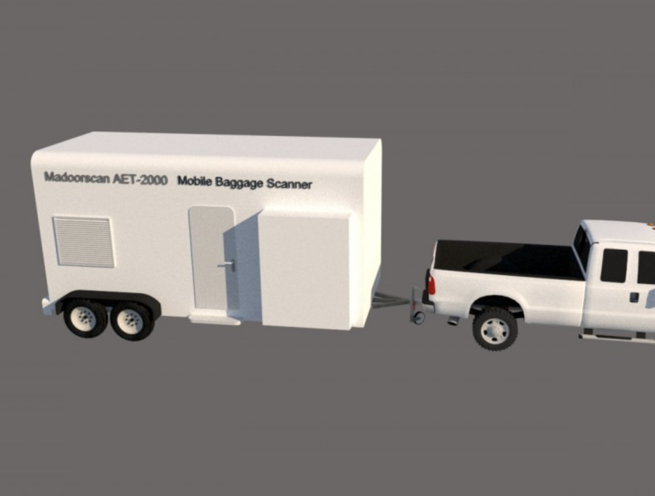

Trailer System — Tunnel 101.6 × 101.6cm. 180 kV generator. Aluminum and steel construction. All standard features. Indoor and outdoor. Pulled trailer configuration.
ASSEMBLY & DEPLOYMENT SEQUENCE
Deployment Location Assessment
Required tunnel size, power supply availability, indoor or outdoor deployment, number of lanes, and event or checkpoint throughput requirement are confirmed. Model selection — Van100, VanSS200, or trailer — is made based on tunnel requirement and deployment profile.
Vehicle Positioning
The van or trailer is driven or towed to the confirmed deployment position. Vehicle alignment for conveyor approach and exit lane is confirmed. External power connection or on-board generator activation is completed.
Control Room & System Activation
Air conditioning is activated for operator comfort and equipment temperature regulation. Exterior lighting is confirmed operational. UPS is confirmed charged and online.
6 Color Imaging & Diagnostics Initialization
The 6 Color Imaging system is initialized and color calibration is confirmed. Real-Time Diagnostics system health status is verified — all system components confirmed operational.
Conveyor & Automatic Archiving Activation
Motorized conveyor operation is tested in both loading and unloading directions. Automatic image archiving is confirmed active for all screening sessions.
Operator Briefing & Screening Commencement
Operator briefing on 6 Color material identification, threat recognition, alarm response, and archiving procedures is completed. Screening operations commence.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Mobile Pulled Type Trailer X-Ray Baggage Scanners are specified for any temporary or mobile security screening application.
- Event security baggage screening at concerts and festivals
- Sports stadium and arena event screening deployment
- Conference center and exhibition visitor screening
- Airport temporary additional security lane deployment
- Port and border crossing supplementary screening
- Campus and university event security deployment
- Theme park and entertainment venue visitor screening
- Emergency security gap filling at critical facilities
- Military exercise temporary checkpoint screening
- Government summit and diplomatic event security
- Disaster response emergency security screening
- Holiday season retail and commercial event security
- Festival and outdoor music event security screening
- Temporary courthouse and legal facility security
- Any location requiring immediate mobile baggage X-ray screening without permanent installation
