Mobile On-board X-ray Baggage Scanner
The Madoors USA Madoorsscan EST-8500 is a self-contained mobile on-board X-ray baggage scanner built into a mini van platform — operational within 5 minutes of arrival at any inspection location, with a 100 × 100cm tunnel accommodating the full range of baggage, parcels, and freight, dual-side opening doors with folding conveyors for pass-through scanning, climate-controlled operator cabin, 6 Color Imaging for atomic Z-number material identification, real-time diagnostics with remote troubleshooting, and shore power or generator power options. Ideal for VIP aircraft runway baggage screening, police and customs roadside vehicle freight inspection, and security forces suspicious package screening at on-site locations, the EST-8500 detects organic and inorganic threats including weapons, explosives, and narcotics from a vehicle that drives directly to the inspection area and begins screening within 5 minutes.
TECHNICAL SPECIFICATIONS

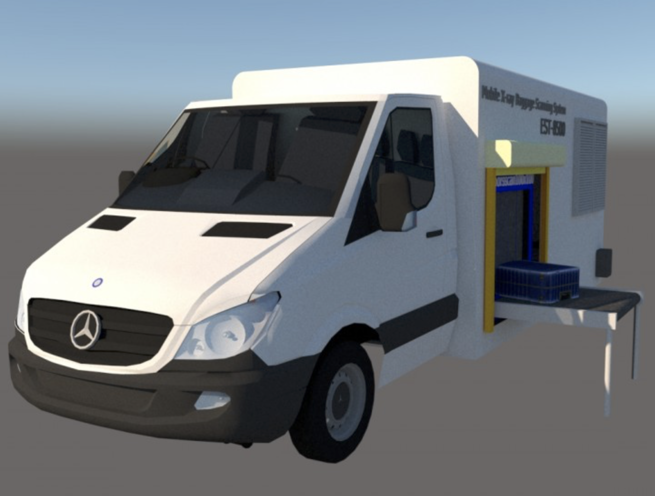

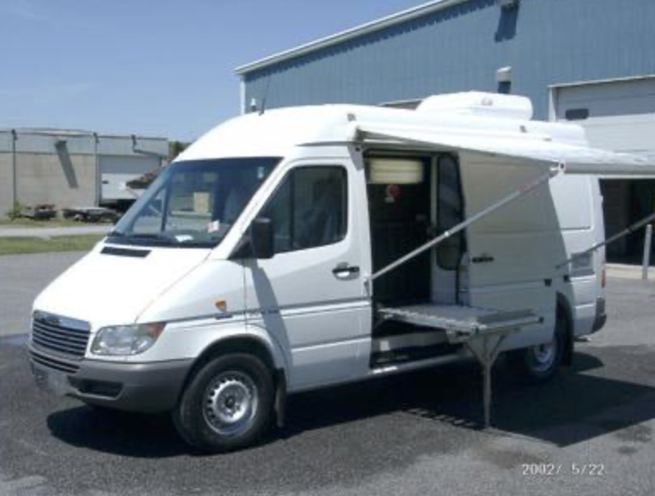

The Madoorsscan EST-8500 is built on a mini van platform with power steering and hydraulic disc brakes — providing professional automotive standards for safe, easy maneuvering to any inspection site on standard roads without commercial driver license requirements. The mini van form factor provides a more compact and maneuverable deployment platform than trailer-based systems — navigating into airport runways, roadside positions, and event venues that larger vehicles cannot access.
The 100 × 100cm tunnel — 39.4 × 39.4 inches — accommodates the full range of carry-on baggage, checked luggage, parcels, and small freight items encountered in the primary application scenarios. The pass-through conveyor design — items loaded on one side of the vehicle, passed through the X-ray scanner, and retrieved on the other side — provides the highest-efficiency screening workflow, allowing the loading and retrieval operations to proceed simultaneously without waiting for each item to be scanned and returned to the same side.

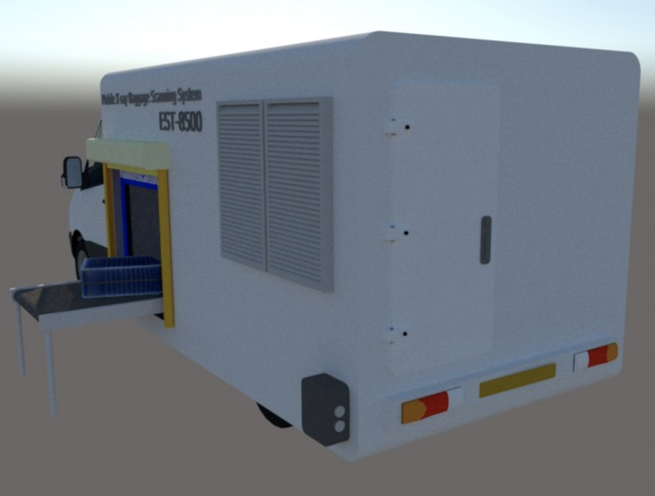

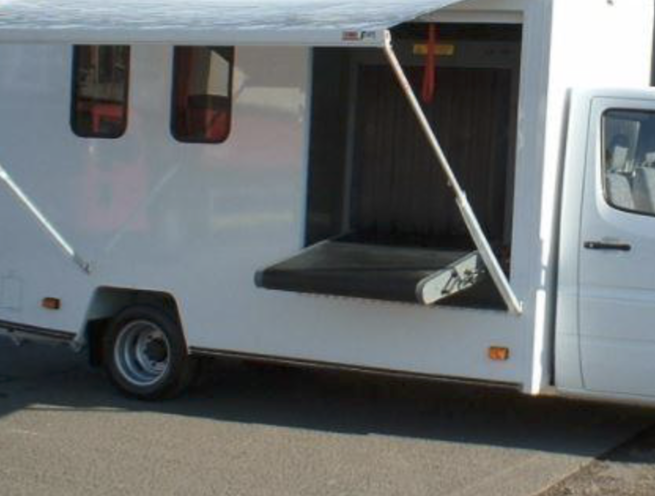

Opening doors on both sides of the vehicle expose both the loading and retrieval conveyor ends — the operator opens both side doors, deploys the folding conveyors, connects the power source, and the system is operational within 5 minutes. The folding conveyor design allows the conveyors to retract within the vehicle body for transit — maintaining the compact mini van profile during driving and extending to the operational positions for screening.
The climate-controlled operator cabin maintains comfortable operating temperature for the X-ray system operator throughout all-weather and all-season deployments — protecting both operator performance and electronic equipment from the extreme temperatures that outdoor operational environments impose. Climate control directly maintains the operator's concentration and decision-making quality during extended screening operations.
6 Color Imaging provides six color categories corresponding to specific atomic Z-number ranges — the highest material discrimination available in the Madoors USA mobile scanner range. Shore power or generator options provide flexible power supply for all on-board systems — external shore power for permanent or semi-permanent deployment positions, and on-board generator for complete power-independent operation at any location.
Real-Time Diagnostics monitors machine health status — the Madoors USA remote connection capability allows technical support to connect to the EST-8500 remotely for troubleshooting and diagnostics without requiring an engineer on-site.
KEY FEATURES
5-Minute Operational Deployment — Immediate Response
The 5-minute deployment from arrival to operational screening is the defining field response capability of the EST-8500 — the vehicle drives to the inspection location, the operator opens the side doors, deploys the folding conveyors, and connects power in a simple four-step setup that requires no specialist installation knowledge. This 5-minute readiness directly enables emergency response deployment, VIP arrival security activation, and rapid checkpoint establishment at locations where advance preparation was not possible.
Pass-Through Dual-Side Access — Maximum Workflow Efficiency
The pass-through design with loading on one side and retrieval on the other provides the maximum available screening workflow efficiency — the screener places items on the input conveyor on one side while a second person retrieves cleared items from the output conveyor on the other side, maintaining continuous conveyor flow without the input/output conflict of single-side access systems. This pass-through efficiency directly maximizes the number of items screened per hour at the mobile checkpoint.
VIP Aircraft Runway Screening — Unique Application Capability
The EST-8500's mini van mobility and 5-minute deployment capability make it the ideal solution for VIP aircraft runway baggage screening — the vehicle drives directly onto the tarmac to the aircraft parking position and provides immediate on-site baggage screening without transporting the luggage to a fixed screening facility. This on-site runway capability directly provides the VIP security protocol of pre-boarding baggage screening at the aircraft without the passenger inconvenience of separate terminal screening.
Police & Customs Roadside Vehicle Freight Inspection
The roadside deployment capability — the vehicle drives to any road position and is operational within 5 minutes — provides police and customs authorities with mobile freight inspection capability for roadside stops of suspected smuggling vehicles. The 100cm tunnel accommodates standard parcel and cargo box sizes encountered in commercial freight. Organic and inorganic material discrimination through 6 Color Imaging supports narcotics, weapons, and contraband detection in commercial freight packaging.
6 Color Imaging — Atomic Z-Number Material Discrimination
The exclusive 6 Color Imaging standard feature provides the highest available material identification performance for the EST-8500 operator — six color categories corresponding to specific atomic Z-number ranges allow the operator to identify material composition categories including organics, light metals, heavy metals, and mixed compositions with the precision required for accurate threat identification and false alarm reduction. This 6-color discrimination directly improves detection of novel and complex threat items that binary color systems cannot distinguish from legitimate contents.
Climate-Controlled Operator Cabin — All-Season Performance
The climate-controlled operator cabin maintains screening performance quality across the full temperature range of outdoor operational environments — extreme heat at summer events and outdoor checkpoints, extreme cold at winter border operations and airport runway deployments, and all intermediate seasonal conditions. Operator comfort directly maintains the concentration and visual discrimination required for effective image analysis throughout extended screening operations.
Real-Time Diagnostics & Remote Support — Operational Availability
The real-time machine health monitoring and Madoors USA remote connection capability maintain the operational availability of the EST-8500 at all deployment locations — developing faults are identified before they cause downtime, and remote troubleshooting resolves issues without requiring an engineer to travel to the deployment site. This remote support capability is particularly valuable for the EST-8500's primary application environments — remote runway positions, roadside checkpoints, and temporary event security locations where on-site technical support is not readily available.
Shore Power & Generator Options — Location Independence
The shore power and generator options provide complete power supply flexibility — shore power for deployment at established event venues, airports, and checkpoints with available power infrastructure, and generator power for complete independence at roadside locations, remote sites, and any position without established power. This dual power option eliminates the power supply constraint on deployment location selection.
FIVE-MINUTE DEPLOYMENT SEQUENCE
Drive to Inspection Area
The EST-8500 is driven to the confirmed inspection position — runway tarmac position, roadside stop location, event venue entrance, or on-site inspection area.
Side Door Opening
Both side doors of the mini van are opened — exposing the loading input and retrieval output conveyor positions on opposite sides of the vehicle.
Folding Conveyor Deployment

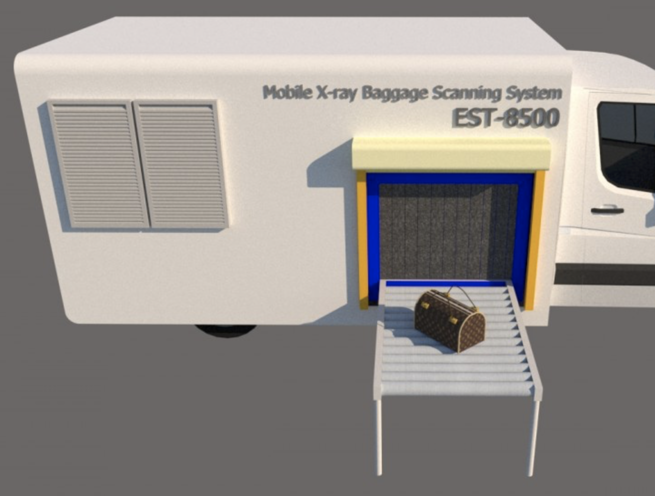

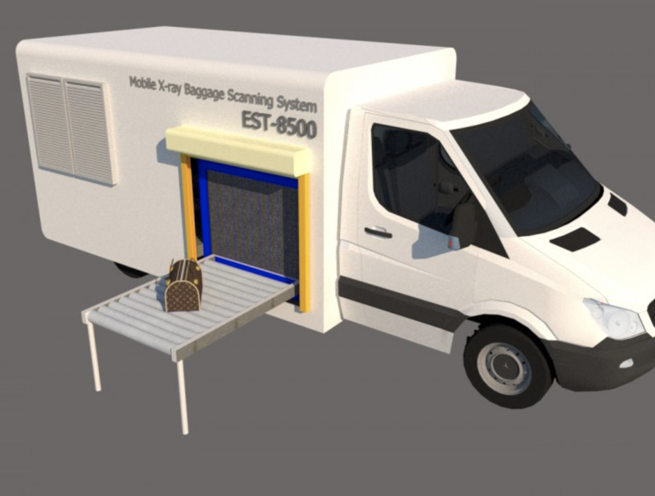

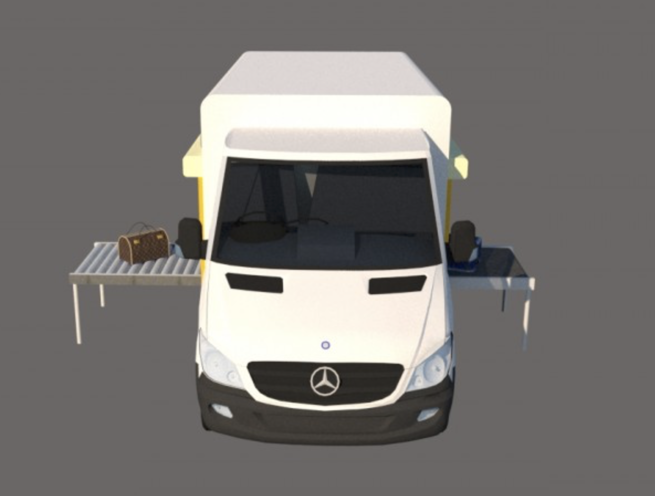

The folding conveyors are extended from the stowed transit position to the operational screening position on both sides of the vehicle.
Power Connection
Shore power cable is connected to the available supply, or on-board generator is activated. All on-board systems — X-ray scanner, 6 Color Imaging, climate control, and diagnostics — are confirmed operational.
Operational Screening Commences
The complete setup is complete within 5 minutes of arrival. Baggage, parcels, and freight are placed on the input conveyor, pass through the 100 × 100cm tunnel, and are retrieved from the output conveyor. 6 Color images are reviewed by the operator in the climate-controlled cabin.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA EST-8500 Mobile On-Board X-Ray Baggage Scanners are deployed for any mobile or temporary screening application requiring 5-minute operational deployment.
- VIP aircraft runway baggage and parcel pre-boarding screening
- Executive aviation and private jet terminal screening
- Police roadside vehicle freight and parcel inspection
- Customs mobile enforcement roadside cargo screening
- Security forces suspicious package on-site investigation
- Special event VIP and security personnel baggage screening
- Emergency checkpoint rapid deployment baggage screening
- Military field operation baggage and parcel screening
- Diplomatic and government convoy baggage screening
- Concert and festival supplementary mobile screening
- Sports event mobile security screening deployment
- Temporary courthouse or venue security screening
- Remote location narcotics and weapons detection
- Border area mobile patrol baggage screening
- Any security operation requiring 5-minute deployable on-site baggage X-ray screening
