Mobile Container Truck Scanning System

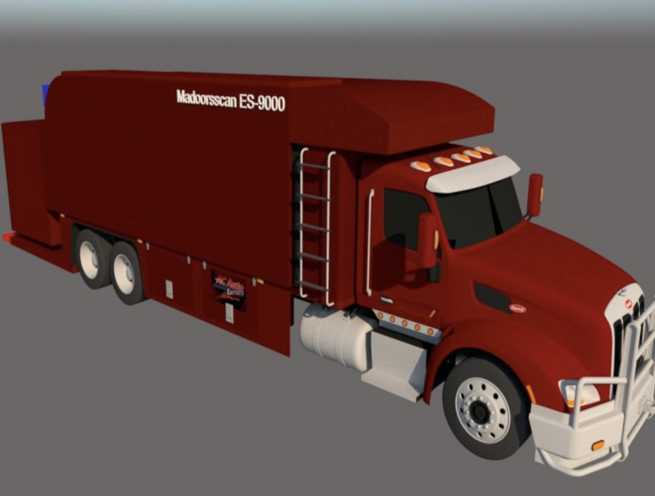

The Madoors USA Madoorsscan ES-9000 is a state-of-the-art vehicle-mounted mobile X-ray scanning system providing high-energy 6 MeV imaging of fully loaded trucks, vehicles, and containers — with 270mm steel penetration capability, Interlaced Dual Energy technology for organic and inorganic material discrimination, radioactivity monitoring, and throughput of 30 to 60 vehicles per hour in standard mode and up to 100 vehicles per hour in Speedy mode. Deployable and operational in 15 minutes without any additional infrastructure, drivable independently to any inspection site, and fully operational in all weather conditions including extreme cold, heat, wind, rain, and snow, the ES-9000 provides port security, customs, border control, law enforcement, and military checkpoint operators with the most flexible and rapidly deployable high-energy mobile cargo scanning capability available — detecting smuggled goods, weapons, drugs, conventional contraband, arms, explosives, and undeclared goods through high-definition radioscopic imaging in stationary vehicle inspection, drive-through, and drive-by scanning modes.
TECHNICAL SPECIFICATIONS
The Madoorsscan ES-9000 uses an advanced Interlaced Dual Energy linear accelerator — LINAC — as the radiation source, generating 6 MeV X-rays that provide up to 270mm of steel penetration. This penetration depth covers the full wall thickness of standard ISO shipping containers, the steel frame and body of fully loaded heavy goods vehicles, and dense metallic cargo configurations that lower-energy mobile systems cannot fully penetrate.

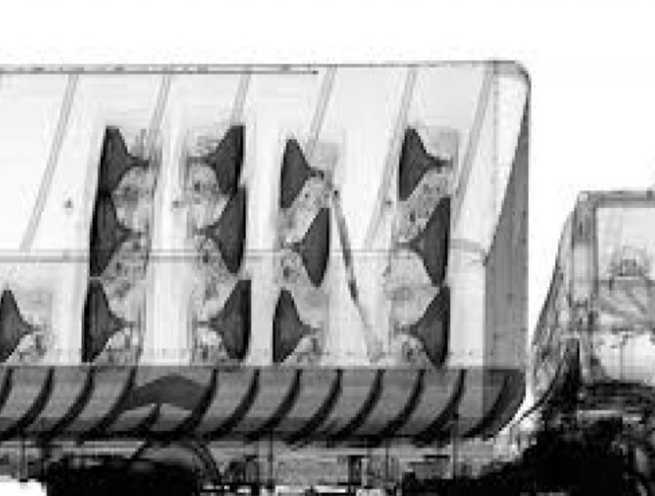

The Interlaced Dual Energy technology alternates between two energy levels within each scan — providing both the penetration depth of high-energy imaging and the material discrimination information of dual-energy imaging from a single scan pass. Organic and inorganic material discrimination allows the system to distinguish organic materials — drugs, explosives, tobacco, and concealed persons — from metallic and non-metallic inorganic cargo, displaying the discrimination results in color-coded images that support rapid operator threat assessment.

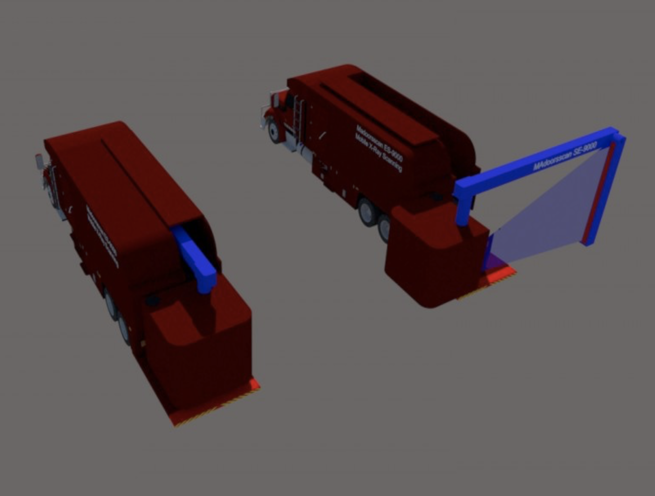

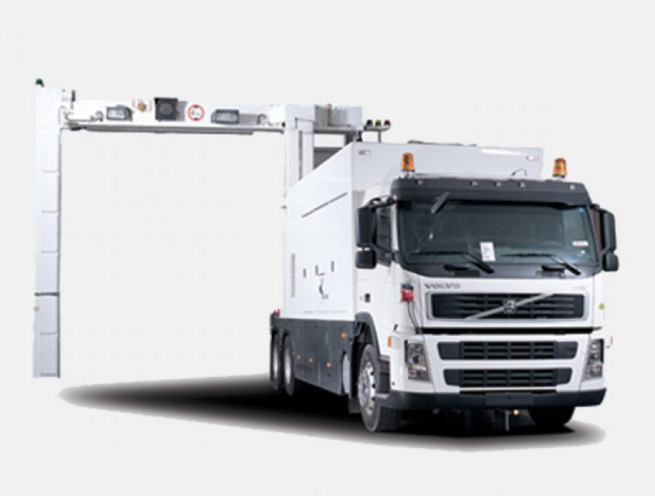

Three scanning modes cover different operational scenarios. Stationary vehicle inspection — the vehicle is parked and the ES-9000 scans it using the extended boom. Drive-through mode — the vehicle drives through the extended boom while the system scans. Drive-by mode — the ES-9000 drives alongside or past the stationary vehicle. The scanning modes provide complete flexibility for different checkpoint layouts, vehicle types, and operational tempo requirements.
Throughput performance: 30 to 60 vehicles per hour in standard scan mode for maximum image quality, and up to 100 vehicles per hour in Speedy mode for the highest-volume inspection requirements. The Speedy mode provides the throughput rate required for the busiest port terminals and border crossings where standard scan rates would create unacceptable commercial delays.
The ES-9000 is fully autonomous — no additional infrastructure, power supply connection, or site preparation is required at the inspection location. The system is self-contained for all power, computing, imaging, and communication functions. Deployment from transit to operational takes 15 minutes. The vehicle-mounted platform drives independently to any inspection location on standard roads.
All-weather operation is confirmed across extreme cold, heat, wind, rain, and snow — providing year-round operational availability without weather-related performance degradation or system downtime at the outdoor inspection locations where the ES-9000 is deployed.
Radioactivity monitoring provides simultaneous detection of radioactive gamma and neutron emissions — complementing the X-ray cargo imaging with a radiation detection capability that addresses the WMD and radiological smuggling threat without requiring a separate inspection pass.
KEY FEATURES
270mm Steel Penetration — 6 MeV LINAC
The 270mm steel penetration capability confirms that the ES-9000 images through the full wall thickness of the most densely constructed shipping containers and the heaviest steel-framed vehicle bodies encountered at port and border crossing inspection points. This penetration depth ensures that no cargo can be shielded from the X-ray beam by the container wall or vehicle structure — the complete cargo interior is visible in the radioscopic image regardless of the container construction.
IDE Dual-Energy — Organic/Inorganic Material Discrimination
The Interlaced Dual Energy technology provides material discrimination in every scan — organic materials including drugs, explosives, tobacco, and concealed persons are distinguished from inorganic metallic and non-metallic cargo by the differential attenuation response at the two energy levels. This discrimination capability directly supports the primary detection mission — the color-coded material display allows the operator to identify organic threat materials within mixed cargo loads without the manual interpretation of undifferentiated gray-scale density images.
15-Minute Deployment — No Infrastructure Required
The 15-minute deployment from transit to full operational scanning capability — with no external power connection, no ground preparation, and no infrastructure setup — provides the most rapid deployment capability in the Madoors USA mobile scanning range for a high-energy 6 MeV system. This deployment speed allows the ES-9000 to establish an inspection capability at any location within 15 minutes of arrival, supporting emergency checkpoint activation, intelligence-led targeted inspection, and rapid response to customs intelligence at any port or border location.
100 Vehicles Per Hour — Speedy Mode
The Speedy mode throughput of up to 100 vehicles per hour provides the inspection capacity required for the highest-volume port terminals and commercial border crossings where even 60 vehicles per hour would create queue build-up during peak traffic periods. The flexible throughput — 30 to 60 in standard and up to 100 in Speedy — allows the operator to select the appropriate balance between image quality and processing speed for the specific traffic volume and threat assessment requirements of each operational period.
Three Scanning Modes — Operational Flexibility
The three scanning modes — stationary inspection with extended boom, drive-through, and drive-by — provide the operational flexibility to match the inspection method to the specific site layout, vehicle type, and operational requirement of each deployment. Stationary inspection for the highest image quality. Drive-through for consistent throughput without vehicle stop requirements. Drive-by for rapid inspection of vehicles that cannot be driven through a portal.
All-Weather Autonomous Operation
Full operational capability in extreme cold, heat, wind, rain, and snow — without any weather-related performance limitation — confirms that the ES-9000 is available for continuous inspection operations across the complete seasonal and climatic range of any port, border, or checkpoint deployment location. Autonomous self-contained operation without external infrastructure eliminates the weather-related infrastructure failure modes that affect systems requiring external power, communications, or support connections.
Radioactivity Monitoring — WMD & Radiological Detection
Simultaneous radioactivity monitoring alongside X-ray imaging provides comprehensive WMD and radiological smuggling detection from a single inspection pass — detecting gamma radiation and neutron emissions from radioactive materials that would not be visible in the X-ray image alone. This simultaneous dual-modality detection directly addresses the complete threat spectrum from conventional contraband through to radiological dispersal device components.
COMPARISON: ES-9000 vs MX-60 TRAILER vs MOBILE BACKSCATTER VAN
The three Madoors USA mobile scanning systems cover different mobility, energy, and inspection profiles.
ES-9000 Vehicle-Mounted — 6 MeV, 270mm steel penetration. 30-60 standard, 100 speedy vehicles per hour. IDE dual-energy material discrimination. Radioactivity monitoring. 15-minute deployment. Three scanning modes. All-weather autonomous. Port and border high-energy mobile inspection.
MX-60 Trailer — 4-6 MeV range. Multiple scanning modes including autonomous drive-by. On-board inspection office for four inspectors. Fifth-wheel tractor towing. Smartdetect organic detection. Ports and borders.
Mobile Backscatter Van — Single-side backscatter technology. Up to 10 km/h drive-by. Photo-like organic images. Standard delivery van platform. Greatest maneuverability. Counter-narcotics and counter-terrorism patrol scanning.
ASSEMBLY & DEPLOYMENT SEQUENCE
Transport to Inspection Location
The ES-9000 is driven independently to the inspection location on standard roads. No specialist transport vehicle or permit is required for road transit in standard configuration.
Site Positioning
The ES-9000 is positioned at the confirmed inspection location for the selected scanning mode — extended boom position for stationary and drive-through scanning, or alongside the vehicle row for drive-by scanning.
15-Minute Deployment Sequence

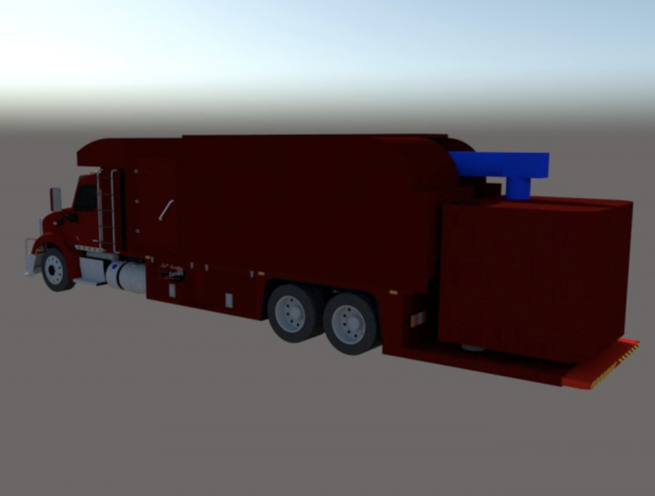

The system self-deploys from transit configuration to operational scanning configuration — boom extension, imaging system initialization, LINAC power-up, radioactivity monitoring activation, and operator display verification are completed within the 15-minute deployment time.
Scanning Mode Selection
Standard or Speedy mode is selected based on the traffic volume and image quality requirement. Stationary, drive-through, or drive-by scanning mode is selected based on the site layout and vehicle handling protocol.
IDE Calibration & Material Discrimination Verification
IDE dual-energy calibration is verified with reference test standards. Organic and inorganic material discrimination color display is confirmed.
Operational Scanning Commencement
Inspection operations commence at the confirmed throughput rate. Radioactivity monitoring is confirmed active. Operator training on image interpretation, material discrimination, and radioactivity alert response is verified.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA ES-9000 Mobile Container Truck Scanning Systems are specified for any high-energy mobile vehicle and cargo inspection application.
- Port terminal mobile container and truck scanning
- International border crossing mobile high-energy inspection
- Customs control targeted mobile cargo scanning
- Drug interdiction mobile port and border scanning
- Counter-terrorism high-energy mobile cargo inspection
- Military base supply chain mobile vehicle scanning
- Airport cargo terminal mobile freight inspection
- Free trade zone mobile customs compliance scanning
- Seaport security mobile vehicle and container inspection
- Regional spot check mobile high-energy cargo scanning
- Emergency checkpoint rapid deployment high-energy scanning
- Military supply chain forward area cargo screening
- Post-disaster emergency border control mobile scanning
- WMD detection mobile radioactivity monitoring scanning
- Any mobile high-energy vehicle inspection requiring 270mm steel penetration
