Mobile Ballistic Shield
The Madoors USA Mobile Ballistic Security Shield is a gravity-and-balance-assisted mobile ballistic armor steel shield system providing head-to-toe protection from straight-on and up to 60-degree partial overhead and side threats — available in NIJ Level IV (MST4) and NIJ Level III (MST3) certified configurations for military and law enforcement deployments requiring immediate, tool-free mobile ballistic protection assembled and positioned by a single operator in seconds. With replaceable laminated ballistic glass transparent armor viewing panels, sliding gun ports, wheel-lock front axle for incline security, built-in 2-inch hitch vehicle tow capability, 700-pound+ mass providing blast and secondary fragmentation protection, and multiple shield connection plates for 360-degree protection configurations, the Madoors USA Mobile Ballistic Shield is the economical, rapidly deployable ballistic protection solution designed specifically for soldiers and law enforcement officers requiring mobility-matched protection.
TECHNICAL SPECIFICATIONS
The Madoors USA Mobile Ballistic Shield is manufactured from ballistic armor steel — independently certified by a recognized ballistic testing facility at NIJ Level IV for the MST4 configuration and NIJ Level III for the MST3 configuration. NIJ Level IV provides protection against armor-piercing rifle ammunition including 7.62×63 AP M2 rounds — the highest available NIJ standard protection. NIJ Level III provides protection against 7.62×51 NATO FMJ rifle ammunition — appropriate for the majority of military and law enforcement rifle threat scenarios.

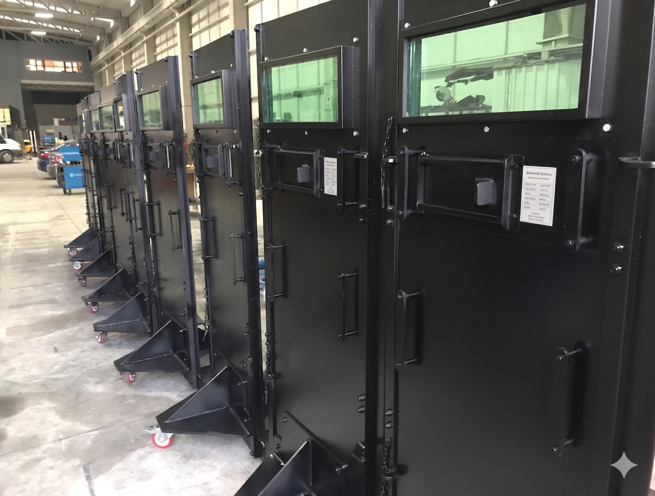

The transparent armor is laminated ballistic glass providing a minimum of NIJ Level III protection at Level III shields and NIJ Level IV at Level IV shields — the viewing window protection level matches the surrounding armor steel protection level, ensuring that the window does not represent a reduced-protection gap in the shield face. The viewing area ranges from 0.20 to 1 square meter depending on unit size — providing the situational awareness required for safe shield movement and threat identification. The transparent armor is frame-encased with armor steel edges overlapping the glass perimeter — eliminating the gap between the glass and the steel frame that ballistic rounds could penetrate. Transparent armor replacement requires only a standard 9/16-inch wrench — the field replacement capability allows damaged viewing panels to be changed without specialized tools or workshop facilities.
The shield mass exceeds 700 pounds — providing the inertial resistance to blast overpressure and secondary fragmentation pressure that lighter shields cannot offer. This substantial mass combined with the gravity-and-balance design allows the single operator to maneuver the shield smoothly despite the high mass — the balance point of the shield is engineered so that the operator controls movement with minimal effort while the mass provides the blast and ballistic protection performance.

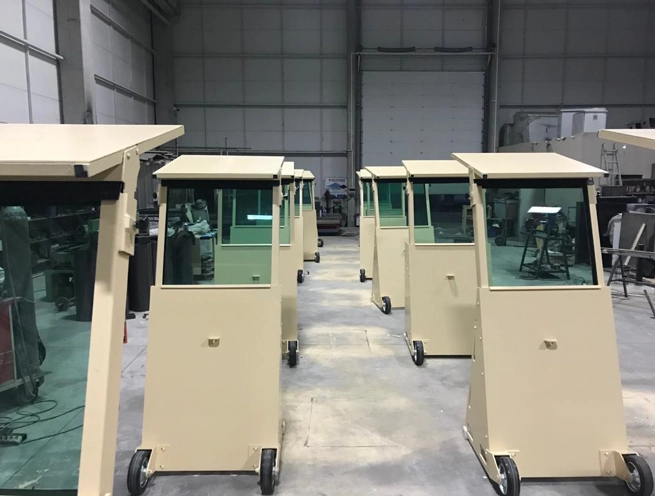

Wheel and caster options include standard hard rubber 8-inch wheels, 10-inch all-terrain no-flat wheels, solid ATV tires for unimproved surfaces, and pneumatic highway tires for vehicle tow transport — the wheel selection matched to the terrain of the intended deployment. Front wheels lock into the raised position to prevent rolling on inclines — confirming that the shield maintains a stable protective position on sloped terrain without operator effort to prevent movement.
The shield fits through a 30-inch door opening — the maximum width that allows passage through standard interior doorways for building-clearing, hostage rescue, and indoor law enforcement operations.

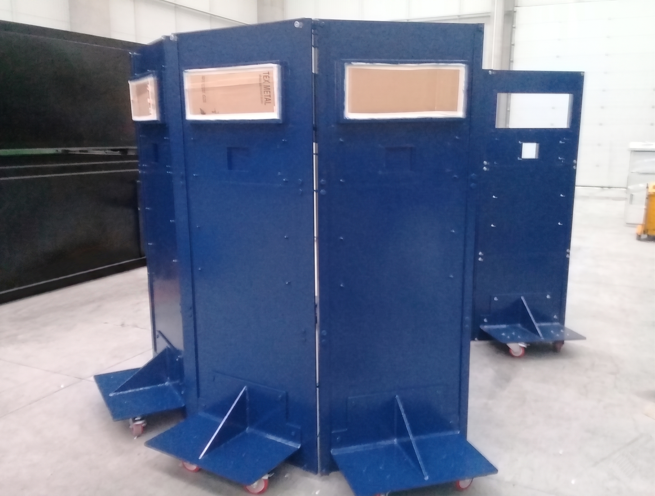

Multiple shields connect together using multi-shield connecting plates — providing continuous 360-degree circumferential protection for a command post, casualty treatment position, or any protected station requiring all-direction coverage.
The zinc-rich primer two-stage powder coat — zinc primer for corrosion prevention and top coat in black, tan, or any customer color — provides the long-term surface protection required for shields operated in hot, cold, damp, and all outdoor environments.
KEY FEATURES
NIJ Level III & IV Certified — Military & Law Enforcement Protection
The dual certification range — NIJ Level III for rifle protection and NIJ Level IV for armor-piercing rifle protection — provides the complete threat coverage spectrum for both standard law enforcement operations and military forward operations where armor-piercing ammunition is a credible threat. Independent recognized ballistic testing facility certification of all steel and glass components confirms the protection performance against the most demanding ballistic threats in real-world deployment conditions.
Single Operator — Tool-Free Assembly in Seconds
The gravity-and-balance-assisted design that allows a single operator to assemble, configure, and maneuver the 700-pound+ shield in seconds without any tools is the defining operational advantage of the Madoors USA Mobile Ballistic Shield — a protection system that requires a team to deploy, takes minutes to set up, or requires tools loses its value in the dynamic time-critical scenarios where immediate ballistic protection is most needed. The single-operator, seconds-to-deploy capability directly enables soldiers and law enforcement officers to establish protected positions instantly without waiting for assistance.
Replaceable Transparent Armor — 9/16-Inch Wrench Only
The field-replaceable transparent armor requiring only a standard 9/16-inch wrench provides the operational capability to restore the shield's complete protection performance after a ballistic strike damages the viewing panel — in the field, with common tools, without workshop facilities. This field replaceability directly extends the operational service life of the shield beyond single ballistic impact events and maintains the viewing panel protection level throughout repeated deployment cycles.
360-Degree Configuration — Multiple Shield Connection
The multiple shield connection plates that enable shields to be connected for 360-degree circumferential protection directly provide the complete all-direction protection configuration required for command post establishment, casualty collection point protection, and any position requiring protection from multiple simultaneous threat directions. The connection system is designed for rapid field assembly — the connected shields form a continuous protection perimeter without gaps at the shield-to-shield junctions.
700-Pound+ Mass — Blast & Fragmentation Protection
The mass exceeding 700 pounds provides the inertial resistance to blast overpressure and secondary fragmentation that lightweight portable shields cannot offer — a blast event near the shield is partially absorbed by the mass resistance of the shield, reducing the pressure and fragment penetration that reaches the protected personnel behind the shield. This blast protection capability is the specific mass-dependent performance characteristic that distinguishes the Madoors USA Mobile Ballistic Shield from lighter personnel protection shields.
Vehicle Tow Capability — Rapid Deployment Transport
The built-in 2-inch hitch vehicle tow capability allows the shield to be towed behind any standard light duty car or truck — transport from the staging area to the deployment position does not require specialist vehicles or lifting equipment. The transition from transport configuration to deployed protection shield takes one person only a couple of minutes, providing the rapid deployment timeline required for tactical operations where the shield must be in position before personnel are exposed to the threat environment.
30-Inch Door Compatibility — Indoor Operation Capability
The 30-inch door opening compatibility allows the shield to be used in indoor building-clearing, hostage rescue, and law enforcement entry operations — the shield fits through standard interior doorways, maintaining ballistic protection as officers advance through building interiors where the threat environment follows them from room to room. This indoor compatibility is the essential operational dimension for urban warfare and law enforcement tactical operations in occupied buildings.
Lockable Front Wheels — Incline Position Security
The front wheel lock that raises the front wheels into a locked-down position prevents the shield from rolling on inclined surfaces — maintaining the shield at the deployed protective position on sloped terrain, stairs, and inclined urban environments without requiring the operator to manually hold the shield against gravity. This incline lock directly enables deployment in the varied terrain and elevation changes of real-world urban and field tactical environments.
Gun Ports — Armed Response Capability

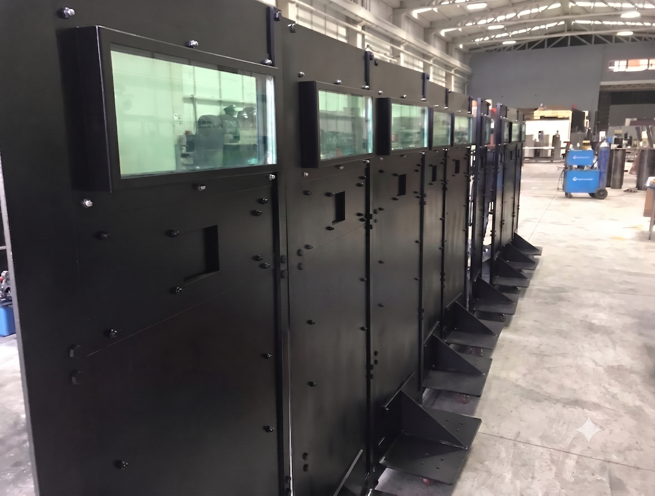

The sliding gun port option for units 44 inches or wider allows officers to engage targets or provide suppressive fire through the shield without exposing any body part beyond the shield protection envelope — the gun port provides the weapon firing aperture while maintaining the complete ballistic protection of the shield face. This armed response capability from behind complete protection is the essential tactical function that distinguishes the armed ballistic shield from a purely passive protective barrier.
OPTIONAL EQUIPMENT
Ballistic awnings — overhead fragmentation protection extending from the shield top for indirect fire and fragment protection.
Heaters — environmental comfort for extended cold weather deployment positions.
Spotlights — illumination of the threat area forward of the shield for night operations.
Gun ports — sliding aperture for weapon use from behind the shield on units 44 inches or wider.
Multi-shield connecting plates — rapid connection of multiple shields for 360-degree circumferential protection.

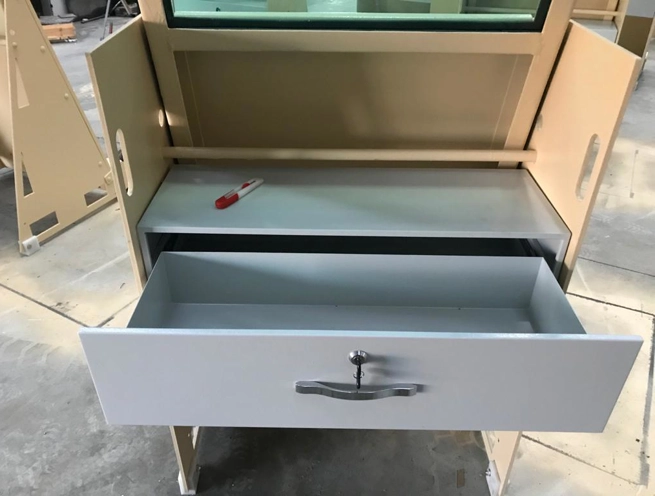

Shelves and drawers — equipment storage within the protected shield envelope.
Signage — identification markings for law enforcement and military unit designation.
ASSEMBLY & DEPLOYMENT SEQUENCE
Vehicle Transport
The shield is towed on its transport wheels behind a light duty vehicle to the deployment location using the 2-inch hitch connection.
Transport-to-Shield Transition
One operator disengages the transport configuration and transitions the shield to the deployed protective position — the gravity-and-balance design completes the transition in a couple of minutes without tools.
Positioning
The operator pushes the shield into the required protective position — forward, backward, or sideways as required. The 30-inch width allows passage through standard doorways for indoor deployment.
Position Locking
Front wheels are raised into the locked-down position to prevent rolling at the deployed position, including on inclines.
Multi-Shield Connection (Where Required)
Additional shields are connected using the multi-shield connection plates to form the 360-degree protection configuration around the protected position.
Operational Configuration
Gun ports are opened as required. Optional spotlights, heaters, and equipment storage are configured for the specific operation requirements.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Mobile Ballistic Shields are deployed across the full range of military and law enforcement protection operations.
- Military urban warfare squad protection shields
- Law enforcement tactical unit entry protection shields
- Hostage rescue operation protected advance shields
- Counter-terrorism building clearing protection stations
- Military command post 360-degree protection configuration
- Casualty collection point blast protection shields
- Police SWAT operation ballistic protection shields
- Checkpoint and guard post mobile ballistic protection
- Military forward operating base entry position shields
- Law enforcement civil disturbance protection shields
- Special forces forward protection position shields
- Military explosive ordnance disposal protection stations
- Border security force mobile protection shields
- Emergency first responder ballistic protection deployment
- Any military or law enforcement operation requiring immediate single-operator mobile NIJ Level III or IV certified ballistic protection
