Manual Retractable Rising Bollards

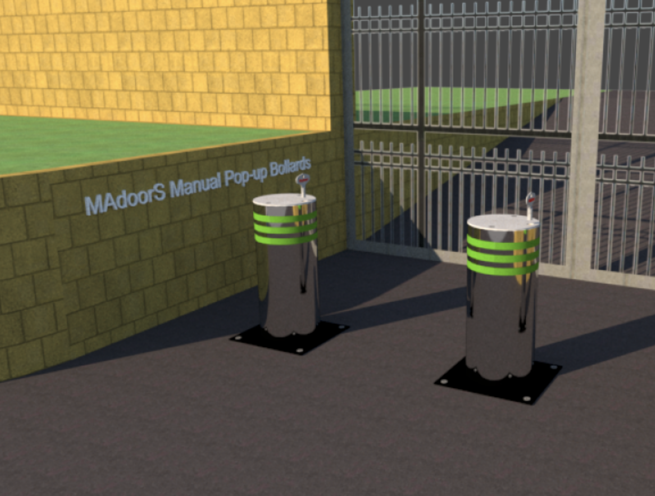

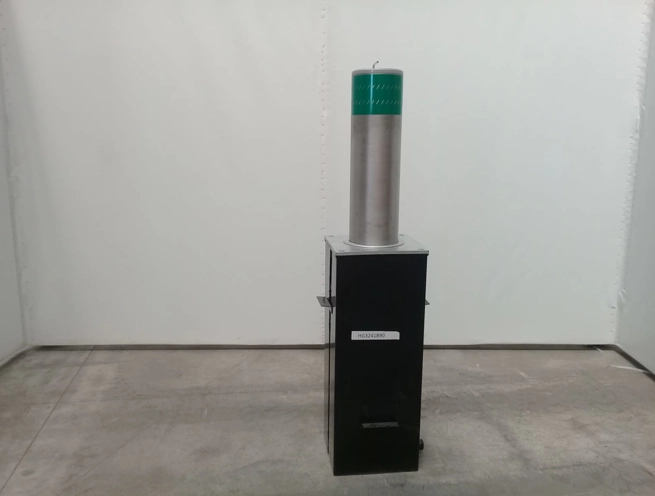

The Madoors USA Manual Retractable Rising Bollard is a semi-automatic key-operated rising bollard providing vehicle access control at parking lots, driveways, and pedestrian areas without any power supply requirement — the ideal solution for sites with lower frequency operation and no electrical infrastructure. Unlocked with a key and automatically rising with an internal gas piston spring, lowered by foot push and automatically locked in the down position, manufactured from stainless steel or hot-dip galvanized steel for complete weather and corrosion resistance, available in different sizes and finishes to customer specification, and easy to install without special tools, the Madoors USA Manual Retractable Rising Bollard provides cost-effective, reliable vehicle access control and unauthorized parking prevention anywhere power-dependent systems are impractical.
TECHNICAL SPECIFICATIONS
The Madoors USA Manual Retractable Rising Bollard operates on a gas spring assisted semi-automatic mechanism. In the raised security position, the bollard is locked by a high-security lock — the bollard cannot be manually pushed down without the correct key. When the operator inserts the key and unlocks the bollard, the internal gas piston spring automatically drives the bollard upward to the full raised position without any manual lifting force required — the gas spring stores energy when the bollard is compressed to the lowered position and releases it to raise the bollard on key release.
To lower the bollard for authorized vehicle access, the operator inserts the key and unlocks the mechanism, then pushes the bollard down into the ground with foot pressure — the foot push compresses the gas spring for the next raise cycle. Once the bollard reaches the fully lowered position, the locking mechanism automatically engages, securing the bollard in the down position without requiring the operator to manually secure it. The automatic down-lock prevents the bollard from rising unexpectedly when a vehicle drives over it in the lowered position.

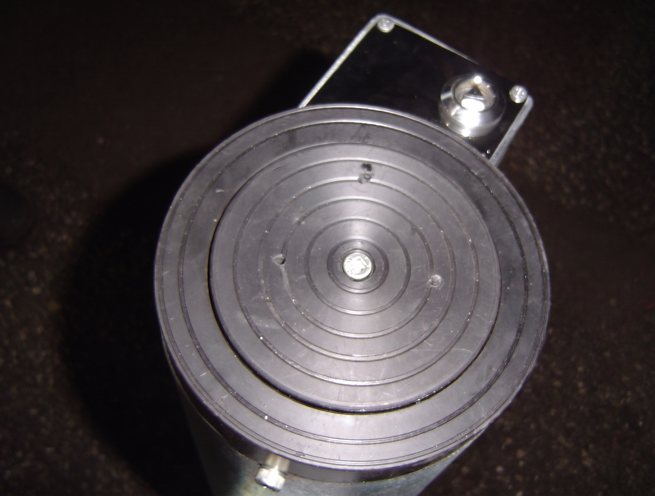

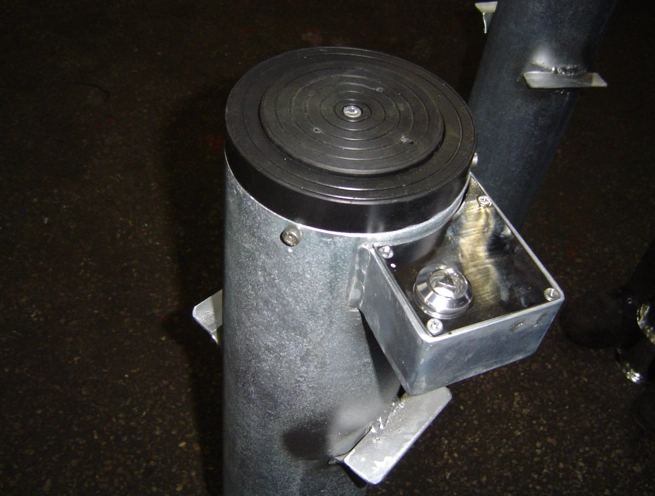

The high-security lock prevents unauthorized lowering of the bollard — the lock specification resists picking, drilling, and bump key attacks, ensuring that only persons with the correct key can operate the bollard. This key security is the primary access control function of the manual bollard — the physical bollard in the raised position combined with the high-security lock provides the vehicle stopping and unauthorized access prevention capability.
The bollard body is manufactured from stainless steel or hot-dip galvanized steel — stainless steel for premium corrosion resistance and aesthetic finish at prominent architectural positions, and hot-dip galvanized steel for heavy-duty outdoor service with maximum surface corrosion protection. Both material options provide the weather resistance required for permanent outdoor installation in all climate conditions without surface degradation throughout the service life.

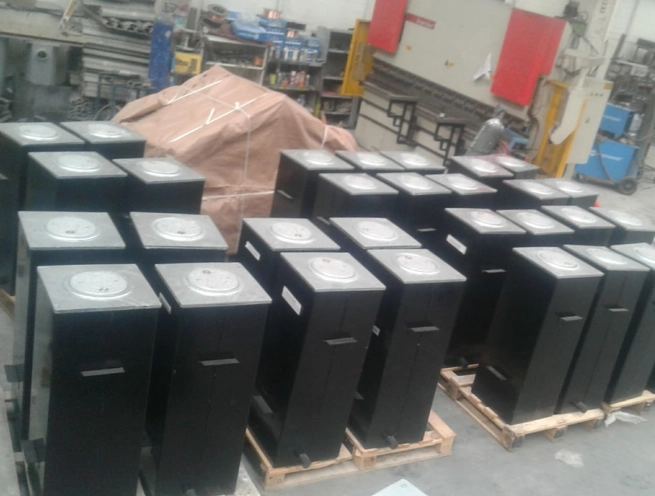

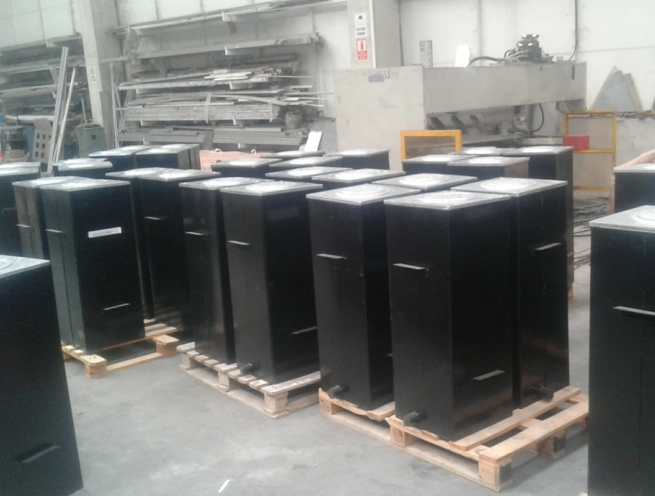

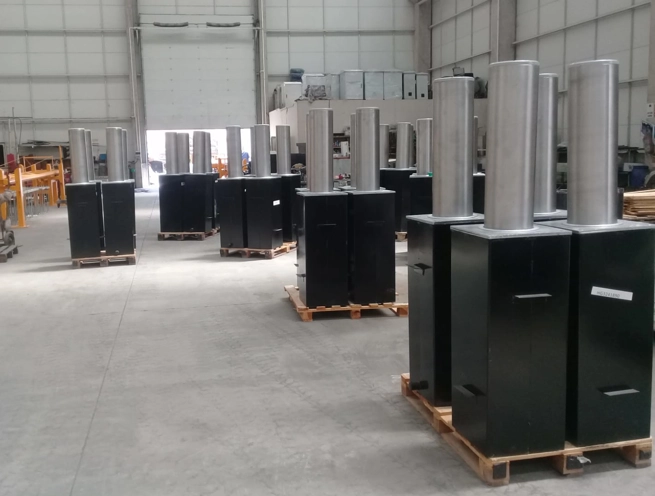

The bollard is installed in an in-ground housing — excavation to the housing depth is completed, the housing is set in concrete, and the bollard mechanism is installed in the housing. No electrical supply, no hydraulic connections, and no control cables are required — the complete installation is mechanical.
KEY FEATURES
Gas Piston Auto-Rise — No Manual Lifting Required
The internal gas piston spring that automatically raises the bollard when the lock is released directly eliminates the physical effort of manually lifting a heavy steel bollard from the ground-flush position — the operator simply turns the key and the bollard rises to the full upright position under gas spring force. This auto-rise capability makes the bollard operable by any person regardless of physical strength, directly enabling operation by the full range of facility staff and security personnel.
Foot-Push Down & Auto-Lock — Single-Operator No-Bend Operation
The foot-push lowering operation combined with automatic locking at the down position allows complete bollard operation without the operator bending down — the key turn releases the lock, the foot pushes the bollard down, and the auto-lock secures it, all from a standing position. This no-bend operation directly reduces operator fatigue and physical strain at high-cycle parking and access control applications.
No Power Supply Required — Any Location Deployment
The complete mechanical operation without any electrical supply is the defining deployment advantage of the manual rising bollard over powered alternatives — the bollard can be installed at any location accessible by vehicle regardless of proximity to power infrastructure. Remote parking areas, temporary access control positions, heritage sites without underground electrical services, and any location where electrical installation would be prohibitively expensive or impractical are all served by the manual bollard without the infrastructure investment of powered systems.
High-Security Lock — Unauthorized Lowering Prevention
The high-security lock in the raised position prevents unauthorized lowering by persons without the correct key — providing the vehicle access control function that makes the bollard a security barrier rather than merely a physical obstacle. The high-security lock specification resists the forced entry attack methods that standard padlocks and cylinders are vulnerable to, maintaining the access control integrity of the bollard throughout its service life.
Stainless Steel & Galvanized Options — All Environment Durability
The stainless steel and hot-dip galvanized construction options provide the complete range of corrosion resistance specifications for all installation environments — stainless steel for coastal, marine, and chemically aggressive environments where salt spray and chemical exposure would degrade galvanized surfaces, and hot-dip galvanized for standard outdoor environments providing long-service corrosion protection at lower material cost. Both options provide the outdoor durability required for permanent installation without surface treatment maintenance.
Multiple Sizes & Custom Finishes — Any Application Requirement
The availability in multiple sizes and customer-specified finishes allows the manual bollard to be matched to the specific vehicle stopping requirement and aesthetic specification of each installation — bollard diameter and height matched to the vehicle access width and required visual prominence, and surface finish matched to the surrounding architectural character. This customization directly enables the bollard to serve both the functional security requirement and the visual quality standard of premium architectural installations.
Low Frequency Operation — Cost-Effective Access Control
The design specifically for lower frequency operation applications — parking lots, private driveways, and pedestrian area boundaries where the bollard is raised and lowered a small number of times per day — provides a cost-effective alternative to powered bollard systems at locations where the installation and operational cost of hydraulic or electromechanical systems is not justified by the operational frequency. This cost-effectiveness makes the manual bollard the appropriate specification for the majority of standard vehicle access control applications.
Easy Installation — No Special Tools Required
The straightforward installation without special tools directly reduces the installation cost and the installer skill requirement — any competent groundwork contractor can install the bollard housing in concrete and the bollard mechanism in the housing without specialist hydraulic, electrical, or mechanical installation knowledge. This easy installation directly reduces the total installed cost of the manual bollard system relative to powered alternatives requiring specialist installation trades.
PRODUCT RANGE
Stainless Steel Manual Bollard — Premium corrosion-resistant finish. Architectural and coastal environment specification. Multiple diameter and height options. High-security lock standard.
Hot-Dip Galvanized Manual Bollard — Standard outdoor corrosion-resistant specification. Cost-effective heavy-duty option. Multiple diameter and height options.
Powder-Coated Manual Bollard — RAL color finish over galvanized substrate. Color coordination with surrounding architecture. Any RAL color on request.
Decorative Manual Bollard — Shaped and styled bollard body for premium architectural environments. Custom profile options for heritage and prestige installation positions.
ASSEMBLY & INSTALLATION SEQUENCE
Position Assessment & Size Selection
Bollard position, required raised height and diameter for the specific vehicle access width, stainless or galvanized material, finish, and key system requirement are confirmed.
Excavation & Housing Installation
Excavation to the bollard housing depth is completed. The housing is positioned level and in alignment with the road surface. Concrete is poured around the housing. Concrete cure to the required strength is completed.
Bollard Mechanism Installation
The bollard mechanism with gas spring is installed in the housing. Gas spring pressure and auto-rise function are confirmed. Auto-lock in the down position is confirmed.
High-Security Lock Installation & Key Issue
The high-security lock is installed and the key is issued to authorized operators. Lock security — pick, drill, and bump key resistance — is confirmed. Down-lock engagement and key release are tested.
Complete Operational Testing
Full cycle — key unlock, auto-rise to raised position, foot-push down, auto-lock in down position — is tested multiple times. High-security lock in raised position resistance is confirmed.
Operational Handover
Complete operational guide, key management procedure, and maintenance schedule are provided. Installation documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Manual Retractable Rising Bollards are specified for any vehicle access control position requiring key-operated semi-automatic bollard without power supply.
- Private driveway vehicle access control bollards
- Parking lot entry and exit control bollards
- Pedestrian area and plaza vehicle exclusion bollards
- Retail premises vehicle access control bollards
- Hotel and hospitality property driveway bollards
- Residential community vehicle access bollards
- Office building car park entry bollards
- Heritage and conservation site vehicle exclusion
- School and educational facility driveway bollards
- Hospital and healthcare facility parking bollards
- Sports and leisure facility vehicle access control
- Municipal pedestrian zone vehicle exclusion bollards
- Industrial facility personnel parking area bollards
- Rural and remote site vehicle access control
- Any vehicle access control position requiring gas-spring auto-rise key-operated manual bollard without electrical supply
