Please provide your technical specifications and project requirements for the Loading Dock Shelter. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
Loading Dock Shelter

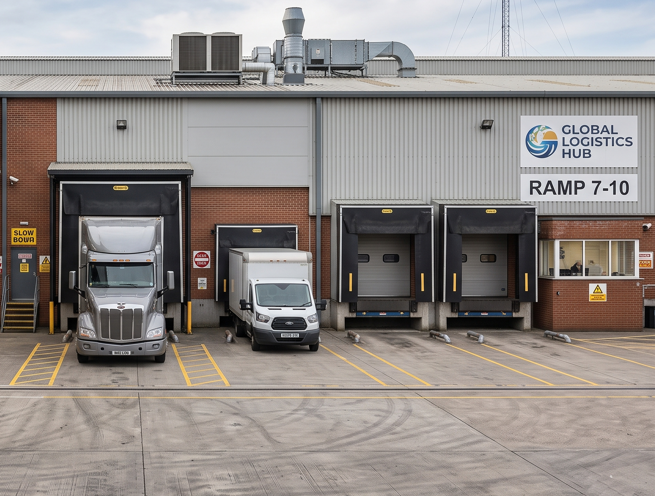

The Madoors USA SYK-50 Loading Dock Shelter is a flexible, high-quality climate-control structure engineered to create an excellent seal between the internal and external environment of the loading dock — protecting assets and personnel from weather elements while providing full, unimpeded vehicle access for safe and productive dock operations. Maintaining temperatures in climate-controlled facilities for significant energy savings, withstanding damaging force and compression when trailers back up to the wall for years of reliable performance, and available in a wide variety to fit any loading dock design objective and budget, the SYK-50 provides the superior sealing effectiveness, larger opening compatibility, unobstructed trailer load access, wide trailer height and style serviceability, and reduced wear and building wall pressure that makes dock shelters the preferred specification over foam dock seals at modern logistics and distribution facilities.
TECHNICAL SPECIFICATIONS
The Madoors USA SYK-50 Loading Dock Shelter consists of header curtain and side curtain assemblies mounted on the dock wall face around the dock door opening — the curtains extend outward to contact the trailer body surfaces on the top and sides when a trailer backs up to the dock, creating the seal between the trailer and the dock opening perimeter.
The header curtain at the top of the dock opening is designed to reach down to the trailer roof — creating the top seal between the building header and the trailer body. The header curtain is available in weighted configuration for consistent downward contact pressure against trailers of varying roof heights, and in standard fabric configuration for standard-height trailer fleets. Self-adjusting header curtains automatically adapt to different trailer roof heights without manual intervention, while pull-rope adjustment models provide the operator with manual control over the header curtain position for different trailer heights and load configurations.
The side curtains are equipped with features to seal around trailer door hinge gaps — the side curtain design accommodates the irregular surface profile created by the trailer door hinges and hardware on the trailer rear face, maintaining the side seal at the hinge positions that standard flat-profile side curtains cannot contact. This hinge gap sealing is the specific feature that provides the dock shelter's weather seal effectiveness equivalent to foam dock seals despite the non-compressive design.
The flexible structure design means the shelter is not compressed by the trailer in normal use — unlike foam dock seals that are designed for direct trailer body compression, the SYK-50 curtains contact the trailer surface without the extreme compression pressure that degrades foam seal material through repeated compression cycling. This non-compressive contact directly reduces the wear and tear on the shelter material and eliminates the progressive foam degradation that requires frequent foam seal replacement. The reduced pressure on the building wall is the corresponding structural benefit — the dock wall is not subject to the cyclic compressive loading from trailer contact that foam seals transmit.
The ability to fit larger dock door openings than foam seals allows the SYK-50 to serve the full range of dock door sizes including oversized openings for specialized cargo handling — foam seals are limited in the opening size they can effectively seal, while the curtain system of the dock shelter scales to any opening dimension.
KEY FEATURES
Climate Control — Temperature Maintenance & Energy Savings
The excellent seal between the internal and external dock environment created by the SYK-50 header and side curtains directly maintains the temperature of climate-controlled warehouse facilities during dock operations — preventing warm air infiltration into refrigerated and frozen storage areas and hot or cold air escape from controlled temperature facilities. This temperature maintenance reduces the energy consumption of the climate control system during dock operations, directly contributing to the energy savings benefits that make dock shelter specification an energy efficiency investment as well as a weather protection measure.
Flexible Structure — Years of Force & Compression Resistance
The flexible structure that withstands damaging force and compression from trailer approach and contact without degradation provides the long service life required for the continuous daily use of active logistics dock positions — the flexibility absorbs the contact force of trailer backing operations that would crack, break, or permanently deform rigid shelter structures, and the high-quality flexible material resists the compression cycling that causes foam seal material to permanently compress and lose sealing performance over time.
Non-Compressive Design — Reduced Wear & Building Wall Pressure
The non-compressive design principle — the curtains contact rather than compress against the trailer body — directly extends the service life of the shelter material compared to foam seals designed for full compression and directly reduces the loading on the dock wall structure from trailer contact. This pressure reduction is the structural protection benefit for dock walls subject to the repetitive loading of hundreds of trailer approaches per week — the SYK-50 maintains the dock wall structural integrity throughout the facility's operational life.
Larger Opening Compatibility — Oversized Dock Flexibility
The ability to fit larger dock door openings than foam seals allows the SYK-50 to serve facilities with oversized or non-standard dock door dimensions — expanding the range of dock positions that can be effectively weather-sealed without compromising access to the trailer load. This opening size flexibility is the essential specification advantage for facilities handling oversized cargo, wide-body trailers, and specialized transport vehicles that require larger than standard dock openings.
Unobstructed Trailer Load Access — Full Cargo Visibility
The unobstructed access to the trailer load provided by the curtain shelter design — the side and header curtains contact the trailer exterior without entering the trailer interior or obstructing the dock door opening — provides the full, unimpeded cargo access required for safe and efficient forklift and pallet jack operation. This unobstructed access directly supports the safe and productive dock operations that the SYK-50 is specified to enable.
Wide Trailer Height & Style Compatibility — Universal Fleet Service
The ability to service a wide variety of trailer heights and styles from a single SYK-50 installation allows mixed fleet facilities to use the same dock shelter at every position — the adjustable header curtain and flexible side curtains adapt to different trailer roof heights, trailer widths, and trailer body configurations without requiring dock shelter reconfiguration between different trailer types. This universal compatibility directly reduces the operational complexity of busy distribution centers receiving mixed transport fleets.
Hinge Gap Sealing — Comprehensive Side Seal Performance
The side curtain features that seal around trailer door hinge gaps provide the comprehensive side seal performance required for effective climate control at the trailer rear face — trailer door hinges and hardware create irregular surface profiles that standard flat-profile curtains cannot contact uniformly. The hinge gap sealing features conform to these irregular profiles, maintaining the side seal integrity at the positions where gaps would otherwise admit weather and temperature infiltration.
Wide Variety — Design Objective & Budget Matching
The wide variety of SYK-50 configurations — different header curtain types, side curtain specifications, adjustment mechanisms, and installation configurations — allows the appropriate dock shelter specification to be matched to the specific design objective and budget of each facility. Premium configurations with self-adjusting headers and comprehensive hinge gap sealing for high-value climate-controlled facilities, and standard configurations for weather protection at ambient temperature distribution docks — the SYK-50 range covers the complete dock shelter requirement spectrum.
PRODUCT RANGE
Standard SYK-50 Dock Shelter
Fabric header curtain with pull-rope adjustment. Side curtains with hinge gap sealing features. Standard dock opening dimensions. Weather protection and basic climate control.
Weighted Header SYK-50
Weighted header curtain for consistent downward contact at variable trailer roof heights. Self-adjusting side curtains. Enhanced climate control for refrigerated and frozen dock positions.
Self-Adjusting SYK-50
Self-adjusting header and side curtains for automatic adaptation to all trailer heights and widths without manual adjustment. Maximum efficiency for high-traffic mixed fleet dock positions.
Oversized Opening SYK-50
Extended curtain dimensions for larger than standard dock door openings. All header and side curtain options available in oversized configurations.
ASSEMBLY & INSTALLATION SEQUENCE
Dock Opening Assessment & Shelter Selection
Dock door opening width and height, trailer fleet height and width range, climate control temperature requirement, header curtain type — weighted or standard, self-adjusting or pull-rope — and budget specification are confirmed.
Mounting Frame Installation
The dock shelter mounting frame is installed on the dock wall face around the dock door opening. Frame level, alignment with the dock door, and structural connection for the shelter assembly weight and trailer contact loading are verified.
Header Curtain Assembly & Adjustment Mechanism
The header curtain is installed on the top frame position. Weighted ballast or self-adjusting mechanism is installed. Pull-rope adjustment system is installed where specified. Header curtain reach to the trailer roof at the minimum and maximum fleet trailer heights is confirmed.
Side Curtain Installation & Hinge Gap Feature Fitting
Side curtains are installed on the frame side positions. Hinge gap sealing features are confirmed correctly positioned for contact with the trailer door hinge positions. Side curtain contact with the trailer body side face is verified.
Climate Seal Performance Testing
A test trailer is backed into the dock shelter position — header and side curtain contact with the trailer body on all three sides, hinge gap seal, and overall climate seal effectiveness are verified.
Operational Testing & Handover
Pull-rope or self-adjusting header function, side curtain contact maintenance during simulated trailer approach loading, and full unimpeded dock door access are confirmed. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA SYK-50 Loading Dock Shelters are specified for any loading dock requiring weather protection, climate control, and unobstructed trailer access.
- Refrigerated and frozen food distribution center dock shelters
- Ambient temperature general logistics dock weather protection
- Pharmaceutical cold chain distribution dock shelters
- Retail and supermarket chain distribution dock shelters
- E-commerce fulfillment center loading dock shelters
- Food and beverage manufacturing plant dock shelters
- Automotive parts distribution center dock shelters
- Chemical and industrial product distribution dock shelters
- Medical device and healthcare supply dock shelters
- Airport cargo terminal warehouse dock shelters
- Government and military supply distribution dock shelters
- Consumer goods distribution center dock weather protection
- Electronics and technology product distribution dock shelters
- Textile and clothing distribution center dock shelters
- Any loading dock requiring flexible curtain shelter with trailer hinge gap sealing and climate control capability
- Category: Vehicle Restraint & Dock Equipment
