K8, K12, PAS68 Crash Tested Hydraulic Rising Arm Barrier

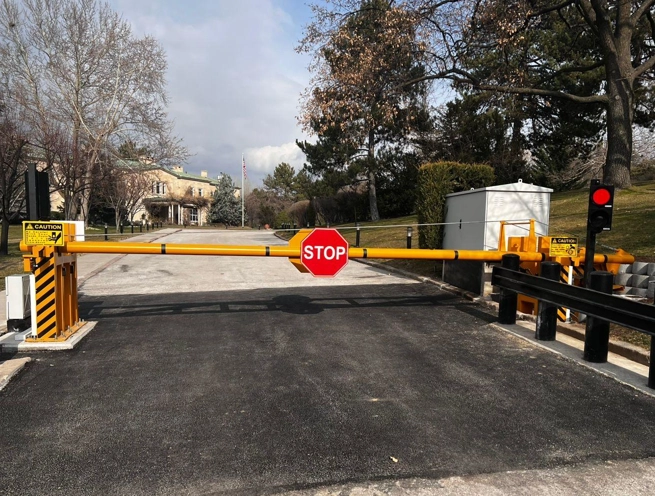

The Madoors USA CT-ACKB-2000 K8, K12, and PAS 68 Crash Tested Hydraulic Rising Arm Barrier is a hydraulic anti-terrorism drop arm barrier specifically designed for entrances facing suicide vehicle attack threats and high-security access points requiring certified crash-rated vehicle stopping performance — designed to stop vehicles of 7,500kg and above at 80 km/h, with K4, K8, and K12 crash test rated configurations available. Running continuous duty cycles of 100 cycles per hour, VFD variable frequency drive for graceful smooth arm operation, dual arm configuration protecting against both passenger car and heavy truck penetration, full 90-degree open position preventing tall truck arm clipping, all user safety devices housed in the hinge post for fast easy installation, and benefit-rich hydraulic controls proven across tens of thousands of Madoors gate operator installations, the CT-ACKB-2000 is the most reliable and elegant crash-rated arm barrier available for anti-terrorism vehicle access control.
TECHNICAL SPECIFICATIONS
The Madoors USA CT-ACKB-2000 is designed to K12 and PAS 68 standards — stopping vehicles of 7,500kg at 80 km/h. K4 and K8 rated configurations are available for applications requiring certified stopping performance at lower vehicle weight and speed parameters. The dual arm configuration provides the physical barrier coverage required to stop both passenger cars — which may pass under a single high-mounted arm — and heavy trucks at the certified impact performance level.
The VFD — variable frequency drive — system controls the arm movement in both raise and lower directions — providing the smooth, gradual acceleration and deceleration at the start and end of each cycle that protects the arm mechanism, post structure, and barrier hardware from the shock loading of abrupt stop-start operation. The VFD drive directly extends the service life of the barrier hardware and reduces maintenance requirements at the highest-cycle access control positions.
Motor drive in both directions — both raising and lowering are actively driven rather than relying on gravity for the lower cycle — means the arm stands open at a full 90 degrees. This full 90-degree vertical open position keeps the arm above the height of tall truck cab roofs and cargo bodies, preventing accidental contact between a slow-moving authorized truck and the raised arm during passage. This full vertical open is the specific design feature that prevents the tall truck arm-clip damage that 45-degree and less-than-90-degree open barriers experience.
The continuous 100-cycles-per-hour duty cycle rating confirms the barrier's capability for the highest-traffic access control positions — 100 cycles per hour represents a complete open/close cycle every 36 seconds throughout the operational period without thermal or mechanical overload. This duty cycle rating directly confirms the CT-ACKB-2000 as the appropriate specification for the busiest anti-terrorism vehicle access checkpoints.

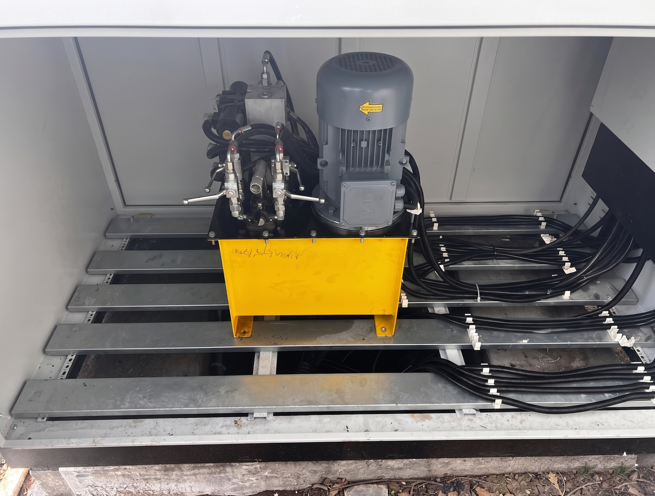

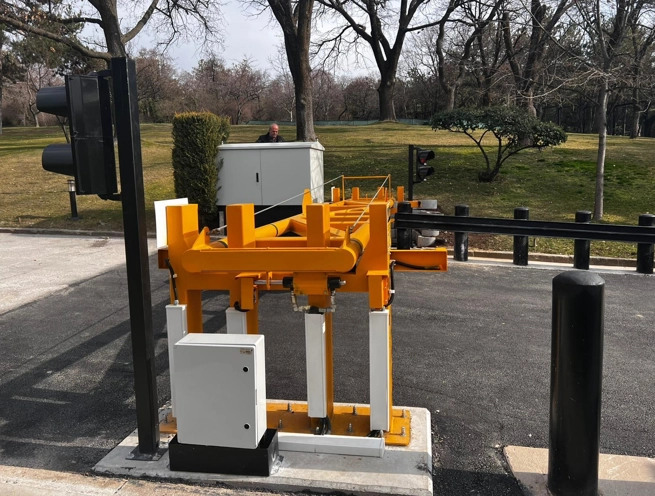

All hydraulics, VFD drive, and controls are housed in the hinge post — the complete mechanical and electrical system is self-contained within the post structure, eliminating the need for a separate equipment housing, underground cable pit, or remote control cabinet. This hinge post integration makes installation fast, easy, and inexpensive — the installer sets the post, connects power and access control signals, and the complete barrier system is operational.
Multiple user safety devices are standard equipment — protecting authorized users at the access point from accidental impact with the barrier arm during normal access control operation.
KEY FEATURES
K4, K8 & K12 PAS 68 Certification — Anti-Terrorism Stopping Performance
The K4, K8, and K12 PAS 68 certified stopping performance range covers the complete spectrum of anti-terrorism vehicle attack threat assessments — K4 for lower-speed lighter vehicle attack scenarios, K8 for intermediate threat profiles, and K12 for the highest threat level of 7,500kg vehicles at 80 km/h. The PAS 68 certification provides the internationally recognized independent test documentation required for government, military, and diplomatic facility anti-terrorism barrier procurement.
100 Cycles Per Hour Continuous Duty — High-Traffic Operation
The 100-cycles-per-hour continuous duty cycle rating is the operational performance specification that confirms the CT-ACKB-2000 as a high-traffic access control barrier and not merely a low-cycle security barrier. At 100 cycles per hour, the barrier can process 100 individual vehicle access control events per hour — a throughput rate appropriate for the busiest military base, government facility, and commercial anti-terrorism checkpoint without mechanical or thermal overload.
VFD Drive — Smooth Graceful Arm Operation
The VFD variable frequency drive providing smooth, gradual arm movement in both directions is the elegant operating characteristic that distinguishes the CT-ACKB-2000 from barriers with abrupt mechanical stop-start operation — the arm accelerates smoothly from stationary, moves at controlled speed through the travel arc, and decelerates smoothly to the open or closed position without shock loading. This VFD smoothness directly protects the barrier hardware, reduces maintenance requirements, and provides the premium operating quality appropriate for high-visibility government and corporate facility entrances.
Full 90-Degree Open — Tall Truck Safety
The motor-driven full 90-degree vertical open position — achieved by active motor drive in both directions rather than relying on gravity — prevents the tall truck arm-clip incidents that occur at barriers with less-than-vertical open positions. When the arm stands at full 90 degrees, the arm tip is above the height of the tallest truck cab and cargo body — an authorized truck driving through the open barrier cannot contact the raised arm at any point during passage. This design feature directly eliminates one of the most common damage events at high-truck-traffic access control barriers.

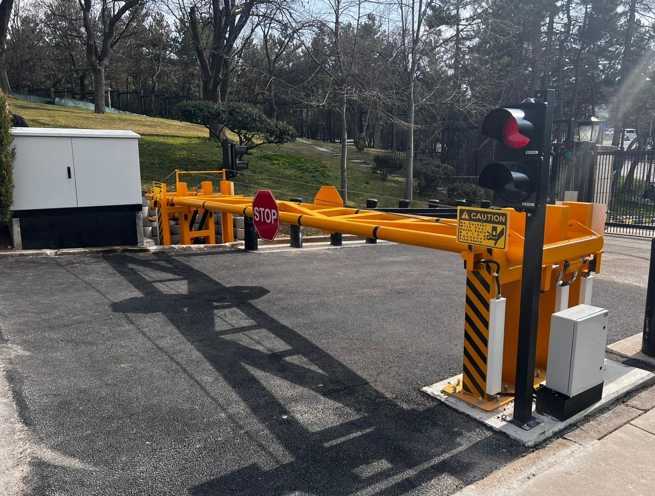

Dual Arm Configuration — Passenger Car & Truck Coverage

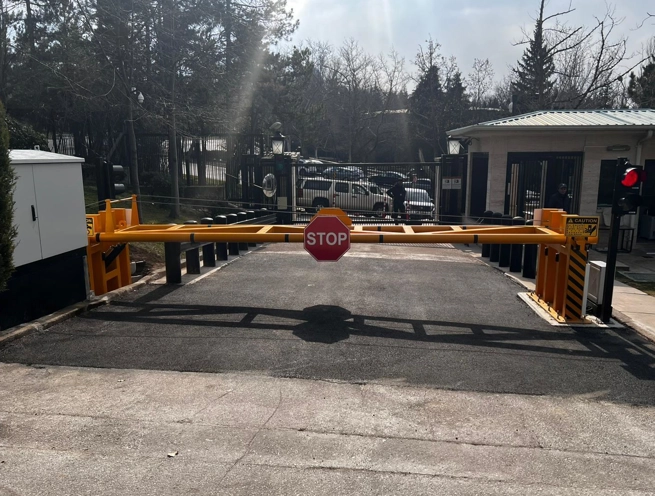

The dual arm configuration provides physical barrier coverage at two heights — the lower arm engages passenger cars and light vehicles that would pass under a single high-mounted arm, and the upper arm engages trucks and heavy vehicles. This dual coverage ensures that both vehicle categories are physically stopped at the certified K12 performance level — a single-arm configuration cannot provide certified stopping performance against the full vehicle weight range.
Hinge Post Integration — Fast Easy Inexpensive Installation
The complete housing of all hydraulics, VFD drive, and controls within the hinge post eliminates the separate equipment housing, underground cable pit, and remote control cabinet that add cost, time, and complexity to conventional barrier installations. The self-contained hinge post integration directly reduces the CT-ACKB-2000 installation time, civil works cost, and installation complexity — the installer sets the post, connects the service lines, and the complete system is ready for commissioning.
Proven Hydraulic Reliability — Tens of Thousands of Installations
The proven hydraulic system reliability across tens of thousands of Madoors gate operator installations confirms the long-term operational performance of the hydraulic components used in the CT-ACKB-2000 — not a new or unproven hydraulic design but the same hydraulic architecture that has demonstrated its reliability across a very large global installation base. This proven reliability directly provides the procurement confidence required for anti-terrorism barrier specification at critical facilities.
Multiple User Safety Devices — Authorized User Protection
The multiple standard user safety devices protect authorized users at the access point from accidental barrier arm impact during normal access control operation — vehicle presence detection, photocell safety sensors, and arm position interlocks prevent the barrier from operating into the path of an authorized vehicle or pedestrian. These safety devices directly prevent the access point incidents that occur at barriers without adequate user protection.
Elegant Design — M-8000 Aesthetic Quality
The elegant looking and operating M-8000 design confirms the CT-ACKB-2000 as appropriate for premium architectural environments — government ministry forecourts, corporate headquarters, luxury hotel entrances, and any high-visibility location where the anti-terrorism barrier must complement the surrounding architectural character. The VFD smooth operation contributes to the elegant operating impression alongside the physical design quality.
CRASH RATING COMPARISON
K4 Configuration — Vehicle 7,260kg at 48 km/h. Lower speed threat profile. Standard commercial and industrial anti-terrorism access.
K8 Configuration — Vehicle 7,260kg at 64 km/h. Intermediate threat profile. Government and institutional anti-terrorism access.
K12 / PAS 68 Configuration — Vehicle 7,500kg at 80 km/h. Maximum threat profile. Military, diplomatic, and critical infrastructure anti-terrorism access.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Crash Rating Selection
Entrance lane width, vehicle weight and speed threat profile, required crash rating — K4, K8, or K12 — dual arm configuration, access control integration, and power supply are confirmed.
Hinge Post Foundation
The hinge post foundation is excavated and concrete is poured to the confirmed base plate specification. Foundation cure time is completed before post installation.
Hinge Post Installation
The complete hinge post containing all hydraulics, VFD drive, and controls is installed on the foundation base plate. Post level, alignment with the barrier travel arc, and structural connection are verified.

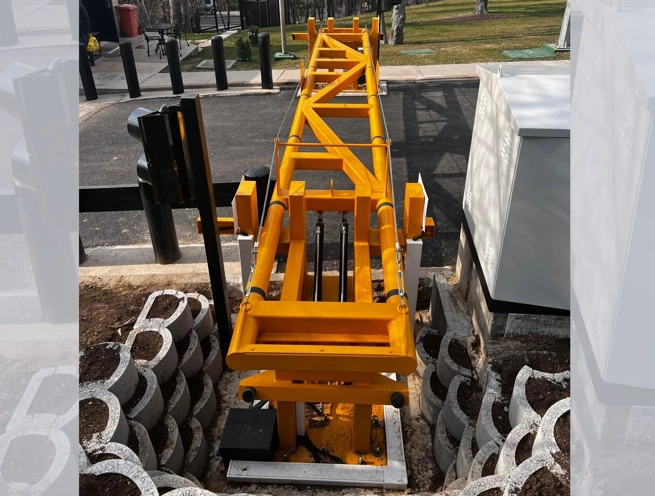

Dual Arm Installation
Upper and lower barrier arms are installed on the hinge post arm mount. Arm travel arc, full 90-degree open position, and horizontal closed position are verified.
Power Supply & Access Control Connection
Electrical power supply is connected to the hinge post. All access control interfaces — card readers, loop detectors, traffic lights, remote controls, safety devices — are connected and programmed.
VFD Drive Calibration & Cycle Testing
VFD drive smooth acceleration and deceleration settings are calibrated for the arm weight and operational tempo. 100-cycle-per-hour continuous duty operation is tested. All safety device functions are confirmed.
K8/K12/PAS 68 Certification Documentation & Handover
Crash test certification documents at the specified rating, hinge post integration documentation, VFD drive commissioning records, and installation warranty are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA CT-ACKB-2000 K8/K12/PAS 68 Hydraulic Rising Arm Barriers are deployed at any high-security vehicle access point requiring certified anti-terrorism crash-rated arm barrier control.
- Military base anti-terrorism vehicle entry arm barriers
- Government building and ministry anti-terrorism access
- Embassy and diplomatic compound crash-rated arm barriers
- Presidential and VIP protection facility arm barriers
- Critical national infrastructure anti-terrorism barriers
- Airport terminal kerbside anti-terrorism arm barriers
- Port and maritime terminal anti-terrorism vehicle access
- Nuclear facility vehicle entry crash-rated arm barrier
- Corporate headquarters anti-terrorism vehicle control
- Police station and courthouse anti-terrorism barriers
- Prison and correctional facility high-security arm barriers
- Military checkpoint K12 rated crash arm barriers
- Hotel and hospitality VIP entrance anti-terrorism barriers
- Shopping center and public space crash-rated access control
- Any high-security entrance requiring K4/K8/K12 PAS 68 certified hydraulic anti-terrorism rising arm barrier
