Iglo Armory Ammunition Gate Motor
The Madoors USA Iglo Armory Ammunition Gate Motor is a purpose-engineered hydraulic and electro-mechanical drive system specifically designed for the exceptional weight demands of igloo armory ammunition doors — manufactured to operate comfortably with door weights up to 15 to 20 tons, where the standard mistake of using 1 to 2-ton capacity garden sliding door motors on 8 to 10-ton igloo armored arsenal doors causes incorrect operation, work accidents, and personnel injuries. With years of military armory engineering experience and responsibility awareness, Madoors USA produces explosion-proof armory door systems that work reliably for very long periods without malfunction, serving military units across the USA with 2-year guaranteed, laser-cut mono-block body, ex-proof certified, gas-tight, heat and fire resistant Jotun-painted armory doors up to 8 meters in one piece and complete control systems including red/green traffic lights, loop detectors, photocell sensors, and remote control.
TECHNICAL SPECIFICATIONS
The Madoors USA Iglo Armory Gate Motor is engineered for the specific structural and operational requirements of igloo-type ammunition and weapons arsenals — semi-buried, earth-covered explosive storage structures where the armory doors are inherently very heavy due to the explosion-proof construction, thick steel mono-block body, and structural mass required for blast containment. Standard commercial gate motors rated for 1 to 2 tons are entirely inadequate for igloo armory doors in the 8 to 20-ton range — the use of undersized motors causes mechanical failure, door misalignment, and the dangerous operational situations that have resulted in personnel casualties at improperly engineered armory installations.
The Madoors USA motor system operates hydraulically or electro-mechanically — hydraulic drive for the highest weight applications up to 20 tons where the consistent high-force output of hydraulic actuation is the only reliable drive technology, and electro-mechanical for the lower end of the armory door weight range where the mechanical drive provides reliable long-service operation. Smart hydraulic system planning provides very long-term operation without malfunction — the hydraulic architecture is designed for the continuous duty cycle of a military armory access control position.
The armory door is produced as a sealed type, explosion-proof — ex-proof — door with all components and materials certified to explosion-proof standards. The mono-block body is laser-cut for precise dimensional accuracy and complete structural integrity — no welded joint seams that would represent structural and gas-tightness vulnerability in the blast-pressure environment of an ammunition armory. The door is gas-tight — preventing the ingress of explosive vapors or the egress of gas from an internal incident. Heat and fire resistant Jotun brand paint is applied — non-combustible coating that does not rust and maintains integrity under the thermal conditions of a fire incident adjacent to or within the armory.
The complete system includes red and green traffic lights for access status indication, loop detectors for vehicle and personnel presence detection, photocell sensors for safety, two control buttons, and remote control receiver card — providing the full access control and safety infrastructure required for a military armory gate system.

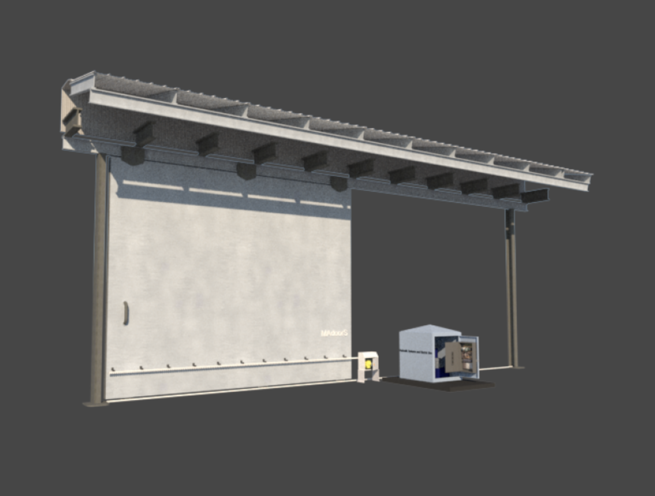

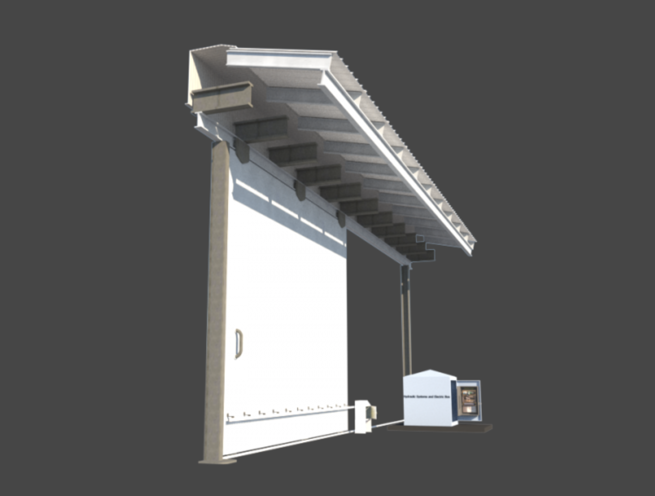

The sliding ammunition door can be manufactured in one piece up to 8 meters — providing the continuous structural integrity of a single mono-block panel across the full armory entrance width without the joint vulnerability of multi-panel doors.
KEY FEATURES
15 to 20-Ton Motor Capacity — Correct Engineering for Igloo Doors
The 15 to 20-ton motor capacity is the fundamental correct engineering specification for igloo armory ammunition doors — and the most critical distinction between a properly engineered Madoors USA armory gate system and the improperly engineered installations where 1 to 2-ton garden sliding door motors have been used for 8 to 10-ton armory doors. Undersized motors cause door misalignment from incomplete travel, mechanical overload failure, and the dangerous situations that result when an armory door cannot be reliably opened or closed. The Madoors USA system is sized for the actual door weight with engineering margin — ensuring reliable operation throughout the full service life.
Hydraulic Drive — Long-Term Malfunction-Free Operation
The hydraulic drive system provides the consistent high-force output required for the heaviest igloo armory doors with long-term reliability — the hydraulic actuation maintains consistent performance across the temperature extremes of military installation environments and the high cycle rates of active ammunition logistics operations. Smart hydraulic planning eliminates the premature failure modes that affect inadequately engineered hydraulic systems — the Madoors USA system is designed for very long-term operation without malfunction.
Ex-Proof Explosion-Proof Certification — All Components
The ex-proof certification of the door, all materials, and all electrical components is the fundamental safety requirement for an ammunition armory gate — the presence of explosive materials inside the armory means that any ignition source in the door mechanism or electrical system represents a catastrophic risk. Every electrical component, switch, sensor, motor, and control element used in the Madoors USA armory gate system is ex-proof certified — eliminating ignition risk from the complete gate mechanism.
Laser-Cut Mono-Block Body — Structural Integrity & Gas Tightness
The laser-cut mono-block door body provides two critical performance characteristics simultaneously — structural integrity without the weakness of welded panel joints that would be compromised by blast overpressure, and gas tightness without the sealing gaps at panel joints that would allow explosive vapor ingress or gas egress. The mono-block construction from laser-cut steel provides the dimensional accuracy required for consistent gas-tight seal contact at the door perimeter throughout the operational life of the door.
Gas-Tight Construction — Explosive Vapor Control
The gas-tight door construction prevents explosive vapors from ammunition and propellant stored within the armory from escaping into the surrounding environment where they could create explosive atmosphere hazards, and prevents external combustible gases from entering the armory in incident scenarios. Gas tightness is the fundamental containment requirement for an ammunition storage facility door — the consequences of gas leakage in either direction at an active ammunition armory are catastrophic.
Non-Combustible Jotun Paint — Fire & Heat Resistance
The heat and fire resistant Jotun brand non-combustible paint provides the surface protection required for an armory door that must maintain its structural integrity and gas-tight sealing performance under fire exposure conditions — a fire incident adjacent to the armory must not compromise the door's ability to contain the ammunition within. Non-combustible coating also directly protects the steel structure from the surface rust that would degrade the gas-tight seal surface quality over time.
Up to 8-Meter One-Piece Sliding Door
The one-piece sliding door manufactured up to 8 meters provides the structural integrity of a continuous mono-block panel across the full armory entrance width — the largest ammunition storage facilities require entrance widths of 6 to 8 meters for ammunition transport vehicle access, and the one-piece construction maintains the complete structural integrity, gas tightness, and blast resistance of the mono-block body across the full 8-meter span.
Complete Control System — Traffic Lights, Loop Detectors & Remote Control
The complete control system including red and green traffic lights, loop detectors, photocell safety sensors, two control buttons, and remote control receiver provides the full operational infrastructure required for a military armory access control position — the traffic light signals communicate access authorization status to personnel and vehicle operators, loop detectors confirm vehicle presence at the door position, photocell sensors prevent door operation when personnel or vehicles are detected in the door travel path, and remote control provides operation from the guard post position.
ASSEMBLY & INSTALLATION SEQUENCE
Armory Assessment & System Specification
Door weight, door dimensions — width up to 8 meters — drive system selection — hydraulic or electro-mechanical — electrical supply, ex-proof component certification requirements, control system configuration, and traffic light and detector positions are confirmed.
Foundation & Track Installation
The sliding door track and drive mechanism foundation are installed at the armory entrance position — engineered for the confirmed door weight up to 20 tons. Track alignment and structural connection to the armory structure are verified.
Mono-Block Door Fabrication
The laser-cut mono-block door body is fabricated to the confirmed dimensions — up to 8 meters in one piece. All ex-proof electrical fittings, seals, and hardware are installed during fabrication. Jotun non-combustible paint is applied.
Motor & Hydraulic System Installation
The hydraulic or electro-mechanical motor system is installed with engineering capacity matched to the confirmed door weight. Hydraulic system filling, bleeding, and pressure testing are completed. Motor capacity and operation through the full door travel range are verified.
Control System, Traffic Lights & Safety Sensor Installation
Ex-proof electrical components, red and green traffic lights, loop detectors, photocell sensors, control buttons, and remote control receiver are installed and connected. All ex-proof certifications for installed components are confirmed.
Gas-Tight Seal & Complete System Testing
Gas-tight door seal contact at all perimeter positions is verified. Complete operational testing — door open, close, safety sensor stop, traffic light sequencing, remote control, and emergency manual operation — is conducted.
2-Year Guarantee Documentation & Handover
Explosion-proof certification documentation, ex-proof component certificates, Jotun paint certificates, 2-year system guarantee, and installation records are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Iglo Armory Ammunition Gate Motors and Doors are specified for any military and security force ammunition storage facility requiring correctly engineered explosion-proof armory gate systems.
- Military igloo ammunition storage armory gate systems
- Army base ammunition depot explosion-proof doors
- Naval ammunition storage facility armory gates
- Air force armament storage igloo gate systems
- Military training facility ammunition storage doors
- Border security ammunition storage armory gates
- Police and security force weapon storage armory doors
- Government and defense ministry ammunition storage
- Military engineering unit explosive storage facility gates
- Special forces armory ammunition storage doors
- Military logistics base ammunition depot gate systems
- Counter-terrorism unit weapon storage armory gates
- National guard armory ammunition storage doors
- Military academy training armory gate systems
- Any military installation requiring 15-20 ton capacity explosion-proof igloo armory gate motor and door
