Hydraulic Speed Bump Spike Barrier

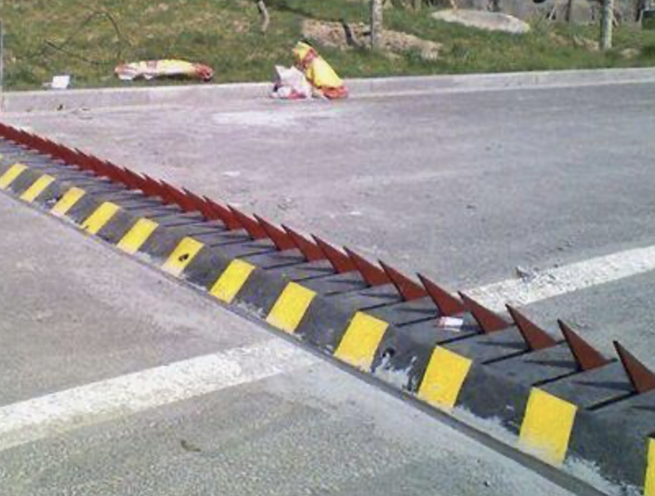

The Madoors USA Hydraulic Speed Bump Spike Barrier is an electro-hydraulic surface-mounted anti-terrorism tyre killer system with heavy-duty 475mm high steel spikes — among the tallest available spike heights in the Madoors USA range — engineered for high-security anti-terrorism vehicle intrusion prevention at entry and exit points where tight security against high-tonnage, high-speed vehicle attacks is required. Hot-dip galvanized for complete corrosion resistance, controlled by high-speed hydraulic cylinders with an electric motor in a waterproof lockable steel cabinet installable up to 20 meters from the barrier, operating in 2 to 6 seconds, and equipped with a continuous duty cycle hydro-motor for uninterrupted high-cycle operation, the system brings attacking vehicles to a halt through immediate wheel and rim destruction without harming passengers or the driver.
Available in blocking widths from 2 to 6 meters, operating on 220V or 380V AC, with manual hand pump backup for power failure, and integrating with road blockers, security bollards, gates, and all access control devices for complete multi-layer checkpoint configurations, the system carries a 2-year warranty and is configurable for manned and unmanned facility operation.
TECHNICAL SPECIFICATIONS
The Madoors USA Hydraulic Speed Bump Spike Barrier provides the following performance specifications. Blocking width: 2,000mm to 6,000mm in standard and custom widths. Spike height: 475mm above ground level — the defining performance specification that distinguishes this system from standard 80mm spike barriers, providing significantly greater penetration depth into the tire sidewall and rim for more reliable and immediate immobilization of high-tonnage attacking vehicles.

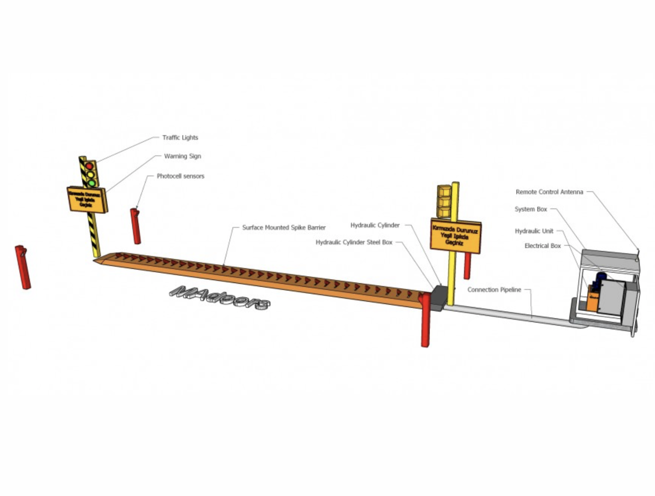

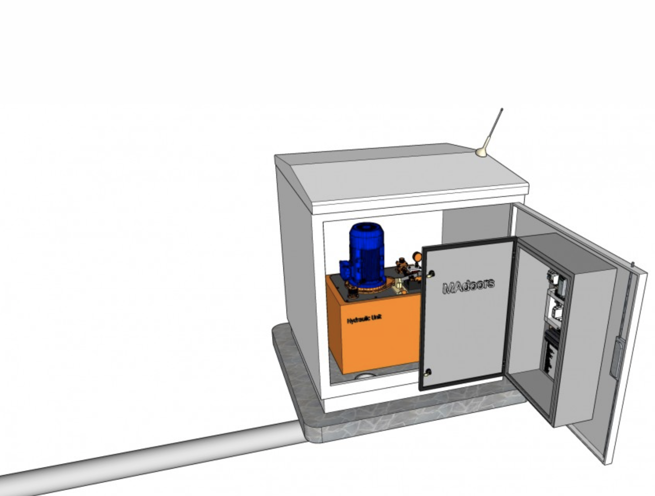

The electro-hydraulic drive unit is separately installed in a waterproof lockable steel cabinet positioned up to 20 meters from the barrier — allowing the hydraulic power unit to be located at a protected, accessible maintenance position away from the road surface where it is exposed to vehicle traffic and weather. This remote cabinet installation protects all electrical and hydraulic components from the environmental hazards of the road surface zone while maintaining full operational control of the spike mechanism.
Operation time for the complete barrier raise and lower cycle ranges from 2 to 6 seconds — adjustable for the specific operational speed requirement of each installation. The continuous duty cycle hydro-motor provides uninterrupted operation at high cycle rates without thermal overload or performance degradation — supporting the highest-throughput vehicle access control applications.
Power supply: 220V AC or 380V AC, selectable based on available site electrical infrastructure. Hot-dip galvanized coating on all external components provides complete corrosion resistance against decay and deterioration in all outdoor exposure conditions including salt spray, chemical exposure, and sustained moisture.
Manual hand pump backup allows the barrier to be raised or lowered without electrical power during power failure events — maintaining security barrier function and authorized vehicle access management capability throughout power outages.
KEY FEATURES
475mm Spike Height — High-Tonnage Vehicle Stopping
The 475mm above-ground spike height is significantly greater than standard 80mm spike systems — providing the penetration depth required for reliable, immediate tire and rim destruction in high-tonnage vehicle attack scenarios where the greater structural mass of heavy goods vehicle tires and rims requires deeper spike penetration for complete immobilization. At 475mm height, the spikes engage not only the tire sidewall but the wheel rim structure — causing immediate wheel and rim damage that makes vehicle movement impossible regardless of vehicle weight or driver intent.
Anti-Terrorism Focus — Unauthorized Vehicle Intrusion Prevention
The system is specifically designed as an anti-terrorism device — preventing unauthorized vehicle intrusion at entry and exit points where the primary threat is deliberate high-speed, high-tonnage vehicle attack rather than standard unauthorized access. The combination of 475mm spike height, heavy-duty steel construction, and high-speed hydraulic actuation is specifically matched to the performance requirements of anti-terrorism vehicle access control rather than standard commercial parking access management.
Hot-Dip Galvanized — Complete Corrosion Protection
Hot-dip galvanization of all external barrier components provides comprehensive corrosion protection — covering all spike surfaces, the barrier housing, steel cover plates, and structural elements with the galvanized coating that prevents rust, decay, and structural deterioration throughout the service life of the outdoor installation. Hot-dip galvanization provides superior corrosion protection compared to paint or spray-applied coatings at exposed outdoor locations subject to vehicle traffic contamination, salt spray, and chemical exposure.
Separate Lockable Cabinet — Up to 20 Meters Remote Installation
The electro-hydraulic drive unit housed in a waterproof lockable steel cabinet installable up to 20 meters from the barrier provides three operational advantages. Remote positioning protects the hydraulic power unit from vehicle traffic damage, weather exposure, and vandalism at the road surface installation position. Waterproof housing maintains reliable electrical and hydraulic component performance in rain, vehicle wash, and standing water conditions. Lockable security prevents unauthorized access to drive settings, hydraulic connections, and control components.
Continuous Duty Cycle Hydro-Motor — Non-Stop High Cycle Operation
The continuous duty cycle hydro-motor provides uninterrupted barrier operation at any cycle rate — supporting the highest-volume vehicle access control applications where the barrier cycles many hundreds of times per day across all operational shifts without rest periods. Continuous duty specification eliminates the thermal management cycle-count limitations of non-continuous duty motors that require cooling periods between operating cycles.
High-Speed Hydraulic Cylinders — 2 to 6 Second Response
High-speed hydraulic cylinders provide the rapid actuation response required for anti-terrorism vehicle access control — with 2-second minimum operation time providing near-immediate barrier deployment for emergency threat response and 6-second maximum providing smooth, controlled movement for normal authorized access cycles. The adjustable speed range allows the cycle time to be matched to both the maximum emergency response speed requirement and the optimal operational speed for normal access management.
Manual Hand Pump Backup — Power Failure Security
The manual hand pump provides complete raise and lower capability during power failure — ensuring that the anti-terrorism barrier function is maintained and authorized vehicle access is manageable throughout power outages that may accompany security incidents or infrastructure failures. Manual backup is the critical safety requirement for anti-terrorism barriers where loss of barrier function during a power outage could create an exploitable security gap.
Passenger & Driver Safety

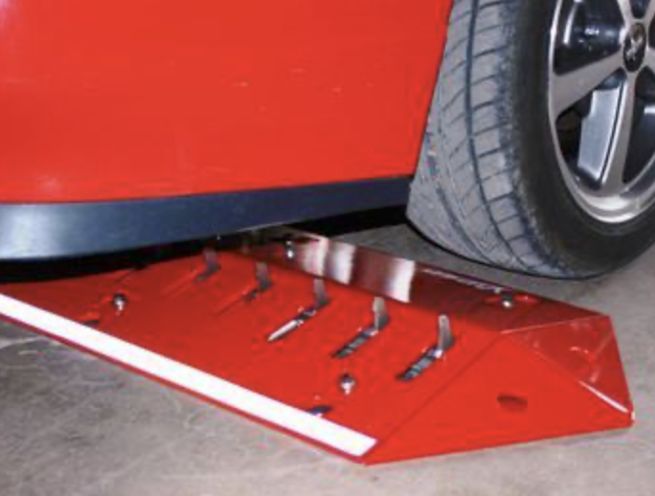

The barrier is designed to bring vehicles to a halt through wheel and rim destruction without harming the passengers or driver — the spike mechanism targets the vehicle's tire and wheel assembly, stopping the vehicle by mechanical immobilization rather than through vehicle body impact or deceleration forces that could injure occupants. This safety principle is the operational basis for the spike barrier in environments where the vehicle may contain innocent occupants rather than a hostile driver.
Integration with Road Blocker, Bollards & Gates

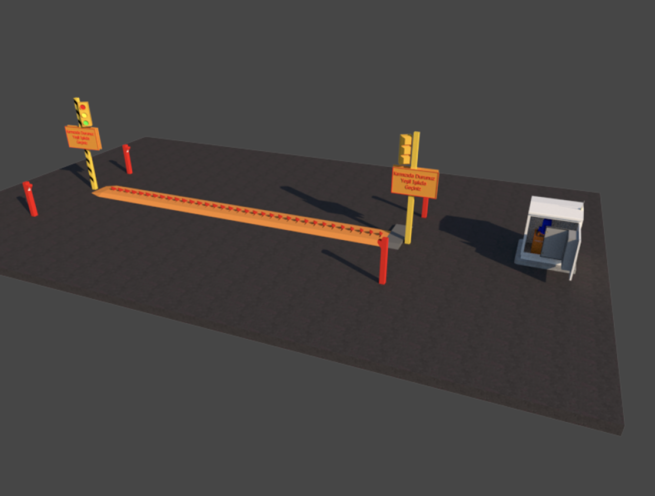

Full integration with road blockers, security bollards, gates, and all access control devices allows the Madoors USA Hydraulic Speed Bump Spike Barrier to serve as the tire destruction layer in a complete multi-level security checkpoint — with the gate or barrier providing the primary access management function, the bollard or road blocker providing crash-rated physical stopping, and the spike barrier providing the immediate immobilization sanction for any vehicle that bypasses or drives through the primary barrier.
Manned & Unmanned Facility Configuration
The system is configurable for both manned and unmanned facility operation — manned configuration for guard-staffed access control points where operator judgment governs spike activation, and unmanned configuration for automated access control points where spike activation is governed by access control system commands and sensor logic without requiring security personnel at the barrier position.
Full-Featured Electronic Circuitry — All Access Control Integration
Full-featured electronic circuitry with universal access control device integration capability allows the barrier to interface with any access control system — card readers, biometric readers, intercom systems, remote controls, and building management systems. This universal integration eliminates the compatibility constraints that limit alternative spike systems to specific proprietary access control platforms.
Convenient Top Plate Access — Easy Maintenance
The convenient top plate access design provides direct access to spike mechanism components for routine maintenance without requiring barrier removal from the installation or specialist tools. Easy maintenance access directly reduces the time and cost of scheduled maintenance events across the full service life of the barrier.
OPTIONAL ACCESSORIES

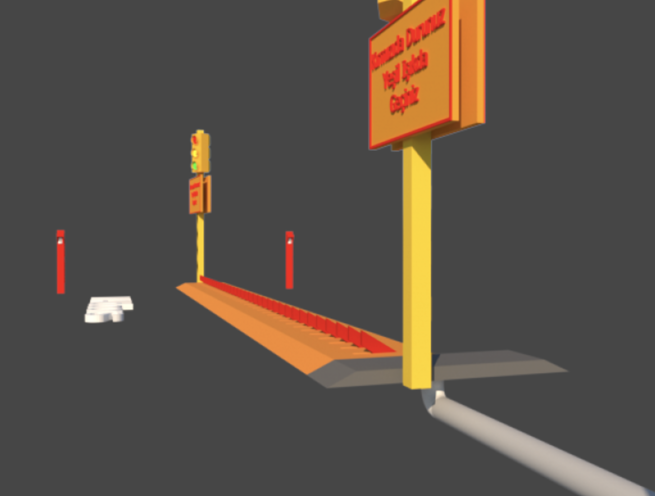

Stop-Go traffic light — providing red and green visual access authorization signals to approaching vehicles. Warning signs and posts — safety signage at the barrier approach. LED lighting strips — illuminating the barrier for night visibility. Custom widths — any specified width between 2 and 6 meters. Heater cables — preventing ice accumulation on the barrier surface and spike mechanism in cold climate installations. All access control devices — the complete Madoors USA access control accessory range.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Width Selection
Installation position, road width, required blocking width — 2 to 6 meters — threat level, integration requirements, remote cabinet position — up to 20 meters — power supply voltage, and optional accessory requirements are confirmed.
Surface Preparation & Anchor Installation
Road surface is prepared and anchor bolt positions are drilled. For installations with optional shallow pit configuration, pit excavation is completed to the specified depth. Hydraulic hose conduit and electrical cable conduit routing from the barrier position to the remote cabinet position are installed.
Barrier Unit Installation & Anchoring
The hot-dip galvanized barrier unit is positioned at the installation location and anchored to the road surface. Barrier alignment, level seating across the full blocking width, and spike mechanism travel clearance are verified.
Remote Cabinet Installation & Hydraulic Connection
The waterproof lockable steel cabinet is installed at the specified remote position up to 20 meters from the barrier. Hydraulic supply and return lines are connected between the cabinet and the barrier through the pre-installed conduits. The hydraulic system is filled, bled, and pressure-tested.
Electrical & Control System Connection
220V or 380V AC power supply is connected to the remote cabinet. Control wiring for push button panel, remote controls, and access control interfaces is connected and verified. Manual hand pump connection is made and tested.
Optional Accessory Installation
Stop-go traffic light, warning signs, LED lighting strips, and heater cables are installed and connected where specified.
Speed Setting, Safety & Operational Testing
Hydraulic cylinder speed is adjusted to the specified 2 to 6 second cycle time. Manual hand pump raise and lower under simulated power failure is tested. Integration with connected access control systems, road blockers, bollards, and gates is tested. Continuous duty cycle performance is verified.
Warranty Documentation & Handover
2-year warranty documentation, hot-dip galvanizing certification, and installation records are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Hydraulic Speed Bump Spike Barriers are specified for any high-security anti-terrorism vehicle access control point requiring 475mm spike height and hydraulic drive performance.
- Military installation anti-terrorism vehicle access control
- Government building and ministry vehicle entrance barriers
- Embassy and diplomatic compound vehicle access control
- Critical national infrastructure anti-terrorism barriers
- Airport perimeter and airside vehicle access barriers
- Prison and correctional facility vehicle entrance control
- Nuclear facility and power station vehicle access barriers
- Petrochemical plant and refinery vehicle access control
- Bank and financial institution vehicle entrance barriers
- Cash depot and secure facility vehicle access control
- Port and maritime terminal anti-terrorism vehicle barriers
- Court complex and justice facility vehicle entrance control
- Shopping center and public space anti-terrorism barriers
- Corporate headquarters and head office vehicle access
- Any high-security location requiring 475mm spike protection
