Hydraulic Drop Arm Barrier

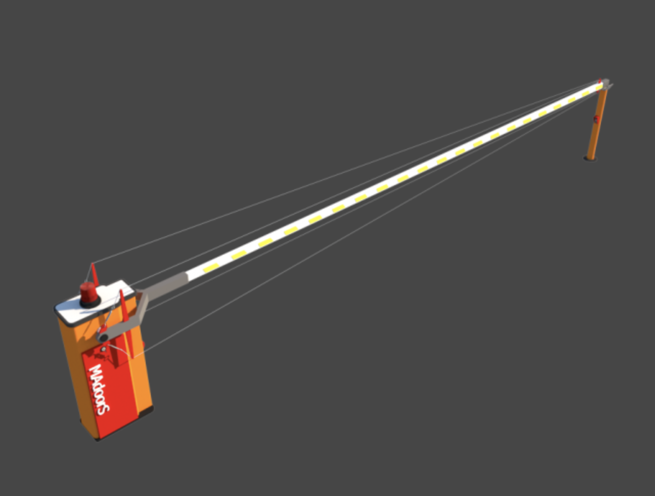

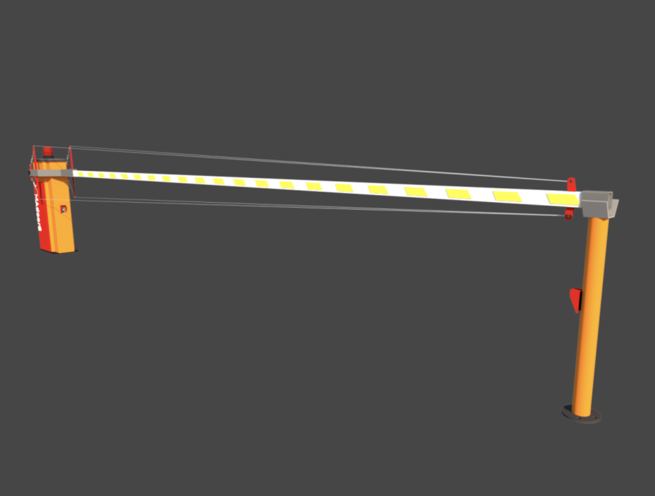

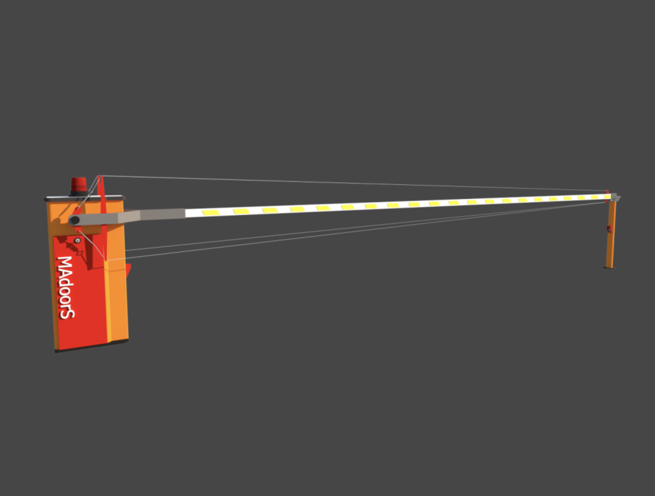

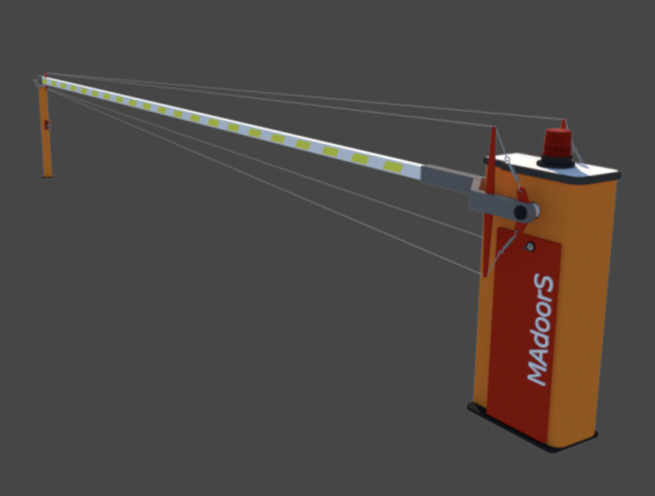

The Madoors USA Hydraulic Drop Arm Barrier — product codes HKBS 30 and HKBS 80, also designated M-1000 — is a hydraulic pump and hydro-motor driven drop arm barrier system representing the strongest and most reliable arm barrier type available for high-traffic, continuous-duty access control applications. Operating on hydraulic power rather than electro-mechanical gear systems, the HKBS series lifts a heavy 40 × 80 × 3mm steel profile arm — rather than the light aluminum arms used in standard barriers — delivering a barrier arm that does not break and causes no damage to the barrier housing under contact events. Opening and closing speed is adjustable via hydraulic valves with a maximum cycle time of 1 to 3 seconds — making the Madoors USA hydraulic barrier the preferred choice for highway toll booths, high-intensity traffic entrances and exits, and law enforcement installations where maximum cycle speed and sustained heavy-duty reliability are the primary requirements.
The complete steel 3mm case construction, 60 kg arm carrying capacity, 2-year uninterrupted warranty, 10-year spare parts guarantee, and CE and TSE certification — combined with virtually zero spare parts requirement over a long service life — make the HKBS series the highest-value long-term investment in the Madoors USA barrier range, despite a higher initial cost than electro-mechanical alternatives.
TECHNICAL SPECIFICATIONS
The Madoors USA Hydraulic Drop Arm Barrier operates on 220V or 380V AC power with a 1.1 kW motor and maximum 10 amp fused load switch. The hydraulic system carries arm loads up to 60 kg, accommodating rigid, articulated, and skirted beam types in aluminum and wood in lengths from 2 to 6 meters (6.5 to 13 feet). Opening and closing time ranges from 1 to 3 seconds for the HKBS series and 3 to 8 seconds for the M-1000 light-to-medium traffic variant depending on beam length.
The cabinet housing is complete 3mm steel construction, available in electrostatic paint finish or stainless steel CR-NI. Cabinet dimensions are 17.2 × 27 × 99 cm with an approximate weight of 45.5 kg. The motor is single-phase, bi-directional electric. Ambient temperature range is -36°C to +74°C (-33°F to +165°F) — covering all climate conditions from arctic cold to desert heat.
Hydraulic locking is provided in both the open and closed beam positions, securing the arm positively at both travel limit positions without relying on motor torque holding. Anti-crush safety is provided through hydraulic bypass valves — eliminating the arm crushing hazard at the most common failure mode of electro-mechanical barriers. The pneumatic wick safety system lifts the arm back up on contact with a vehicle or pedestrian, preventing arm entrapment injury. A keyed manual release and hand joystick enable manual operation during power failure without any electrical input required.
The M-1000 variant provides a 50% duty cycle at 24°C for light-to-medium traffic applications with a 100% duty cycle option available for continuous residential and commercial use.
KEY FEATURES
Strongest Arm Barrier Type — Steel Profile Arm
The hydraulic power system lifts a 40 × 80 × 3mm steel profile arm — not the lightweight aluminum arm used in electro-mechanical barrier systems. This heavy steel arm construction eliminates the arm breakage and barrier damage that occurs when aluminum arms are struck by vehicles or aggressive users. The steel arm does not break and does not damage the barrier housing on contact, directly reducing replacement and repair costs across the service life of the installation.
1 to 3 Second Maximum Cycle Speed
The hydraulic drive delivers opening and closing cycle times of 1 to 3 seconds — the fastest available arm barrier cycle speed for the HKBS series — making the system the standard choice for highway toll booths, high-intensity commercial vehicle access points, and law enforcement installations where throughput speed is the primary operational requirement alongside reliability.
Hydraulic Anti-Crush — Bypass Valve Safety
The anti-crush system operates through hydraulic bypass valves — automatically bypassing hydraulic pressure when an obstacle is encountered during the closing cycle, preventing the arm from applying crushing force to a person or vehicle underneath. Hydraulic anti-crush is more reliable than sensor-only systems because it operates mechanically at the point of force generation rather than depending on sensor detection and response time.
Hydraulic Locking — Open & Closed Positions
The arm is positively locked in both the open and closed positions by the hydraulic system — not held by motor torque alone. This hydraulic locking ensures that the arm remains securely in position under wind loading, vehicle contact, and attempted forced movement without requiring continuous motor energization to maintain position.
Pneumatic Wick — Contact Lift Safety
The pneumatic wick safety system causes the arm to automatically lift back upward on contact with a vehicle or pedestrian approaching from under the arm during the closing cycle — providing an additional layer of physical contact protection beyond the sensor-based obstruction detection system.
60 kg Arm Carrying Capacity
The 60 kg arm carrying capacity accommodates heavy steel profile arms, mesh wire security panels, decorative fencing elements, and power LED lighting strips on the arm — providing the structural load capacity for the full range of arm configuration options without stressing the hydraulic cylinder or hinge mechanism.
Optional Pedestrian & Animal Fence
A fence option preventing pedestrian and animal passage under the arm is available — with mesh wire carrying capability allowing a physical barrier panel to be attached to the arm body, transforming the arm barrier into a complete lane blocking system that prevents pedestrian tailgating through the barrier alongside vehicle access control.
Six Dedicated Control Logics
The electronic control system provides six dedicated control logic types — automatic, semi-automatic, parking, apartment, private study, and additional configurations — covering the full range of access management protocols from simple one-direction automatic operation through to complex residential and commercial multi-user access management scenarios.
2-Year Warranty — 10-Year Spare Parts Guarantee
The 2-year uninterrupted warranty is backed by a 10-year spare parts guarantee — providing the most comprehensive long-term support commitment available in the Madoors USA barrier range. Combined with the near-zero spare parts requirement of the hydraulic system over normal service life, the 10-year parts guarantee eliminates the operational risk of barrier downtime from parts unavailability that affects competing barrier products.
CE Certified
All HKBS series hydraulic arm barriers are CE certified and 100% domestically manufactured by Madoors USA — providing verified quality certification and supply chain security alongside the product warranty and spare parts guarantees.
Input LED Diagnostics — Easy Maintenance

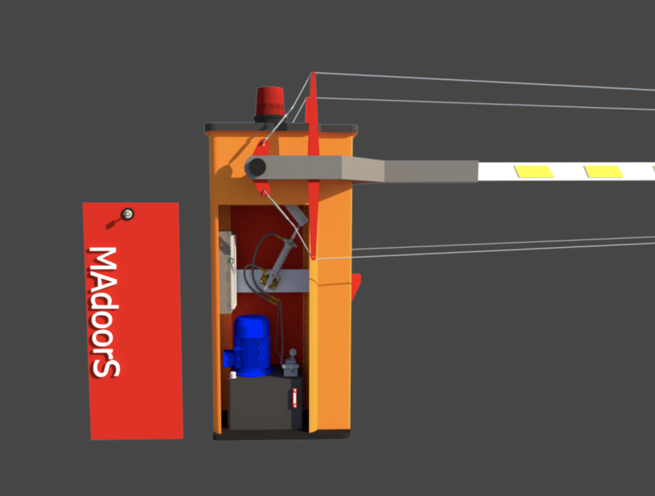

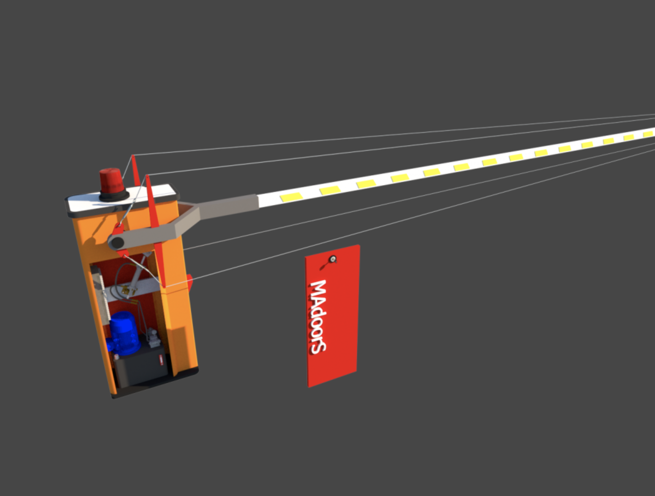

The control system provides immediate diagnostic feedback through input status LEDs, allowing fault identification and resolution without specialized diagnostic equipment. Self-contained hydraulic operator design means the system requires no external hydraulic supply and carries all required hydraulic fluid, motor, pump, and valve components within the 3mm steel cabinet housing.
STANDARD SAFETY & CONTROL EQUIPMENT
The Madoors USA Hydraulic Drop Arm Barrier is supplied with the following standard safety and control equipment as part of the complete system.
Photocell safety sensor for obstacle detection in the arm travel path. Loop metal mass detector for vehicle detection and access trigger. Flasher lamp for visual warning during arm operation. Red and green 110cm LED traffic light for traffic flow signal to approaching vehicles. Power LED lighting strip on arm for arm visibility during night operation. Start, stop, and emergency stop button panel with fixed cable for manned control station operation. 2-channel remote control receiver card and two 2-channel remote control transmitter units for wireless operation. Hydraulic release valve and manual hand joystick for power failure operation. Optional collision alarm kit for impact event notification.
ASSEMBLY & INSTALLATION SEQUENCE
Foundation Preparation
The barrier cabinet foundation pad is prepared to the specified dimensions at the installation location. Electrical supply conduit from the site supply to the cabinet position is installed. Loop detector cable loop is installed in the road surface at the vehicle detection position.
Cabinet Installation & Anchoring
The 3mm steel barrier cabinet is positioned on the prepared foundation pad and anchored using the specified fixing hardware. Cabinet level and alignment relative to the barrier arm travel arc are verified.
Hydraulic System Verification
Hydraulic fluid level is verified. All hydraulic connections — cylinder, pump, valves, and bypass — are inspected for leak-free integrity. Hydraulic pressure is tested through full open and close cycles before arm installation.
Arm Installation The specified arm type — rigid, articulated, or skirted — in the specified material and length is installed on the arm mounting hardware. Arm balance, pivot clearance, and hydraulic cylinder connection are verified. Steel profile arm weight is confirmed within the 60 kg carrying capacity.
Safety System Installation & Calibration
Photocell sensors are installed and aligned across the arm travel path. Loop detector cable is connected to the control system and vehicle detection sensitivity is calibrated. Pneumatic wick contact lift response is tested. LED traffic light and flasher lamp are installed and connected.
Control System Programming & Logic Selection
The appropriate control logic — automatic, semi-automatic, parking, apartment, or private study — is selected and programmed. Access control interfaces — remote controls, keypads, card readers — are connected and verified. Emergency stop button and manual release functions are tested.
Speed Calibration & Cycle Testing
Opening and closing speed is adjusted via hydraulic valves to the specified cycle time for the installation application. Anti-crush bypass valve response and pneumatic wick lift response are tested under simulated contact conditions. Full operational cycle testing across all control modes is completed.
Certification Documentation Handover
CE certification documentation, 2-year warranty, and 10-year spare parts guarantee documentation are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Hydraulic Drop Arm Barriers are specified for any vehicle access control point requiring the highest available cycle speed, arm durability, and long-term service reliability in a drop arm barrier system.
- Highway and motorway toll booth barrier systems
- High-intensity commercial vehicle entrance and exit control
- Law enforcement and police station vehicle access barriers
- Military base and government facility vehicle control points
- Airport perimeter road and airside vehicle access barriers
- Parking facility entrance and exit high-cycle barriers
- Industrial facility and factory main entrance vehicle barriers
- Port and maritime terminal vehicle access barriers
- Hospital and healthcare facility parking entrance barriers
- Shopping center and retail park vehicle access control
- University and campus high-cycle vehicle entrance barriers
- Border crossing and customs vehicle control barriers
- Stadium and arena event high-volume vehicle access
- Corporate campus and business park vehicle barriers
- Residential complex and gated community vehicle access
