Hardened Aircraft Shelter (HAS) Automatic Gate Door Systems (Type 4)

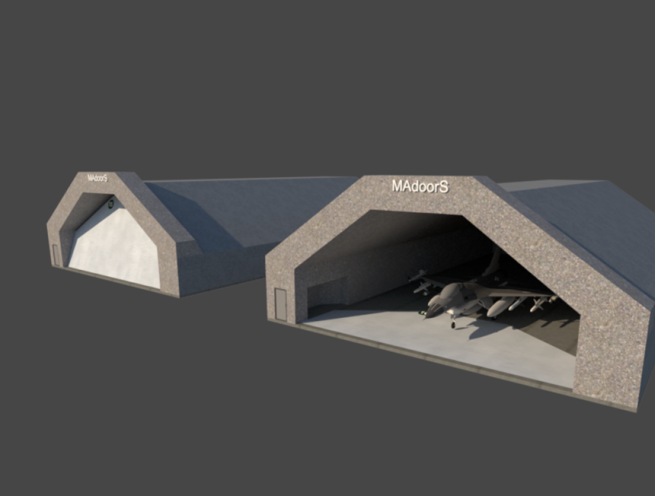

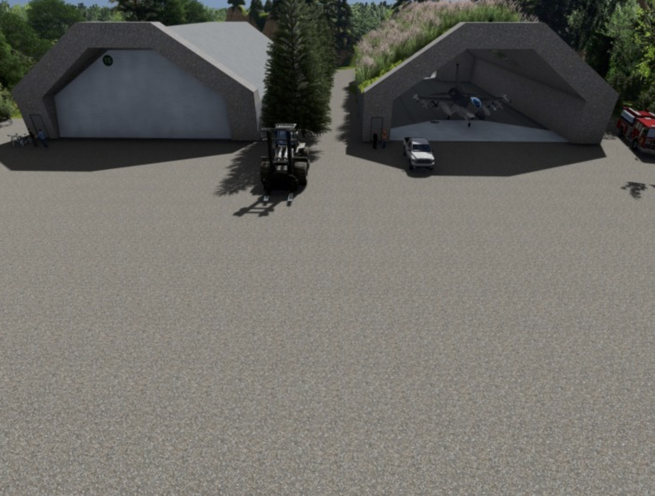

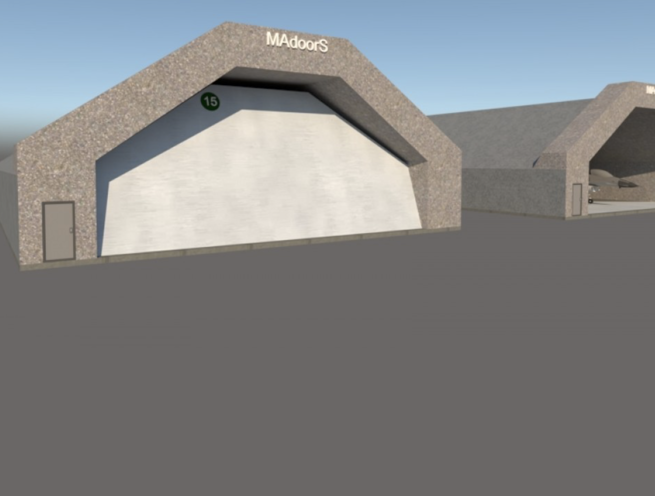

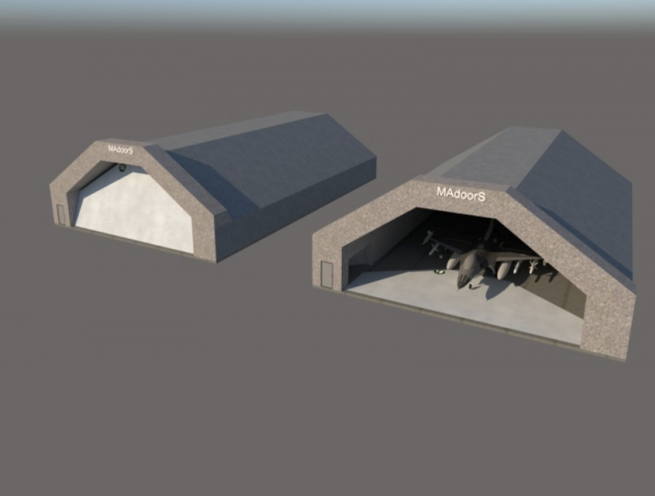

The Madoors USA Hardened Aircraft Shelter Automatic Gate Door System Type 4 is a unique, project-based NATO-approved, CE-certified, and ASTM-standard aircraft bunker door system specifically engineered for F-16, F-35, and equivalent fighter jet hardened shelters — operating on an entirely different principle from all other Madoors USA aircraft hangar door types. Rather than sliding, folding, or lifting vertically, the Type 4 door rises in a circular motion from the ground — and when fully opened, lies completely flush with the ground surface so that the aircraft passes directly over the door without any level difference, step, or vibration. When closed, the door seals the full doorway of the aircraft shelter. This flush-with-ground open position is the defining engineering innovation of the Type 4 system — eliminating the structural and aerodynamic risk of aircraft passing over raised thresholds during taxi-in and taxi-out operations.
All Type 4 systems are NATO approved, hold independent test institution certified explosion pressure resistance reports, comply with CE European Union standards, carry complete documentation, and are guaranteed to open under any emergency condition through a 4-piston dual hydraulic system with automatic backup activation.
TECHNICAL SPECIFICATIONS
The Type 4 door operates through four hydraulic pistons — two main pistons providing primary hydraulic drive for the circular rising and lowering motion, and two spare pistons providing safety redundancy backup. The hydraulic system consists of two parallel hydraulic units — when one unit malfunctions or an emergency condition is detected, the second hydraulic unit activates automatically without any operator intervention required. Hydraulic units operate in parallel — providing synchronized, balanced force distribution across all four pistons throughout the circular door travel arc.
The circular rising motion lifts the door from the flush-ground closed position through a circular arc to the fully sealed doorway-closed position — and reverses the motion to lower the door back to the flush-ground open position for aircraft passage. The circular motion geometry is specifically designed so that the door surface is perfectly flush with the runway and taxiway surface when in the fully open position — presenting no step, ramp, or raised element that the aircraft landing gear would encounter during taxi-over.
The door is explosion pressure resistant — independently tested and approved by an independent test institution with full report documentation. The explosion pressure resistance certification confirms that the door maintains structural integrity and closed position under the blast overpressure generated by military ordnance detonations in the vicinity of the shelter, preventing pressure and shrapnel penetration to the aircraft interior.
All motors, electrical systems, and hardware comply with NATO standards and CE European Union standards — with complete documentation covering NATO approval, ASTM standard compliance, CE certification, explosion resistance test reports, and project engineering documentation provided with every Type 4 door system.
KEY FEATURES
Circular Rising Motion — Flush Ground Open Position
The circular rising mechanism is the defining technical innovation of the Type 4 system — the door rises from the ground through a circular arc to the closed position and lowers back to complete flush alignment with the ground surface in the open position. This flush-ground open position eliminates the aircraft landing gear impact, vibration, and structural loading that occurs when aircraft taxi over raised door thresholds, protecting the aircraft structure and the door mechanism from the repeated stress loading of threshold crossing. Aircraft pass directly over the flat, flush door surface with no awareness of the door mechanism beneath.
No Level Difference — Aircraft Passes Without Vibration
When the door is fully open and flush with the ground, there is absolutely no level difference between the door surface and the surrounding runway or taxiway surface — the aircraft passes over without any bump, step, or vibration. This zero-level-difference requirement is the primary engineering specification that drove the Type 4 circular rising door design — conventional doors that park alongside or above the opening cannot achieve this seamless ground-level continuity across the full door panel width.
4-Piston System — 2 Main + 2 Spare Safety Pistons
The four-piston hydraulic system provides primary drive force through two main pistons and safety redundancy through two spare pistons — ensuring that loss of any single piston or piston pair does not prevent the door from completing its travel cycle under any condition. The spare pistons are specifically designated for safety purposes and activate when required by the system safety logic — maintaining door operability under piston fault conditions that would stop a two-piston system.
Dual Parallel Hydraulic Units — Automatic Backup Activation
Two parallel hydraulic units provide primary drive and automatic backup — with the second unit activating automatically in the event of malfunction or emergency without requiring operator command. Parallel operation ensures synchronized force delivery from both units during normal operation, and automatic switchover to the backup unit ensures uninterrupted door operation under primary hydraulic unit failure. The automatic activation of the backup unit without operator intervention is the critical safety feature — in a combat emergency where rapid shelter closure or opening is required, operator action to switch hydraulic systems cannot be guaranteed.
No Possibility of Breakdown — Guaranteed Emergency Opening
The combination of four-piston redundancy, dual parallel hydraulic units, and automatic backup activation creates a system described as having absolutely no possibility of breakdown during door opening and closing operations. All emergency scenarios are specifically considered and addressed in the system design — with the guaranteed-open-under-any-condition capability directly addressing the primary operational failure risk of aircraft shelter doors in combat scenarios where a stuck-closed door would prevent aircraft launch and a stuck-open door would deny protection.
NATO Approved — ASTM & CE Certified
All Type 4 door systems carry NATO approval — satisfying the military procurement standard for aircraft bunker door systems at NATO member state air bases and allied nation installations. ASTM standard compliance provides American standard engineering documentation. CE European Union standard compliance provides EU regulatory conformity. The combination of all three certifications covers the complete range of military and government procurement standard requirements without requiring separate project-specific certification for different national procurement frameworks.
Explosion Pressure Resistant — Independent Test Institution Approved
The explosion pressure resistance certification from an independent test institution provides verified documentation that the door withstands the blast overpressure generated by military ordnance detonations — including near-miss precision weapons, general-purpose bombs, and artillery rounds — without structural failure or loss of closed position integrity. Independent institution approval provides the highest available evidence standard for explosion resistance performance.
Person Height Photocell Safety — Prevents Personnel Injury
Person-height photocell sensors detect human presence in the door travel zone throughout the opening and closing cycle — preventing the door from moving when a person is detected in the path of the circular rising door. This personnel detection safety system is specifically calibrated to human height rather than general obstacle detection — distinguishing between ground-level objects that do not present a personnel injury risk and standing persons in the door travel zone who must be protected from the large rotating door mass.
Aircraft Position Loop Detector — Conditional Door Opening
Current position loop detectors in the aircraft parking area verify that the aircraft is only in the designated park position before allowing the door to open — preventing the door from opening and closing across an aircraft that is positioned anywhere other than the confirmed safe parking zone. This conditional opening logic prevents the most catastrophic failure scenario of a large, heavy aircraft bunker door contacting a multi-million dollar combat aircraft.
RFID Aircraft Entry/Exit Tracking
RFID sticker label systems on aircraft provide automatic identification and recording of aircraft entry and exit events — with remote point recording and information delivery software maintaining a complete aircraft movement log for the shelter. RFID tracking provides the operational intelligence required for shelter management, aircraft readiness tracking, and security audit documentation of all aircraft movements through the protected shelter.
Traffic Light, Audible & Visual Warning Systems
Traffic light signals, audible warning systems, and visual alert systems provide comprehensive operational status communication to ground crew, aircraft crews, and security personnel — signaling door movement status, aircraft position verification results, and any safety condition requiring attention during door operation cycles.
Emergency On/Off Button — Immediate Stop Capability
An emergency on/off button provides immediate door stop capability at any point in the travel cycle — allowing ground crew to halt door movement instantly in response to any observed safety hazard that the automated safety systems have not detected. Emergency stop capability is a fundamental safety requirement for any automated system of this scale and weight operating in close proximity to high-value aircraft and personnel.
ASSEMBLY & INSTALLATION SEQUENCE
Project Engineering Consultation
Shelter opening dimensions, aircraft type — F-16, F-35, or equivalent — runway surface level requirements, explosion pressure resistance specification, hydraulic system infrastructure, NATO approval documentation requirements, and RFID tracking system integration are confirmed with Madoors USA engineers.
Shelter Structural Integration Design
The circular door mechanism foundation and pivot structure are integrated into the shelter reinforced concrete structural design — with foundation depth, pivot anchor positions, and hydraulic cylinder housing all engineered as part of the shelter structural specification.
Hydraulic System Installation
Primary and backup hydraulic units are installed in the shelter in parallel configuration. All four pistons — two main and two spare — are connected to the hydraulic supply and the door mechanism frame. Parallel unit synchronization and automatic backup activation are tested under simulated primary unit failure.
Door Panel Installation & Circular Motion Calibration
The explosion-resistant door panel is installed on the circular rising mechanism. Circular arc travel from flush-ground open position to fully closed doorway position is calibrated for zero level difference in the open position and complete doorway seal in the closed position.
Safety System Installation & Calibration
Person-height photocells are installed and calibrated for correct human-height detection throughout the door travel arc. Aircraft position loop detectors are installed and verified for correct park position detection logic. Emergency on/off buttons are installed and tested.
RFID, Traffic Light & Warning System Installation
RFID sticker label readers are installed at the shelter entrance positions. Remote recording and information delivery software is installed and configured. Traffic lights, audible warning systems, and visual alerts are installed and connected to the door control system.
NATO, ASTM & CE Compliance Verification
All NATO approval documentation, ASTM standard compliance records, CE certification, explosion pressure resistance independent test reports, and complete system documentation are compiled and verified.
Operational Testing & Certification Handover
Complete operational testing — all opening and closing cycles, safety system responses, RFID tracking, backup hydraulic activation, and emergency stop function — is conducted. Full documentation package is compiled into the project handover.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Type 4 Hardened Aircraft Shelter Gate Door Systems are specified for any NATO-standard fighter aircraft bunker installation requiring flush-ground aircraft passage with no level difference.
- F-16 fighter aircraft hardened shelter circular gate doors
- F-35 stealth fighter bunker flush-ground door systems
- Multi-role combat aircraft NATO hardened shelter doors
- Air superiority fighter hardened aircraft bunker gates
- NATO air base Type 4 hardened shelter door systems
- Allied nation joint strike fighter shelter circular doors
- Forward air base fighter aircraft hardened shelter gates
- Air defense interceptor bunker flush-ground door systems
- NATO nuclear-capable aircraft shelter Type 4 gates
- Strategic fighter squadron hardened shelter door systems
- Naval air station fighter aircraft bunker circular doors
- High-threat theater forward deployment bunker doors
- NATO allied nation hardened aircraft shelter programs
- Air force base protected aircraft shelter Type 4 gates
- Military aircraft bunker door retrofit and upgrade programs
