Handheld Mobile Under Vehicle Inspection Camera System

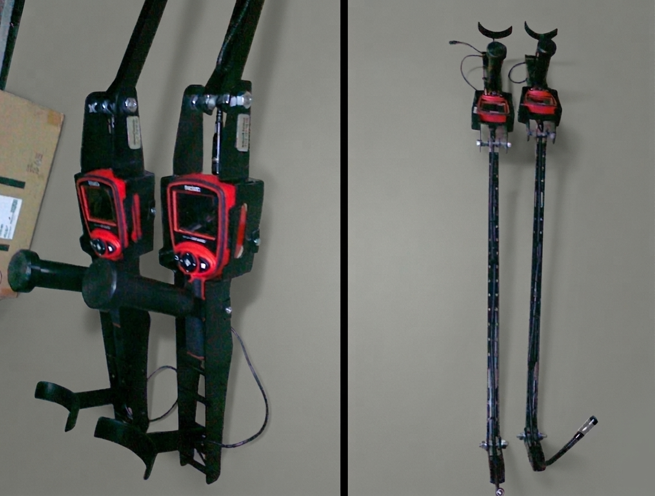

The Madoors USA Handheld Mobile Under Vehicle Inspection Camera System is a portable, lightweight, waterproof color CCD camera system for inspecting vehicle undercarriages at security checkpoints, military installations, border crossings, airports, and any location requiring mobile under-vehicle security inspection — detecting explosive devices, weapons, contraband, unauthorized modifications, and concealed items beneath vehicles. With a built-in LCD monitor, automatic night vision, three-wheel rolling base for fatigue-free extended use, drop-resistant construction, rechargeable battery with extra battery included, and a cost-effective practical design, the Madoors USA Handheld UVIS is the ideal checkpoint inspection solution for security personnel requiring immediate, portable undercarriage inspection capability without permanent installation infrastructure.
Available in two models — the standard V1.0 with adjustable lighting, rechargeable battery, charger, and stand, and the advanced V2.0 with video recording on SD card up to 64GB, zoom in/out, adjustable resolution, wearable LCD glasses, and PC connection via cable.
TECHNICAL SPECIFICATIONS
The Madoors USA Handheld Under Vehicle Inspection Camera uses a waterproof color CCD camera — providing true color imaging of the vehicle undercarriage in all weather conditions including rain, puddles, and wet road surfaces. The waterproof construction ensures reliable operation in the outdoor and all-weather conditions of vehicle security checkpoint operations without camera failure from moisture ingress.

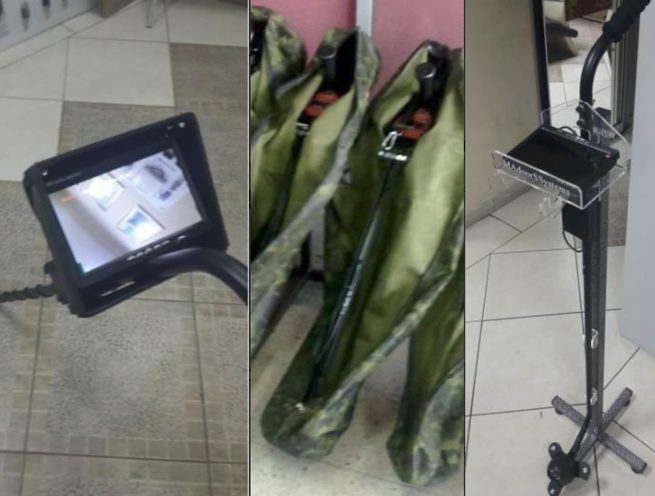

The built-in LCD monitor provides immediate undercarriage image display on the handheld unit without requiring an external display — the self-contained inspection system is immediately operational upon removal from the carrying case without any setup or connection procedure. The LCD monitor housing is specifically constructed for drop resistance — the strong monitor box protects the display from the accidental drops that occur in active security checkpoint operations.
The three-wheel rolling base under the camera allows the unit to be rolled smoothly under the vehicle on the ground surface — the three wheels distribute the camera weight on the ground, eliminating the physical effort of holding the camera aloft while pushing it under the vehicle. This three-wheel design directly reduces operator fatigue during extended inspection sessions and allows consistent camera-to-undercarriage distance for uniform image quality across the complete undercarriage inspection.
Automatic night vision activates in low-light and dark conditions — the camera automatically switches to night vision mode when ambient light falls below the threshold, providing consistent undercarriage imaging in garages, tunnels, nighttime operations, and any low-light inspection environment without operator intervention. The seamless automatic switching maintains inspection continuity without the operator needing to manually activate night vision mode.
The V2.0 model extends the standard capabilities with video recording to 64GB SD card with adjustable resolution settings for storage management, zoom in/out for detailed examination of suspicious areas identified in the initial inspection pass, wearable LCD glasses for hands-free viewing that allows the operator to guide the camera while viewing the image simultaneously without holding the monitor, and PC connection via cable for image and video transfer to a computer for evidence documentation and management.
KEY FEATURES
Portable & Lightweight — Immediate Field Deployment
The portable, lightweight, handheld design allows the camera system to be carried by a single security officer as part of their standard equipment — no vehicle, power supply, or installation infrastructure is required for deployment. The system is immediately operational at any location the officer can reach — providing under-vehicle inspection capability at any checkpoint, patrol position, or random inspection location without advance preparation.
Three-Wheel Rolling Base — Fatigue-Free Extended Use
The three-wheel base under the camera eliminates the physical effort of manual under-vehicle camera positioning — the camera rolls smoothly across the ground surface under the vehicle without the operator needing to reach under the vehicle or maintain the camera position by hand. This rolling mobility directly enables extended inspection sessions without operator physical fatigue — the officer can inspect many vehicles consecutively without the arm strain and physical effort that non-wheeled handheld systems create.
Automatic Night Vision — 24-Hour All-Conditions Capability
The automatic night vision with dark-environment activation provides complete 24-hour, all-weather, all-lighting-condition inspection capability — the same camera system inspects vehicle undercarriages in full daylight, at dusk, in garages, and in complete darkness without any equipment change or manual adjustment. This automatic adaptation directly enables continuous checkpoint operation through all lighting condition changes across a 24-hour security operation.
Waterproof Color CCD — All-Weather Reliable Operation
The waterproof color CCD camera provides reliable color imaging in rain, standing water, and wet surface conditions — the conditions most commonly encountered at outdoor vehicle checkpoints. Color imaging provides better foreign object identification than grayscale — the color of an attached object, its material texture, and its contrast against the vehicle undercarriage are all visible in the color image, directly improving detection probability for concealed items.
Drop-Resistant Strong Monitor Housing
The specifically strong LCD monitor box construction that survives accidental drops is the durability specification required for a handheld field security tool that is carried by active security personnel throughout extended shifts. Security inspection equipment must survive the drops, impacts, and rough handling of operational use — the drop-resistant construction directly maintains the camera system's operational availability throughout the full deployment period.
V2.0 — Video Recording & Evidence Documentation
The V2.0 video recording capability on 64GB SD card with PC transfer via cable provides the evidence documentation function required for security incident recording — a suspicious object identified under a vehicle can be video-documented before any intervention, providing permanent evidence of the object's presence, position, and appearance for subsequent investigation and prosecution. Adjustable resolution settings allow the recording quality to be matched to the storage capacity requirement of each deployment — higher resolution for detailed evidence recording, lower resolution for extended patrol recording.
V2.0 — Zoom — Detailed Suspicious Area Examination
The zoom in/out capability on the V2.0 model allows the operator to magnify specific areas of the undercarriage image for detailed examination — when the initial inspection pass identifies a suspicious object or unusual feature, the zoom function allows the operator to examine the detail at greater magnification without requiring the camera to be physically repositioned closer to the object. This remote zoom examination maintains the operator's standoff distance from any potential explosive device during detailed assessment.
V2.0 — Wearable LCD Glasses — Hands-Free Operation
The wearable LCD glasses for the V2.0 model provide the hands-free viewing required for optimal camera guidance — the operator views the undercarriage image through the glasses while using both hands to guide the camera rolling unit under the vehicle. This hands-free operation improves camera control precision and reduces the body posture awkwardness of trying to view a handheld monitor while simultaneously guiding the camera under the vehicle.
Cost-Effective — Budget Security Checkpoint Solution
The cost-effective, practical, and budget-friendly pricing of the Madoors USA Handheld UVIS makes it the accessible entry-level under-vehicle inspection solution for security operations that cannot justify the investment in fixed camera arrays or vehicle-mounted systems — providing the essential undercarriage inspection function at a cost point appropriate for individual officer equipment, small checkpoint operations, and supplementary inspection capability alongside higher-tier fixed systems.
MODEL COMPARISON

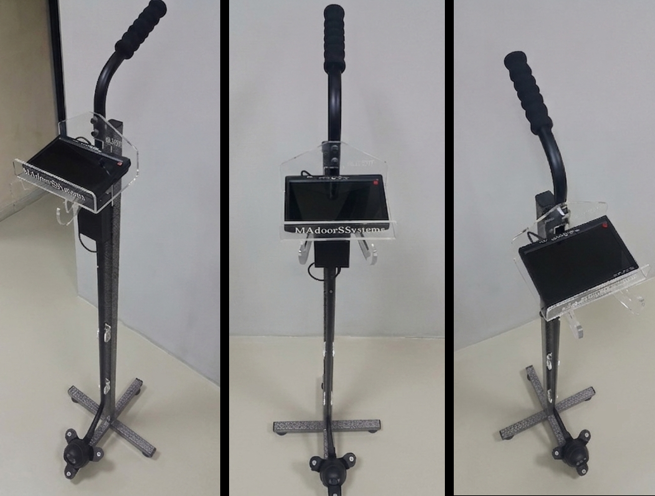

V1.0 Standard — LCD monitor with adjustable lighting, rechargeable battery with spare, charger, stand. Basic undercarriage inspection for standard checkpoint applications. Cost-effective entry-level specification.
V2.0 Advanced — All V1.0 features plus video recording on 64GB SD card, zoom in/out, adjustable resolution, wearable LCD glasses, PC connection via cable. Full evidence documentation, detailed examination, and hands-free operation for advanced checkpoint and investigation applications.
DEPLOYMENT SEQUENCE
System Retrieval & Activation
The handheld camera system is removed from its carrying case. Battery charge is confirmed — spare battery is available in the carrying case. The system is powered on and the LCD monitor or V2.0 LCD glasses display is confirmed active.
Night Vision Mode Verification
The automatic night vision function is confirmed — if the inspection environment is low-light, night vision activation is verified. For V2.0 recording operations, the SD card is confirmed inserted and recording is initiated.
Camera Positioning & Undercarriage Inspection

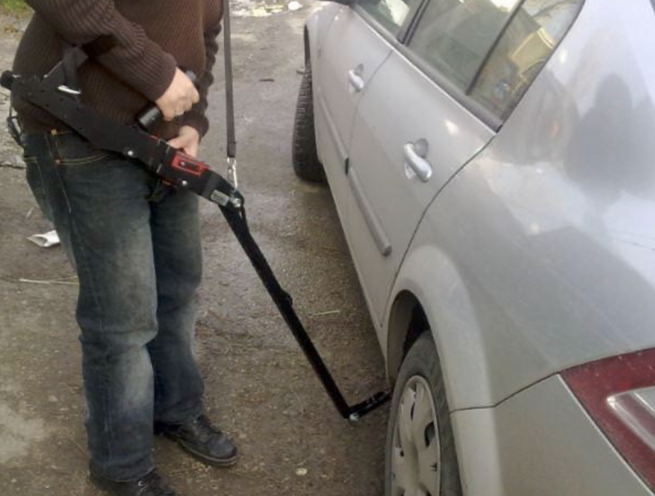

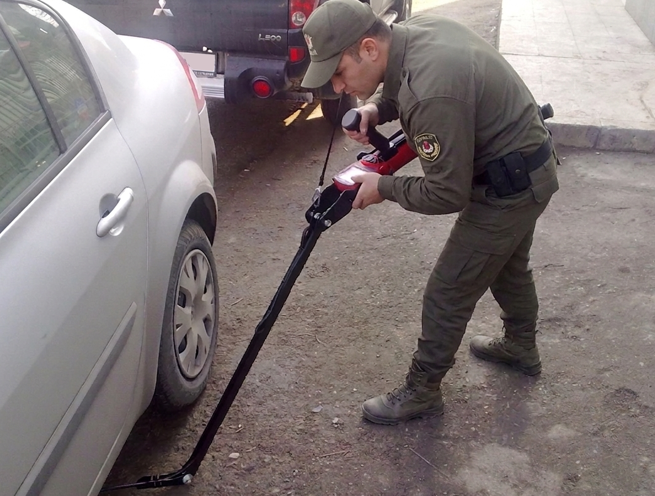

The three-wheel camera base is placed on the ground at the vehicle side. The camera is rolled under the vehicle — the operator views the real-time color image on the LCD monitor or glasses as the camera progresses under the vehicle from front to rear.
Zoom Examination of Suspicious Areas (V2.0)
If the initial inspection pass identifies a suspicious object or unusual feature, the V2.0 zoom function is used to magnify the area for detailed examination without moving the camera closer to a potential device.
Evidence Documentation (V2.0)
Video of the undercarriage — including any suspicious findings — is recorded to the SD card. Video is subsequently transferred to the PC via cable for evidence documentation and management.
System Recovery & Battery Management
The camera is recovered from under the vehicle. The SD card is removed for evidence management if required. The battery is returned to charging. The spare battery is available for immediate continued inspection operations.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Handheld Mobile Under Vehicle Inspection Camera Systems are specified for any checkpoint or patrol operation requiring portable, immediate under-vehicle inspection capability.
- Military and police checkpoint vehicle undercarriage inspection
- Border crossing handheld vehicle security inspection
- Airport vehicle access handheld inspection tool
- Embassy and diplomatic compound vehicle inspection
- Military patrol random vehicle inspection operations
- Special forces checkpoint vehicle security screening
- Event security vehicle inspection at temporary checkpoints
- VIP protection motorcade vehicle inspection
- Prison and correctional facility vehicle entry inspection
- Port and maritime terminal vehicle inspection patrol
- Stadium and public event vehicle security screening
- Corporate security team vehicle inspection equipment
- Evidence documentation of suspicious vehicle undercarriage
- Night patrol and low-light vehicle inspection operations
- Any checkpoint requiring portable handheld under-vehicle color CCD inspection with night vision
