Ground Mounted Sangar
The Madoors USA Ground Mounted Sangar and Elevated Sangar are modular earth-filled protective guard post systems comprising earth-filled geotextile-lined protective units and alloy components — providing two-man guard post capability with embrasures for firing and observation, and protection from blast, ballistic, and indirect fire threats at military installations, security checkpoints, and forward defensive positions. Both sangar configurations share a 5.5 × 5.5 meter base footprint, with the Elevated Sangar providing an overall platform height of 3.7 meters with a stairway to the upper observation and guard level. Complete kits ship on a single pallet of 1.4 × 1.12 meters at 375 kg — providing compact, air and vehicle-transportable guard post capability deployable in the field using locally available earth, sand, gravel, crushed rock, or other granular fill materials.
TECHNICAL SPECIFICATIONS
The Madoors USA Sangar system uses geotextile-lined earth-filled protective units as the primary structural and protective element — the same geotextile-lined gabion barrier technology proven in the Madoors USA defense wall, guard booth, and bunker range, configured specifically for the compact two-man guard post dimensions of a sangar structure. The geotextile lining retains the fill material without leakage and provides the flexibility and durability required for all-weather field use across years of continuous deployment.
Fill material options include earth, sand, gravel, crushed rock, and other granular materials available in the immediate field environment — the locally available fill provides the protective mass at zero transport cost, reducing the logistical burden of sangar establishment to the kit components alone.
Standard external dimensions: 2.44 meters high × 2.44 meters wide × 3.05 meters long. Internal dimensions: 2.0 meters high × 1.2 meters wide × 1.8 meters long — providing the working space for two personnel with weapons, communications equipment, and observation capability within the protected enclosure. Embrasures — firing and observation ports — are incorporated in the sangar walls, providing covered observation and engagement capability without exposing the guard post occupants to direct fire threats.
The Elevated Sangar extends the standard ground-level configuration with an upper platform at 3.7 meters height — accessed by a stairway — providing the elevated observation advantage required for long-range surveillance of the surrounding terrain and extended fields of fire from the guard post position.
Both configurations are available in custom dimensions to specific requirements — the modular component design accommodates different internal space requirements, different embrasure positions, and different height configurations beyond the standard dimensions.
KEY FEATURES
Blast, Ballistic & Indirect Fire Protection — Three-Threat Coverage
The Madoors USA Sangar provides protection against the three primary threat categories encountered at military guard posts and security checkpoints — direct ballistic fire from small arms and light weapons, blast overpressure from nearby explosive detonations, and indirect fire fragmentation from mortar and artillery rounds landing in the vicinity of the post. This three-threat protection profile is the comprehensive requirement for a military guard post in an active operational environment — a sangar protecting only against one or two threat categories leaves the occupants vulnerable to the unprotected threat.
Geotextile-Lined Fill Units — Long-Term Fill Retention
The geotextile lining of all protective units provides permanent fill material retention — preventing earth, sand, gravel, and crushed rock from leaking through unit joints and gaps over the years of continuous field deployment that military sangars routinely experience. This fill retention performance directly maintains the protective mass of the sangar throughout the deployment period without requiring fill replenishment or unit replacement from material loss.
Embrasures — Covered Observation & Firing Positions
The embrasures built into the sangar wall construction provide covered firing and observation positions — allowing the two-man guard post crew to observe the surrounding area and engage threats from within the protective enclosure without exposure to direct fire. Embrasure positioning, size, and orientation are specified in the design to provide the required observation arc and field of fire for each specific tactical position.
5.5 × 5.5 Meter Base — Two-Man Guard Post Capacity
The 5.5 × 5.5 meter base footprint provides the structural platform for the guard post internal dimensions of 2.0 × 1.2 × 1.8 meters — sufficient for two military or security personnel with their weapons, personal equipment, communications equipment, and the operational duration supplies required for a standard guard post shift. The two-man capacity covers the standard guard post manning level for military and security force checkpoints, entry control points, and perimeter observation positions.
Elevated Sangar — 3.7 Meter Platform with Stairway
The Elevated Sangar adds 3.7 meters of observation height over the ground-mounted configuration — providing the elevated vantage point required for long-range terrain observation, vehicle detection at extended distances, and overlapping fire coverage with adjacent positions along the perimeter. The stairway provides safe, reliable access to the upper platform for personnel rotation, equipment movement, and emergency evacuation without the ladder-climbing difficulty of exposed climbing access under operational conditions.
Single Pallet Kit — 1.4 × 1.12m, 375 kg
The complete sangar kit ships on a single standard pallet of 1.4 × 1.12 meters at 375 kg — fitting in standard military vehicle cargo areas, helicopter cargo compartments, and air freight configurations without specialist handling equipment. This single-pallet compact shipment allows multiple sangar kits to be transported simultaneously in a single vehicle or aircraft load, enabling the rapid establishment of multiple guard post positions in a single logistics movement.
Modular Alloy Components — Custom Dimensions Available
The alloy structural components of the sangar kit provide the dimensional framework for the fill unit assembly — maintaining the correct wall and roof geometry during construction and providing the structural connection between adjacent fill units. Custom dimensions are available to specific requirements — allowing the sangar to be configured for single-person observation posts, larger multi-person command positions, and any other dimensional requirement beyond the standard two-man configuration.
Multiple Application Environments
The Madoors USA Sangar is suitable for military installation guard posts, security checkpoint positions, and — uniquely — paintball and airsoft recreational sites and militaria exhibitions where the authentic military guard post appearance and safe protective structure provide value in non-combat applications.
GROUND MOUNTED vs ELEVATED SANGAR

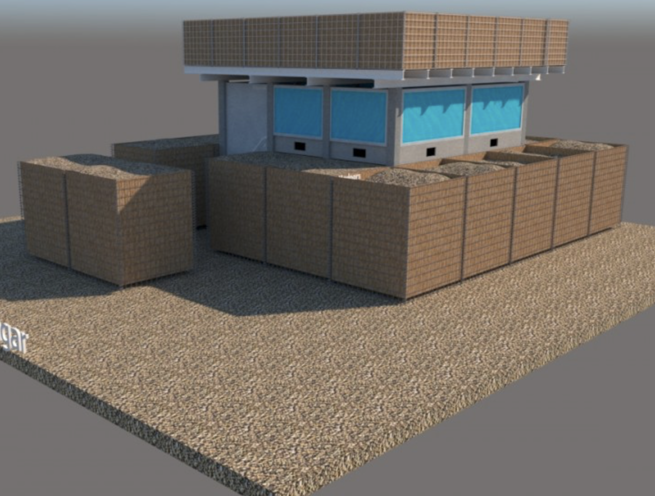

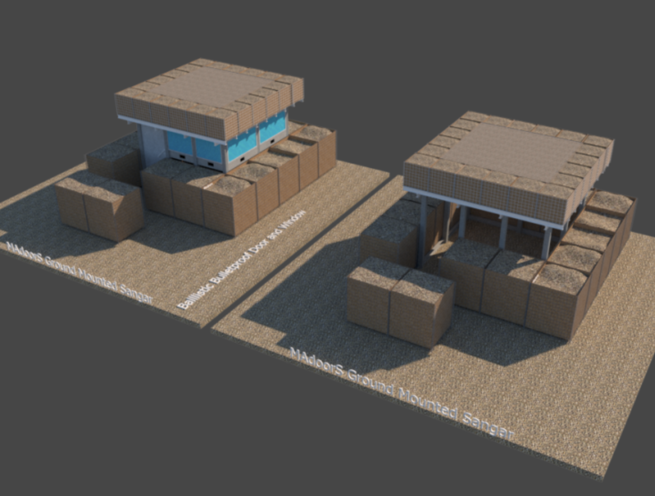

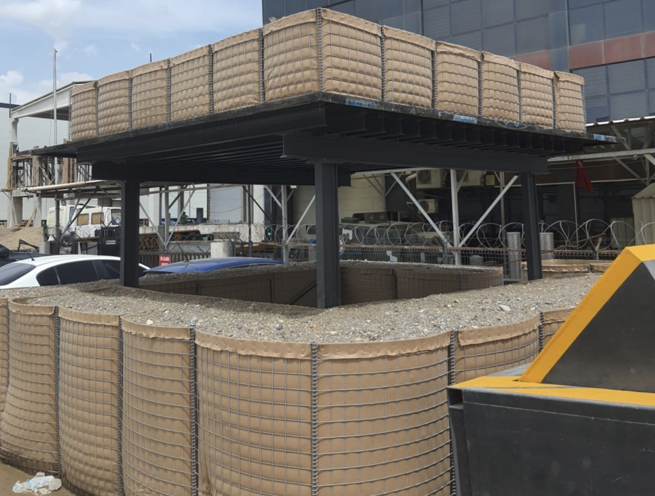

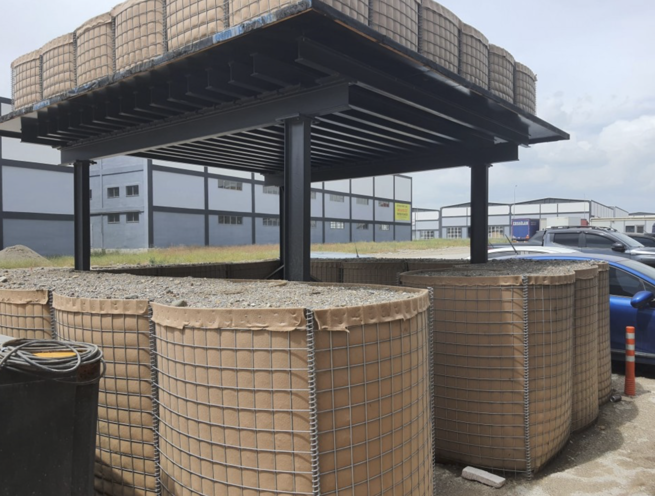

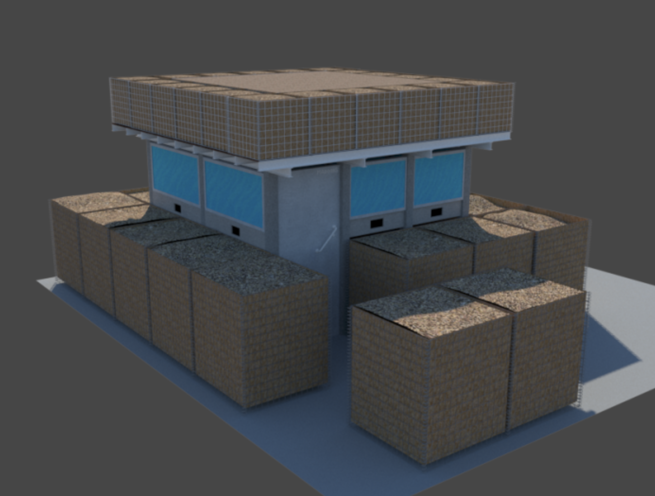

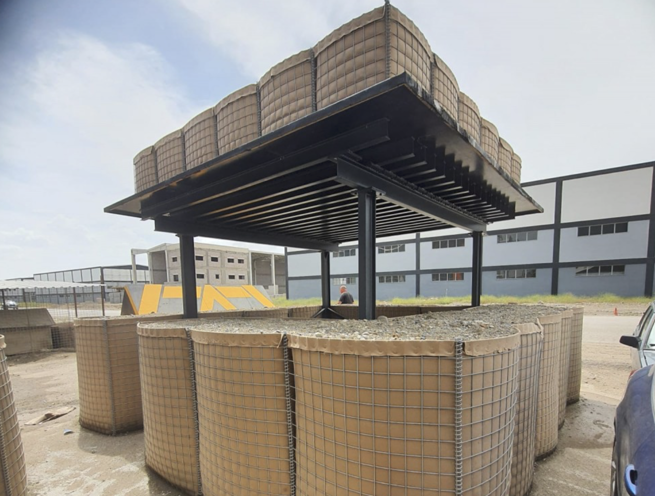

Ground Mounted Sangar — Standard two-man guard post at ground level. 5.5 × 5.5 meter base. External dimensions 2.44m H × 2.44m W × 3.05m L. Internal 2.0m H × 1.2m W × 1.8m L. Blast, ballistic, and indirect fire protection. Embrasures for observation and firing. Locally filled from available materials.
Elevated Sangar — Two-man guard post with elevated observation platform. 5.5 × 5.5 meter base. Platform height 3.7 meters. Stairway access to upper level. All ground-mounted protection features plus elevated observation and fire coverage advantage. Ideal for perimeter corner positions, open terrain surveillance, and vehicle approach detection at extended range.
ASSEMBLY & DEPLOYMENT SEQUENCE
Transport to Deployment Location
Complete sangar kit on single 1.4 × 1.12-meter pallet, 375 kg — transported by military vehicle, helicopter, or aircraft to the deployment position.
Ground Preparation & Position Selection
The 5.5 × 5.5-meter sangar position is selected for maximum observation coverage, field of fire, and tactical advantage. Ground is leveled within the base footprint.
Alloy Component Framework Assembly
The alloy structural framework is assembled to the confirmed sangar configuration — ground mounted or elevated — establishing the wall and roof geometry for fill unit placement.
Geotextile-Lined Fill Unit Installation
Geotextile-lined protective fill units are positioned within the alloy framework — wall sections, embrasure positions, and roof sections are placed in sequence.
Fill Material Placement
Locally available earth, sand, gravel, crushed rock, or granular material is filled into all wall and roof units — providing the protective mass for blast, ballistic, and indirect fire protection.
Elevated Platform & Stairway Installation (Elevated Sangar)
For the Elevated Sangar, the upper platform structure and stairway are assembled on top of the completed lower level — extending to the 3.7-meter platform height.
Embrasure Verification & Operational Readiness
Embrasure orientation, observation arc, and firing field coverage are verified for the confirmed tactical requirement. The sangar is immediately operational for two-man guard post duty upon fill completion.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Ground Mounted and Elevated Sangars are specified for any military, security, or recreational application requiring a modular, locally-filled protective guard post.
- Military installation perimeter guard post positions
- Forward operating base entry control point sangars
- Combat outpost corner observation positions
- Military checkpoint two-man guard post protection
- Border security ground and elevated guard positions
- Military patrol base perimeter observation sangars
- Security force checkpoint guard post protection
- Counter-terrorism forward position guard posts
- Peacekeeping mission perimeter guard sangars
- Military training facility guard post simulation
- Remote border patrol elevated observation positions
- Emergency military base rapid guard post establishment
- Helicopter-deployed rapid guard post construction
- Paintball and airsoft site authentic military structure
- Militaria exhibition and military heritage display sangar
