Gabion Sand Defence Wall Basket Box Military Castle Garrison Camp Systems

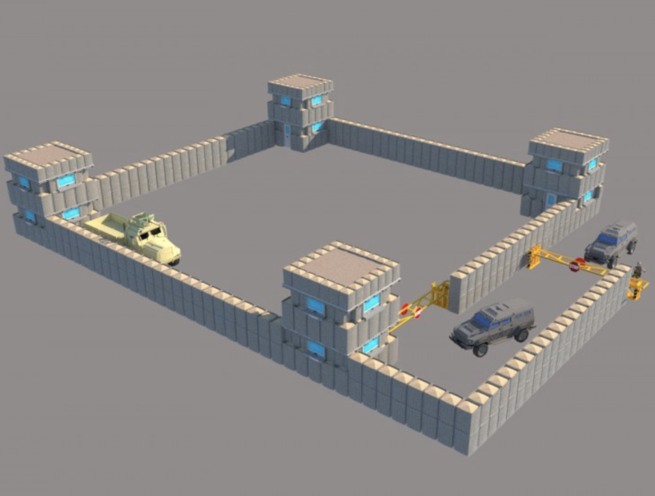

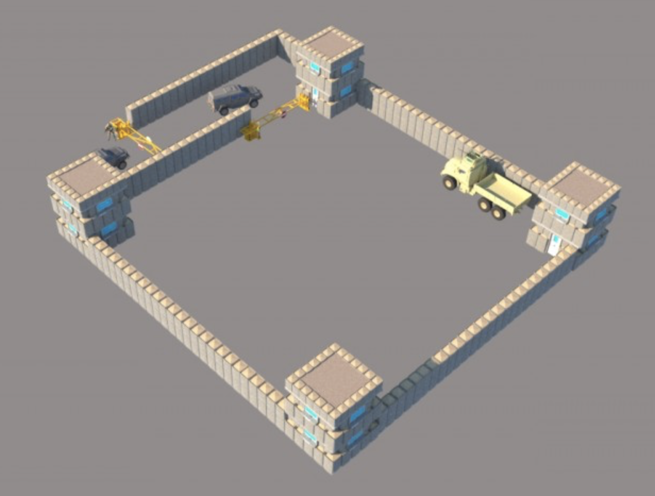

The Madoors USA Gabion Sand Defence Wall Military Castle Garrison Camp System is a complete integrated military base and fortified camp construction solution — using accordion-folding sand-filled steel basket gabion technology to create fully ballistic and explosion-proof perimeter walls, corner watchtowers up to 4 floors, controlled vehicle entry systems, and complete garrison infrastructure in any design configuration required by the military unit. The system transforms the Madoors USA gabion basket defense wall, tower, guard booth, armory, and shelter components into a fully integrated military castle and garrison camp — with perimeter walls surrounding the settlement, ballistic towers at the corners providing elevated observation and fire control, and a tactically engineered vehicle entry system incorporating K12 PAS68 M50 crash-tested anti-terrorism barriers and 90-degree angled vehicle approach lanes that slow vehicles and remove them from direct enemy fire lines.
TECHNICAL SPECIFICATIONS
The complete Madoors USA Military Castle Garrison Camp System is constructed in the following integrated sequence — accordion-folding gabion sand-filled steel basket perimeter walls are established around the full military settlement boundary, ballistic bulletproof gabion towers are installed at the perimeter wall corners for observation and defensive fire coverage, the camp entrance is designed with a tactically engineered 90-degree vehicle approach layout and gabion sand wall ledge entrance hall, and certified K12 PAS68 M50 crash-tested arm barriers or road blocker systems are installed at the vehicle entry control point.
Perimeter walls are formed from the same accordion-type folding galvanized steel wire baskets as the standalone Madoors USA defense wall system — filled with locally available sand, gravel, or stone from the environment, creating ballistic and explosion-proof barrier walls that surround and protect the complete military settlement area. Wall height and thickness are specified based on the threat assessment and tactical requirements of the specific deployment.

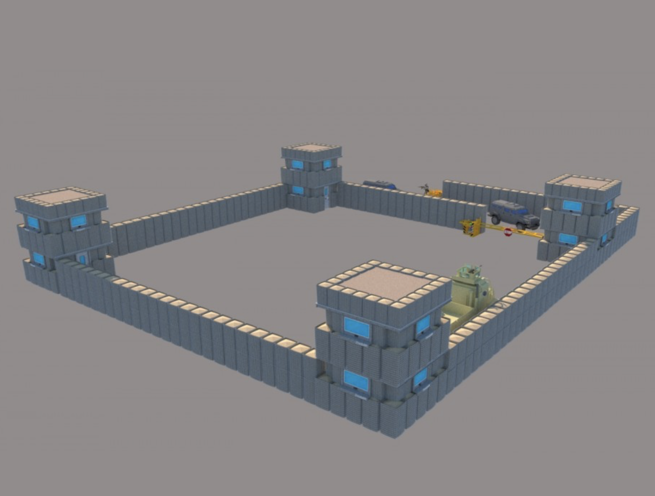

Corner watchtowers are gabion basket towers — the same Type 1 or Type 2 watchtower configurations available in the Madoors USA range — installed at each perimeter wall corner to provide overlapping observation and fire coverage across the full perimeter line. Towers support up to 4 floors and can be upgraded as the threat assessment or tactical requirement changes during the deployment. Optional bulletproof glass and frame systems made of ballistic armor steel and explosion-proof entrance door systems are added at the glass and door positions of the towers.

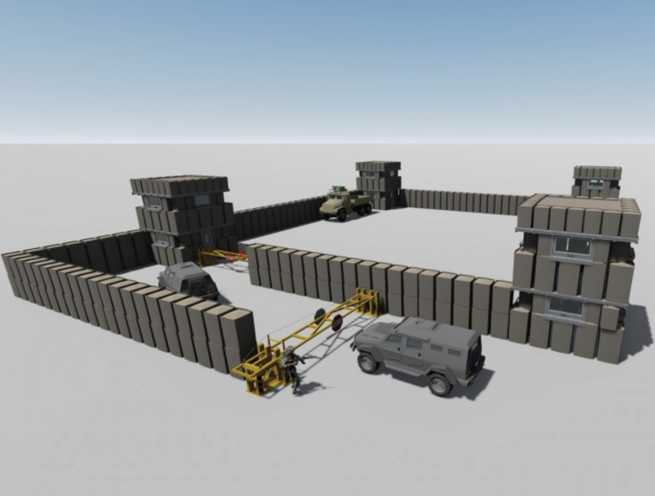

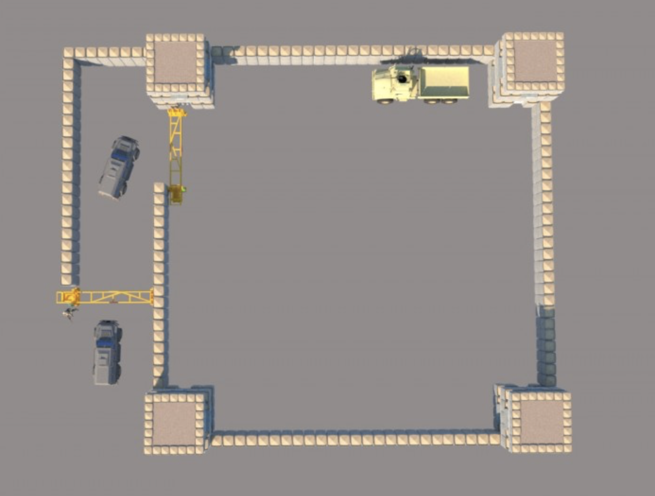

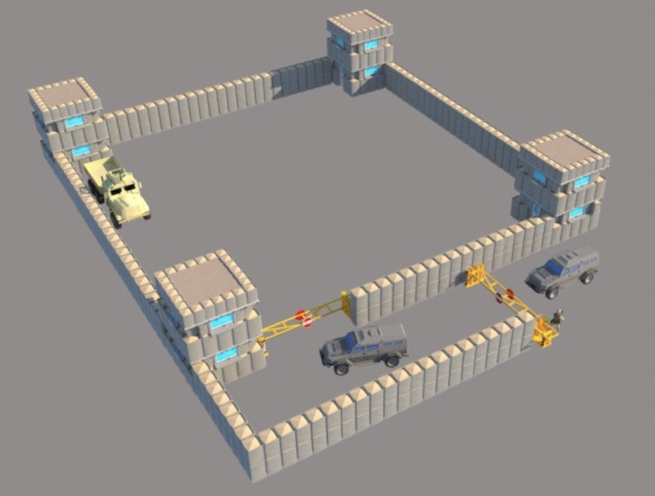

The vehicle entry system is designed with vehicles entering the camp at a 90-degree angle — the angled entry serves two tactical purposes simultaneously. First, the angle reduces vehicle approach speed before the entry control point — a vehicle cannot maintain high speed through a 90-degree turn, providing the speed reduction required for the K12 crash-tested barrier to be effective as a stop-and-search control rather than only as an emergency stop. Second, the angled entry removes the vehicle lane from the direct line of enemy fire from outside the camp — a straight entry lane would provide a direct fire corridor into the camp interior that an angled approach eliminates.

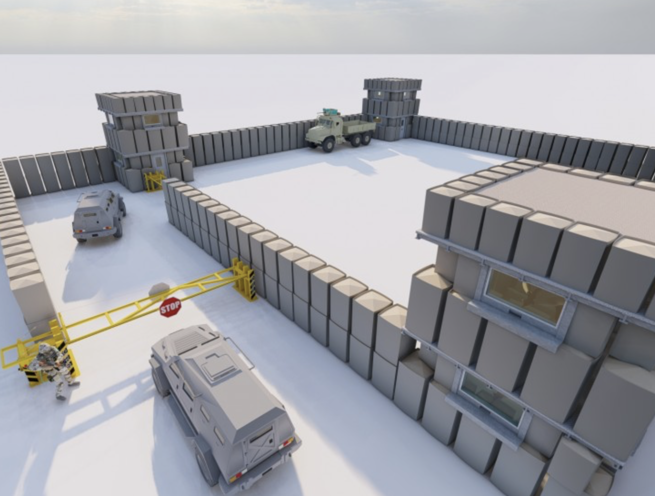

A gabion sand defense wall ledge is constructed in front of the camp entrance — creating a protected entrance hall vestibule that receives vehicles safely inside the perimeter for search and inspection before they proceed to the camp interior. This entrance hall provides a controlled vehicle reception area that is protected on all sides by sand-filled gabion walls, eliminating the vulnerability of an open unprotected inspection area at the camp gate.
KEY FEATURES
Complete Integrated Military Castle System — Any Design Configuration
The Madoors USA garrison camp system can be configured in any design — the accordion-folding gabion basket components are arranged in any layout, any perimeter geometry, and any configuration of wall, tower, entrance, and internal structure. This design flexibility allows the military camp to be optimized for the specific terrain, tactical requirement, personnel capacity, and operational function of each deployment without constraining the layout to standard configurations.
Ballistic Explosion-Proof Perimeter — Bulletproof Tower Corners
The combination of sand-filled gabion perimeter walls on all sides and bulletproof gabion corner towers provides the complete perimeter security envelope required for a protected military garrison — the walls block direct fire and attenuate blast overpressure across the full perimeter line, and the corner towers provide the elevated observation and defensive fire coverage at the corners where the wall coverage overlaps and where threats approaching from multiple directions can be simultaneously observed and engaged.
4-Floor Upgradeable Corner Towers — Observation & Fire Control
The 4-floor maximum height of the gabion corner towers provides the elevation advantage required for observation and fire control coverage over the terrain surrounding the garrison — the higher the tower, the greater the detection range for approaching threats and the larger the covered fire sector for defensive engagement from the tower position. Upgradeable tower height allows the garrison commander to increase tower elevation as the tactical situation develops during the deployment.
K12 PAS68 M50 Crash-Tested Barrier — Anti-Terrorism Vehicle Control
The optional integration of K12 PAS68 M50 arm barriers or road blocker systems at the vehicle entry control point provides certified anti-terrorism hostile vehicle mitigation at the camp entrance — stopping and searching vehicles entering the military unit, preventing vehicle-borne IED delivery to the camp interior, and providing the crash-tested physical barrier required to stop a hostile vehicle regardless of driver intent. Automatic and manually controlled configurations are both available — with automatic control for fully manned checkpoints and manual control for remote or off-grid positions.
90-Degree Vehicle Entry — Speed Control & Fire Line Avoidance
The 90-degree angled vehicle entry design provides two simultaneous tactical advantages that straight entry lane designs cannot achieve. Vehicle slowdown through the 90-degree turn reduces approach speed to the level where the crash barrier can be used as a stop-and-search control point rather than only as an emergency anti-terrorism barrier — improving the operational efficiency of the checkpoint. Fire line removal through the angled approach eliminates the direct fire corridor into the camp interior that a straight entry lane creates — protecting camp personnel and infrastructure from direct enemy fire through the entrance gap.
Gabion Entrance Hall Ledge — Protected Vehicle Inspection
The gabion sand defense wall ledge in front of the entrance creates a protected vehicle inspection hall — vehicles enter the hall through the outer entrance gate and are inspected in the protected space between the outer entrance wall and the inner camp perimeter before being admitted to the camp interior. This inspection hall provides security personnel with a protected working environment for vehicle searches, identity verification, and cargo inspection that eliminates the exposure to fire from outside the perimeter that open-entrance checkpoint designs create.
Environmental Fill — Rapid Zero-Supply-Chain Deployment
Locally available sand, gravel, and stone from the field environment provide the complete fill for all perimeter walls, towers, and entrance structures — with no fill material transported to the deployment location. This zero-supply-chain fill approach allows a complete fortified garrison camp perimeter to be established at any location where the accordion basket components can be delivered, using only the materials available on the site.
Bulletproof Glass & Armored Door Integration — Tower Security Enhancement
Bulletproof glass and frames made of ballistic armor steel, and explosion-proof entrance door systems, can be added to the tower glass and door positions — providing certified ballistic observation windows and protected access for the tower garrison. These optional certified systems complete the protection envelope of the tower at the points where apertures in the sand-filled wall construction create potential ballistic vulnerabilities.
COMPLETE GARRISON SYSTEM CONSTRUCTION SEQUENCE
Phase 1 — Perimeter Wall Establishment
Accordion-folding gabion basket wall sections are deployed and filled along the complete garrison perimeter boundary — establishing the primary ballistic and explosion-proof enclosure of the military settlement.
Phase 2 — Corner Tower Construction
Gabion basket corner towers are constructed at each perimeter wall corner — built to the specified height up to 4 floors, with optional bulletproof glass and explosion-proof door systems installed at aperture positions.
Phase 3 — Entrance Design & Vehicle Control System
The 90-degree vehicle entry lane is established with gabion wall guidance structures directing approaching vehicles through the angled approach to the entry control point. The gabion sand wall entrance hall ledge is constructed in front of the camp entrance. K12 PAS68 M50 crash-tested arm barriers or road blocker systems are installed at the vehicle entry control position.
Phase 4 — Internal Facility Construction
Dormitories, barracks, dining halls, armories, and support structures are constructed from the same gabion basket system within the protected perimeter — providing bulletproof and explosion-proof accommodation and support facilities for all garrison personnel and functions.
Phase 5 — Optional Enhancements
Additional perimeter sections, tower height upgrades, secondary entrance control points, and additional internal facility buildings are added as the garrison population, operational requirements, and threat assessment evolve during the deployment.
INTEGRATED MADOORS USA GARRISON SYSTEM COMPONENTS
The following Madoors USA products are integrated in the complete garrison camp system — Gabion Basket Defense Wall for perimeter enclosure, Gabion Basket Ballistic Guard Watchtower Type 1 and Type 2 for corner observation positions, Gabion Basket Box Security Guard Booth for entry control point personnel protection, Gabion Basket Explosion Proof Shelter for personnel accommodation and bunkers, Gabion Defense Wall Armory for weapons and ammunition storage, K12 PAS68 M50 Crash Tested Road Blocker or Manual/Automatic Arm Barrier for vehicle entry control, Bulletproof Glass and Frame Systems for tower apertures, and Explosion-Proof Door Systems for facility and tower access points.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Gabion Sand Defence Wall Military Castle Garrison Camp Systems are deployed for complete military camp and fortified garrison establishment in any terrain and operational environment.
- Military forward operating base complete garrison establishment
- Combat outpost fortified camp perimeter and tower construction
- Military checkpoint fortified camp with vehicle control
- Border security fortified garrison camp establishment
- Mountain base complete fortified military camp construction
- Rapid deployment military garrison for special operations
- Peacekeeping mission complete fortified camp construction
- Counter-terrorism forward garrison rapid establishment
- Military training base fortified camp construction
- Emergency military base complete garrison establishment
- Helicopter-deployed rapid mountain garrison construction
- Military disaster relief forward fortified base establishment
- Remote border patrol complete fortified camp construction
- Military exercise complete garrison rapid construction
- Any deployment requiring complete integrated fortified military garrison from air-deployable components
- Category: Gabion Defence Barriers
