Gabion Basket Explosion Proof Shelter, Bunker, Home, Dormitory
The Madoors USA Gabion Basket Explosion Proof Shelter, Bunker, Home, and Dormitory system provides a revolutionary approach to creating bulletproof and explosion-proof living spaces, military bunkers, dormitories, dining halls, and arsenals — using accordion-type folding gabion cage sand shelters that are air-transportable in military aircraft, field-fillable from locally available sand, and customizable to any residence area dimension through free project and discovery design services. This system directly eliminates the primary cost, logistics, and size barriers that make conventional ballistic steel shelters impractical for large structures and remote locations — providing the same or greater protection level at a fraction of the transport weight, cost, and logistics complexity of ballistic steel alternatives.
Optional explosion-proof door and window systems with ballistic steel doors — custom manufactured to each shelter entrance opening — and ballistic glass and frame systems certified to UL 752 Level 1 through Level 9 with accredited institution bullet proof reports complete the protected shelter envelope for fully certified military and civilian protection applications.
TECHNICAL SPECIFICATIONS
The Madoors USA Gabion Basket Shelter system uses accordion-type folding galvanized steel wire cage structures filled with locally available sand in the field — the same proven gabion basket technology extended to full shelter and bunker construction. The sand fill provides the primary protection against both ballistic projectiles and blast overpressure — absorbed projectiles remain in the sand fill, and the sand mass attenuates blast overpressure waves without generating secondary fragmentation. The explosion-proof performance of the sand-filled shelter addresses both direct fire ballistic threats and the indirect fire blast and fragmentation threats of mortars, rockets, and artillery that represent the primary threats to personnel in field bunkers and forward camp shelters.
Optional ballistic steel door systems are specially designed and manufactured to the specific entrance door opening dimensions of each shelter — ensuring complete ballistic continuity between the sand-filled wall panels and the door opening, eliminating the ballistic vulnerability at the most common weak point of sand-filled shelter systems. Door systems are available at all UL 752 protection levels from Level 1 through Level 9.
Optional ballistic glass and frame systems for observation windows and additional openings are manufactured in accordance with American ballistic standards to UL 752 Level 1 through Level 9, with full ballistic bullet proof reports from accredited institutions confirming the certified protection level of each glass and frame system.
Free project and discovery services are provided by Madoors USA for all shelter design projects — the shelter design is customized to the specific residence area, building type, protection requirement, and operational context of each deployment.
KEY FEATURES
Eliminates the Impossibility of Large Ballistic Structures
The most fundamental advantage of the gabion basket shelter system is stated clearly — while it is very difficult and very expensive to manufacture larger structures at the ballistic protection level using conventional ballistic steel construction, the accordion-type folding modular gabion system eliminates these impossibilities. A large ballistic steel shelter requires proportionally large, heavy, expensive fabricated steel components that are difficult and costly to transport to remote locations. A large gabion basket shelter requires only the accordion-folding basket components — which transport at a fraction of the weight and volume — with the protective mass provided by locally available sand at zero transport cost.
Air-Portable — Fits Military Aircraft Cargo
The accordion-folding structure of the gabion cage components allows them to fit easily into military aircraft cargo compartments — enabling complete shelter component sets to be delivered by air to mountainous, inaccessible, and remote locations where ground vehicle transport is impossible or impractical. This air portability directly enables the establishment of certified ballistic protection at locations that have previously been accessible only to conventional unprotected temporary shelters.
Absolutely Bulletproof & Explosion Proof — Sand Fill Protection
The sand-filled gabion shelter provides absolute bulletproof and explosion-proof protection for personnel inside — bullets fired at the shelter walls are absorbed and retained in the sand fill, and blast overpressure from nearby detonations is attenuated by the sand mass without structural failure of the basket structure or secondary fragmentation from the wall material. This protection profile makes the gabion shelter superior to many conventional military shelter alternatives that provide ballistic protection but generate dangerous concrete spall and fragmentation during blast events.
Ballistic Steel Door Systems — Custom Entrance Matching
The optional ballistic steel door systems are custom designed and manufactured to match each specific shelter entrance opening — ensuring that the door provides continuous ballistic protection with the surrounding sand-filled walls without the gap-around-the-door vulnerabilities that affect standard-size door systems installed in non-standard openings. Custom manufacturing to the shelter entrance opening dimensions is the engineering requirement for certified ballistic continuity at the door position.
UL 752 Level 1 to Level 9 — Full Certification Range
The door and glass systems are available at all UL 752 protection levels from Level 1 through Level 9 — covering the complete range from light handgun protection through to the highest available American ballistic standard. Full accredited institution bullet proof reports are available for all door and glass systems at every certification level — providing the independently verified performance documentation required for military procurement compliance and government facility certification.
Cost Advantage Over Ballistic Steel Watch Cabins
Ballistic steel watch cabins and prefabricated shelters are expensive compared to the gabion basket system — the material cost, fabrication cost, and transport cost of ballistic steel construction increase dramatically with shelter size. The gabion basket system's cost is dominated by the basket components — a small fraction of the equivalent ballistic steel weight — with the protective mass provided at zero material cost by locally available sand. This cost structure makes gabion basket shelters economically viable for large-scale camp establishment where ballistic steel construction would be prohibitively expensive.
Free Project & Discovery Services — Custom Design Support
Free project and discovery services allow clients to engage Madoors USA engineering for custom shelter design without upfront cost — the specific residence area, building type, number of personnel, protection requirement, and site conditions are assessed and a complete shelter design using the appropriate gabion basket series is provided. This free design support ensures that the shelter system is correctly specified for each application and that the protection performance, functional space, and logistics efficiency of the deployed shelter are optimized.
APPLICATION RANGE
Military Bunkers & Underground Shelters
Sand-filled gabion basket bunkers provide explosion-proof underground or semi-underground shelter for military personnel during artillery, mortar, and air attack scenarios — with the overhead sand fill mass providing the primary protection against direct overhead impact and near-miss blast loading that defines bunker protection requirements.
Forward Camp Dormitories & Accommodation
Complete personnel accommodation buildings constructed from gabion basket walls and roofs — providing the bulletproof and explosion-proof living quarters required for military personnel deployed in active combat zones where indirect fire on camp accommodation is a continuous threat.
Dining Halls & Mess Facilities
Protected dining facilities for forward camps — the high personnel concentration during meal periods makes dining halls a priority indirect fire target, and gabion basket construction provides the scale of protection required for large multi-person facilities at a cost and logistics feasibility that conventional ballistic construction cannot match.
Arsenals & Ammunition Storage
Explosion-proof ammunition and weapons storage facilities — the gabion basket system's explosion-proof performance is specifically appropriate for arsenal applications where the stored contents create an additional internal explosive hazard that must be contained as well as external blast threats that must be excluded.
Remote Civilian Home & Community Shelter
In conflict-affected civilian communities, the gabion basket shelter system provides affordable, rapidly constructable bulletproof and explosion-proof housing as an alternative to conventional unprotected housing that leaves civilian populations vulnerable to direct and indirect fire threats.
ASSEMBLY & DEPLOYMENT SEQUENCE
Free Project Design Consultation
Contact Madoors USA for free project and discovery services — provide residence area dimensions, building type, occupancy, protection level requirement, and optional door and glass system specification. Receive custom shelter design using the appropriate gabion basket series.
Component Transport to Field Location
Accordion-folded gabion basket cage components are transported by military aircraft, helicopter, or vehicle to the deployment location. Component transport weight is a fraction of equivalent ballistic steel shelter components.

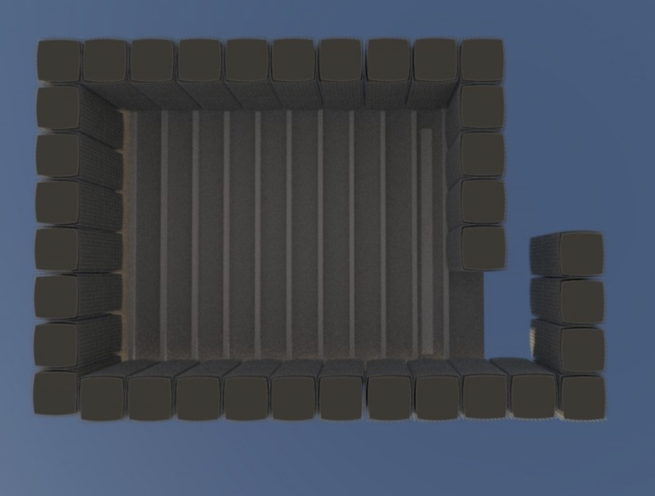

Basket Opening & Wall Positioning
Accordion baskets are opened in the field without tools and positioned in the shelter wall layout. External walls, internal partitions, doorway positions, and window positions are established from the confirmed design layout.
Wall Sand Filling
Local sand or soil is filled into the wall baskets using standard entrenching and filling tools — building up the full wall height in systematic layers around the shelter perimeter.

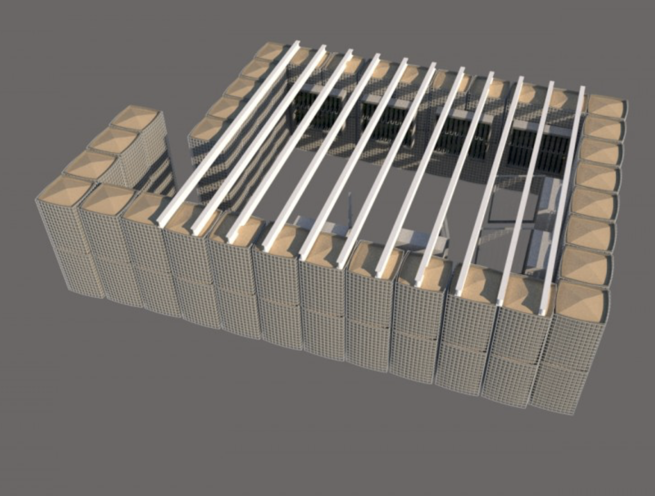

Roof Carrier Steel Installation
Roof carrier steel framework is installed across the completed wall tops, spanning the shelter interior to carry the roof basket and sand fill weight.

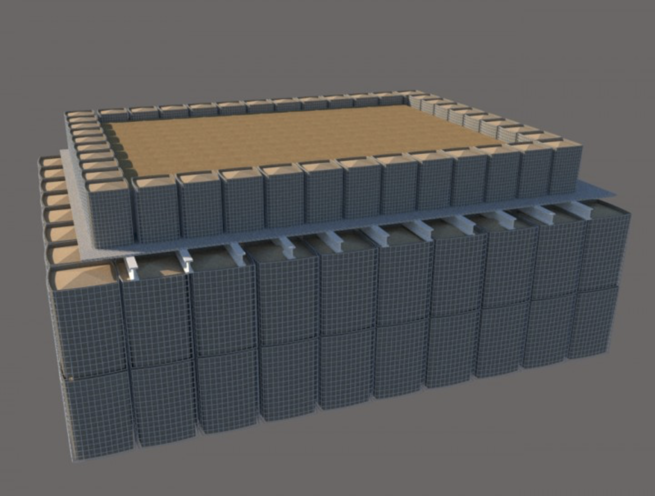

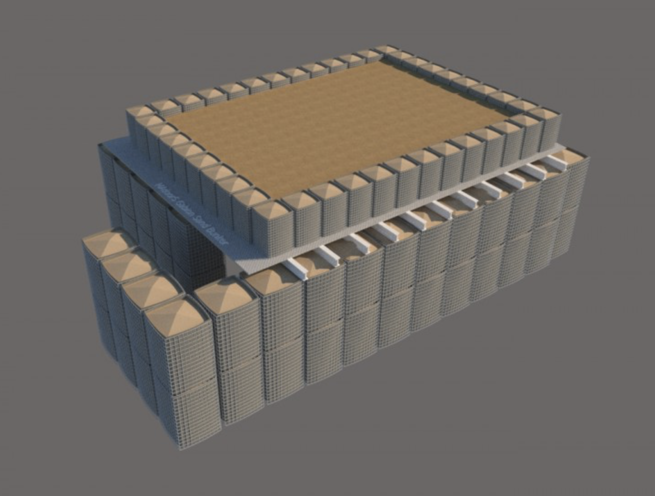

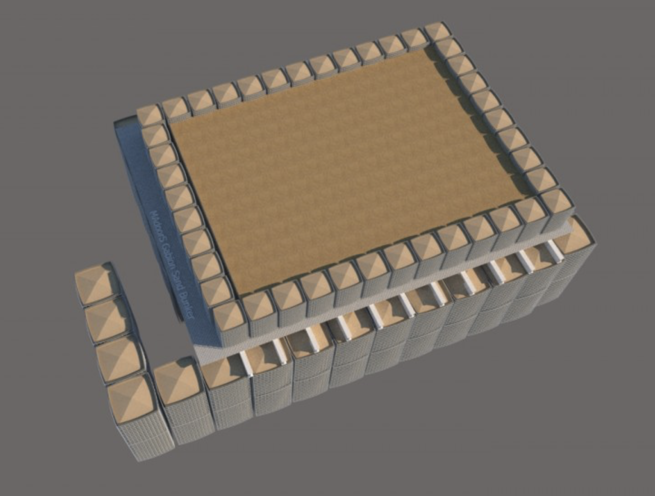

Roof Basket Placement & Filling
Gabion baskets are placed on the roof carrier steel and filled with local sand to the specified roof depth — completing the overhead explosion-proof protection envelope.
Ballistic Door & Glass System Installation (Where Specified)
Custom-manufactured ballistic steel doors are installed in the entrance openings. Ballistic glass and frame systems are installed at window positions. Door and glass system alignment with the basket wall construction is verified for complete ballistic continuity.
Shelter Complete & Operational
The completed gabion basket shelter provides immediate bulletproof and explosion-proof protection for all occupants. 2-year guarantee documentation is provided with all shelter structures.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Gabion Basket Explosion Proof Shelters are deployed across all military and civilian applications requiring air-transportable, field-constructable ballistic and blast protection.
- Military forward camp explosion-proof bunker construction
- Combat outpost personnel accommodation shelters
- Forward operating base ammunition arsenal construction
- Military dining hall and mess facility protection
- Remote mountain base bulletproof shelter establishment
- Air-deployed rapid bunker establishment for special operations
- Military checkpoint fortified shelter construction
- Border security remote base explosion-proof facilities
- Peacekeeping mission protected camp construction
- Counter-terrorism forward position shelter establishment
- Conflict-affected civilian community protection shelters
- Disaster relief security force protected facility construction
- Military training base forward position bunker construction
- Emergency military base rapid establishment shelters
- Any remote inaccessible location requiring air-deployable explosion-proof shelter construction
