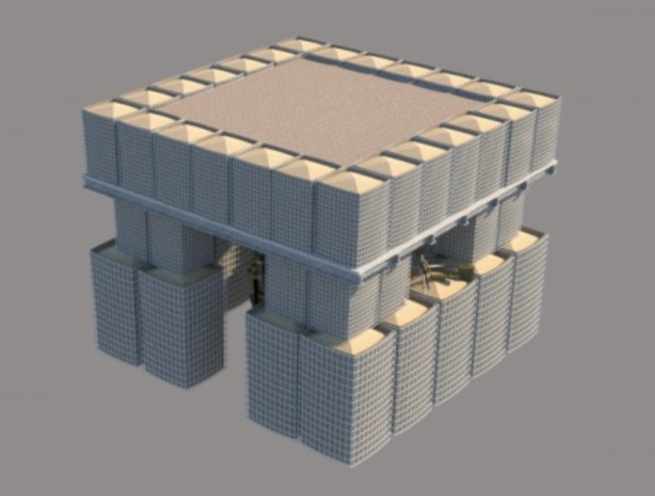

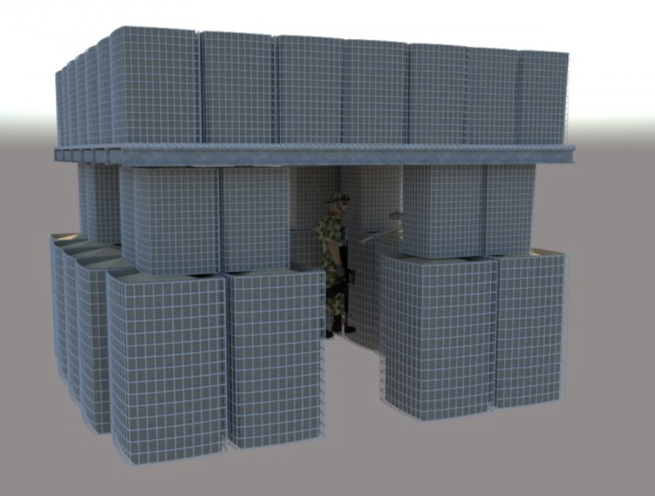

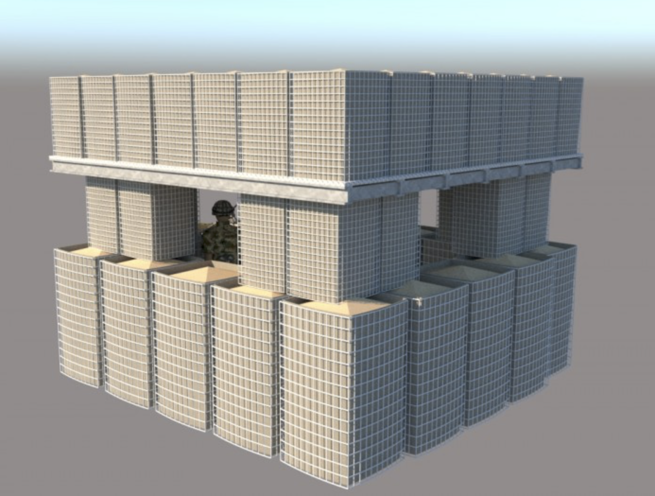

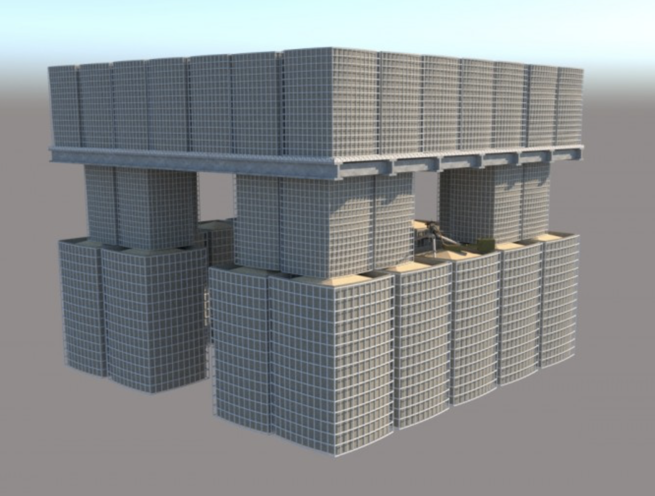

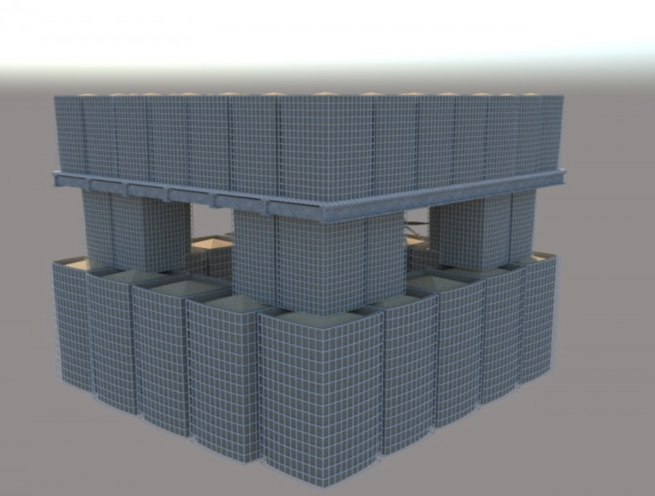

Gabion Basket Box Security Guard Booth
The Madoors USA Gabion Basket Box Security Guard Booth is an accordion-type folding, sand-filled gabion basket guard booth system providing bulletproof and rocket launcher-proof personnel protection for military and security forces — transportable in the cargo compartments of military aircraft and helicopters for rapid deployment to mountainous, inaccessible, and remote regions where conventional construction is impractical. Bullets and projectiles fired at the booth are absorbed and retained in the sand fill, providing 100% effective protection against rocket launchers, heavy weapons, and direct small arms fire while remaining one of the most economical personnel protection solutions available for rapidly established military bases and security positions.
The folding accordion design allows the gabion basket booth structures to be collapsed flat for compact transport and storage, expanded and positioned in the field without heavy equipment, and filled with locally available soil or sand — requiring no shipped fill material and providing immediate operational protection upon filling. All steel baskets are manufactured from galvanized steel wire that does not rust or corrode, with special geotextile woven fabric lining that carries tons of sand without tearing, does not rot in any weather condition, and retains all fill material under the pressure of sand load without leakage.
TECHNICAL SPECIFICATIONS
The Madoors USA Gabion Basket Box Security Guard Booth is constructed from galvanized steel wire basket cages — the same proven gabion basket technology used in the Madoors USA perimeter defence wall range — configured and sized specifically to create an enclosed guard booth structure for the protection of one or more security personnel at a checkpoint, entry control point, or perimeter guard position.
The special geotextile woven fabric lining inside each gabion basket is manufactured in specialized weaving machines to the precise basket dimensions — carrying tons of sand without tearing under the static load of the fill material, without rotting in summer heat or winter cold over years of continuous use, and without allowing sand leakage through the wire mesh gaps. This geotextile performance is the critical containment element of the gabion fill system — the steel wire basket provides the structural outer cage, and the geotextile provides the internal containment surface that holds the fill against the wire mesh under all loading conditions.
All steel wire basket components are hot-dip galvanized — providing complete corrosion resistance against rust and deterioration in all outdoor exposure conditions including rain, snow, humidity, salt spray, and UV exposure. No rust or corrosion occurs throughout the service life of the installed booth, eliminating any metal degradation maintenance requirement.
The ballistic protection principle of the sand-filled gabion booth is identical to all sand-filled gabion wall systems — the sand mass absorbs the kinetic energy of incoming projectiles, arresting them within the fill without penetration to the protected interior. Bullets and projectiles fired at the booth are absorbed into the soil and remain embedded in the fill. The sand mass provides protection against the full range of small arms, heavy machine gun, shrapnel, and rocket launcher threats encountered in active military and counter-terrorism operational environments.
Booths are manufactured in custom sizes to the specific dimensions required by the application — individual guard position size, number of personnel to be protected, weapons and equipment to be accommodated, and site geometry all inform the custom booth dimensions.
KEY FEATURES
Military Aircraft & Helicopter Cargo Compatible — Air Deployable
The folded accordion gabion basket booth structures are specifically designed to enter the cargo compartments of military aircraft and helicopters — providing air-deployable rapid protection establishment capability for military bases in mountainous and inaccessible regions where ground vehicle access is not available. This air deployment capability makes the gabion booth system the only practical certified personnel protection structure for many remote forward position establishment scenarios where no alternative construction materials or heavy equipment can be delivered.
Rocket Launcher Proof & Bulletproof — 100% Effective
The sand-filled gabion booth provides 100% effective protection against rocket launchers and heavy weapons in addition to direct small arms fire. The sand mass attenuation of rocket propelled grenades and shaped charge warheads — through the energy absorption of the large sand fill volume — combined with the steel wire reinforcement of the gabion basket structure provides a protection level that concrete block and sandbag alternatives of equivalent size cannot match at equivalent cost and transport efficiency.
Bullet Absorption in Soil — No Penetration
Bullets fired at the gabion booth are absorbed into the soil fill and remain embedded — the kinetic energy is progressively arrested through the impact resistance of the sand mass without the secondary fragmentation hazard of concrete, masonry, or steel surfaces that produce dangerous ricochet and spall on bullet impact. This absorption-only stopping mechanism directly protects personnel inside the booth from secondary fragmentation injury that concrete and steel shelters create during ballistic attack.
Accordion Fold — Fast Field Installation from Local Soil
The accordion folding mechanism deploys the gabion basket from the flat transport configuration to the full booth dimensions without tools or mechanical equipment. The booth is positioned and filled using locally available soil or sand from the immediate area — eliminating the requirement to transport fill material to the deployment location and directly reducing the logistics burden of establishing protected positions in remote and inaccessible terrain. The only installation action required is filling the baskets with locally available ground material — providing immediate protection upon filling completion.
Geotextile Fabric — Long-Term All-Weather Fill Retention
The special geotextile woven fabric lining provides the sand and soil retention required for the protection performance throughout the full service life of the booth — years of continuous use in summer and winter weather conditions without fabric rot, tearing, or sand leakage that would reduce the fill mass and degrade the ballistic protection. This long-term fill retention is the maintenance-free assurance that the protection performance of the booth on day one is maintained throughout the deployment period without any fabric replacement or fill replenishment requirement.
Galvanized Steel Wire — Maintenance-Free Corrosion Resistance
Hot-dip galvanized steel wire construction provides complete rust and corrosion resistance in all outdoor and field conditions — eliminating the structural degradation of the steel cage that would occur with unprotected or paint-coated wire in the wet, humid, and chemically aggressive environments of field military deployment. Maintenance-free corrosion resistance ensures that the structural integrity of the gabion cage is maintained throughout the deployment period without any metal treatment or surface restoration maintenance.
Economical Personnel Protection — No Concrete, No Prefabricated Structures
The gabion basket booth is one of the most economical personnel protection structures available — the cost of the galvanized steel wire basket, geotextile fabric, and folded transport is significantly lower than prefabricated concrete shelters, armored guard booths, or shipping container conversions of equivalent ballistic protection level. The use of locally available fill material eliminates the highest-cost element of conventional sand-filled protection construction — the transport of fill material to the protection position.
Custom Size Manufacturing
Booths are manufactured to the specific dimensions required for each application — number of personnel, weapons system accommodation, communications equipment space, visibility aperture positions, and site footprint are all considered in the custom dimensional specification. This manufacturing flexibility ensures that the booth provides the exact internal working space required for the specific security or military post function without over-building space that adds unnecessary fill weight and material cost.
Perfect for Remote & Inaccessible Military Base Establishment
The combination of air-deployable accordion folding design, locally filled ballistic protection, and rapid installation by the military personnel themselves makes the Madoors USA Gabion Basket Booth the perfect solution for establishing protected personnel positions at remote forward operating bases, mountain observation posts, and any location where prefabricated concrete or steel structures cannot be delivered and conventional construction is not feasible within the operational timeline.
BOOTH CONFIGURATIONS
Single Personnel Guard Position
Individual guard booth sized for one security or military personnel member — checkpoint guard position, entry control point personnel protection, perimeter observation post, and any single-operator protected security station requirement.
Two-Personnel Guard Booth
Larger booth configuration accommodating two operators — guard supervisor and access control operator, observation post with communications operator, and checkpoint with armed guard and access controller simultaneously protected.
Multi-Personnel Command Position
Extended booth configuration for small team accommodation — forward observation post team, entry control point team with multiple functions, and temporary command position requiring protected working space for three or more personnel.
Custom Configuration
Any specified booth dimensions and layout — weapons portal positions, observation windows, personnel access door openings, and communication equipment mounting positions all incorporated in the custom design.
ASSEMBLY & DEPLOYMENT SEQUENCE
Transport in Aircraft or Helicopter
Folded accordion gabion basket booth components are loaded into the cargo compartment of military aircraft or helicopters and transported to the deployment location. No special handling equipment is required for loading or offloading — the flat-folded components are manageable by the military deployment team.
Booth Position Selection & Layout
The booth position is selected for maximum observation coverage, access control effectiveness, and terrain protection advantage. The booth footprint is marked on the ground surface.
Accordion Expansion & Positioning
The gabion basket components are expanded accordion-style from the flat transport configuration to the full booth dimensions. No tools or mechanical equipment are required. Expanded baskets are positioned in the confirmed booth layout — walls, corners, and any roof structure specified.
Geotextile Fabric Verification
The geotextile fabric lining within each basket section is verified as correctly positioned and fully covering the basket interior before fill commences.
Local Soil or Sand Filling
Local soil or sand is filled into the expanded basket sections — using entrenching tools, shovels, or any available filling equipment. Filling proceeds systematically around the booth perimeter to maintain structural stability during the filling process. Each section is filled to the specified height before proceeding to the adjacent section.
Booth Completion & Immediate Protection
The completed filled gabion booth provides immediate full ballistic and blast protection upon filling completion. No curing time, drying period, or completion inspection is required — the protection is immediate.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Gabion Basket Box Security Guard Booths are deployed across the full range of military, security, and counter-terrorism personnel protection applications requiring air-deployable, rapidly established ballistic protection.
- Military forward operating base entry control point booths
- Mountain observation post personnel protection positions
- Remote military base perimeter guard booth positions
- Military checkpoint guard and access control booths
- Counter-terrorism security force personnel protection
- Border security remote guard position establishment
- Helicopter-deployed rapid protection position establishment
- Aircraft cargo-transported mountain base protection
- Military convoy staging area security guard positions
- Peacekeeping mission perimeter guard booth positions
- Disaster relief security force personnel protection
- Emergency military base rapid establishment protection
- Remote border patrol personnel protection positions
- Military exercise forward position protection booths
- Any remote inaccessible location requiring air-deployable ballistic protection
