Please provide your technical specifications and project requirements for the Foot Pedal Manual Spike Barrier. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
The Madoors USA Foot Pedal Manual Spike Barrier is a heavy-duty steel manual control road spike tyre killer providing the highest security measure for controlling unauthorized vehicle access — disabling intruding vehicles immediately by destroying wheel rims and tyres at the moment of forced entry or escape attempt, ensuring the unpermitted vehicle cannot move more than a few meters beyond the barrier position. Operated by manual handle or foot pedal press mechanism, built entirely from heavy-duty steel with solid steel rotating axis and solid steel frame with drainage outlets, available in a wide range of standard widths, and requiring low maintenance throughout long service life, the Madoors USA Foot Pedal Manual Spike Barrier provides essential vehicle access control for power sector installations, defense installations, hotels, and all security-sensitive premises requiring reliable manual control tyre killer protection.
TECHNICAL SPECIFICATIONS

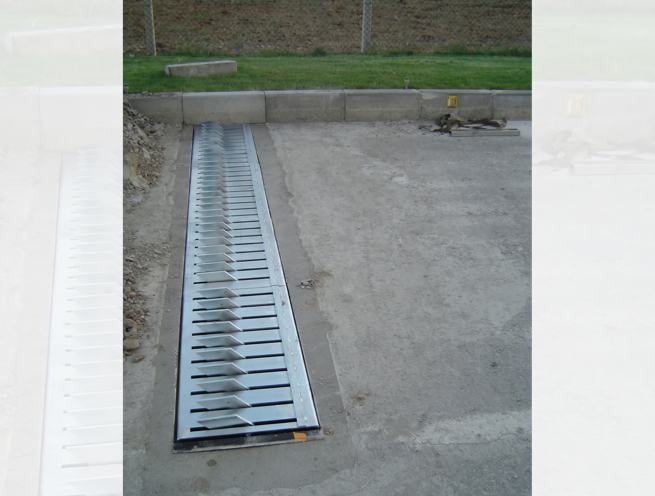

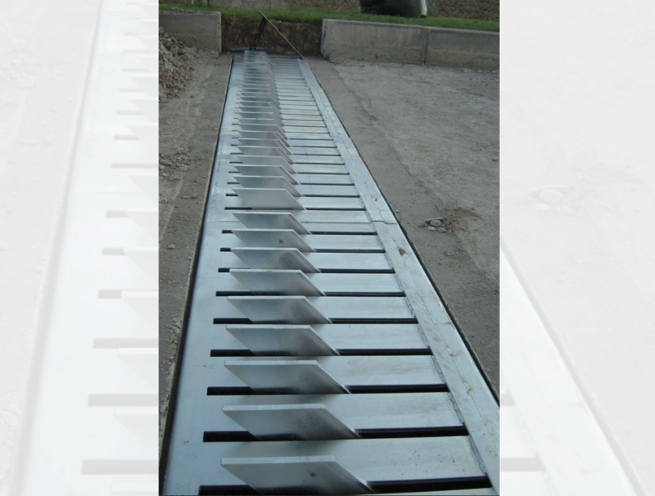

The Madoors USA Foot Pedal Manual Spike Barrier is built entirely from steel — heavy-duty steel spikes are bolted to a solid steel rotating axis that spans the full barrier width. The solid steel frame houses the rotating axis and spike assembly, provides the structural base for road surface mounting, and incorporates drainage outlets to prevent water accumulation within the frame that would cause corrosion and mechanism interference.

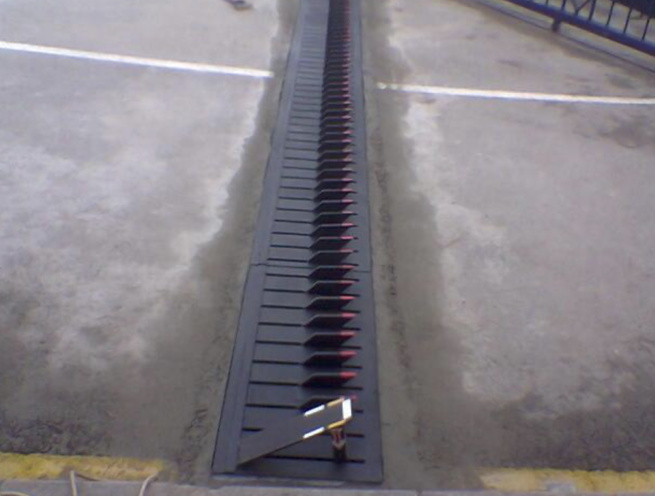

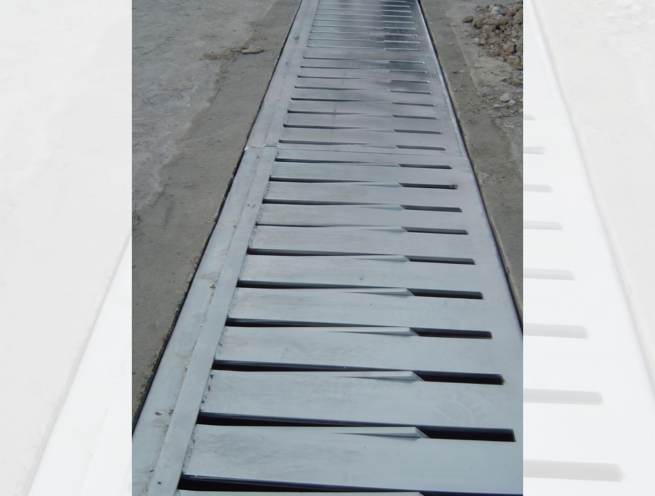

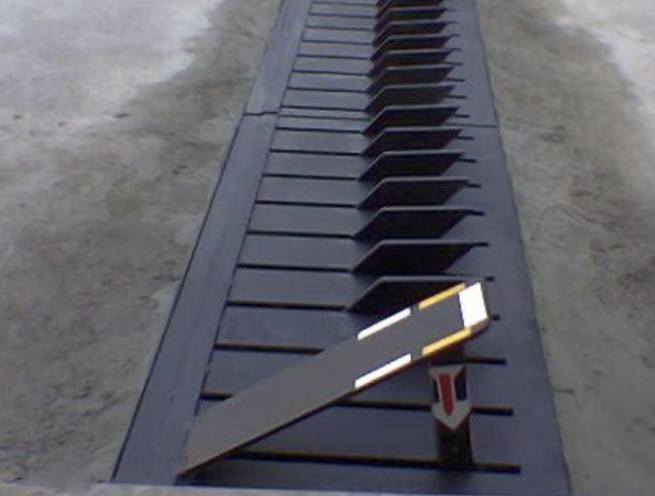

The foot pedal and manual handle operation mechanism rotates the steel axis — raising the spike array to the penetration position for vehicle blocking or lowering the spikes to the pass-over position for authorized vehicle access. The foot pedal operation allows the security officer to raise or lower the spikes without using their hands — maintaining the officer's full hand availability for weapon handling, radio communication, and other security tasks during the barrier operation. Manual handle operation provides an alternative control method when foot pedal operation is not convenient.
The heavy-duty steel spike construction provides the material hardness and structural strength required to destroy wheel rims and tyres at any vehicle approach speed — the spikes penetrate tyre material and engage wheel rim structures simultaneously, causing immediate tyre deflation and rim deformation that together immobilize the vehicle within a few meters of the barrier position. The wheel rim destruction capability directly prevents the continued movement of a vehicle on deflated tyres — rim-damaged vehicles cannot be driven even at low speed on flat tyres.
The available range of standard widths allows the barrier to be specified for any road lane width — single lane, dual lane, and multi-lane configurations are covered by the standard width range. The bolt-attached spike assembly allows individual spike replacement without replacing the complete barrier — maintaining full spike density coverage throughout the service life without complete barrier replacement when individual spikes are damaged.
KEY FEATURES
Foot Pedal Operation — Hands-Free Security Officer Control
The foot pedal operation mechanism allows the security officer to raise and lower the spike barrier without removing their hands from weapons, radio, or other security equipment — the foot press activates the rotating axis and deploys or retracts the spikes while the officer maintains full hand availability for security tasks. This hands-free operation directly improves the security officer's capability during high-alert vehicle access control events where simultaneous barrier management and security readiness are both required.
Wheel Rim & Tyre Destruction — Complete Vehicle Immobilization
The heavy-duty steel spike construction that destroys both wheel rims and tyres provides more complete vehicle immobilization than tyre-only spike systems — a vehicle with punctured tyres but intact rims can continue moving slowly on the rim metal, potentially penetrating the security perimeter before stopping. Wheel rim destruction prevents this rim-running capability, immobilizing the vehicle at the barrier position regardless of the driver's attempt to continue on deflated tyres.
Solid Steel Rotating Axis — Reliable Raise/Lower Mechanism
The solid steel rotating axis provides the structural reliability required for a security barrier that must deploy instantly and positively on officer command under the stress of an active vehicle threat — the solid steel construction resists the bending and torsional loading of vehicle impact on raised spikes while maintaining smooth rotation for rapid spike deployment and retraction. The rotation mechanism directly provides the fast, reliable deployment response required for effective vehicle access control.
Drainage Outlets — Long-Term Corrosion Prevention
The drainage outlets in the solid steel frame prevent water accumulation within the frame structure — standing water within the frame would cause progressive corrosion of the spike mounting bolts, rotating axis bearings, and frame interior that would degrade barrier performance and require premature replacement. The drainage provision directly extends the service life of the outdoor-installed barrier in all weather conditions.
Heavy-Duty Steel Construction — Low Maintenance Long Service Life
The complete heavy-duty steel construction with optimum quality materials and advanced manufacturing technology provides the long service life and low maintenance requirement confirmed for the Madoors USA foot pedal tyre killer — the all-steel construction resists the mechanical wear, impact loading, and weather exposure of outdoor security checkpoint service without the maintenance requirements of systems incorporating plastic, rubber, or composite components subject to degradation.
Wide Range of Standard Widths — Universal Lane Coverage
The wide range of standard widths covers the full range of road and access lane dimensions encountered at security checkpoints from narrow single-vehicle access lanes through wide multi-lane road positions. This standard width range eliminates the need for custom manufacturing for the majority of installations — the appropriate standard width is selected for each specific lane dimension, reducing lead time and cost.
Power Sector, Defense & Hotel Application Range
The specific application range — power sector installations, defense installations, and hotels — confirms the versatility of the manual spike barrier across the complete spectrum from the highest-security defense and critical infrastructure applications through to commercial hospitality and business premises security. The same heavy-duty steel construction and manual control mechanism serve all three application categories — the security requirement for immediate unauthorized vehicle disabling is consistent across the range.
PRODUCT RANGE
Standard Foot Pedal Manual Spike Barrier
Foot pedal and manual handle operation. Heavy-duty steel spikes on solid steel rotating axis. Solid steel frame with drainage outlets. Available in standard road widths. Wheel rim and tyre destruction capability.
Wide Width Configuration
Extended barrier length for dual and multi-lane road positions. Same mechanical specification as standard width. Multiple units connected for full road coverage at wide positions.
ASSEMBLY & INSTALLATION SEQUENCE
Installation Position & Width Selection
Lane width, vehicle types, authorized direction, foot pedal position for operator convenience, and frame anchoring surface are confirmed. Standard width selection for the confirmed lane dimension is completed.
Road Surface Preparation & Anchor Installation
The road surface at the installation position is cleaned. Frame anchor bolt positions are marked and drilled. Anchor bolts are installed to the confirmed embedment depth.
Frame Installation & Anchoring
The solid steel frame with drainage outlets is positioned over the anchor bolts and secured to the road surface. Frame level and flush contact with the road surface are verified.
Rotating Axis & Spike Assembly Installation
The solid steel rotating axis is installed in the frame bearings. Heavy-duty steel spikes are bolted to the rotating axis at the confirmed spacing and orientation. Spike raise and lower rotation through the full arc is verified.
Foot Pedal & Manual Handle Connection
The foot pedal mechanism and manual handle are connected to the rotating axis drive. Smooth spike raise and lower on foot pedal press and manual handle operation are verified.
Drainage Verification
Drainage outlet function within the frame is confirmed — water introduced to the frame interior drains freely without accumulation.
Operational Testing & Mandatory Signage
Complete raise/lower operation through foot pedal and manual handle, spike height in the raised position, and spike lowering for authorized vehicle pass-over are tested. Warning signage notifying drivers of spike barrier presence and tyre damage risk is installed at all approach positions.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Foot Pedal Manual Spike Barriers are deployed across the full range of security checkpoint and access control applications requiring officer-controlled manual spike vehicle stopping.
