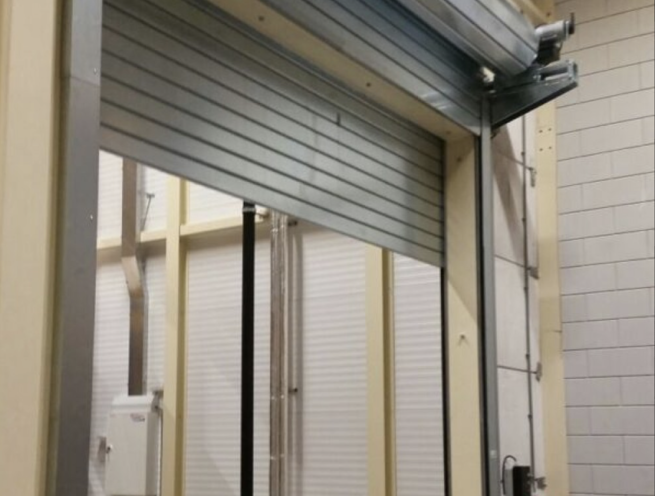

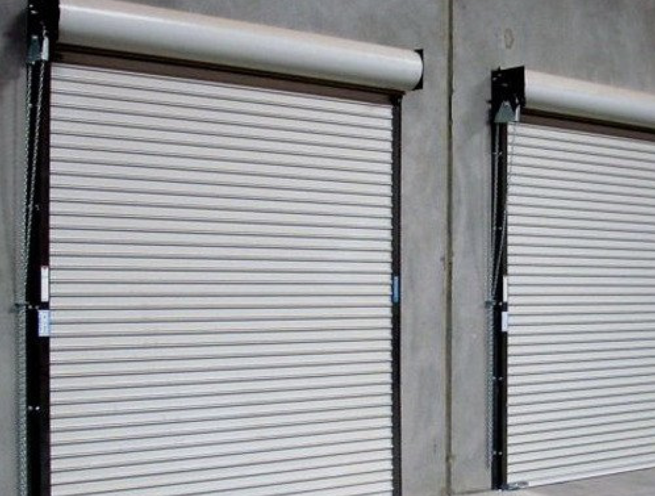

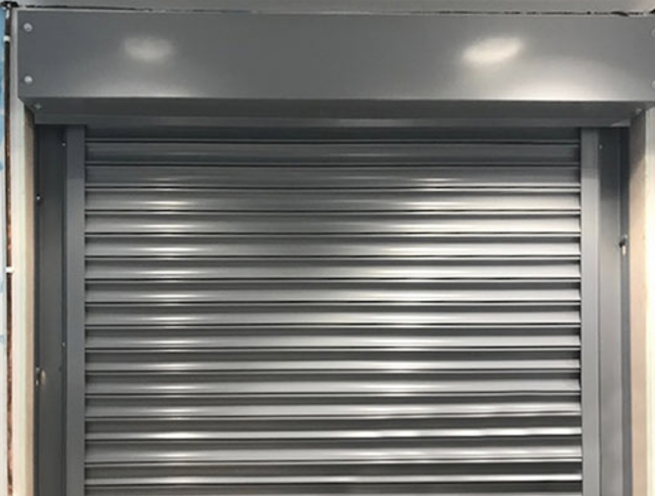

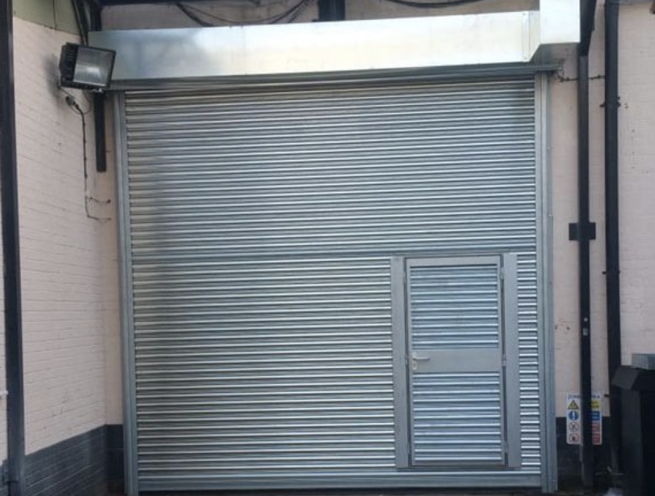

Fire Resistant Shutter Door, Fireproof Roller Shutter Window
The Madoors USA Fire Resistant Shutter Door and Fireproof Roller Shutter Window System is an EW-rated fire resistant rolling steel door and shutter system providing up to 120 minutes of fire resistance in accordance with EN 1634-1 European standard — tested from both sides to confirm certified performance — for fire compartmentation, fire and smoke containment, life safety egress protection, and daily-use security and access control at government institutions, shopping centers, industrial facilities, and any building requiring the highest available fire protection with the lowest cost of ownership in a modern, easily integrated package.
Fire Rated Roller Shutter Doors stop fire and smoke from spreading — protecting property and, more importantly, protecting lives. The advanced Madoors USA fire door system compartmentalizes a fire event quickly, providing adequate time for egress from the building. Approved for non-egress openings where daily security and access control are simultaneously required alongside certified fire resistance.
TECHNICAL SPECIFICATIONS
The Madoors USA Fire Resistant Roller Shutter is rated to EW criteria — confirming that the door provides radiation control in addition to integrity performance. Under EN 1634-1 European fire door testing, the EW rating confirms that the door passes the integrity test — no flame or hot gas passes through gaps for the full rated duration — and limits the radiant heat flux transmitted through the door to below the threshold that would ignite materials on the protected side. This EW radiation control performance is the critical fire safety advantage of the Madoors USA roller shutter over E-only rated doors that provide gap integrity but allow sufficient radiant heat transfer to ignite materials on the unexposed side.
Fire resistance duration of up to 120 minutes — confirmed by two-sided testing to EN 1634-1 — satisfies the highest fire resistance requirements applicable to fire-rated rolling steel doors in commercial, industrial, and institutional building construction. Two-sided testing confirms that the door provides the rated performance regardless of which side the fire originates from — critical for internal compartmentation doors where the fire source may be on either side.

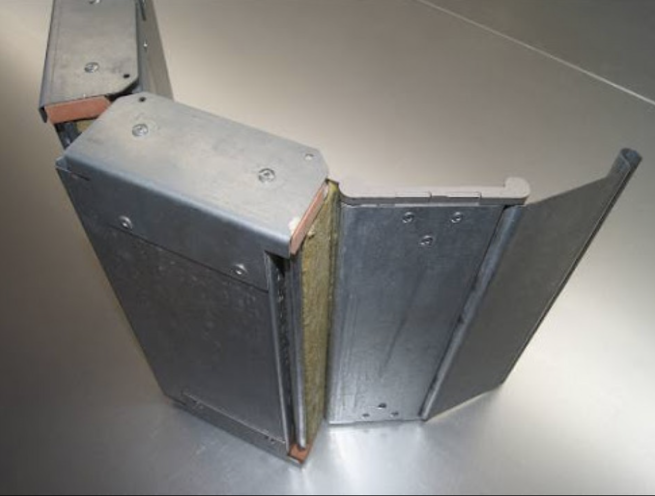

Rolling steel construction provides the structural separation required for fire compartmentation — the steel curtain maintains its structural integrity under the thermal loading of the fire test duration, preventing the formation of gaps that would allow flame and hot gas passage. Rolling steel doors are approved for non-egress openings — openings that are not required means of egress under the building code, where the fire door function is to contain the fire rather than to provide a primary evacuation route.
KEY FEATURES
EW Rated — 120 Minutes Fire & Radiation Control
The EW 120 fire resistance rating — confirmed by EN 1634-1 two-sided testing — provides both fire integrity and radiation control for the full 120-minute duration. The 120-minute rating satisfies the most stringent fire resistance requirements applicable to roller shutter fire doors in the European and international building code frameworks — covering the extended fire duration required for high-occupancy buildings, high fire load industrial facilities, and buildings with extended evacuation times.
EN 1634-1 Two-Sided Testing — Certified from Both Sides
The two-sided testing to EN 1634-1 confirms that the certified fire resistance performance is independent of the fire source side — the door provides the same EW 120 performance whether the fire originates in the compartment on the primary face or on the secondary face. This two-sided certification is the procurement documentation requirement for fire-rated doors at internal compartmentation positions where the fire direction cannot be predetermined.
Fire & Smoke Compartmentation — Life Safety Priority
The primary function of the Madoors USA fire roller shutter is to stop fire and smoke from spreading through the building — protecting both the occupants in adjacent compartments who need time to evacuate and the property in the adjacent zones from fire and smoke damage. The advanced compartmentation system operates quickly on fire activation to provide maximum time for egress before conditions in the affected compartment deteriorate to the level that threatens occupants in adjacent areas.
Adequate Egress Time — Advanced Fire Door System
The Madoors USA advanced fire door system compartmentalizes the fire event quickly — activating automatically on fire signal to close the opening and isolate the fire compartment before smoke and fire conditions spread to adjacent egress routes. The compartmentation time provided by the 120-minute rated barrier directly determines the available egress time for building occupants — the longer the barrier holds, the more time occupants have to evacuate safely.
Daily Use — Security & Access Control
The fire resistant roller shutter is designed for daily use in the normal operational cycle of the building — providing security closure and access control during non-fire conditions while maintaining the fire compartmentation readiness required to respond to a fire event at any time. This dual-function daily-use and fire-safety capability eliminates the need for separate security shutters and fire doors at the same opening, reducing the total door count and installation cost.
Lowest Cost of Ownership — Modern Integrated Package
The Madoors USA fire resistant roller shutter is specifically described as the clear and reliable choice for the highest level of life safety and fire protection with the lowest cost of ownership — the modern, easily integrated package design minimizes installation complexity, reduces maintenance requirements, and provides long operational life that amortizes the initial product cost over the maximum service period. This lowest cost of ownership position addresses the total lifecycle cost of the fire door installation rather than only the initial purchase price.
Approved for Non-Egress Openings
Approval for non-egress openings — openings not required as means of egress — confirms that the Madoors USA fire roller shutter satisfies the building code compliance requirement for fire-rated closure of internal compartmentation openings, service openings, and facility access points that are not primary evacuation routes. This approval category covers the majority of internal compartmentation door positions in industrial, commercial, and institutional buildings.
Government, Shopping Center & Industrial Applications
The fire resistant roller shutter is specifically suitable for three primary application environments — government institutions where fire safety regulatory compliance and occupant life safety are mandatory procurement requirements, shopping centers where the high occupancy, extended egress routes, and varied fire load of retail environments make 120-minute fire compartmentation the appropriate specification, and industrial applications where the high fire load of manufacturing, storage, and process operations requires the maximum available fire resistance duration.
PRODUCT RANGE
EW 30 Fire Resistant Roller Shutter — 30-minute EW rated fire and radiation resistance. Standard commercial building compartmentation. Lower fire load applications.
EW 60 Fire Resistant Roller Shutter — 60-minute EW rated. Medium fire resistance requirement. Commercial and institutional compartmentation.
EW 90 Fire Resistant Roller Shutter — 90-minute EW rated. Extended fire resistance for higher fire load applications.
EW 120 Fire Resistant Roller Shutter — Maximum 120-minute EW rated. Highest available fire resistance for the most demanding industrial, government, and high-occupancy applications. Two-sided EN 1634-1 tested.
ASSEMBLY & INSTALLATION SEQUENCE
Opening Assessment & Fire Rating Selection
Opening width and height, required fire resistance duration — EW 30, 60, 90, or 120 minutes — wall construction type for frame anchoring, daily-use operational requirements, and automatic closure trigger — fire alarm interface — are confirmed.
Frame Installation
The fire-rated roller shutter frame is installed and anchored to the surrounding wall construction. Frame alignment and structural connection are verified for the full curtain weight and fire test loading.
Curtain & Coil Assembly Installation
The rolling steel fire curtain and coil assembly are installed in the frame and housing. Curtain travel, guide engagement, and bottom rail sealing contact are verified through complete operational cycles.
Fire Alarm Interface & Automatic Closure
The fire alarm system interface is connected to the shutter release mechanism — confirming automatic closure activation on fire signal. Closure speed and bottom rail contact seal performance are verified.
Daily-Use Operation Testing
Normal daily-use opening and closing operation is tested across multiple cycles. Security and access control functions are verified.
EN 1634-1 Certification Documentation & Handover
EW fire resistance certification documentation, EN 1634-1 test reports, approval documentation for non-egress opening application, and installation records are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Fire Resistant Shutter Doors and Fireproof Roller Shutter Windows are specified for any building opening requiring certified EW fire compartmentation with daily-use security and access control.
- Government building fire compartmentation shutters
- Shopping center and retail mall fire-rated shutters
- Industrial facility fire compartmentation roller doors
- Warehouse fire zone separation shutter systems
- Manufacturing plant process area fire shutters
- Airport terminal fire compartmentation shutters
- Hospital and healthcare facility fire-rated shutters
- Hotel and hospitality facility fire compartmentation
- University and educational building fire shutters
- Corporate headquarters and office building fire shutters
- Data center and critical facility fire-rated shutters
- Pharmaceutical and laboratory fire compartmentation
- Food processing and cold storage fire shutters
- Car park and basement fire compartmentation shutters
- Any non-egress opening requiring EW 120-minute fire resistance
