Fence Drop Arm Barrier
The Madoors USA Fence Drop Arm Barrier is a physical security access control system combining a sturdy fence or barricade structure with a retractable drop arm mechanism — engineered to control vehicular access to restricted areas at military installations, government buildings, secure parking facilities, industrial sites, and private properties where authorized vehicle management and unauthorized vehicle deterrence are simultaneously required. The system combines the physical barrier presence of a fence or barricade with the operational flexibility of a controlled drop arm that raises to permit authorized vehicle passage and lowers to deny access to unauthorized vehicles.
TECHNICAL SPECIFICATIONS
The Madoors USA Fence Drop Arm Barrier system consists of five primary integrated components — the fence or barricade structure, the drop arm mechanism, the pivot and support system, the drive mechanism, and the control and access management system.
The fence or barricade component provides the primary physical obstacle preventing vehicle access to the restricted area. Construction materials are selected based on the required impact resistance and security level of the specific installation — options include metal, reinforced concrete, and other durable impact-resistant materials engineered to withstand vehicle contact and forced entry attempts.
The drop arm mechanism is a horizontal arm spanning the full width of the entrance or exit point, attached to a pivot point on one side of the opening. The opposite end of the arm is supported by a hydraulic or motorized drive mechanism that raises the arm to the vertical position for vehicle passage and lowers it to the horizontal position for access denial. The arm length is matched to the opening width of the specific installation.
The drive mechanism is available in hydraulic and motorized electric configurations — with hydraulic drive providing high-force output and reliable operation in extreme temperature environments, and electric motorized drive providing efficient, electronically managed operation with precise position control for standard access management applications.

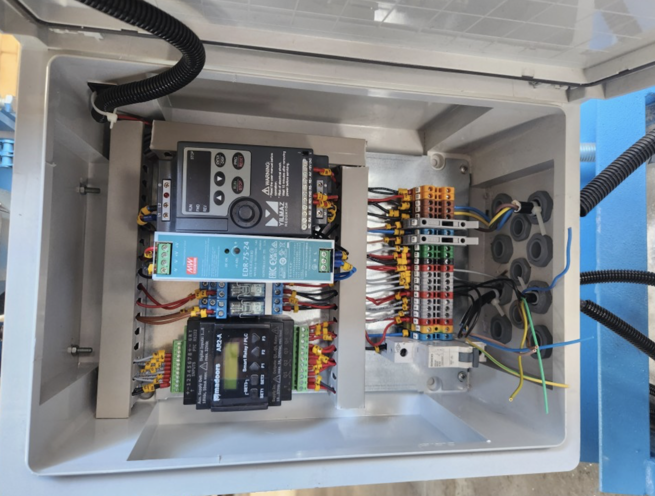

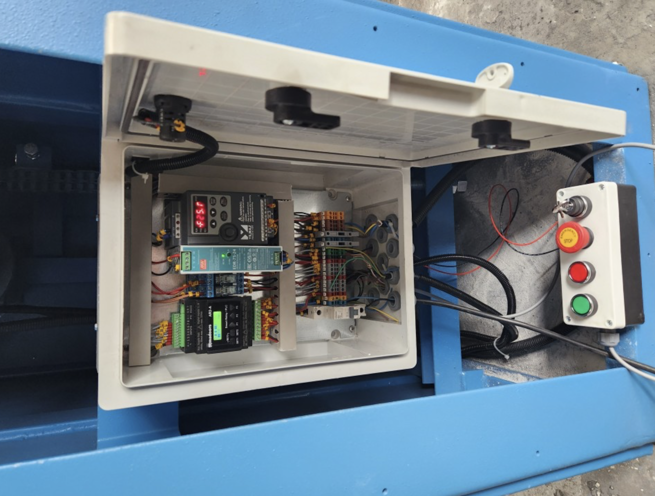

The control system manages drop arm operation through remote controls, keypads, card readers, intercom systems, and other access control devices — allowing authorized personnel to raise and lower the arm from a fixed control point or remotely. Safety sensors detect the presence of vehicles or obstacles in the arm travel path and prevent the arm from lowering while the path is occupied, eliminating the risk of arm contact with a vehicle that has stopped or stalled under the arm position.
Optional features include integrated lighting for visibility during night operations, warning signs and reflective elements for arm visibility in low-light conditions, and traffic signal integration for coordinated vehicle flow management at high-volume access points.
KEY FEATURES
Combined Fence & Drop Arm System
The combination of a physical fence or barricade structure with a controlled drop arm provides both passive physical barrier coverage across the entire protected perimeter and active access control at the designated vehicle entry and exit points — creating a complete vehicle access management solution from a single integrated system. The fence prevents unauthorized vehicle access along the full perimeter length while the drop arm controls authorized vehicle movement through the designated access points.
Hydraulic & Motorized Electric Drive Options
Two drive mechanism options cover different operational requirements and environmental conditions. Hydraulic drive provides consistent high-force arm operation across extreme temperature ranges and in high-cycle industrial access control applications. Electric motorized drive provides energy-efficient, electronically managed operation with precise arm position control and straightforward integration with electronic access control systems for standard commercial, government, and institutional access management applications.
Comprehensive Access Control Integration
The drop arm control system integrates with the full range of access control devices — remote controls for operator-managed vehicle access, keypads for PIN code authorization, card readers for credential-based vehicle access, intercom systems for two-way communication between vehicle operators and security personnel, and building management system interfaces for centralized access event logging and reporting. This integration flexibility allows the Fence Drop Arm Barrier to be incorporated into any existing or new access control infrastructure.
Vehicle Detection Safety Sensors
Safety sensors are installed in the arm travel zone to detect vehicle and obstacle presence, automatically preventing the arm from lowering while any vehicle or object occupies the space beneath the arm. This active safety protection eliminates the vehicle damage and liability risk of arm contact with a stopped or slow-moving vehicle and satisfies the safety requirements of automated access control barrier systems under applicable machinery safety standards.
Customizable to Site Requirements
The barrier system is customizable to the specific requirements of each installation — fence material and design, drop arm length, drive mechanism type, control system configuration, additional lighting, warning signage, and reflective elements are all selectable and configurable to match the specific security level, traffic volume, aesthetic requirements, and operational protocol of each site. This customization flexibility allows the same barrier system type to serve the full range of applications from simple private property access control through to high-security military and government facility vehicle management.
Physical Deterrent & Visual Access Control Signal
The visible presence of the fence barrier and raised drop arm provides a clear physical and visual signal to approaching vehicle operators that controlled access is required — deterring unauthorized access attempts before they occur and clearly communicating the security status of the access point. This deterrence function complements the physical stopping capability of the barrier and reduces the frequency of unauthorized access attempts at protected facilities.
Integrated Lighting & Reflective Elements
Optional integrated lighting and reflective elements on the drop arm and fence structure maintain clear visibility of the barrier during night operations and low-visibility weather conditions — ensuring that vehicle operators can identify the barrier position and status at all times and reducing the risk of accidental barrier contact in poor visibility.
ASSEMBLY & INSTALLATION SEQUENCE
Site Survey & System Configuration
The access point geometry — entrance width, vehicle traffic volume, security level requirement, and available installation space — is assessed. Fence material, drop arm length, drive mechanism type, and access control system configuration are confirmed. Safety sensor positions and lighting requirements are determined.
Fence & Barricade Foundation Installation
Foundation excavation and concrete-setting are completed at fence post and barricade anchor positions along the perimeter line and at the access point. Post anchor bolts and barricade fixing positions are set to the installation engineering drawings.
Fence Panel & Barricade Installation
Fence panels and barricade sections are installed on the prepared foundations, aligned, and fixed at all specified connection points. Fence continuity and barricade structural connection integrity are verified across the full installation run.
Drop Arm Pivot Post & Drive Mechanism Installation
The drop arm pivot post is installed and anchored at the specified position at one side of the access opening. The hydraulic or electric motorized drive mechanism is installed at the opposite support position. Drive mechanism structural fixing and alignment with the pivot post are verified.
Drop Arm Installation & Pivot Connection
The drop arm is installed on the pivot post connection and connected to the drive mechanism at the opposite end. Arm travel — full raise and full lower — is tested for correct geometry, clearance, and drive engagement throughout the full travel range.
Control System & Access Control Integration
The control system is installed and connected to the drive mechanism. Remote controls, keypads, card readers, intercom, and other specified access control devices are installed and wired to the control system. All access control interfaces are tested and verified for correct raise and lower command response.
Safety Sensor Installation & Testing
Safety sensors are installed at the specified positions in the arm travel zone. Sensor detection response — arm halt on obstacle detection — is tested with simulated vehicle presence under the arm at multiple positions in the travel zone. Sensor sensitivity and response time are verified to the installation specification.
Lighting & Reflective Element Installation
Integrated lighting and reflective elements are installed on the drop arm and fence structure at the specified positions. Light output coverage and reflective element visibility are verified for nighttime conditions.
Final Operational Testing & Handover
Complete operational testing across all access control interfaces, safety sensor responses, drive mechanism cycles, and lighting functions is conducted. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Fence Drop Arm Barriers are specified for any vehicle access control point requiring the combined physical barrier presence of a fence and the operational flexibility of a controlled drop arm at designated entry and exit points.
- Military installation vehicle access control points
- Government building and ministry vehicle entrance management
- Secure parking facility entrance and exit control
- Industrial facility and factory main vehicle gate
- Petrochemical plant and refinery vehicle access control
- Airport perimeter road and cargo facility vehicle access
- Prison and correctional facility vehicle entrance management
- Corporate campus and business park vehicle access control
- Hospital and healthcare facility parking entrance management
- Shopping center and retail park vehicle access control
- Port and maritime terminal vehicle access management
- University and educational campus vehicle entrance control
- Hotel and hospitality facility parking entrance management
- Residential estate and gated community vehicle access
- Border crossing and customs vehicle access management
