Explosion Resistance Sectional Door, Explosion Proof Garage Door, Blast Proof Industrial Panel Door
The Madoors USA Explosion Resistance Sectional Door, Explosion Proof Garage Door, and Blast Proof Industrial Panel Door range covers automatic motorized and manual blast-resistant sectional panel doors, garage doors, sliding doors, and hinged doors capable of withstanding very high explosion pressure loads from both inside and outside — with standard protection against positive explosive pressures of 5.0 bar, 72.5 psi, and pressure loads of 500 kN/m², and higher blast loads available through project-specific engineering using advanced structural calculation programs. By installing explosion-resistant sectional and industrial doors in high-risk industrial, petrochemical, military, and government facility areas, the consequences of an explosion are contained and the risk of material and personnel damage is significantly reduced.
Madoors USA's experienced consultants provide full in-house calculation of every blast-resistant door design — covering post-impact door functionality, panel deformation limits, blast rebound effects, and fragment and projectile impact resistance — enabling project-based development of blast-proof industrial door solutions precisely matched to the confirmed explosion scenario, facility layout, and operational requirements of each specific installation.
TECHNICAL SPECIFICATIONS
Madoors USA Explosion Resistance Sectional and Industrial Panel Doors are available in sectional overhead panel, garage door, sliding, and hinged configurations — providing the appropriate door type for each specific industrial opening requirement. All configurations are engineered for bidirectional blast resistance — withstanding explosion pressure loads from both inside and outside the protected space — covering internal explosion scenarios where the explosion source is within the protected facility zone and external explosion scenarios where the blast originates from outside.
Standard blast protection covers 5.0 bar positive explosive pressure, 72.5 psi, and 500 kN/m² static pressure load — the most widely specified blast resistance level for petrochemical plant control rooms, chemical storage facility blast doors, industrial explosion hazard facility vehicle and personnel access points, and sectional garage doors at explosive hazard zone boundaries. Higher blast loads beyond the standard 5.0 bar specification are available through project-specific engineering.
Project-based door development covers additional blast performance parameters beyond basic pressure resistance — post-impact door functionality for continued operation after blast, deformation limits where clearance to adjacent equipment constrains panel deflection, rebound effects from the negative pressure phase following the positive overpressure peak, and combined static and dynamic pressure loading scenarios. Fragment and projectile impact resistance during and after an explosion is also designable within the Madoors USA explosion-resistant door program.
KEY FEATURES
Standard 5.0 Bar / 72.5 psi / 500 kN/m² Blast Resistance
The standard Madoors USA explosion-resistant sectional and industrial panel door provides blast resistance against 5.0 bar positive explosive pressure — the most commonly specified industrial blast door standard for petrochemical, chemical processing, pharmaceutical, and oil and gas facility explosion hazard zone doors. This standard specification is available without project-specific engineering for the majority of industrial blast sectional door applications, providing cost-effective and time-efficient procurement for standard blast door requirements.

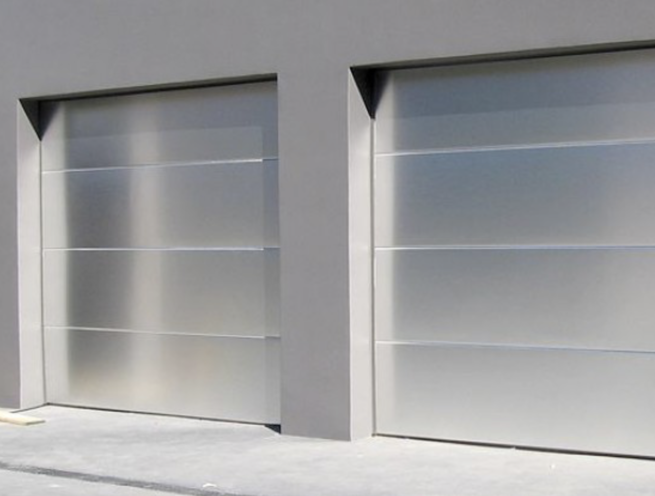

Sectional Overhead Panel Configuration — Industrial Vehicle Access
The sectional overhead panel door configuration provides blast-resistant closure of large industrial vehicle access openings — warehouse loading bays, industrial facility vehicle entrances, aircraft hangar openings, and any wide-format overhead door position in an explosion hazard zone. Sectional panel construction allows the door to be manufactured in any width and height combination required for the specific industrial opening, with blast-rated panel joints between sections designed to maintain structural integrity under the blast overpressure loading.

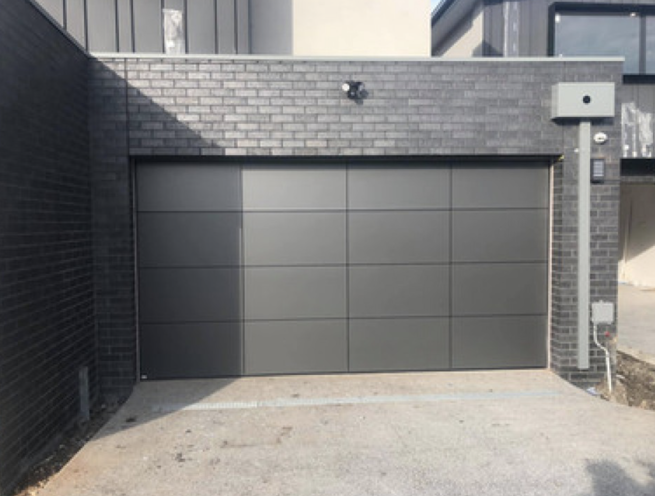

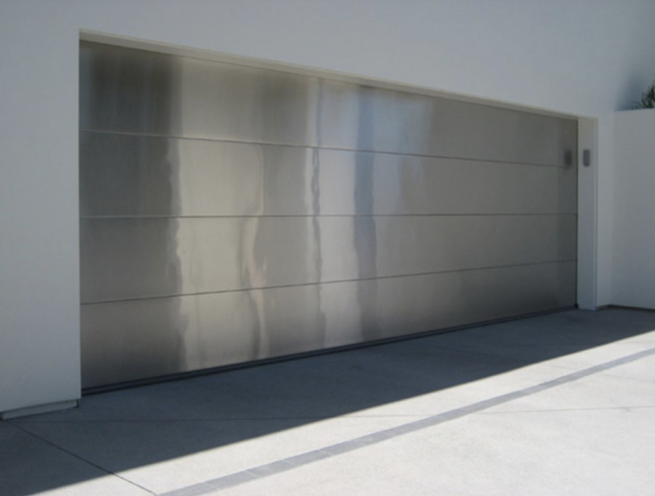

Garage Door Configuration — Explosion Proof Vehicle Access
The explosion proof garage door configuration provides blast-resistant vehicle access at industrial facilities, petroleum storage sites, military vehicle depots, and any garage-type opening in a blast hazard zone. Motorized automatic operation is available for high-cycle vehicle access at active industrial sites where manual operation would reduce operational efficiency.
Bidirectional Blast Resistance — Inside & Outside Explosion
All configurations are designed for bidirectional blast resistance — maintaining structural integrity and blast containment performance against explosion pressure applied from either side of the door. This bidirectional capability covers the complete range of industrial explosion scenarios where the explosion source location relative to the door cannot be predetermined with certainty.
Full In-House Structural Calculation — Advanced Programs
Madoors USA conducts full structural calculation of every explosion-resistant sectional and industrial panel door using advanced calculation programs — providing mathematically verified performance confirmation for the specific blast pressure, panel dimensions, joint configuration, frame anchorage, and hardware specification of each project door. This calculation capability allows blast door performance to be precisely verified before manufacture and eliminates the structural uncertainty of non-calculated blast door designs.
Post-Impact Functionality Design
Where project requirements specify that the door must remain functional — capable of being opened and closed — after sustaining the design blast load, Madoors USA designs the panel, joint, hinge, and hardware specification to achieve this post-blast functionality requirement. Post-impact functional capability is critical for blast doors that serve as primary egress routes — the door must remain operable for emergency evacuation after the blast event without repair or forced opening.
Deformation Limit Engineering
Where clearance constraints to adjacent equipment, structural elements, or operational pathways limit the maximum allowable door panel deflection under blast loading, Madoors USA's calculation program determines the panel stiffness, support spacing, and frame anchorage required to contain deformation within the specified tolerance. This deformation limit engineering prevents post-blast contact between the deflected door panel and adjacent equipment that could cause secondary damage or operational failure.
Rebound Effect Design
The negative pressure phase following the blast overpressure peak applies load to the door in the direction opposite to the primary overpressure — the rebound load. Madoors USA's full dynamic analysis accounts for rebound effects in the panel, joint, hinge, and hardware design — ensuring that the door maintains structural integrity throughout the complete blast loading cycle including both the positive and negative pressure phases.
Fragment & Projectile Impact Resistance
In addition to blast overpressure resistance, the door can be designed to withstand the impact of fragments and projectiles generated by the explosion — high-velocity debris that accompanies blast events in industrial and military environments. Fragment impact resistance combines with blast overpressure resistance in a single door panel design for applications where the complete explosion threat must be addressed by a single door specification.
Widely Varying Projects & Sectors — Experienced Consultants
Madoors USA's explosion-resistant industrial door consultants bring extensive experience across petrochemical, chemical processing, pharmaceutical, oil and gas, military, and government facility sectors — providing practical implementation guidance for the full range of blast-rated sectional, garage, and industrial panel door applications. This sector experience supports efficient project specification, practical installation guidance, and effective integration of blast door requirements with the specific operational constraints of each facility type.
Higher Blast Loads — Project-Specific Engineering
For blast pressure requirements exceeding the standard 5.0 bar specification, Madoors USA conducts project-specific structural engineering to design a door capable of meeting the confirmed higher blast pressure requirement. This unlimited upper blast load design capability — constrained only by the physical limits of structural steel and concrete construction — allows Madoors USA to provide certified blast-resistant sectional and industrial doors for the most demanding military, government, and industrial blast protection specifications.
PRODUCT CONFIGURATIONS
Explosion Resistance Sectional Overhead Panel Door
Vertical sectional overhead door in blast-rated panel configuration for wide industrial vehicle and equipment access openings. Blast resistance from 5.0 bar standard to higher loads on project specification. Automatic motorized or manual operation. Suitable for petrochemical plant loading bay entrances, industrial facility vehicle access, and hazardous zone boundary openings.
Explosion Proof Garage Door
Blast-resistant garage door in sectional or one-piece configuration for vehicle access at industrial and military facilities. Standard 5.0 bar blast resistance with higher specification available. Motorized automatic and manual operation options. Suitable for fuel storage facility vehicle entrances, military vehicle depot access, and industrial explosion hazard zone garage openings.
Blast Proof Industrial Panel Door
Heavy-duty industrial blast panel door in sliding, hinged, or sectional configuration for large industrial opening blast protection. Full project-specific engineering for post-impact functionality, deformation limits, rebound effects, and fragment resistance. Suitable for petrochemical plant process area access, chemical storage facility entrances, and military installation industrial openings.
ASSEMBLY & INSTALLATION SEQUENCE
Blast Scenario Assessment & Door Type Selection
Explosion scenario — type, quantity, standoff distance, and blast pressure — is confirmed. Standard 5.0 bar or project-specific higher blast pressure is specified. Door type — sectional overhead panel, garage door, sliding, or hinged — is selected for the opening. Post-impact functionality, deformation, rebound, and fragment resistance requirements are confirmed.
Full Structural Calculation
Complete structural calculation of the door panel, section joints, frame, hinge system, hardware, and foundation anchorage is conducted using advanced calculation programs for the confirmed blast pressure and project-specific requirements. Calculation documentation is prepared for client and regulatory review.
Structural Opening Preparation
The opening in the blast-rated wall is prepared to the confirmed frame dimensions. Frame-to-wall anchor positions are designed and installed for blast-rated load transfer into the surrounding structural wall.
Frame Installation & Blast-Rated Anchorage
The explosion-resistant door frame is installed and anchored to the surrounding blast wall structure at all specified positions. Frame alignment, structural connection integrity, and anchor torque are verified.
Door Panel Section Installation
Blast-rated sectional door panels are installed in sequence onto the overhead track from the bottom section upward — or hung on hinges for hinged configurations — with blast-rated panel joint connections between sections verified for structural continuity. Motorized drive system is installed and connected.
Drive System Commissioning & Testing
Drive system is commissioned. Travel limits, speed, and limit positions are set. Emergency manual operation is tested. Post-impact functionality is verified through simulated operational testing.
Certification Documentation Handover
Full structural calculation documentation, blast resistance engineering records, and installation documentation are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Explosion Resistance Sectional Doors, Explosion Proof Garage Doors, and Blast Proof Industrial Panel Doors are specified for any large-format industrial opening in an explosion hazard zone.
- Petrochemical plant loading bay and vehicle access blast doors
- Chemical processing facility sectional explosion-resistant doors
- Oil and gas facility vehicle bay and equipment access doors
- Pharmaceutical manufacturing explosion hazard zone doors
- Military vehicle depot and armory sectional blast doors
- Ammunition storage facility vehicle access blast doors
- Nuclear facility vehicle and equipment access blast doors
- Industrial vapor cloud explosion hazard facility doors
- Airport fuel storage vehicle access blast-resistant doors
- Offshore platform hazardous zone vehicle access doors
- LNG terminal vehicle and equipment bay blast doors
- Government facility secure vehicle access blast doors
- Refinery process unit vehicle access explosion-proof doors
- Mining facility explosive atmosphere vehicle doors
- Research facility explosion zone vehicle access doors
