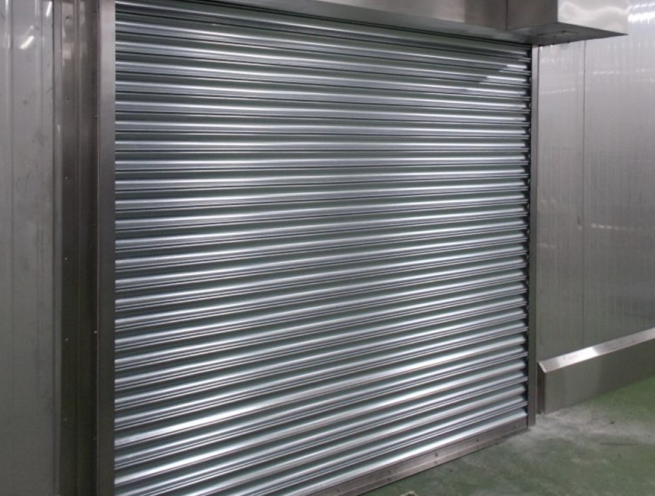

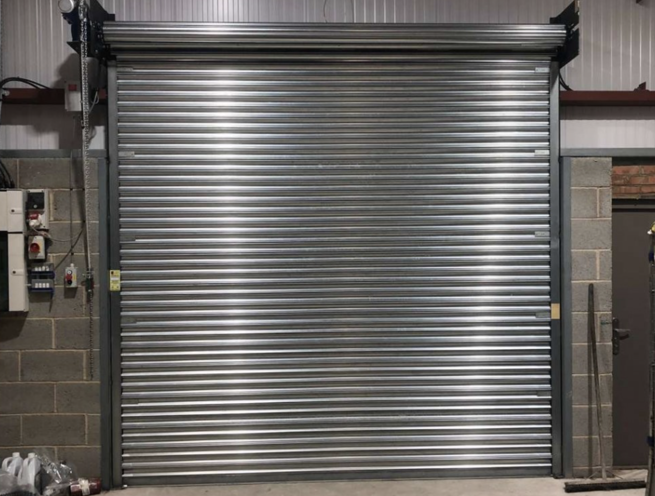

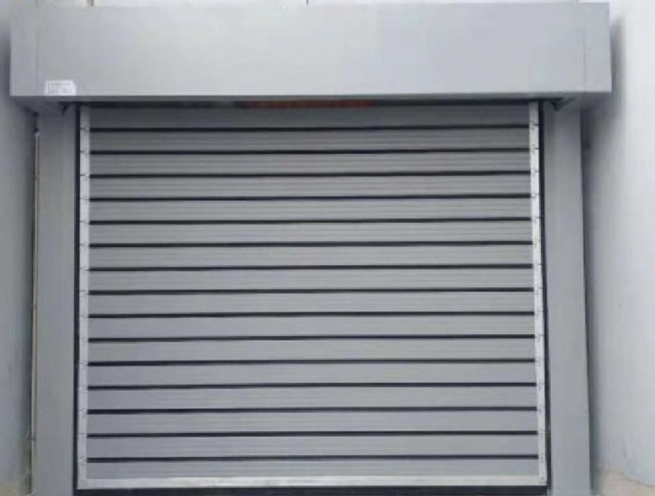

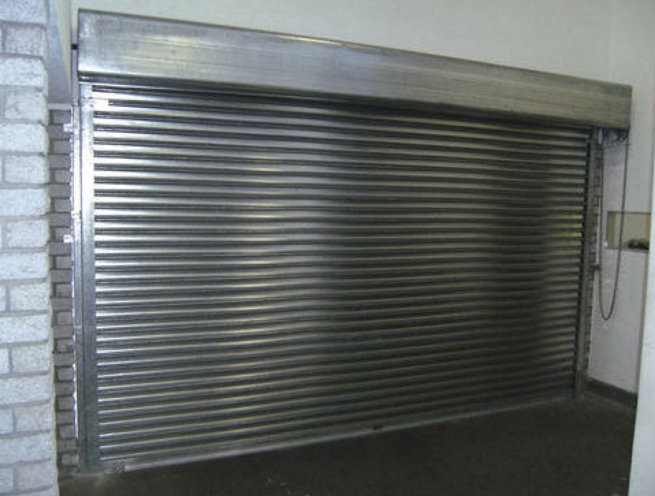

Explosion Proof Roller Shutter, Blast Proof Roller Steel Shutter
The Madoors USA Explosion Proof Roller Shutter and Blast Proof Roller Steel Shutter is a ballistic steel roller shutter system engineered to withstand explosion pressure of up to 2 bar — available in automatic hydraulic motor, electromechanical side-driven heavy-duty reducer-motor, and manual chain suspension reducer with pulley coupling configurations — for installation at door and window openings in petrochemical facilities, military installations, industrial explosive hazard areas, and any location where combined blast overpressure resistance and roller shutter operational flexibility are simultaneously required. All blast resistant shutter systems carry a 2-year warranty.
Because the ballistic steel construction makes explosion proof shutter systems significantly heavier than standard roller shutters, Madoors USA has developed proprietary drive solutions specifically for the heavy-load requirements of blast resistant ballistic steel shutters — including a hydraulic motor drive system and an electromechanical side-driven heavy-duty reducer-motor type, both designed in-house to handle the ballistic steel curtain weight that standard commercial shutter motors cannot manage. For manual operation without motor, a Madoors USA designed and manufactured chain suspension reducer with pulley coupling allows a single person to open and close the heavy ballistic steel shutter manually.
TECHNICAL SPECIFICATIONS
The Madoors USA Explosion Proof Roller Shutter is manufactured from ballistic steel — providing both the blast overpressure resistance required for 2-bar rated explosion protection and the ballistic projectile resistance inherent in ballistic steel construction. The steel curtain wraps onto the overhead drum on opening and unwinds on closing — maintaining continuous ballistic and blast protection integrity throughout the full curtain travel without section joints, gaps, or mechanical weak points in the protection layer at any position in the travel range.
Two bar explosion pressure resistance covers the blast overpressure loading generated by industrial vapor cloud explosions, process equipment failures, and moderate-proximity improvised explosive device events at petrochemical, chemical processing, and industrial explosion hazard facilities. This standard specification is available without requiring project-specific engineering for the majority of industrial blast shutter applications.
Three drive system configurations are available. The hydraulic motor drive provides the highest force output for the heaviest ballistic steel curtain weights and the longest shutter widths — delivering consistent actuation force across the full curtain weight range regardless of ambient temperature variation. The electromechanical side-driven heavy-duty reducer-motor type provides reliable motorized operation for standard ballistic steel curtain weights with the energy efficiency and electronic control integration of an electromechanical drive. The manual chain suspension reducer with pulley coupling — developed and manufactured by Madoors USA specifically for heavy ballistic steel shutters — allows a single person to operate the shutter manually without motor assistance, providing complete operational independence from electrical power supply.
KEY FEATURES
2-Bar Explosion Pressure Resistance — Blast Overpressure Protection
The ballistic steel shutter system resists blast overpressure of up to 2 bar — providing certified explosion pressure containment at door and window openings in industrial, petrochemical, and military facility blast hazard zones. Two-bar resistance covers the primary explosion pressure loading scenarios encountered at industrial explosion hazard facilities without requiring custom engineering for standard application specifications.
Ballistic Steel Construction — Combined Blast & Ballistic Protection
The ballistic steel curtain provides simultaneous blast overpressure resistance and ballistic projectile protection — addressing both the explosion pressure threat and the concurrent direct fire and fragmentation threats present in military and high-security industrial environments. Combined blast and ballistic protection from a single shutter system eliminates the need for separate blast barrier and ballistic shutter installations at openings exposed to both threat types.
Hydraulic Motor Drive — Heavy Curtain Actuation
The Madoors USA designed hydraulic motor drive system provides the high-force output required to raise and lower heavy ballistic steel curtains that exceed the lifting capacity of all standard commercial shutter motor systems. Hydraulic drive delivers consistent force regardless of curtain position in the travel range — maintaining reliable operation at the start of lift when full curtain weight is applied and throughout the travel as curtain weight decreases with drum coiling.
Electromechanical Side-Driven Heavy-Duty Reducer-Motor — Motorized Alternative
The Madoors USA electromechanical side-driven heavy-duty reducer-motor provides motorized automatic operation for standard ballistic steel curtain weight ranges — with the side-drive configuration positioning the motor at the side of the shutter housing rather than integrated in the drum bearing, providing easier motor maintenance access and a more compact overhead housing profile where headroom above the opening is limited.
Manual Chain Suspension Reducer & Pulley Coupling — Single-Person Operation
The Madoors USA designed and manufactured chain suspension reducer with pulley coupling allows a single person to open and close the heavy ballistic steel shutter manually without motor assistance — providing a mechanical advantage system that reduces the physical force required to lift the heavy steel curtain to a level achievable by one operator. This manual operation capability provides complete operational independence from electrical power supply — ensuring that blast-rated shutter openings can be managed during power outages and drive system failures.
Motor-Free Manual Option Available
The complete motor-free configuration using only the chain suspension reducer and pulley coupling is available for installations where motorized drive is not required or where operational simplicity and power independence are prioritized over automated convenience — providing certified 2-bar blast resistance and ballistic steel protection with purely manual operation.
Automatic, Motor & Manual Configurations
Three operational configurations — fully automatic with motorized drive and automated control, semi-automatic with motor and manual override, and fully manual with chain suspension reducer — cover the full range of operational requirements from high-cycle automated blast shutter applications through to low-frequency manual operation at remote or off-grid installations.
Door & Window Opening Applications
The explosion proof roller shutter system is engineered for both door and window opening positions in blast hazard zone structures — providing consistent blast overpressure and ballistic protection at all opening types within the protected building envelope. Door position shutters provide vehicle and personnel access control with blast protection. Window position shutters provide blast-rated closure of vision and light apertures.
2-Year Warranty — Madoors USA Designed Drive Systems
All blast resistant roller shutter systems carry a 2-year warranty covering both the ballistic steel curtain and the Madoors USA designed drive systems — hydraulic motor, electromechanical reducer-motor, and manual chain reducer — confirming the manufacturing quality and operational reliability of all proprietary drive components developed in-house for heavy ballistic steel shutter actuation.
ASSEMBLY & INSTALLATION SEQUENCE
Opening Assessment & Drive System Selection
Opening width, height, available headroom for drum housing, ballistic steel curtain weight estimate, operational mode — automatic, semi-automatic, or manual — and electrical supply availability are assessed. Drive system — hydraulic motor, electromechanical side-driven reducer-motor, or manual chain reducer — is selected based on curtain weight, operational mode, and power supply availability.
Structural Opening Preparation
The structural opening is prepared for blast-rated shutter installation. Header structure load capacity for the heavy ballistic steel drum and curtain assembly is verified. Drive motor mounting positions for hydraulic or electromechanical configurations are prepared.
Drum Housing & Drive System Installation
The overhead drum housing is installed at the header position. The selected drive system — hydraulic motor with supply connections, electromechanical side-driven reducer-motor with electrical connections, or manual chain reducer with pulley coupling — is installed and connected. Drive system structural mounting integrity is verified for the full ballistic steel curtain weight.
Guide Track Installation
Ballistic steel guide tracks are installed on both sides of the opening. Track alignment, plumb, and parallel spacing are verified across the full curtain travel height. Track structural fixing is verified for the blast overpressure lateral loading on the curtain in the closed position.
Ballistic Steel Curtain Installation & Drum Loading
The ballistic steel curtain is loaded onto the drum and threaded into the guide tracks. Curtain travel, guide track engagement, and drum wrap geometry are verified across the full open and close travel range.
Drive System Testing & Manual Operation Verification
Motorized open and close travel limits are set and verified for hydraulic and electromechanical configurations. Manual chain suspension reducer and pulley coupling single-person operation is tested and verified — confirming that one operator can fully open and close the heavy ballistic steel curtain using the mechanical advantage of the chain reducer system.
2-Year Warranty Documentation & Handover
Complete installation records, drive system documentation, and 2-year warranty documentation are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Explosion Proof Roller Shutters and Blast Proof Roller Steel Shutters are specified for door and window openings at any facility requiring 2-bar blast overpressure resistance and ballistic steel protection.
- Petrochemical plant and refinery explosion hazard zone shutters
- Chemical processing facility blast-rated door and window shutters
- Oil and gas facility control room and instrument room shutters
- Military installation explosive hazard zone door shutters
- Ammunition storage facility blast-resistant roller shutters
- Industrial vapor cloud explosion hazard facility shutters
- Nuclear facility blast-resistant door and window shutters
- Government secure facility blast-rated roller shutters
- Offshore platform hazardous zone explosion proof shutters
- Pharmaceutical manufacturing explosion hazard door shutters
- Airport fuel storage and handling facility blast shutters
- LNG terminal and gas storage facility blast roller shutters
- Military forward operating base blast-resistant shutters
- Research facility explosion zone blast-rated door shutters
- Wastewater treatment biogas zone explosion proof shutters
