Elevated Sangar

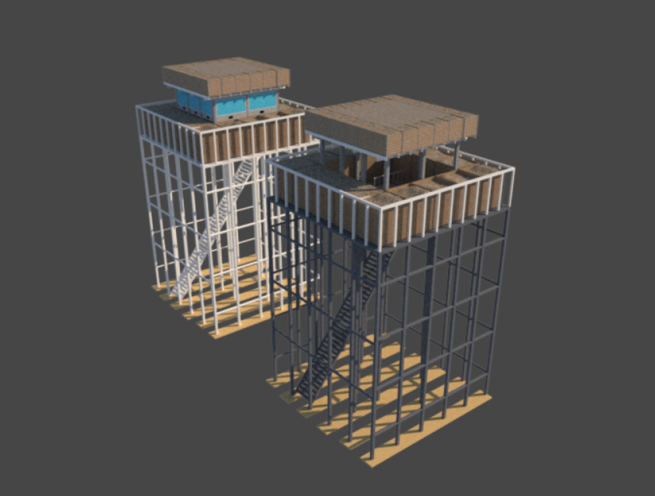

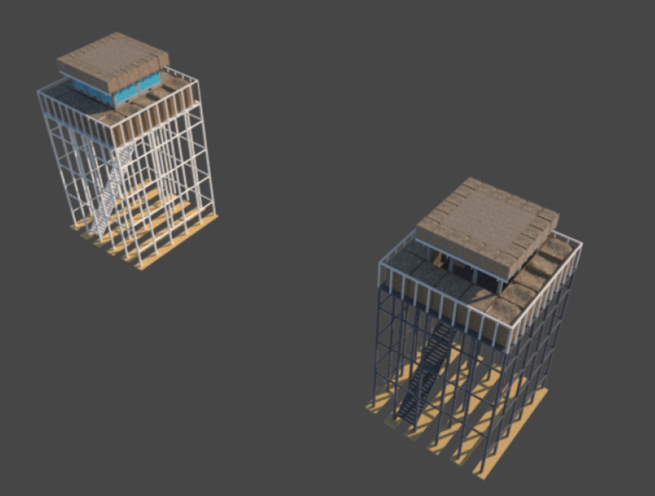

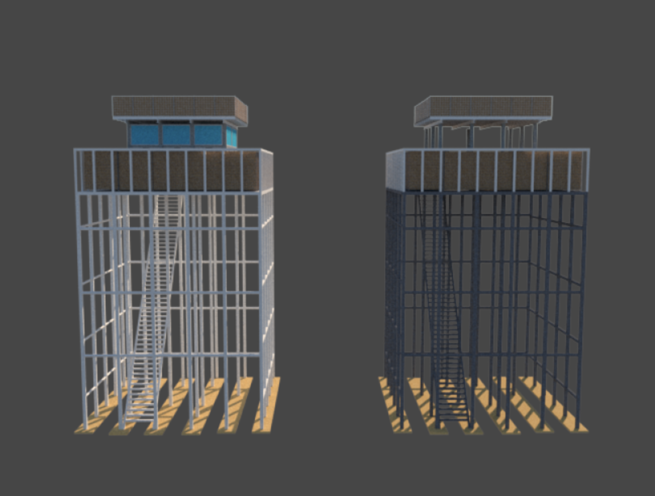

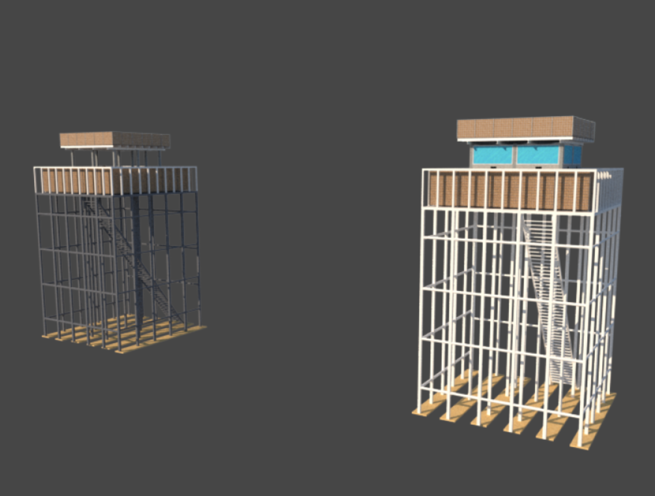

The Madoors USA Elevated Sangar is a rapidly deployable, earth-filled modular military observation and guard position engineered for rapid assembly in eight hours with a construction team, a suitable loading machine, and minimal ground preparation — providing blast protection, ballistic threat defense, explosion resistance, and projectile protection from a combat-tested ML series gabion box structure at an elevated 7.36-meter overall height with a 3 × 3-meter internal working space and stairway access to the upper observation level.
Constructed from unique earth-filled modular ML1, ML2, and ML series gabion box units that are flat-packed for transport and storage, the Madoors USA Elevated Sangar is designed not only for rapid initial deployment but equally for rapid disassembly, repackaging, and redeployment at a new location — making it a cost-effective, reusable long-term force protection asset. Ballistic glass can be fitted to the apertures to provide additional protection to occupants at observation and firing positions without compromising the sangar's protection capability.
TECHNICAL SPECIFICATIONS
Both Madoors USA elevated sangar configurations share the following base specification. Base dimensions: 5.5 meters × 5.5 meters (18 feet × 18 feet). Internal space per level: 3 meters × 3 meters. Overall height of the Elevated Sangar: 7.36 meters with stairway access to the upper level. Assembly time: eight hours with a construction team and suitable loading machine. Ground preparation requirement: minimal.
The sangar structure is constructed from Madoors USA ML series earth-filled modular gabion box units — the same combat-tested ML series kumkoy units used in the Madoors USA gabion basket perimeter wall and defence wall range. Each ML unit is flat-packed for transport and storage, allowing large quantities of sangar units to be transported efficiently to forward deployment locations and stored compactly between deployments.
Earth filling of the ML units provides the primary blast attenuation and ballistic protection mass — with earth absorbing explosion overpressure, arresting projectile penetration, and containing shrapnel fragments without the secondary fragmentation hazard of concrete construction. Apertures in the sangar walls accommodate ballistic glass fitting for protected observation and firing positions — providing vision and engagement capability without sacrificing the ballistic protection of the surrounding earth-filled wall structure.
KEY FEATURES
Eight-Hour Assembly — Rapid Operational Readiness
The Elevated Sangar is assembled in eight hours with a construction team and a suitable loading machine — achieving same-day operational readiness from ground-level preparation to fully functional elevated observation position. This eight-hour assembly timeline makes the sangar suitable for emergency rapid deployment at forward positions where a protected elevated observation post is operationally required within hours of the decision to establish the position.
Earth-Filled ML Series Modular Units — Combat-Tested Protection
The ML series gabion box units are combat-tested against the full spectrum of threats encountered in active military operations — blast waves, ballistic projectiles, terrorist attacks, explosions, and fragmentation. The earth fill within each unit provides the ballistic attenuation mass, and the gabion basket wire mesh structure contains the earth fill under dynamic loading without the secondary fragmentation hazard of concrete or masonry wall structures. Combat testing in real operational scenarios validates the protection performance beyond laboratory testing — confirming reliability under the unpredictable loading conditions of actual threat events.
7.36-Meter Elevated Height — Superior Vantage Point
The 7.36-meter overall height of the Elevated Sangar provides a significant tactical elevation advantage over ground-level or low-elevation observation positions — extending the observation and detection range of personnel in the sangar across a wider perimeter area, reducing blind spots caused by terrain features and vegetation, and providing the command view required for effective perimeter monitoring and early threat identification at military bases, border positions, and forward operating sites.
Stairway Access to Upper Level — Safe Internal Ascent
Internal stairway access to the upper observation level allows personnel to move safely between ground and elevated positions within the protected structure — without exposure to external threats during level transitions. Protected internal access is a critical operational safety requirement for elevated observation positions in active threat environments where personnel movement between levels would otherwise require exposure to direct fire.
3 × 3-Meter Internal Space — Functional Working Area
The 3 × 3-meter internal working space at each level provides adequate room for personnel, communications equipment, optics, weapon systems, and personal equipment for sustained observation duty — accommodating the operational requirement for multiple personnel, weapon mount positions, and communications infrastructure within a compact protected footprint.
5.5 × 5.5-Meter Base — Stable Structural Platform
The 5.5 × 5.5-meter base provides a stable, wide platform that distributes the mass of the earth-filled ML unit wall structure over a large ground contact area — providing structural stability against wind loading, blast overpressure, and vehicle impact at the elevated height of the sangar without requiring deep foundation works or concrete anchor systems.
Flat-Pack ML Units — Efficient Transport & Storage
All ML series gabion box units are flat-packed for transport and storage — allowing a complete sangar unit complement to be transported to the deployment location in a significantly smaller vehicle volume than assembled gabion basket systems. Flat-pack transport efficiency directly reduces the logistics burden of sangar deployment to forward positions where vehicle availability and route capacity may be constrained.
Rapid Disassembly & Redeployment — Cost-Effective Reuse
When a sangar position is no longer required, the structure is quickly disassembled — ML units are emptied of fill material or disassembled as filled units depending on the redeployment timeline — flat-packed, and transported to the new deployment location for reassembly. This full redeployment capability transforms the sangar from a one-time installation cost into a reusable long-term force protection asset that can be repositioned across multiple operational scenarios throughout its service life.
Ballistic Glass Aperture Fitting — Protected Observation & Engagement
Ballistic glass panels can be fitted to the wall apertures of the sangar to provide protected observation and engagement positions — allowing occupants to observe the external area and engage threats through the aperture without the ballistic exposure that open apertures present. Ballistic glass fitting does not compromise the overall protection level of the surrounding earth-filled wall structure, and can be configured as observation-only windows or as combined observation and weapon engagement positions depending on the tactical requirement.
Minimal Ground Preparation — Any Location Deployment
The minimal ground preparation requirement allows the sangar to be established on virtually any reasonably flat ground surface without excavation, foundation construction, or surface preparation beyond basic leveling — enabling deployment at remote forward positions, emergency response locations, and any site where heavy civil construction equipment and extended construction time are not available.
ASSEMBLY SEQUENCE
Site Selection & Ground Preparation
The sangar site is selected for maximum tactical observation advantage and access for the construction team and loading machine. Ground surface is leveled to the minimal preparation standard required for ML unit placement. The 5.5 × 5.5-meter base footprint is marked and confirmed.
Base Layer ML Unit Placement
The first layer of ML series gabion box units is placed on the prepared ground surface using the loading machine, forming the base perimeter of the 5.5 × 5.5-meter footprint. Units are positioned and aligned to the specified base geometry with aperture positions confirmed at this stage.
Earth Filling — Base Layer
Each base layer ML unit is filled with earth from the local ground or from delivered fill material. Earth filling proceeds progressively around the base layer to maintain structural stability during filling. Aperture positions are maintained clear of fill during this stage.
Intermediate Layer Construction & Stairway Installation
Subsequent ML unit layers are placed on the filled base layer using the loading machine, building up the sangar wall height progressively. The internal stairway structure is installed within the sangar footprint during the intermediate construction stage to provide access to the upper level during construction completion.
Upper Level Platform & Observation Position Construction
Upper level floor platform ML units and the observation level wall structure are constructed and filled. Upper level apertures are confirmed at the tactical observation positions required for the specific deployment site geometry.
Ballistic Glass Fitting (Where Specified)
Ballistic glass panels are installed at the specified aperture positions — lower level and upper level — using the aperture frame hardware designed for ML series gabion box aperture dimensions. Ballistic glass seating, frame connection, and protection continuity at panel edges are verified.
Internal Fitout & Operational Commissioning
Communications equipment, lighting, weapon mounts, seating, and any other specified internal fitout items are installed within the 3 × 3-meter internal working spaces at each level. The completed sangar is inspected for structural integrity, aperture positioning, stairway safety, and ballistic glass installation quality. Operational handover to the security or military personnel taking over the position is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Elevated Sangars are deployed across the full range of military, border security, and force protection applications requiring rapidly established elevated observation and protection positions.
- Military forward operating base perimeter elevated sangars
- Combat outpost and patrol base elevated observation positions
- Military checkpoint elevated security and observation sangars
- Border security elevated observation posts
- Military base main gate elevated guard positions
- Peacekeeping mission perimeter elevated sangars
- Counter-terrorism forward position elevated observation posts
- Military exercise elevated defensive position construction
- Emergency rapid deployment elevated observation positions
- Critical infrastructure perimeter elevated security sangars
- VIP protection compound elevated observation positions
- Convoy route overwatch elevated security positions
- Military training facility elevated observation posts
- Humanitarian mission security elevated observation positions
- Rapid reaction force forward staging elevated security posts
