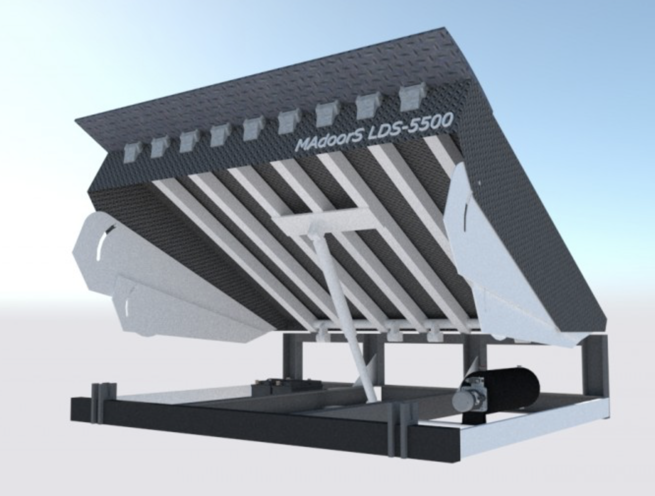

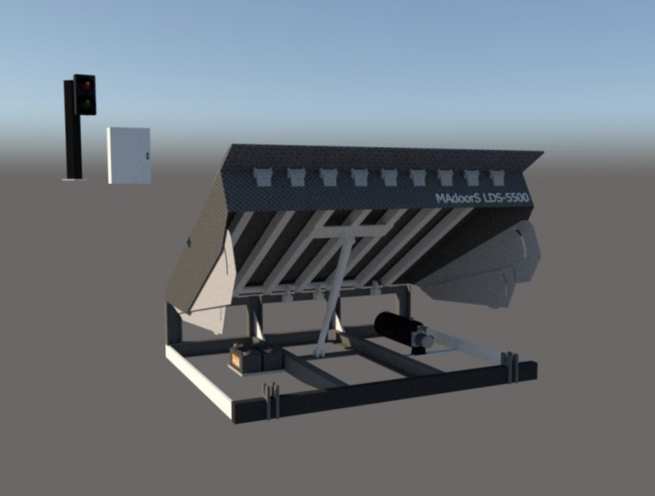

The Madoors USA LDS-5500 Hydraulic Loading Dock Leveler is a hydraulic hinged-type dock leveler system engineered to eliminate the height difference between building loading platforms and vehicle trailer floors at warehouses, distribution centers, and industrial facilities — enabling safe, efficient forklift loading and unloading operations with maximum carrying capacity, minimum downtime, and zero risk of forklift fall into the gap between the dock and the vehicle.
Available in carrying capacities of 7 tons, 9 tons, and 15 tons to match the specific loading equipment and pallet weight profile of each facility, the LDS-5500 operates with a hydraulic pump system, closes flush with the dock floor when not in use, and features drop-pattern sheet metal on both the platform and the folding tongue flap to facilitate forklift maneuvering and prevent skidding during loading operations. The twisted hinged folding tongue maintains full, uninterrupted contact with the vehicle trailer floor throughout the loading cycle, preventing the gap formation that causes forklift falls and equipment damage.
TECHNICAL SPECIFICATIONS
The Madoors USA LDS-5500 is the hydraulic hinged-type dock leveler in the Madoors USA loading dock product range. The complete range covers three product types — the hydraulic hinged-type dock leveler (LDS-5500), the hydraulic telescopic-type dock leveler, and manual or automatic mobile loading ramps for field use — with the LDS-5500 representing the primary warehouse and industrial facility fixed dock leveler configuration.
Carrying capacity options are 7 tons, 9 tons, and 15 tons — selectable based on the maximum forklift weight and maximum pallet load to be operated across the leveler during loading and unloading cycles. Capacity selection ensures that the leveler structural specification matches the operational loading demands of each specific facility without over-specification or under-specification.
The LDS-5500 operates hydraulically — the leveler platform is raised and the folding tongue is extended by a hydraulic pump system, with the platform adjusting to the height of the vehicle trailer floor. When not in use, the platform folds down to dock floor level, creating a flush surface with no protrusions that could cause trip hazards or forklift obstruction in the loading bay area.
The drop-pattern sheet metal surface on both the platform and the flap provides the anti-slip texture required for forklift tire traction and safe pedestrian footing during loading operations — preventing skidding on the leveler surface under wet, contaminated, and heavily loaded conditions. The twisted hinged folding tongue design maintains full contact with the vehicle trailer floor across the range of height differences and trailer floor angles encountered during loading operations, bridging the gap between the dock face and the trailer without creating a step or discontinuity that would cause forklift wheel drop.
Maintenance of the LDS-5500 is designed to be performed easily and quickly — with accessible hydraulic pump, cylinder, and hinge components allowing routine inspection, lubrication, and fluid checks without specialized equipment or extended maintenance downtime.
KEY FEATURES
Hydraulic Hinged-Type Operation
The hydraulic hinged mechanism raises the dock leveler platform by hydraulic pump actuation, with the platform pivoting on the rear hinge to the specified height above or below the dock floor level, and lowering under controlled hydraulic release to rest on the vehicle trailer floor. Hydraulic operation provides smooth, consistent platform movement across the full height adjustment range without manual effort from the dock operator.
Carrying Capacities: 7T, 9T & 15T
Three carrying capacity options — 7 tons, 9 tons, and 15 tons — cover the full range of forklift and pallet load weights encountered at light-to-medium warehouse operations through to heavy industrial and bulk materials distribution facilities. Capacity selection is made based on the maximum combined weight of the forklift and loaded pallet to be operated across the leveler, ensuring structural safety margin across the full operational duty cycle.
Twisted Hinged Folding Tongue — Full Uninterrupted Contact
The twisted hinged folding tongue extends from the front edge of the leveler platform and rests on the vehicle trailer floor, bridging the gap between the dock face and the trailer. The twisted hinge design allows the tongue to follow lateral trailer positioning variations and angular misalignment between the trailer floor and the dock, maintaining full contact across the tongue width even when the trailer is not perfectly square to the dock face. This continuous full contact prevents the gap formation that causes forklift front wheel drop between the dock leveler and the trailer — the primary cause of forklift falls and equipment damage at loading docks.
Drop-Pattern Anti-Slip Sheet Metal Surface
Drop-pattern sheet metal is used on both the leveler platform and the folding tongue flap, providing the anti-slip surface texture required for safe forklift operation and pedestrian footing under the contaminated, wet, and heavily loaded conditions typical of active industrial loading bays. Anti-slip surface treatment on both platform and flap ensures that the safety benefit extends across the full transition path from dock floor to trailer interior.
Flush with Dock Floor When Not in Use
When no vehicle is present at the dock, the LDS-5500 platform lowers to dock floor level — creating a flush, unobstructed surface with no protrusion above the dock floor. This flush closed position eliminates trip hazards and forklift obstruction in the loading bay area during periods when the dock leveler is not in active use, maintaining safe pedestrian and forklift circulation within the loading area.
Forklift Fall Prevention
The combination of the full-contact folding tongue, anti-slip platform surface, and flush closed position when not in use directly prevents the three primary forklift fall and accident scenarios at loading docks — forklift wheel drop into the dock-to-trailer gap during active loading, forklift skidding on the leveler surface, and forklift encounter with a raised leveler platform during bay circulation when no vehicle is present.
Equipment Damage & Injury Prevention
By eliminating the dock-to-trailer gap through full folding tongue contact, and by providing anti-slip surface texture across the full transition zone, the LDS-5500 directly prevents the equipment damage and personnel injury caused by forklift falls, pallet drops into the gap, and skidding incidents — reducing facility liability, insurance claims, and operational downtime from loading dock accidents.
Faster Loading & Increased Work Efficiency
The hydraulic operation, full-contact tongue, and anti-slip surface allow forklifts to enter and exit the trailer rapidly without slowing for the dock-to-trailer transition — increasing loading and unloading cycle speed and directly improving facility throughput efficiency compared to manual or poorly performing leveler systems where forklifts must slow significantly at the dock transition.
Easy & Quick Maintenance
The LDS-5500 is designed for easy and quick maintenance access — with all hydraulic pump, cylinder, hinge, and surface components accessible for routine inspection, lubrication, and fluid check without specialized tools or extended maintenance shutdowns. Fast maintenance access supports high operational availability of the dock leveler across the full operational working week.
PRODUCT RANGE OVERVIEW
LDS-5500 Hydraulic Hinged-Type Dock Leveler
The primary fixed loading dock leveler for warehouse and industrial facility applications. Hydraulic operation, hinged platform, folding tongue, 7/9/15 ton capacity, flush closed position, anti-slip drop-pattern surface.
Hydraulic Telescopic-Type Dock Leveler
Telescopic extension mechanism for applications requiring greater horizontal reach between the dock face and the vehicle trailer — suited to facilities with variable trailer positioning or where trailer standoff distance from the dock face is greater than the hinged-type tongue can bridge.
Manual or Automatic Mobile Loading Ramps
Portable loading ramp systems for field use — suitable for facilities without fixed dock infrastructure, for vehicle loading at ground level, and for mobile loading operations at locations without permanent dock leveler installation.
ASSEMBLY & INSTALLATION SEQUENCE
Dock Opening Assessment & Capacity Selection
The dock opening dimensions — width and pit depth — are measured. The maximum forklift weight and maximum loaded pallet weight are confirmed to determine the required carrying capacity — 7T, 9T, or 15T. The dock floor height relative to the expected trailer floor height range is confirmed to verify that the LDS-5500 height adjustment range covers the facility's specific truck fleet.
Pit Preparation
The dock leveler pit is prepared to the specified dimensions — width, length, and depth — at the dock opening position. Pit walls are reinforced and finished to the loading specification. Hydraulic power unit conduit routing from the pit to the hydraulic pump position is prepared.
Dock Leveler Unit Installation

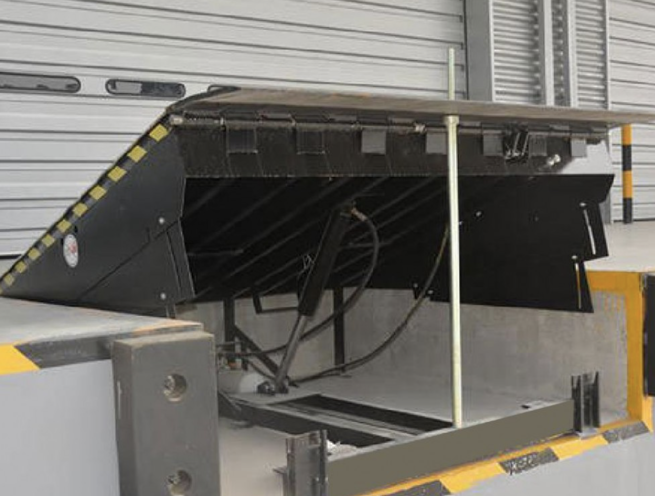

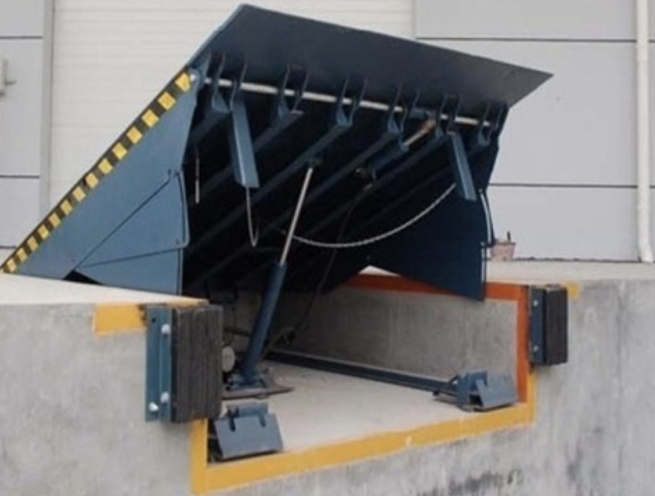

The LDS-5500 dock leveler unit is lowered into the prepared pit using crane or forklift equipment. The rear hinge is anchored to the pit rear wall at the specified fixing positions. The unit is verified for level alignment in the closed position flush with the dock floor.
Hydraulic System Connection
The hydraulic power unit is installed at the specified position adjacent to the dock. Hydraulic supply and return lines are connected between the power unit and the dock leveler cylinder. All hydraulic connections are verified leak-free and the system is pressure-tested to the specified operating pressure.
Folding Tongue Installation & Adjustment
The twisted hinged folding tongue is installed on the front edge of the leveler platform. Tongue hinge operation and full contact geometry against the simulated trailer floor height range are verified. Tongue spring or hydraulic extension function is tested across the full platform height adjustment range.
Control System Installation & Commissioning
The dock leveler control system — push-button or integrated dock management interface — is installed and connected. Platform raise, lower, and tongue deployment functions are tested through multiple complete operating cycles across the full height adjustment range.
Safety System Verification
The dock leveler is tested for flush closed position at dock floor level, anti-slip surface condition, and tongue full-contact maintenance across lateral and angular trailer positioning variations. Maintenance access to all hydraulic and hinge components is verified. Operational training for dock operators is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA LDS-5500 Dock Levelers are specified for any warehouse, distribution center, or industrial facility loading dock requiring reliable, safe, and efficient dock-to-trailer height adjustment for forklift loading and unloading operations.
- Warehouse and distribution center fixed dock leveler installation
- Food and beverage distribution facility loading dock systems
- Pharmaceutical and cold storage facility dock levelers
- Retail distribution center and supermarket supply dock systems
- Automotive parts and components distribution center docks
- E-commerce fulfillment center high-volume loading docks
- Manufacturing facility goods inward and dispatch dock levelers
- Chemical and industrial materials distribution facility docks
- Construction materials supply depot loading dock systems
- Airport cargo terminal freight loading dock levelers
- Port container depot and intermodal terminal dock systems
- Printing and paper industry distribution facility dock levelers
- Electronics and technology distribution center dock systems
- Government and military logistics depot dock levelers
- Recycling and waste management facility loading dock systems
