Please provide your technical specifications and project requirements for the COVID-19 Coronavirus Vehicle Disinfection Tunnel System. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
COVID-19 Coronavirus Vehicle Disinfection Tunnel System

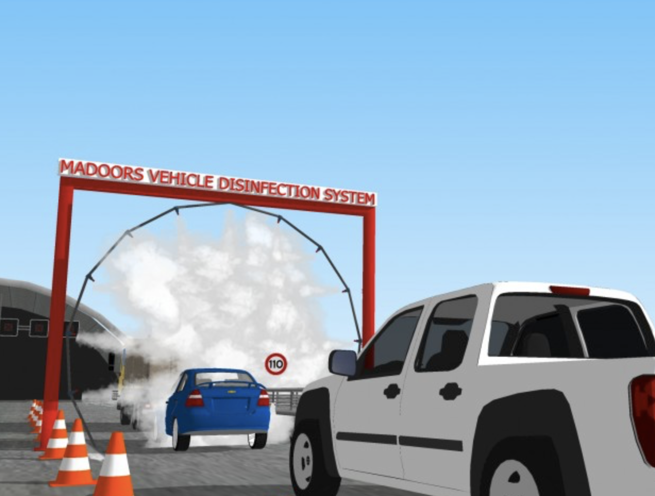

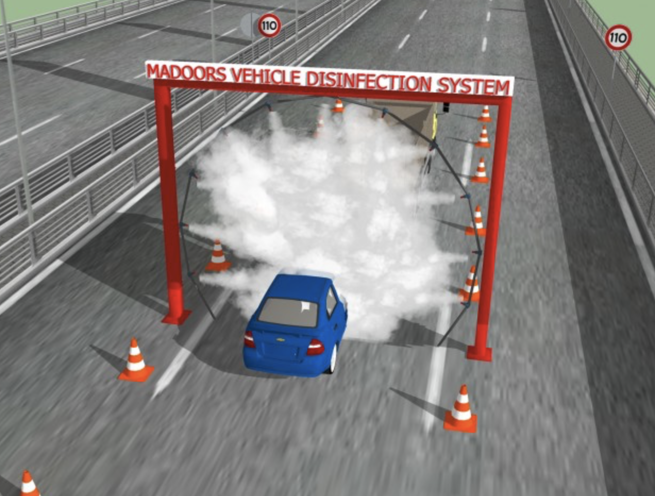

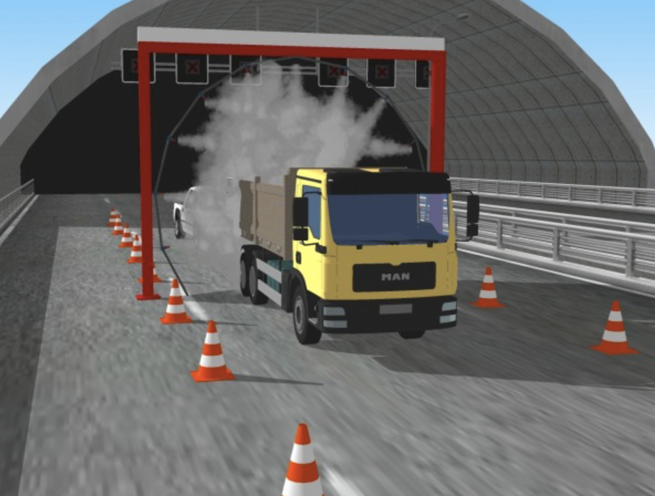

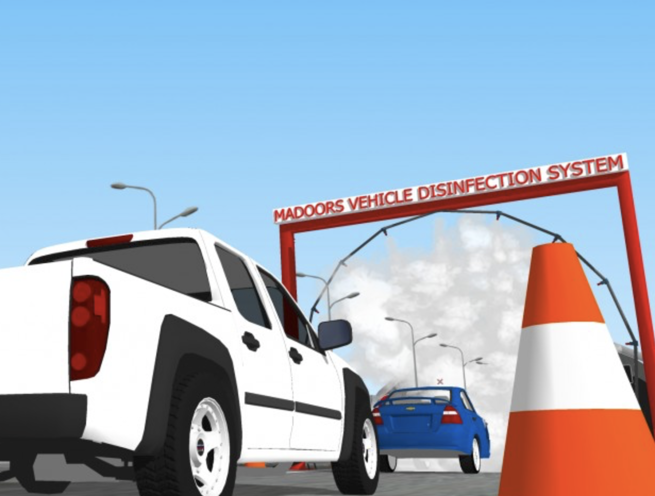

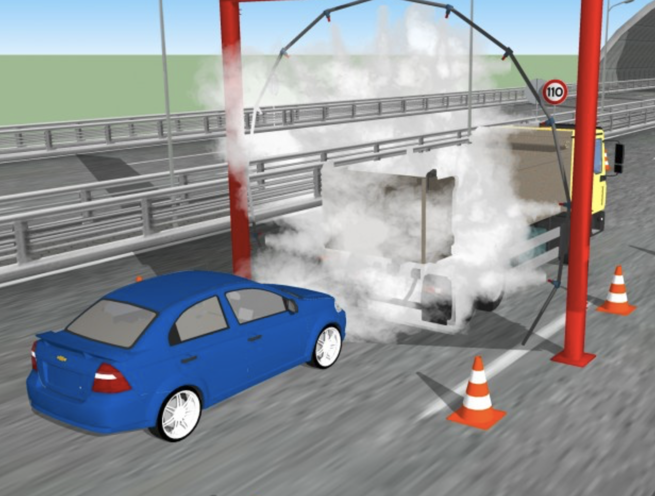

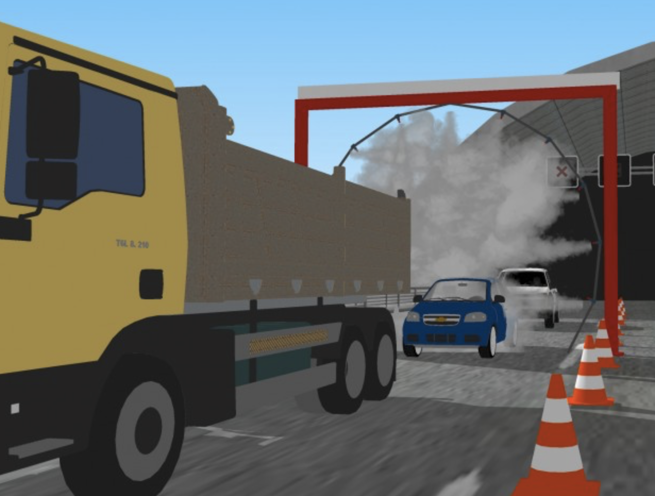

The Madoors USA COVID-19 Coronavirus Vehicle Disinfection Tunnel System is an automatic 360-degree pressurized liquid disinfection tunnel for vehicles, trucks, and lorries — detecting vehicles via ground-mounted loop detectors, automatically initiating pressurized Ministry of Health approved disinfectant spray at 360-degree coverage as the vehicle enters, continuing disinfection throughout the complete vehicle transit, and automatically stopping when the exit loop detector confirms the vehicle has cleared the tunnel. Optional high-energy ultraviolet light installation provides additional UV virus-killing capability — UV energy effectiveness in virus destruction is medically proven and measured by ANSI-lumen detectors. Integrated with all access control automation systems including arm barriers and trap barriers, the Madoors USA Vehicle Disinfection Tunnel destroys COVID-19 coronavirus and all harmful bacteria on the complete vehicle surface including base and tires, preventing the transportation of viral contamination into protected facility areas.
TECHNICAL SPECIFICATIONS
The Madoors USA Vehicle Disinfection Tunnel operates on a fully automatic loop detector activation and deactivation cycle. Entry loop detectors mounted in the ground at the tunnel entrance detect the vehicle as it approaches — the disinfection system activates immediately on vehicle detection. As the vehicle progresses through the tunnel, pressurized liquid disinfectant is delivered through spray nozzles covering all vehicle surfaces in a complete 360-degree pattern — top, sides, front, rear, wheel arches, underside, and tires all receive disinfectant spray coverage throughout the complete tunnel transit.
The exit loop detector at the tunnel exit detects when the vehicle has fully cleared the tunnel — the disinfection system automatically stops at this point, eliminating fluid waste from continued spray after the vehicle has exited. This automatic start/stop control provides consistent, precise disinfection operation without requiring any operator action for each vehicle cycle.
Optional UV ultraviolet high-energy light installation provides virus-killing UV-C irradiation of all vehicle surfaces as a supplementary decontamination mechanism — UV energy effectiveness against COVID-19 and other viruses is medically established, and the UV energy output is calculated and measured using ANSI-lumen light gauge detectors to confirm therapeutic irradiation levels. The combination of chemical disinfection spray and UV light irradiation provides the most comprehensive vehicle decontamination available from a single tunnel system.
Integration with all transition automation systems — arm barriers, trap barriers, and any other vehicle access control equipment — allows the disinfection tunnel to be incorporated into the complete vehicle entry control sequence. The vehicle cannot proceed past the barrier until the disinfection cycle is complete, ensuring that every vehicle entering the protected area has received the full decontamination treatment.
The scientific basis for vehicle disinfection is confirmed by COVID-19 surface survival research — COVID-19 virus remains infective for 3 hours in air, 4 hours on copper surfaces, 12 hours on metal surfaces, 24 hours on cardboard surfaces, and 2 to 3 days on plastic and stainless steel surfaces. Vehicle surfaces — metal bodywork, plastic panels, rubber tires, and glass — all provide multi-hour to multi-day survival environments for the COVID-19 virus. Vehicles passing through the tunnel carry this surface contamination from the external environment directly into the facility without disinfection treatment.
KEY FEATURES
360-Degree Pressurized Spray — Complete Vehicle Surface Coverage
The 360-degree pressurized liquid disinfection spray provides complete coverage of all vehicle surfaces — the top, all sides, front, rear, wheel arches, tires, and underside all receive disinfectant spray coverage from the nozzle array surrounding the tunnel interior. This complete 360-degree coverage eliminates the surface coverage gaps that partial or directional spray systems leave — ensuring that no vehicle surface area enters the facility with untreated contamination.
Automatic Loop Detector Activation & Stop — Zero Operator Requirement
The automatic entry and exit loop detector control system operates the complete disinfection cycle without any operator action for each vehicle — the system detects vehicle entry, activates disinfection, monitors vehicle progress, and stops the system on vehicle exit automatically. This fully automatic operation eliminates the operator error and operational inconsistency of manually controlled systems — every vehicle receives exactly the same complete disinfection treatment regardless of operator attention or workload.
Tire & Vehicle Base Decontamination — Floor Contamination Prevention
The specific decontamination of vehicle tires and base surfaces addresses the primary mechanism of viral contamination transfer from vehicles to facility floors — tires collect COVID-19 contaminated material from roads, car parks, and any external surface, and deposit this contamination on facility floors as the vehicle enters. Decontaminated tires prevent this tracked contamination from entering the facility, directly protecting the floor surfaces that personnel and other vehicles subsequently contact.
Optional UV High-Energy Ultraviolet — Dual Mechanism Decontamination
The optional ultraviolet light installation provides a second independent decontamination mechanism alongside the chemical spray — UV-C radiation directly inactivates COVID-19 virus and bacterial pathogens through photochemical DNA damage. The dual chemical and UV mechanism provides comprehensive decontamination coverage where either mechanism alone might have reduced effectiveness against specific pathogens or on specific surface materials. ANSI-lumen measurement of the UV output confirms that the installed UV energy level achieves the therapeutic irradiation dose required for effective virus inactivation.
Access Control Integration — Disinfection-Gated Entry
The integration with arm barriers, trap barriers, and any other transition automation system creates disinfection-gated vehicle entry — the vehicle cannot proceed into the protected facility area until the complete disinfection cycle has been confirmed. This gated entry directly ensures that no vehicle bypasses the disinfection treatment, eliminating the human factor risk of vehicles entering the facility before disinfection is complete.
COVID-19 Surface Survival Evidence — Scientifically Justified
The documented COVID-19 surface survival times — up to 3 days on plastic and stainless steel — scientifically confirm that vehicles arriving from the external environment carry active COVID-19 contamination on their surfaces for the full duration of transit time from the contamination event to facility entry. This evidence directly justifies the vehicle disinfection tunnel as a necessary infection control measure rather than a precautionary excess — vehicles are confirmed carriers of active COVID-19 contamination on every type of surface found on a vehicle body.
Public & Private Institution Application
The application range covers public institutions, organizations, private companies, and all facility types requiring controlled vehicle entry — government facilities, hospitals, industrial plants, logistics centers, food production facilities, pharmaceutical manufacturing, and any site where the COVID-19 infection control of the facility interior is protected by the vehicle entry control.
DISINFECTION TUNNEL OPERATION SEQUENCE
Step 1 — Vehicle Approach & Entry Detection
Vehicle approaches the tunnel entrance. Entry loop detector mounted in the ground detects the vehicle presence. Disinfection system activates — pressurized spray pumps prime to operating pressure.
Step 2 — 360-Degree Spray Initiation
Vehicle enters the tunnel. Pressurized disinfectant spray activates from all nozzle positions — 360-degree complete vehicle surface coverage commences including top, sides, wheel arches, tires, and underside.
Step 3 — Continuous Disinfection During Transit
Continuous disinfection spray is applied throughout the complete vehicle transit through the tunnel — the spray continues from tunnel entry to tunnel exit, ensuring complete surface contact time for the disinfectant at all vehicle surface positions.
Step 4 — Exit Detection & Automatic Stop
Vehicle exits the tunnel. Exit loop detector confirms complete vehicle clearance. Disinfection spray automatically stops — pump pressure is released and the system resets for the next vehicle.
Step 5 — Barrier Release (Where Integrated)
Arm barrier or trap barrier receives the disinfection completion confirmation signal and releases — the decontaminated vehicle proceeds into the protected facility area.
ASSEMBLY & INSTALLATION SEQUENCE
Vehicle Access Lane Assessment
Vehicle approach lane width and height for the largest vehicle type to be processed, tunnel length for complete vehicle coverage, loop detector cable routing positions, spray nozzle layout for 360-degree coverage, disinfectant tank and pump room position, UV light installation requirement, and barrier integration interface are confirmed.
Tunnel Structure Installation
The tunnel framework is installed over the vehicle lane — providing the structural support for the spray nozzle array and optional UV light fittings at the correct positions for complete vehicle coverage.
Loop Detector Installation
Entry and exit loop detectors are installed in the road surface at the confirmed positions. Cable routing to the control system is completed. Vehicle detection function is tested.
Spray Nozzle Array & Pump System Installation
360-degree spray nozzle array is installed within the tunnel at the positions providing complete vehicle surface coverage. Pressurized pump system and disinfectant tank are installed at the confirmed pump room position. System pressure and spray coverage are tested.
UV Light Installation (Where Specified)
UV high-energy ultraviolet light fittings are installed within the tunnel. ANSI-lumen measurement of UV output confirms therapeutic irradiation level at the vehicle surface positions.
Barrier Integration & Control System Testing
Access control barrier interface connection is completed. Complete automatic activation on entry detection, 360-degree spray operation, exit detection automatic stop, and barrier release sequence are tested.
Operational Testing & Handover
Complete operational testing with test vehicle at the confirmed transit speed — entry detection, spray activation, continuous coverage, exit detection, automatic stop, and barrier release — is conducted. Installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA COVID-19 Vehicle Disinfection Tunnels are deployed at any vehicle entry point requiring automatic COVID-19 decontamination of entering vehicles.
- Hospital vehicle entrance COVID-19 decontamination tunnel
- Government ministry and institution vehicle entry disinfection
- Military base and installation vehicle entry decontamination
- Pharmaceutical manufacturing facility vehicle disinfection
- Food production and processing facility vehicle entry tunnel
- Logistics and distribution center vehicle decontamination
- Airport vehicle entry COVID-19 disinfection tunnel
- Port and maritime terminal vehicle entry decontamination
- Industrial facility and factory vehicle entry disinfection
- Shopping mall and retail center vehicle entry tunnel
- Prison and correctional facility vehicle entry decontamination
- School and educational institution vehicle entry disinfection
- Corporate headquarters vehicle access decontamination
- Residential community and gated development vehicle entry
- Any facility requiring automatic 360-degree vehicle COVID-19 decontamination at the entry point
