Please provide your technical specifications and project requirements for the Coronavirus COVID-19 Human Staff Pass Disinfection Tunnel. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.
Coronavirus COVID-19 Human Staff Pass Disinfection Tunnel
The Madoors USA Coronavirus COVID-19 Human Staff Pass Disinfection Tunnel is a CE-certified, Ministry of Health approved automatic disinfection tunnel system providing complete body disinfection — including under and on top of shoes — for all persons and staff entering institutions, organizations, hospitals, shopping malls, and any facility requiring entry-point viral and bacterial decontamination. The system combines thermal camera fever measurement with automatic access control — persons with high fever are denied entry and directed to hospital via the integrated intercom system, while persons with normal temperature automatically receive full-body ultraviolet lamp and pressurized Ministry of Health approved disinfection fluid spray before the entry door opens. The disinfection fluid is the same Ministry of Health approved fluid available in regular pharmacies — completely safe for human health. CE certified, 100% local production, aluminum stainless construction with antibacterial chassis coating that prevents viral and bacterial adhesion to the structure.
TECHNICAL SPECIFICATIONS

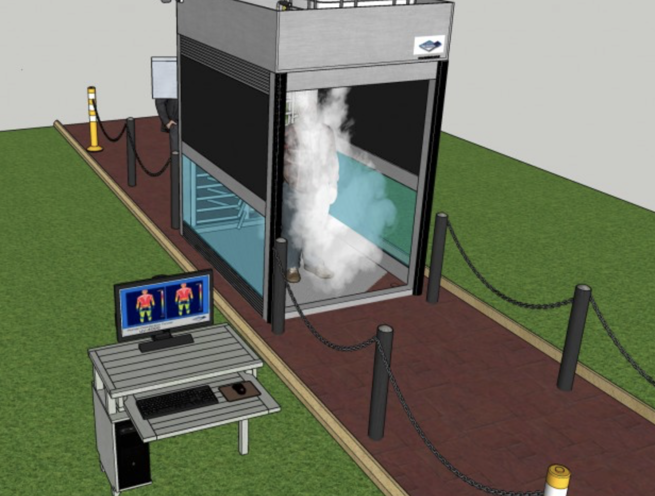

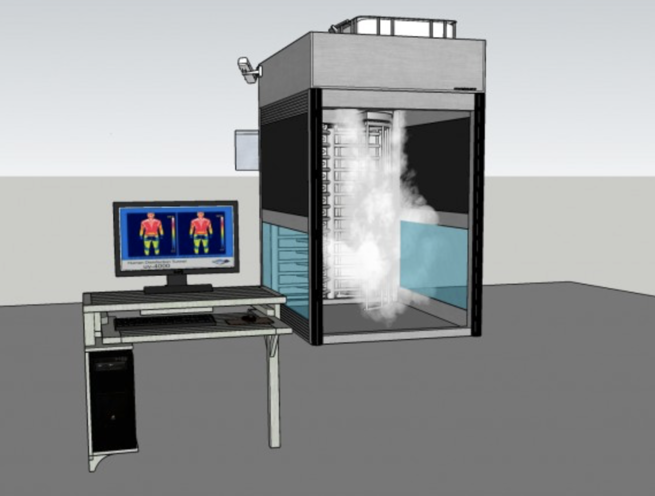

The Madoors USA Disinfection Tunnel operates on an integrated thermal camera and passage control logic. When a person approaches the tunnel, the thermal camera measures body temperature — if the measured temperature falls within the normal range, the system proceeds to the disinfection sequence. If the temperature exceeds the nominal fever threshold, the access turnstile or passage door does not open — the intercom system activates and directs the person to seek medical evaluation.

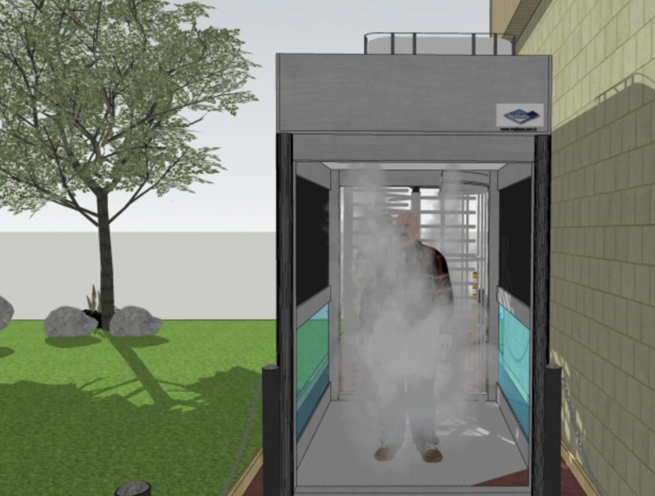

For persons who pass the fever screening, the disinfection sequence activates automatically on entry — ultraviolet lamps activate to provide UV-C surface decontamination of all exposed body surfaces, and pressurized spray nozzles deliver Ministry of Health approved disinfection fluid across the complete body including the underside and top surface of shoes. The pressurized spray ensures complete coverage of all body surfaces including the shoe soles that collect viral and bacterial contamination from floors, public transport, roads, and any surface contacted before facility entry.
The disinfection fluid used is exclusively the Ministry of Health approved formulation — the same fluid sold in standard pharmacies for consumer disinfection use. This Ministry of Health approval directly confirms the safety of the fluid for human skin and respiratory exposure during the spray cycle, and the CE certification of the complete system confirms European safety standards compliance.

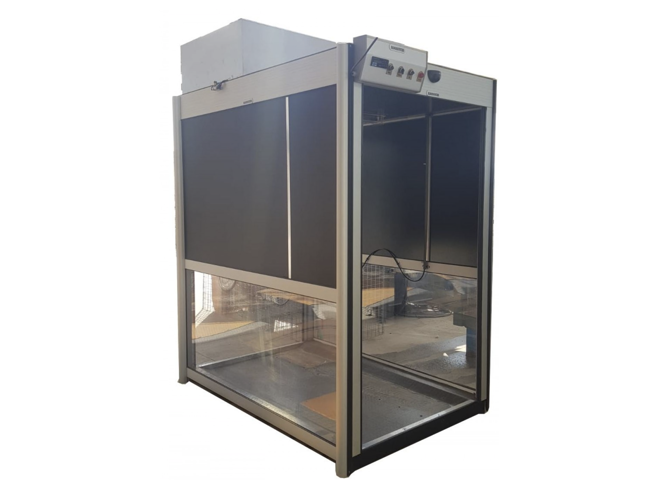

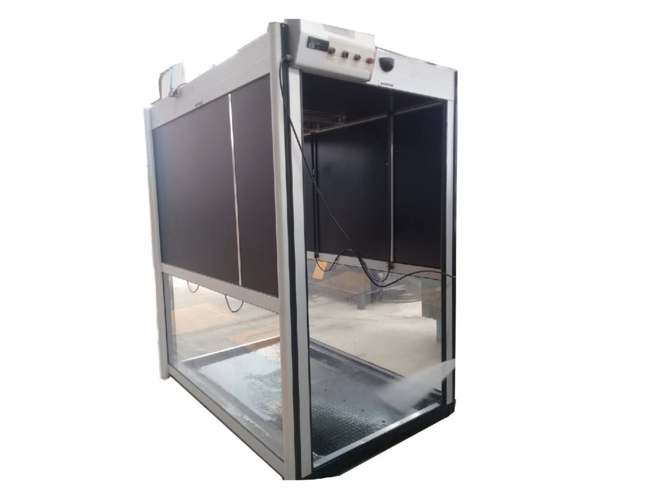

The chassis is manufactured from aluminum stainless type material with metal parts — providing corrosion resistance, structural durability, and the cleanability required for a device that is continuously exposed to disinfection fluid spray. The complete chassis surface is covered with antibacterial coating — preventing viral and bacterial adhesion and colonization of the tunnel structure itself, ensuring that the tunnel does not become a contamination reservoir between uses.

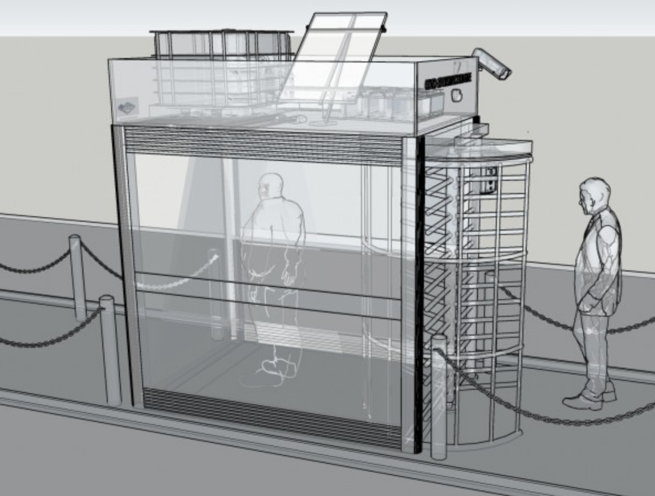

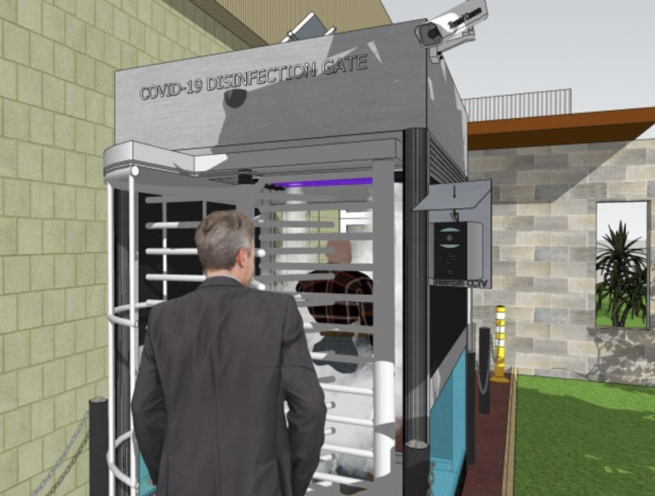

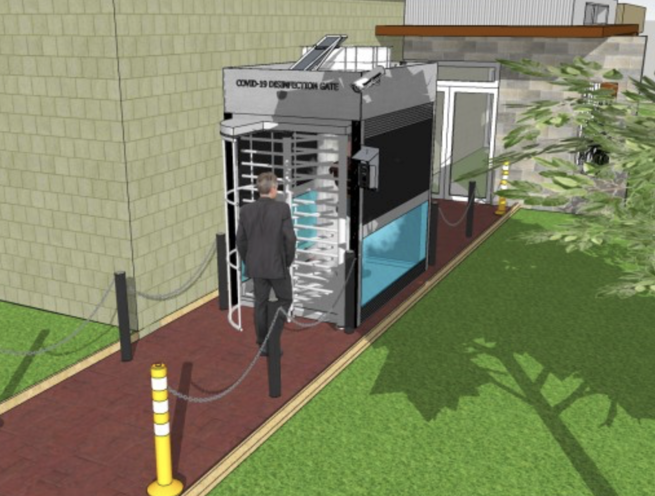

The integrated system supports full model operation with thermal camera, intercom, UV lamp, pressurized spray, and access control turnstile or door — providing the complete entry security and decontamination function from a single installation at the facility entrance.
KEY FEATURES
CE Certified & Ministry of Health Approved — Human Safety Confirmed
The CE certification of the complete disinfection tunnel system and the Ministry of Health approval of the disinfection fluid provide the dual regulatory assurance required for deployment in healthcare facilities, public institutions, and commercial premises — confirming both that the system meets European safety standards and that the specific disinfection agent used is officially approved for human exposure. These certifications directly address the primary public concern about disinfection tunnel safety and provide the compliance documentation required for procurement by government and healthcare institutions.
Thermal Camera Fever Screening — Infected Person Entry Prevention

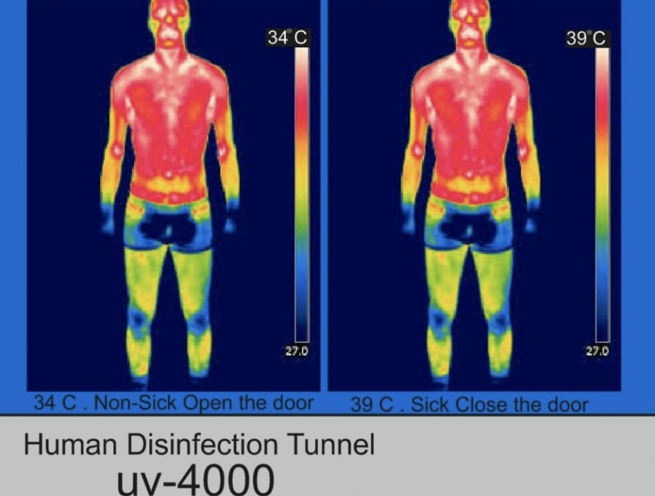

The thermal camera fever measurement at the tunnel entry provides the first-line screening against the entry of febrile individuals — the most immediately identifiable indicator of active infection. The automatic access denial for persons with fever above the nominal threshold prevents symptomatic infected individuals from entering the facility, directly reducing the risk of infection transmission to other facility occupants. The intercom direction to medical evaluation ensures that the screened-out person receives appropriate clinical guidance rather than simply being denied entry without explanation.
UV Lamp & Pressurized Spray — Complete Body Decontamination

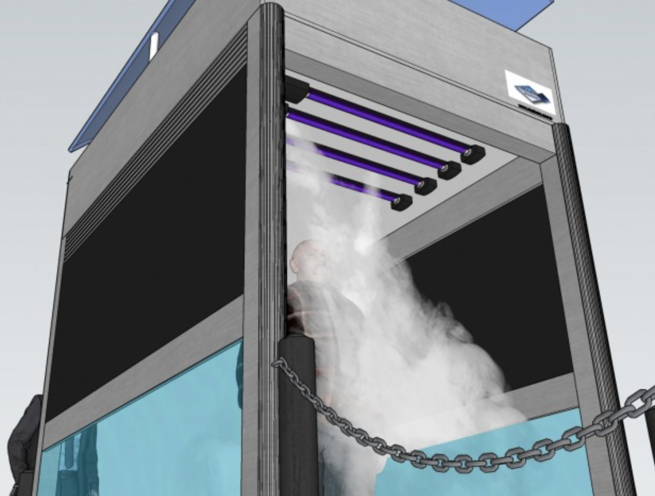

The combination of ultraviolet lamp and pressurized Ministry of Health approved disinfection spray provides two-mechanism decontamination — UV-C radiation directly inactivates viral and bacterial pathogens on all exposed surfaces through photochemical DNA damage, and the disinfection fluid provides chemical decontamination of clothing, skin, and shoe surfaces. The dual mechanism approach provides comprehensive decontamination coverage where either mechanism alone might miss specific pathogens or surface areas.
Shoe Sole Decontamination — Floor Contamination Elimination
The specific decontamination of shoe undersides and tops is the unique contamination pathway addressed by the pressurized spray system — shoe soles collect viral and bacterial contamination from every surface contacted during transit to the facility, including public transport floors, street surfaces, and any other contaminated surface. Without shoe decontamination, entering persons track this contamination directly onto the facility floor, from where it can be spread throughout the facility. The tunnel's shoe decontamination eliminates this tracked contamination at the entry point.
Antibacterial Chassis Coating — Tunnel Self-Decontamination
The complete antibacterial coating of the chassis surface prevents viral and bacterial adhesion and colonization of the tunnel structure itself — the tunnel is continuously exposed to disinfection fluid overspray, occupant contact, and the contamination load of the persons passing through. Without antibacterial coating, the tunnel structure would accumulate contamination between use cycles, creating a contamination risk for each subsequent user. The antibacterial coating maintains the tunnel as a clean, non-contaminating structure throughout continuous operation.
Automatic Door Opening — Contactless Entry
The automatic door opening for persons who pass both the fever screening and the disinfection cycle provides completely contactless entry — the person walks through the tunnel, is screened and decontaminated automatically, and the door opens without any surface contact. This contactless entry directly eliminates the door handle and push plate contact contamination that represents a significant transmission pathway at conventional facility entries.
Intercom Direction — Medical Guidance for Fever Cases
The intercom system that directs fever-positive persons to hospital or medical evaluation transforms the access denial event from a simple barrier into a constructive clinical guidance interaction — the person is not simply refused entry but actively directed to the appropriate healthcare resource for assessment. This guidance function supports both the individual's health and the broader epidemic control objective.
Wide Facility Application Range
The reliable application across shopping malls, hospitals, laboratories, institutions, organizations, dams, electricity generation facilities, residential sites, and houses confirms the versatility of the disinfection tunnel for any facility type requiring controlled entry decontamination — from the highest-biosecurity hospital entrance through to residential community entry points during epidemic conditions.
DISINFECTION TUNNEL OPERATION SEQUENCE
Step 1 — Approach Detection
The person approaches the tunnel entry. The thermal camera activates and measures body temperature.
Step 2 — Fever Screening
Normal temperature confirmed — disinfection sequence proceeds. High temperature detected — access door remains closed, intercom activates and directs person to medical evaluation.
Step 3 — Entry & UV Activation
The entry door opens for the fever-negative person. UV lamps activate throughout the tunnel interior — UV-C irradiation begins on all exposed body surfaces.
Step 4 — Pressurized Spray Disinfection

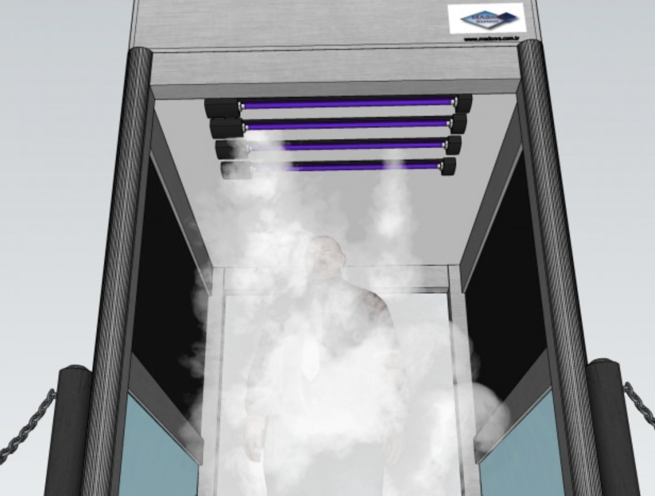

Ministry of Health approved disinfection fluid spray activates — pressurized nozzles deliver complete body coverage including shoe undersides and tops. Full body decontamination is completed during tunnel transit.
Step 5 — Exit Door Opening
The UV and spray cycle completes. The exit door opens automatically — the decontaminated person enters the facility through the contactless exit.
Step 6 — Tunnel Reset
The tunnel resets for the next person. The antibacterial coating maintains the tunnel surface free from contamination accumulation between users.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA COVID-19 Human Staff Pass Disinfection Tunnels are deployed at any facility entrance requiring combined fever screening and full-body decontamination.
- Hospital and healthcare facility main entrance disinfection
- Government ministry and institution staff entry decontamination
- Shopping mall and retail center customer entry screening
- Factory and industrial facility worker entry disinfection
- Laboratory and research facility personnel decontamination
- Airport terminal staff and passenger entry screening
- School and educational institution student entry disinfection
- Bank and financial institution customer entry decontamination
- Hotel and hospitality facility guest entry screening
- Supermarket and food retail entry disinfection
- Corporate headquarters staff entry decontamination
- Sports and entertainment venue visitor entry screening
- Court complex and justice facility entry disinfection
- Residential community and site controlled entry screening
- Any facility requiring CE-certified fever screening and Ministry of Health approved full-body entry decontamination
- Category: COVID-19 Prevention Equipment
