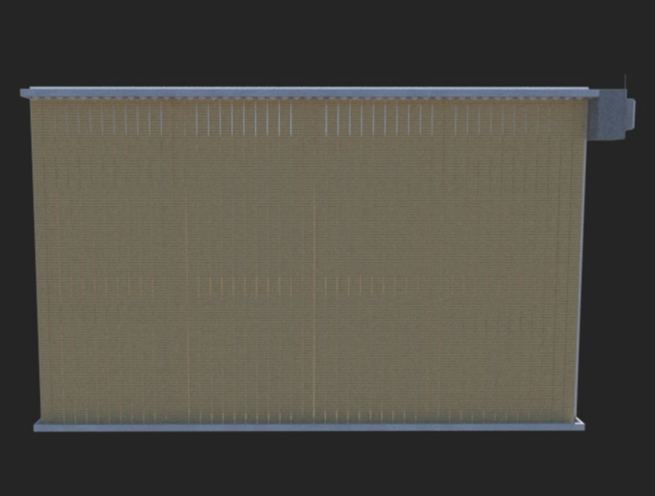

Bulletproof Vertical Jalousie Roller Blind
The Madoors USA BPC-S2000 Series Bulletproof Vertical Jalousie Roller Blind is a patented, automatic motorized and manual ballistic curtain system engineered to stop MP5, G3, Kalashnikov AK-47, M16, and equivalent rifle rounds as well as pistol caliber bullets — certified with real live-fire test videos and certificates — manufactured from bulletproof and fire-resistant ballistic fabric with internal ballistic steel construction on a heavy-duty gear wheel and rack-and-pinion rail system with CNC-machined ball bearings. Unlike conventional curtain systems, the BPC-S2000 Series operates with independent ballistic vertical blind sections, a bullet-impact wheel locking mechanism that prevents the curtain from opening when struck, and a patented artificial intelligence module that listens for gunshots and automatically closes the curtain in an emergency attack — protecting building occupants without requiring any manual intervention after the first shot is fired.
All BPC-S2000 systems are patent and utility model protected, with separate patents covering both the system design and the AI software. Products are manufactured in custom sizes, available in multiple color options, operate on 24V AC with battery kit and UPS for continued operation during power outages, and are delivered after sales contract with assembly and supervision services provided by Madoors USA.
TECHNICAL SPECIFICATIONS
The BPC-S2000 Series ballistic vertical roller blind is constructed from bulletproof and fire-resistant certified ballistic fabric with internal ballistic steel reinforcement throughout each blind section. The upper and lower carrier rail systems are manufactured from 5mm galvanized stainless steel in special bent-type profiles, engineered for heavy load resistance under the significant weight of ballistic fabric and steel construction. No conventional wheel system is used — instead, CNC-machined ball bearings and precision bearings processed on CNC lathes and mills provide the low-friction, high-load-capacity running system required for smooth, silent operation of heavy ballistic blind sections.
The blind sections operate on a gear wheel and rack-and-pinion gear drive system, providing positive mechanical engagement between the drive mechanism and the blind carrier throughout the full travel range. When a bullet strikes the blind curtain, the wheel locking mechanism activates instantly — preventing the blind from opening under ballistic impact and maintaining the protective barrier throughout the attack. The locking mechanism is an integral design feature of the BPC-S2000 that distinguishes it from conventional motorized blind systems, which would be driven open by the impact energy of a bullet strike.
The motor system operates on 24V AC with battery kit and UPS support, maintaining full motorized operation during mains power outages — a critical operational requirement for ballistic protection systems in attack scenarios where mains power may be cut. Motorized automatic operation and simple manual lever operation — forward and backward — are both available. The motor is optional for facilities preferring manual-only operation.
The artificial intelligence module listens continuously to the environment in which the curtain is installed but does not record. Upon detecting a gunshot in the room, the AI module automatically commands the curtain to close, protecting the occupants without requiring any voice or manual command. The AI module also responds to English voice commands — CURTAIN OPEN and CURTAIN CLOSE — for normal daily operation. The AI module software and system design are both separately patented by Madoors USA.
KEY FEATURES
Live-Fire Certified — MP5, G3, AK-47, M16 & Pistol Calibers
The BPC-S2000 is certified to stop rounds from MP5, G3, Kalashnikov AK-47, M16, and equivalent heavy machine gun-resistant rifle calibers in addition to pistol bullets — with real live-fire test videos and certificates provided at delivery. This multi-weapon certification covers the full range of small arms threats encountered in armed attack scenarios at banks, embassies, government buildings, and military facilities.
Bullet-Impact Wheel Locking Mechanism
When a bullet strikes the curtain, the wheel locking mechanism engages immediately — preventing the blind from being pushed open by the ballistic impact energy and maintaining the protective barrier continuously throughout the attack sequence. This anti-opening locking response under bullet impact is the critical operational safety feature that distinguishes the BPC-S2000 from conventional motorized blinds, which would be driven open or displaced by repeated ballistic impacts and cease to provide protection after the first hit.
Patented Artificial Intelligence — Automatic Emergency Closure
The patented AI module continuously listens to the environment in the curtain's installation space and detects gunshots. In an emergency attack, after the first gunshot is fired in the room, the AI module automatically commands the curtain to close — protecting occupants who have taken cover without requiring them to manually operate the curtain or issue a voice command during the attack. This automatic emergency closure is the defining life safety feature of the BPC-S2000 — the curtain protects without requiring any human action after the attack commences.
Voice Command Operation — CURTAIN OPEN / CURTAIN CLOSE
For normal daily operation, the AI module responds to English voice commands — CURTAIN OPEN and CURTAIN CLOSE — allowing hands-free, tool-free daily operation of the ballistic blind in normal security mode. Voice command operation is supplemented by the manual lever and optional motorized remote control for complete operational flexibility across all daily and emergency use scenarios.
Independent Vertical Blind Sections
BPC-S2000 blind sections are independent of each other — each section operates and moves individually rather than as a single connected curtain panel. This independent section design ensures that damage to one blind section from a ballistic impact does not affect the operation of adjacent sections, maintaining partial or full protective coverage even when individual sections have absorbed ballistic impacts.
Ballistic Fabric & Internal Steel Construction
The blind material combines bulletproof and fire-resistant certified ballistic fabric with internal ballistic steel — providing the multi-layer energy absorption required to defeat rifle-caliber rounds within the blind thickness, with the fabric layers arresting fragment penetration after the steel layer has defeated the primary projectile.
Fire-Resistant Certified Fabric
In addition to ballistic resistance, the blind fabric is fire-resistant certified — providing protection against both ballistic attack and fire spread through the curtain, satisfying combined ballistic and fire protection requirements in facilities where both hazard types are relevant to the installation specification.
5mm Galvanized Stainless Steel Carrier Rails — CNC Ball Bearings
The 5mm galvanized stainless steel carrier rail system and CNC-machined precision ball bearings provide the structural load capacity required for the significant weight of ballistic fabric and steel blind sections, with silent operation maintained throughout the full service life of the installation. CNC-machined bearing precision eliminates the running noise and vibration characteristic of standard wheel systems in heavy curtain applications.
Gear Wheel & Rack-and-Pinion Drive — Silent Heavy Load Operation
The gear wheel and rack-and-pinion drive system provides positive mechanical engagement throughout the full curtain travel range, delivering the reliable heavy-load drive performance required for consistent motorized operation of ballistic blind panels. The system does not make noise or disturb the environment — the precision gear engagement and CNC-machined bearing system eliminate the noise and vibration associated with conventional heavy curtain drive mechanisms.
24V AC Motor — Battery Kit & UPS Supported
The 24V AC motor system with integrated battery kit and UPS support maintains fully motorized operation throughout mains power outages — ensuring that the curtain can be closed automatically by the AI module or manually by the operator even when building electrical supply has been interrupted, as may occur during a serious armed attack event.
Remote Control & Fixed-Wire Control Options
In addition to AI and voice command operation, the BPC-S2000 is available with optional remote control and fixed-wire control interfaces — providing complete operational flexibility for facilities requiring multiple control points or dedicated hard-wired control stations alongside the wireless and voice command options.
Custom Sizes & Color Options
All BPC-S2000 systems are manufactured in custom sizes to fit any window, door, or wall opening dimension — with no standard size limitation — and are available in multiple color options to match the interior design requirements of the installation environment.
Patented System & AI Software — Madoors USA Exclusive
The BPC-S2000 system design, AI module, and AI software are all separately patented by Madoors USA — making the gunshot-detecting automatic closure AI, the bullet-impact locking mechanism, and the independent vertical ballistic blind section system exclusive proprietary technologies unavailable from any other manufacturer. Assembly and supervision services are provided by Madoors USA for all installations, with products delivered after sales contract.
ASSEMBLY & INSTALLATION SEQUENCE
Opening Measurement & Custom Size Specification
All opening dimensions — width and height — are measured for each installation location. Motorized or manual-only configuration, motor and AI module inclusion, control interface — remote, fixed-wire, voice, or AI auto — color selection, and ballistic protection level are confirmed. Custom manufacturing dimensions are specified.
Upper & Lower Carrier Rail Installation
5mm galvanized stainless steel upper and lower carrier rails are installed at the confirmed positions above and below the opening. Rail alignment, level, and structural fixing integrity are verified for the heavy load of the ballistic blind sections. CNC-machined ball bearing carriages are verified for smooth, silent travel across the full rail length.
Gear Wheel & Rack-and-Pinion Drive Installation
The gear wheel and rack-and-pinion drive mechanism is installed on the carrier rail system. Drive engagement, travel range, and locking mechanism function are verified before blind section installation.
Ballistic Blind Section Installation
Independent ballistic vertical blind sections are installed on the carrier system in sequence. Each section's travel, locking mechanism engagement under simulated impact load, and independence from adjacent sections are verified. Full curtain closure and opening travel are verified across all sections simultaneously.
Motor System & UPS Installation (Motorized Variants)
The 24V AC motor system is installed and connected to the power supply. Battery kit and UPS are connected and charged. Motorized open and close travel limits are set and verified. Power outage operation is tested by simulating mains failure and verifying continued motorized operation on battery and UPS power.
AI Module Installation & Gunshot Detection Calibration
The patented AI module is installed at the specified position within the installation space. The module is calibrated for the acoustic environment of the specific room — background noise levels, room dimensions, and reverberant characteristics — to optimize gunshot detection accuracy and minimize false activation. Voice command recognition — CURTAIN OPEN and CURTAIN CLOSE — is tested and verified.
Remote & Fixed-Wire Control Connection (Where Specified)
Remote control receivers and fixed-wire control panels are installed and connected to the curtain drive system. All control interface functions — open, close, and stop — are tested across all specified control points.
Live-Fire Test Certification & Documentation Handover
Live-fire test videos and ballistic certificates are provided at delivery. Full installation documentation — rail engineering, motor commissioning, AI module calibration records, patent documentation, and assembly supervision completion records — is compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA BPC-S2000 Bulletproof Vertical Jalousie Roller Blinds are specified for any interior or perimeter window and door opening requiring certified ballistic curtain protection with automatic emergency closure capability.
- Embassy and diplomatic facility interior ballistic window protection
- Government building and ministry office window protection
- Military base administrative building window ballistic blinds
- Bank branch and financial institution teller area protection
- Police station and law enforcement facility window protection
- Court complex and justice facility security window blinds
- VIP residence and protected compound window protection
- Corporate headquarters high-security office window blinds
- Prison administration building window ballistic protection
- Hospital and healthcare facility high-security window protection
- Control room and operations center ballistic window blinds
- Hotel and hospitality facility high-security room protection
- Educational institution security office window protection
- Critical infrastructure facility control room window blinds
- Counter-terrorism facility interior window ballistic protection
- Category: Bulletproof Curtains & Shading Systems
