Bulletproof Glass Frame System for Gabion Sand Filled Defence Wall
The Madoors USA Bulletproof Glass Frame System for Gabion Sand Filled Defence Walls is a hot-dip galvanized, ballistic steel-coated bulletproof and explosion-proof glass and frame system specifically engineered for integration into gabion steel basket sand-filled defence walls — providing military personnel with certified observation and gunshot window capability from within accordion-type folding sand-filled perimeter defence walls. Available at ASTM UL 752 Level 1 through Level 9 with full ballistic reports for glass, frame, and ballistic steel at all levels from authorized accredited institutions, the system is manufactured by Madoors USA with a 2-year guarantee and complete documentation package.

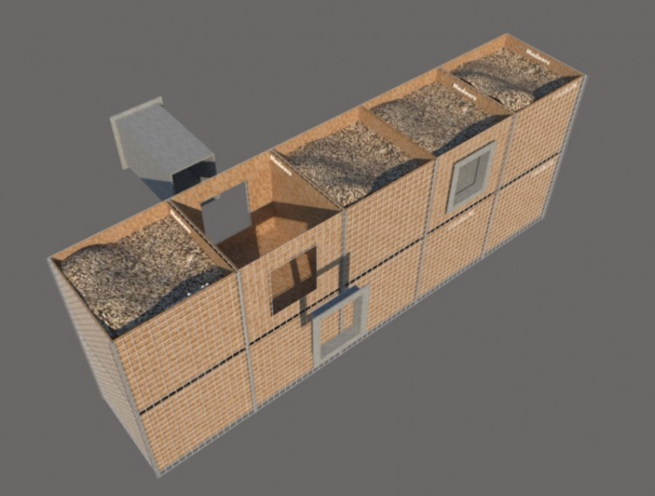

The system is installed inside the gabion steel basket before sand filling — screwed together from the inside at the designated observation window position — and permanently secured in place by the sand fill that surrounds and traps the glass frame assembly within the basket structure. This sand-trapped installation method integrates the bulletproof glass observation window directly into the ballistic mass of the sand-filled gabion wall, eliminating external fixings that could be compromised by blast or ballistic attack and providing a structurally unified ballistic observation point within the defence wall perimeter.
TECHNICAL SPECIFICATIONS
Madoors USA Bulletproof Glass Frame Systems for gabion defence walls are certified to ASTM UL 752 from Level 1 through Level 9 — covering the complete range of ballistic threat levels from .22 LRHV handgun rounds at Level 1 through sustained 7.62mm high-powered rifle fire at Level 8 and beyond at Level 9. Full ballistics reports are available for the glass panels, frame assembly, and ballistic steel components at every certified level, issued by authorized accredited testing institutions and providing independently verified ballistic performance documentation for military procurement, government facility, and defence contractor compliance requirements.
The frame system is manufactured from hot-dip galvanized ballistic steel, providing both the corrosion resistance required for long-term outdoor gabion wall installation in exposed environmental conditions and the ballistic steel backing required to maintain frame integrity under direct ballistic impact at the rated protection level. The glass panels are bulletproof and explosion-proof at the certified ASTM UL 752 level — providing simultaneous ballistic projectile resistance and blast overpressure resistance at each observation window position in the defence wall.

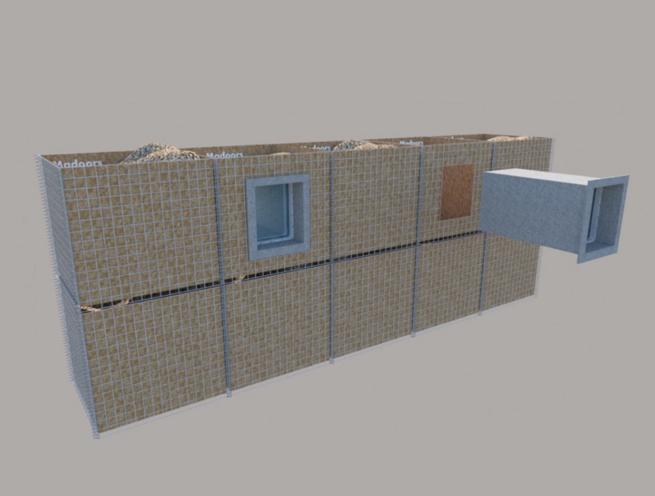

The installation sequence integrates the glass frame system into the gabion basket structure before sand filling. The frame system is assembled by screwing together from the inside at the designated observation window opening in the gabion steel basket. Sand is then filled into the basket, surrounding and trapping the glass frame assembly within the ballistic mass of the filled basket — creating a permanent, structurally integrated observation window that is retained by the sand fill without requiring external mechanical fixings that would penetrate the basket structure or reduce the ballistic integrity of the surrounding sand fill zone.
Gabion steel baskets are produced to the desired size — with the observation window opening position and glass frame dimensions specified and coordinated between the gabion basket production and glass frame manufacturing to ensure precise alignment and fit at installation.
KEY FEATURES
ASTM UL 752 Level 1 to Level 9 — Complete Ballistic Range
The glass frame system is available across the complete ASTM UL 752 ballistic protection range — Level 1 through Level 9 — providing the appropriate certified protection level for every military and security threat scenario from standard handgun protection through to the highest-level sustained military rifle fire resistance. Full ballistics reports at every level eliminate the need for separate products at different protection levels, allowing the same system type to be specified across the full range of gabion defence wall applications at different threat environments.
Bulletproof & Explosion-Proof — Dual Protection
Each glass frame unit provides both ballistic bullet resistance and explosion overpressure resistance — protecting military personnel at the observation window from simultaneous direct fire attack and blast wave from nearby detonations. This dual protection capability is essential for observation windows in perimeter defence walls that must maintain their protective performance across the full spectrum of attack methods used against military positions.
Sand-Trapped Installation — Structural Integration
The unique sand-trapped installation method — placing the glass frame inside the gabion basket before sand filling so that the sand permanently surrounds and retains the frame — creates a structurally integrated observation window within the ballistic mass of the gabion wall. This integration method eliminates the interface weakness present in surface-mounted window systems bolted to the outside of a gabion wall, and ensures that the observation window ballistic performance is enhanced by the surrounding sand fill mass rather than isolated from it.
Internal Screw Assembly — Secure Pre-Sand Positioning
The glass frame system is designed for internal screw assembly within the gabion basket before sand filling — providing a secure, mechanically positive frame-to-basket connection that holds the glass frame in the correct position during sand filling and ensures the frame remains correctly aligned and structurally stable throughout the operational service life of the gabion wall. Internal screw assembly eliminates the need for external tools or access after the basket is filled and the wall is complete.
Hot-Dip Galvanized Ballistic Steel Frame
The frame is manufactured from hot-dip galvanized ballistic steel, combining corrosion resistance for long-term outdoor exposure with the structural rigidity and ballistic mass required to support and retain the bulletproof glass panels under ballistic and blast loading. Hot-dip galvanization provides long-term protection against the corrosive environment of outdoor military installations without requiring surface treatment maintenance across the service life of the gabion wall.
Military Personnel Observation & Quick Intervention Capability
The primary operational purpose of the glass frame system is to enable military personnel on watch duty to observe the external environment through the gabion sand-filled perimeter defence wall — providing continuous situational awareness of approaching threats, vehicle movement, and personnel activity outside the defensive perimeter — and to respond quickly to adverse situations from a protected position without requiring the observation point to be left unprotected during the response.
Gunshot Window Integration
The observation window frame system incorporates gunshot window capability — allowing military personnel to engage threats through the protected window opening from behind the full ballistic protection of the gabion sand-filled wall, without exposing themselves to direct fire. The gunshot window function transforms the observation point from a passive surveillance position into an active defensive fighting position within the perimeter wall.
Accordion Folding Wall Compatibility
The system is specifically engineered for integration into accordion-type folding sand-filled defence walls — the rapidly deployable, collapsible gabion basket perimeter wall format used for quick establishment of military forward position perimeters. This compatibility ensures that the observation and gunshot window capability is available in rapid-deployment wall configurations as well as permanent or semi-permanent gabion wall installations.
Custom Basket & Window Dimensions
Both the gabion steel baskets and the bulletproof glass frame systems are produced to customer-specified dimensions — with basket size, observation window position, glass panel dimensions, and frame configuration all customizable to match the specific wall height, section width, and tactical observation requirement of each deployment. This dimensional flexibility ensures that the observation window is positioned at the correct height and location for effective surveillance from the interior of the specific gabion wall configuration.
Authorized Institution Certification — Full Documentation
All glass frame system ballistic certifications are issued by authorized accredited testing institutions, with complete documentation including glass test reports, frame test reports, and ballistic steel reports available at every ASTM UL 752 level. Full documentation supports military procurement compliance, government facility certification requirements, and defence contractor project documentation obligations.
2-Year Guarantee — Direct Manufacturer
The system is manufactured directly by Madoors USA with a 2-year guarantee covering all glass, frame, and ballistic steel components. Direct manufacturer status ensures that all production quality control, ballistic certification, and technical documentation are managed within Madoors USA's own manufacturing and engineering capability — with no third-party supply chain risk affecting product quality or certification integrity.
ASSEMBLY & INSTALLATION SEQUENCE
Gabion Basket Production & Window Opening Coordination
Gabion steel baskets are produced to the specified wall dimensions with observation window openings positioned and sized to accommodate the specified glass frame dimensions. Window opening position — height above ground, lateral position in the basket section, and opening dimensions — is coordinated between gabion basket production and glass frame manufacturing.
Glass Frame Pre-Assembly
The hot-dip galvanized ballistic steel frame components are pre-assembled around the bulletproof glass panels before installation into the gabion basket. Frame-to-glass connections are secured and verified for structural integrity and ballistic continuity across the full frame perimeter.
Glass Frame Placement in Gabion Basket
The pre-assembled glass frame system is positioned inside the gabion basket at the designated window opening position, aligned with the basket opening aperture. The frame is screwed together from the inside of the basket, securing it to the basket structure at all specified internal fixing points. Frame alignment within the basket and glass panel position relative to the window opening are verified before sand filling commences.
Sand Filling & Frame Trapping
Sand is filled into the gabion basket around the positioned glass frame system. Sand filling is completed progressively to maintain frame position stability during filling. The completed sand fill surrounds and permanently traps the glass frame within the basket structure, securing the observation window as an integral component of the ballistic sand-filled wall section.
Multi-Section Wall Assembly
Individual sand-filled gabion basket sections with integrated glass frame observation windows are assembled into the complete perimeter defence wall configuration — with observation window sections positioned at the specified intervals along the wall to provide continuous surveillance coverage of the exterior perimeter zone.
Ballistic Performance Verification & Documentation Handover
Installed glass frame alignment, sand fill completion, and frame-to-basket structural integrity are inspected across all installed window positions. ASTM UL 752 ballistic certification documents, accredited institution test reports for glass, frame, and ballistic steel components, and the 2-year guarantee documentation are compiled into the project handover package.
