Bulletproof Glass, Door for Gabion Sand Basket Guard Booth
The Madoors USA Bulletproof Glass and Door System for Gabion Sand Basket Guard Booths is a certified ballistic glass, frame, and door integration system engineered specifically for accordion-type folding gabion basket guard booths, security towers, perimeter walls, and arsenals — providing military personnel with a fully protected, rapidly constructed sand-filled guard position equipped with observation windows, bulletproof entry doors, and emergency gun muzzle covers operable from inside. All systems are certified by competent authorities to ASTM UL 752 up to Level 9 — the highest available American ballistic standard — and are manufactured on a project basis to customer-specified dimensions, covering the complete range of ballistic threats including rocket launcher impacts, shrapnel and explosion fragments, and direct bullet fire.

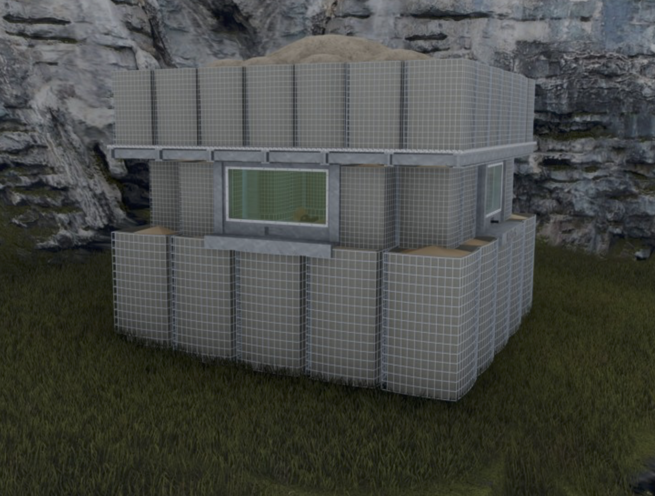

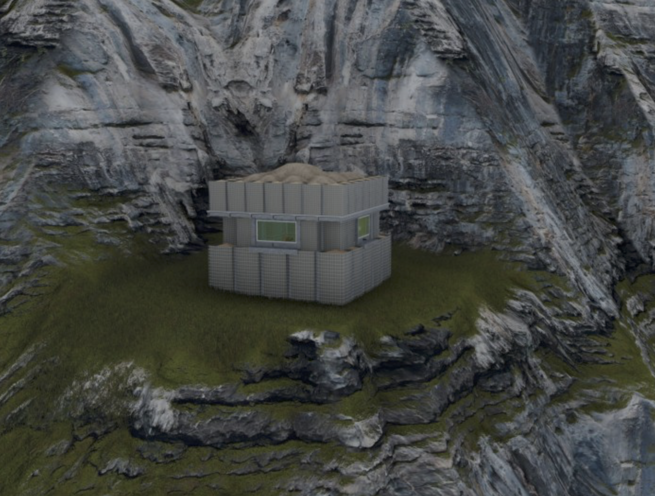

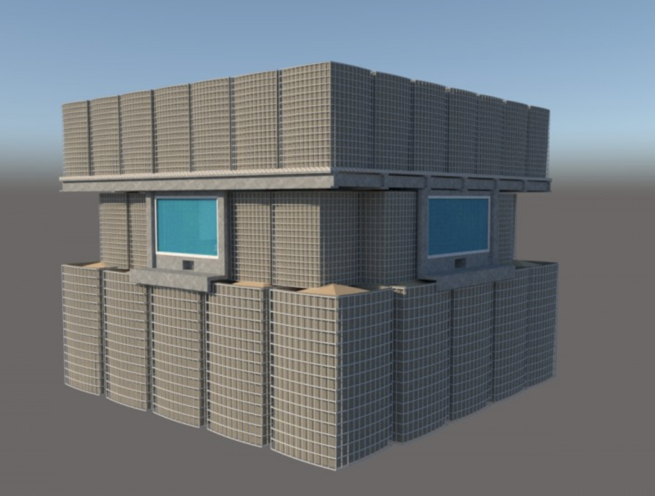

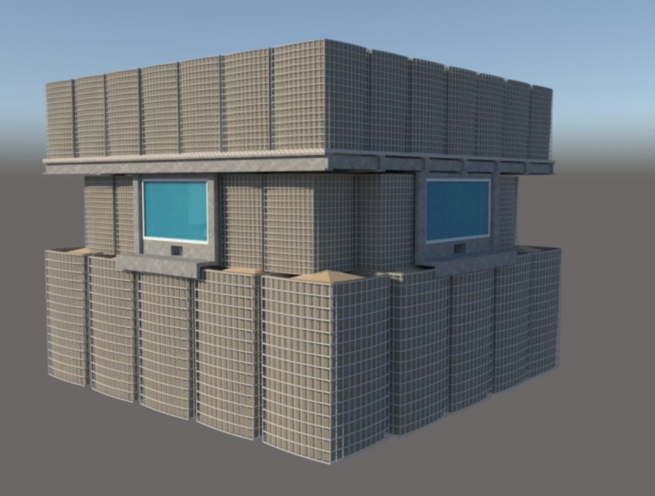

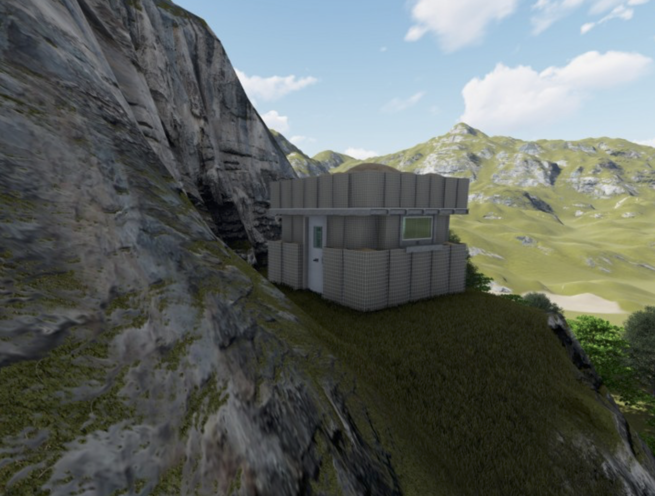

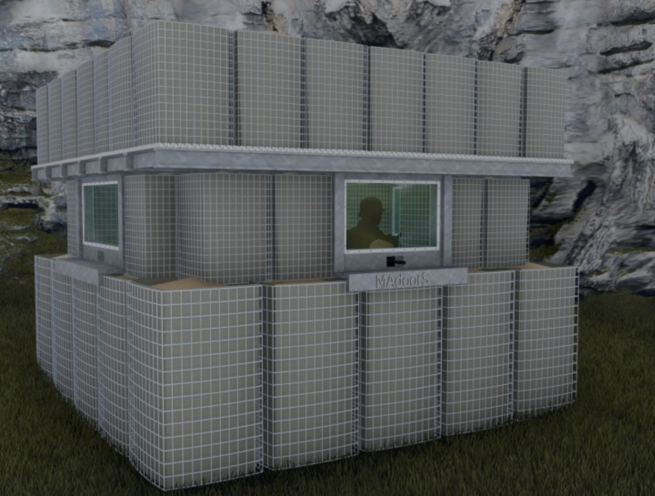

The gabion sand basket guard booth system — constructed from spot-welded, galvanized steel wire baskets combined with springs in an accordion-type folding configuration — uses internally filled sand as the primary ballistic defense mass, with stretchable, non-tearing geotextile fabric retaining the sand within the basket. Bulletproof glass frames and ballistic doors are installed inside the basket structure before sand filling, positioned using special connecting pins, and permanently secured by the sand fill that traps the ballistic frame between the basket walls. This integrated approach allows very fast construction of sand-filled guard towers and booth positions with full ballistic protection, observation capability, and active defensive fighting capability — all in a rapidly deployable, relocatable modular system.
TECHNICAL SPECIFICATIONS
The accordion-type folding gabion basket system is manufactured from spot-welded galvanized steel wires combined with spring connectors, allowing the basket to be folded flat for storage and transport and opened accordion-style for rapid field deployment. Geotextile fabric lines the interior of each basket before sand filling, preventing sand outflow through the wire mesh and maintaining the structural integrity of the sand fill over time. The baskets are designed to withstand rocket launcher impacts, shrapnel fragments from nearby detonations, and direct bullet fire at all calibers covered by the ASTM UL 752 certification range — with the sand fill providing the primary ballistic mass that defeats these threats.
Ballistic glass frame systems and bulletproof door systems are manufactured by Madoors USA to ASTM UL 752 up to Level 9, covering all intermediate levels between Level 1 and Level 9 with full competent authority certification and ballistic test reports for glass, frame, and ballistic steel components at each level. Systems are manufactured to project-specified dimensions with no standard size limitation.
The installation sequence places the modular glass and door systems inside the gabion basket structure before sand filling. Special connecting pins secure the glass frame and door frame to the basket structure at the designated opening positions. When sand is filled into the basket, the ballistic frames become permanently trapped between the basket walls — secured by the surrounding sand mass without requiring external mechanical fixings that would penetrate the basket or compromise the ballistic integrity of the surrounding fill zone.

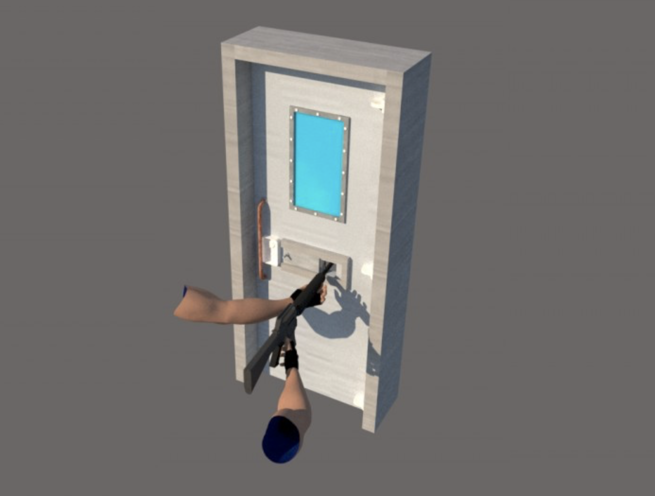

Emergency gun muzzle covers are incorporated into all bulletproof doors and windows — fabricated from ballistic steel and operable from the interior of the booth by the occupying military personnel. In normal operation the covers are closed, maintaining the full ballistic protection of the door and window assembly. In an emergency attack scenario, personnel inside the booth open the hatch and engage threats through the gun muzzle opening from the fully protected interior position.
KEY FEATURES
Accordion Folding Gabion Basket System — Rapid Deployment
The accordion-type folding galvanized steel wire basket system collapses flat for compact storage and transport and expands rapidly in the field without tools or heavy equipment. Once opened and positioned, sand is filled inside to create the primary ballistic protection mass — enabling very fast construction of fully protected guard towers, booth positions, and perimeter walls that would take days or weeks to build using conventional construction methods.
Sand-Trapped Glass & Door Frame Integration
The unique sand-trapped installation method — placing the ballistic glass frames and door frames inside the basket before sand filling and securing them with special connecting pins — creates a structurally integrated observation window and entry door within the ballistic mass of the gabion basket wall. The trapped frame is surrounded on all sides by the ballistic sand fill, eliminating the interface vulnerability present in externally mounted window and door systems and ensuring that the observation window and door ballistic performance is reinforced by the surrounding sand mass.
ASTM UL 752 Level 9 — Maximum Ballistic Protection
The glass, frame, and door systems are available up to ASTM UL 752 Level 9 — the maximum available American ballistic certification level — with full competent authority certification and test reports at every level between Level 1 and Level 9. This complete range coverage allows the appropriate protection level to be specified for each specific deployment threat environment, from light security applications through to the most demanding military forward position scenarios.
Emergency Gun Muzzle Covers — Active Defensive Capability

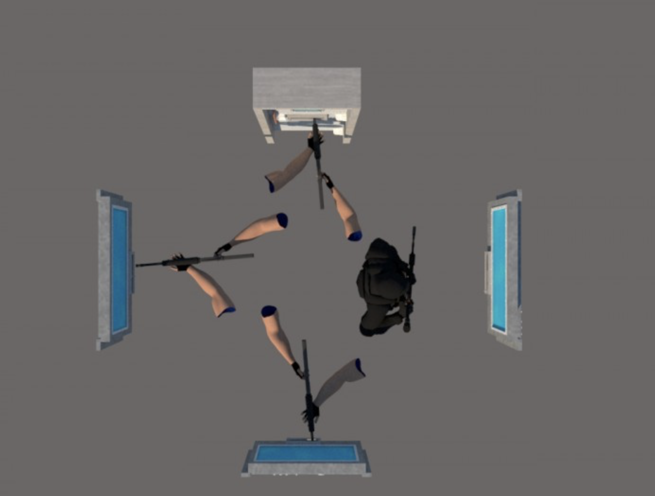

Emergency gun muzzle covers on all bulletproof doors and windows — fabricated from ballistic steel and internally operable — convert every observation window and door position into an active defensive firing position. Personnel inside the booth maintain full ballistic protection from the closed cover when not engaging, and open the hatch to engage threats through the protected muzzle opening during an attack — combining passive observation and active defensive fire capability in a single protected position.
Internal Cover Operation — Protected from Outside Access
All gun muzzle covers are operable exclusively from inside the booth — preventing hostile forces from opening the cover from the exterior and maintaining the ballistic integrity of the observation window and door system against external forced entry attempts. Internal-only operation is the fundamental security principle of the cover mechanism.
Rocket Launcher, Shrapnel & Bullet Protection
The combined gabion sand basket wall and ballistic glass-door system is designed to withstand rocket launcher impacts, high-velocity shrapnel fragments from nearby detonations, and direct bullet fire across the full ASTM UL 752 protection level range. This multi-threat protection capability reflects the full spectrum of threats encountered at military forward position guard booths — where the protection system must defeat both direct fire threats from small arms and secondary fragmentation threats from indirect fire and explosion events.
Geotextile Sand Retention — Long-Term Structural Integrity
Stretchable, non-tearing geotextile fabric lining the interior of each basket prevents sand outflow through the wire mesh and maintains the structural integrity of the sand fill over the operational service life of the gabion wall and booth — ensuring that the primary ballistic protection mass remains complete and intact throughout the deployment period without requiring sand replenishment or basket maintenance.
Project-Based Custom Dimensions
All gabion basket, glass frame, and ballistic door systems are manufactured to project-specified dimensions — with no standard size limitation constraining the configuration. Custom basket dimensions, window opening positions, glass panel sizes, and door dimensions are coordinated and manufactured together to ensure precise alignment and fit at the point of installation.
Multi-Configuration Capability — Booth, Tower, Wall & Arsenal
The same gabion basket and ballistic glass-door system is configurable as a standalone security guard booth, a multi-level observation and guard tower, a perimeter defensive wall, or an arsenal — with the specific configuration determined by the arrangement and stacking of accordion-folding basket sections and the placement of glass and door systems at the designated openings in each configuration. This multi-configuration capability allows a single system inventory to serve all security infrastructure requirements at a military forward position.
Competent Authority Certification — Complete Documentation
All glass, frame, ballistic steel, and door system certifications are issued by competent authority testing institutions, with complete ballistic test reports available at every ASTM UL 752 level. Full documentation — including certification records, test reports, and material specifications — is provided with every project delivery for military procurement compliance, project documentation, and quality assurance purposes.
ASSEMBLY & INSTALLATION SEQUENCE
Basket Production & Window-Door Opening Coordination
Gabion steel baskets are manufactured to the project-specified dimensions with window and door opening positions coordinated between basket production and glass-door frame manufacturing. Opening sizes, positions, and connecting pin locations are confirmed and documented before fabrication commences.
Accordion Basket Expansion & Geotextile Lining
Accordion-type folding baskets are expanded and positioned on the ground at the guard booth or tower construction location. Geotextile fabric lining is verified as correctly positioned within each basket before glass frame and door installation proceeds.
Glass Frame & Door Pre-Assembly
Bulletproof glass frames and ballistic door systems are pre-assembled to the project-specified dimensions. Emergency gun muzzle covers are fitted to all window and door units and internal operation is verified before basket installation.
Glass Frame & Door Placement — Special Connecting Pin Installation
Pre-assembled glass frames and ballistic doors are placed inside the gabion basket at the designated opening positions. Special connecting pins are installed at all specified frame-to-basket connection points, securing the glass frames and door frames to the basket structure in the correct alignment for the window and door openings.
Sand Filling & Frame Trapping
Sand is progressively filled into the basket around the positioned glass frames and door frames, building up the ballistic sand mass on all sides of the frame assemblies. Sand filling is completed to the top of the basket, permanently trapping the ballistic frames between the basket wall structure and the surrounding sand fill.
Multi-Level Tower & Booth Construction
For multi-level tower configurations, additional basket sections are placed on top of the filled ground-floor section with section steel dividers installed between levels. Glass frames and door systems for upper levels are installed in the same pre-sand sequence before each level is filled. Stairway or ladder access between levels is installed as specified.
Operational Verification & Documentation Handover
All glass frame alignments, door operation, gun muzzle cover open-close function, and geotextile sand retention integrity are inspected and verified across the completed booth or tower. ASTM UL 752 certification documentation, competent authority test reports, and installation records are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Bulletproof Glass and Door Systems for Gabion Sand Basket Guard Booths are deployed across the full range of military forward position and security infrastructure applications using accordion-type folding gabion basket construction.
- Military forward operating base perimeter gabion guard booths
- Combat outpost and patrol base gabion observation towers
- Military checkpoint gabion sand basket security booth
- Border security gabion tower and guard post construction
- Military perimeter gabion wall observation and firing positions
- Rapidly deployed forward position gabion fighting positions
- Military camp main gate gabion guard booth installation
- Peacekeeping mission perimeter gabion tower construction
- Counter-terrorism operation forward gabion security position
- Military arsenal gabion sand basket protected storage construction
- Police tactical operation temporary gabion security booth
- Critical infrastructure perimeter gabion guard post
- Convoy protection temporary gabion defensive position
- Emergency gabion perimeter establishment at forward positions
- Military exercise gabion defensive position construction
