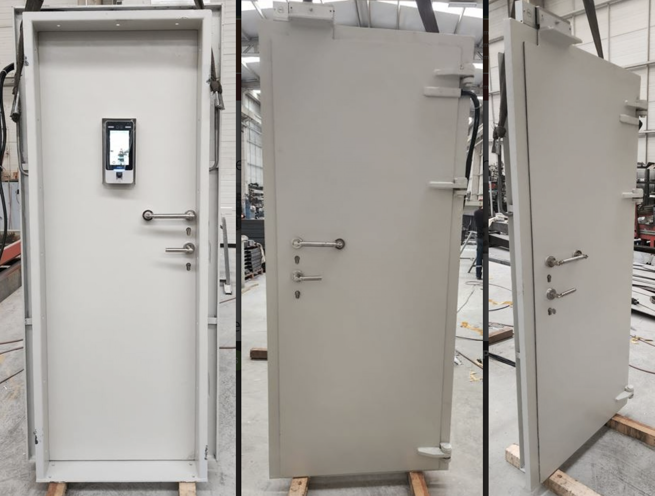

Bulletproof Armoured Hinged Door
The Madoors USA BPD-5000 Bulletproof Armoured Hinged Door is a certified ballistic steel personnel door manufactured to EN 1522 standards from FB1 through FB7 levels, NIJ standards at Level 3A, Level 3, and Level 4, and UL 752 standards at Level 8, Level 9, and Level 10 — produced by Madoors USA with over 25 years of certified door system manufacturing experience. Beyond the primary ballistic protection, the BPD-5000 can be manufactured with any combination of theft and vandalism resistance to EN 1627-30, fire resistance from REI30 to REI120 and A60 to H120 to IMO standards, explosion resistance of 1 to 5 bar to EN 13123-1 and ASTM F2927, gas tightness Class 1 to 4 to EN 1026, and sound insulation from 36 dB to 51 dB — providing a single door solution addressing every security and performance requirement of the most demanding installation.
TECHNICAL SPECIFICATIONS
The Madoors USA BPD-5000 is manufactured from high-strength ballistic steel with ballistic coating materials providing the certified protection level at the specified EN 1522, NIJ, or UL 752 standard. The door body is constructed to the structural requirements of the specified protection level — the steel thickness, core material, and ballistic coating composition are engineered for the confirmed threat level. Three or four heavy-duty hinges are used depending on door weight and size — heavy-duty hinge specification is the structural requirement for doors that must maintain their ballistic protection performance under the stress of daily operation and forced entry attempts without hinge failure or door sag that would compromise the frame seal.
The complete multi-standard certification range covers the full threat spectrum from standard handgun protection at the lower levels through high-powered rifle and military assault weapon threats at the highest levels. EN 1522 FB1 to FB7 covers the European ballistic classification from 9mm handgun through 7.62mm armor-piercing rifle. NIJ Level 3A covers handgun threats including .44 Magnum. NIJ Level 3 covers rifle threats including 7.62mm NATO. NIJ Level 4 covers armor-piercing rifle threats. UL 752 Levels 8, 9, and 10 cover the highest American standard ballistic protection classifications.
Electrostatic powder paint in any RAL color, wood veneer, glass, and stainless steel coating options provide the architectural finish required for integration into any building design — the ballistic door presents the appearance of a standard architectural door in the specified finish while providing certified ballistic protection within the door body.
Manual operation is standard — the door operates as a standard hinged door for daily use. Automatic motor drive and electro-mechanical magnetic lock systems are available for automated access control integration.
KEY FEATURES
EN 1522 FB1–FB7, NIJ Level 3A/3/4 & UL 752 Level 8/9/10 — Multi-Standard Certification
The three-standard multi-level certification range provides the most comprehensive international procurement compliance documentation available — EN 1522 for European government, military, and institutional procurement, NIJ for American law enforcement and government procurement, and UL 752 for American commercial and institutional procurement. Multi-standard certification eliminates the project-specific certification concern for international clients and satisfies the ballistic door specification requirements across all major global procurement frameworks from a single door product.
Optional Fire Resistance — REI30 to REI120 & A60 to H120
The fire resistance options from REI30 to REI120 under ISO standards and A60 to H120 under IMO standards allow the BPD-5000 to simultaneously satisfy the ballistic protection and fire compartmentation requirements at the same door position — eliminating the separate ballistic door and fire door installation that non-combined systems require. The REI120 and H120 maximum fire resistance ratings cover the most demanding fire safety specifications for high-occupancy and critical infrastructure applications.
Optional Explosion Resistance — 1 to 5 Bar
The explosion resistance from 1 to 5 bar positive burst pressure to EN 13123-1 and ASTM F2927 provides blast protection alongside ballistic protection — critical for embassy, military, and government facility doors where both vehicle-borne explosive and direct fire threats must be addressed simultaneously. The 5-bar maximum rating covers significant explosion overpressure from substantial explosive events at realistic stand-off distances from the door position.
Optional Theft & Vandalism Resistance — EN 1627-30
The theft and vandalism resistance certification to EN 1627-30 provides the forced entry resistance classification required for insurance compliance, physical security procurement specifications, and any application where the door must resist manual attack tools and mechanical forced entry attempts in addition to ballistic threats. EN 1627-30 resistance levels cover the full range from basic resistance through to resistance against experienced attack teams with power tools.
Optional Gas Tightness — Class 1 to 4
Gas tightness from Class 1 to 4 to EN 1026 provides the controlled atmosphere sealing required for CBRN protection applications, chemical facility doors, clean room access, and any position where the door must prevent gas infiltration between compartments. Combined with the ballistic and explosion resistance options, gas tightness makes the BPD-5000 the complete multi-hazard protection door for the most demanding protective environment applications.
36 to 51 dB Sound Insulation
The sound insulation range from 36 to 51 dB provides the acoustic performance required for secure meeting rooms, classified communication facilities, executive protection rooms, and any application where acoustic privacy is required alongside physical security. The 51 dB maximum sound reduction index covers the most demanding acoustic isolation requirements for SCIFs and classified government facilities.
3 or 4 Heavy-Duty Hinges — Long-Term Structural Integrity
The three or four heavy-duty hinge specification maintains the door's structural alignment, ballistic protection performance, and frame seal integrity throughout the door's service life under the stress of daily use, forced entry attempts, and the deadweight of the heavy ballistic steel construction. Inadequate hinges are the most common failure point of heavy security doors — Madoors USA specifies heavy-duty hinges matched to the specific door weight and protection level.
25+ Years Certified Door Manufacturing — Professional Expertise
The over 25 years of certified door system manufacturing experience directly supports the quality and reliability of the BPD-5000 — the engineering knowledge accumulated across hundreds of certified ballistic door installations is applied to every project, ensuring that the specified protection level is reliably achieved in the manufactured door.
PROTECTION LEVEL COMPARISON
EN 1522 FB1 — 9mm Luger, FMJ round nose. Standard handgun protection.
EN 1522 FB2 — 9mm Luger, FMJ round nose, higher velocity.
EN 1522 FB3 — .357 Magnum, JSP.
EN 1522 FB4 — .44 Magnum, SJHP.
EN 1522 FB5 — 5.56 × 45 NATO, SS109.
EN 1522 FB6 — 7.62 × 51 NATO, FMJ.
EN 1522 FB7 — 7.62 × 51 NATO, hard core armor-piercing.
NIJ Level 3A — .44 Magnum, .357 SIG.Handgun protection.
NIJ Level 3 — 7.62 × 51 NATO M80 ball. Rifle protection.
NIJ Level 4 — 7.62 × 63 AP M2. Armor-piercing rifle protection.
UL 752 Level 8 — Multiple 7.62 rifle shots.
UL 752 Level 9 — Multiple 7.62 armor-piercing shots.
UL 752 Level 10 — Shotgun, multiple rounds.
ASSEMBLY & INSTALLATION SEQUENCE
Threat Assessment & Protection Level Selection
The threat level — ballistic standard and level, explosion resistance requirement, fire resistance requirement, gas tightness requirement, theft resistance requirement, and sound insulation requirement — is confirmed for the specific installation position. Door dimensions and hinge count are confirmed.
Ballistic Steel Door Manufacturing
The door body is manufactured from high-strength ballistic steel to the confirmed protection level specification. Ballistic coating is applied. Optional fire, explosion, and gas tightness elements are integrated during manufacturing. Electrostatic powder paint, wood, glass, or stainless coating is applied per the RAL specification.
Ballistic Frame & Hinge Installation
The ballistic door frame is installed in the structural opening. Three or four heavy-duty hinges are mounted at the confirmed positions. Frame-to-wall ballistic continuity and structural connection for the door weight are verified.
Door Hanging & Alignment
The BPD-5000 door is hung on the heavy-duty hinges. Door alignment within the frame, frame seal contact at all perimeter positions, and smooth operation through the full swing arc are verified.
Lock System Installation
Manual lock system or optional automatic motor drive and electro-mechanical magnetic lock are installed. Lock engagement, emergency release, and access control interface are tested.
Certification Documentation & Handover
EN 1522, NIJ, UL 752, and all optional standard certifications — fire, explosion, gas, theft, and acoustic — are compiled into the project handover package. 25-year manufacturer experience documentation is provided.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA BPD-5000 Bulletproof Armoured Hinged Doors are specified for any facility requiring certified multi-level ballistic personnel door protection.
- Embassy and diplomatic mission bulletproof personnel doors
- Military command and control facility ballistic doors
- Government ministry and ministry high-security doors
- Presidential and VIP protection facility doors
- Bank vault room and cash handling area ballistic doors
- Police station custody and high-security area doors
- Prison and correctional facility high-security doors
- Courthouse and justice facility secure area doors
- Nuclear facility and critical infrastructure personnel doors
- Corporate headquarters and CEO protection office doors
- Data center and server room high-security access doors
- Hospital and healthcare facility security personnel doors
- Airport and transport hub high-security zone doors
- Military barracks and accommodation security doors
- Any facility requiring EN 1522, NIJ, or UL 752 certified bulletproof personnel door protection
- Category: Personnel Doors
